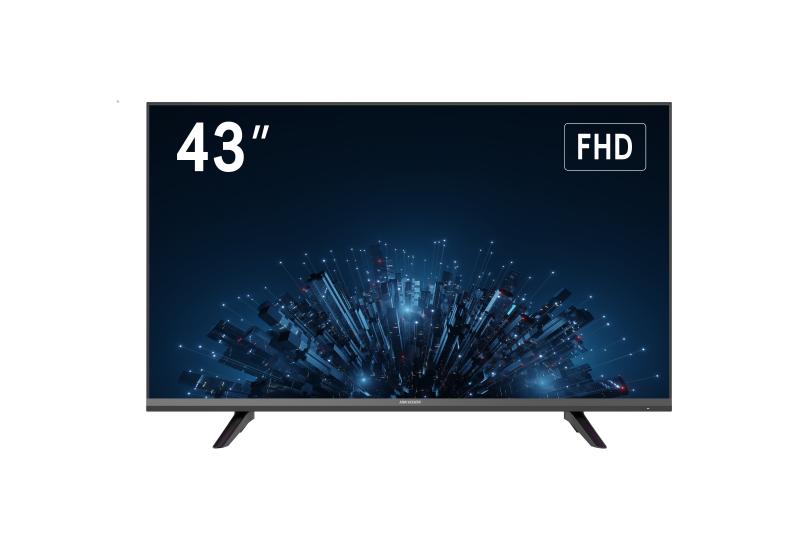

Hikvision DS-D5043F3-1V0S 43-Inch Full HD VA Monitor with 2 × 10 W Speakers, HDMI, VGA & USB, 24/7 Rated

https://arcip.com.au/web/image/product.template/9995/image_1920?unique=6bbe47d
  • 43-inch Full HD 1920 × 1080 VA panel, 300 cd/m²
  • 6.5 ms typical response, 4000:1 contrast
  • HDMI 1.4, VGA, USB 2.0 and line out
  • Built-in 2 × 10 W speakers and 100–240 VAC supply
  • Rated 7 × 24 h; VESA 200 × 200 mm; remote included

$ 539.34 539.34 AUD $ 539.34 incl. GST

Not Available For Sale


  • Brand
  • Resolution
  • Power Input
  • Video Input
  • Monitor Size
  • VESA Pattern
  • Panel Type
  • Refresh Rate
  • Response Time
  • Built-in Speakers
  • Duty Rating

This combination does not exist.

In stock online
Hikvision CCTV Monitor Full HD Monitor
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-D5043F3-1V0S
Tags
At a glance

The Hikvision DS-D5043F3-1V0S is a 43-inch Full HD (1920 × 1080) VA monitor with a 6.5 ms response time, HDMI, VGA and USB 2.0 ports, 2 × 10 W speakers and a built-in 100–240 VAC power supply. Rated 7 × 24 h, it is a large wall screen for control rooms and public-view displays.

Screen size
43-inch
Resolution
1920 × 1080 @ 60 Hz
Panel
VA, D-LED backlight, 8-bit
Response time
6.5 ms (typ.)
Brightness
300 cd/m²
Ports
HDMI 1.4, VGA, USB 2.0, line out
Speakers
2 × 10 W built in
VESA
200 × 200 mm (M6)

Key Features

43″ Full HD
7 × 24 h Rated
2 × 10 W Speakers
Built-in AC Supply
HDMI, VGA & USB
VESA 200 × 200

Why choose the DS-D5043F3-1V0S

The Hikvision DS-D5043F3-1V0S is the big screen in the range — a 43-inch Full HD VA panel that keeps a 16-camera split legible from the far side of a room or a public-view position. It has 300 cd/m² brightness, a 4000:1 contrast ratio, 178° viewing angles and a quick 6.5 ms response time. Hikvision rates it for 7 × 24 h operation and builds in a 100–240 VAC power supply, so a wall installation needs only a mains outlet and an HDMI or VGA run. Two 10 W speakers, a line output and a USB 2.0 port are fitted, and a remote control is included. The ultra-thin three-side border (1.1 mm) and VESA 200 × 200 mm pattern suit a clean wall mount. Supplied by ARC IP Networks with genuine Australian stock and local support.

Good to know: at 43 inches and 6.85 kg this is a wall-scale screen. Hikvision pairs it with its DS-DM4255W wall bracket; any bracket you use must match the VESA 200 × 200 mm pattern (4 × M6 × 8 mm) and be fixed to a wall that can carry the load.

Best for

  • Control and monitoring rooms: a 43-inch screen for large camera splits.
  • Public-view monitors: a large, visible deterrent at entries and checkouts.
  • Always-on display: rated by Hikvision for 7 × 24 h operation.
  • Clean wall installs: built-in mains supply, slim border and VESA 200 × 200 mm.
  • Mixed sources: HDMI 1.4 and VGA inputs plus a USB 2.0 port.

Who it’s for

Retail

Public-view screens at entries, aisles and checkouts.

Hospitality & venues

Large live-view walls for floor managers and security.

Warehousing & logistics

Site-wide camera walls in the dispatch office.

Education & healthcare

Front-office and security-desk monitoring.

Trade & industrial

Gate, yard and plant views at the site office.

Integrators

A 24/7-rated large screen to complete a Hikvision install.

DS-D5043F3-1V0S
Hikvision DS-D5043F3-1V0S — 43-inch Full HD VA Monitor with 2 × 10 W Speakers, HDMI, VGA & USB

Features

  • 43-inch VA panel, 1920 × 1080 @ 60 Hz, 8-bit colour
  • 6.5 ms typical response time
  • 300 cd/m² brightness, 4000:1 contrast ratio
  • 178° horizontal and vertical viewing angles
  • Rated for 7 × 24 h operation
  • HDMI 1.4 and VGA inputs, USB 2.0 port, 3.5 mm line out
  • Built-in speakers, 2 × 10 W (8 Ω)
  • Built-in 100–240 VAC power supply
  • 3D noise reduction and low blue light design
  • Ultra-thin 1.1 mm border on three sides; VESA 200 × 200 mm

Specifications

Display
Screen size43-inch
Active display area950.896 (H) × 529.254 (V) mm
Panel typeVA
Resolution1920 × 1080 @ 60 Hz
BacklightD-LED
Pixel pitch0.49005 × 0.49005 mm
Brightness300 cd/m²
Viewing angle178° / 178°
Colour depth8-bit
Contrast ratio4000:1
Response time6.5 ms (typ.)
Refresh rate60 Hz
Haze25%
Colour gamut72% NTSC
Reliability7 × 24 h
Interface
Video inputHDMI 1.4 × 1, VGA × 1
Audio outputLine out (3.5 mm) × 1; built-in speakers × 2 (8 Ω, 10 W)
Data interfaceUSB 2.0 × 1
Power
Power supply100–240 VAC, 50/60 Hz, 1.0 A max (built in)
Power consumption≤ 80 W
Standby consumption≤ 0.5 W
Working environment
Operating humidity20% to 90% RH, non-condensing
Storage temperature−20 °C to 60 °C
General
CasingPlastic

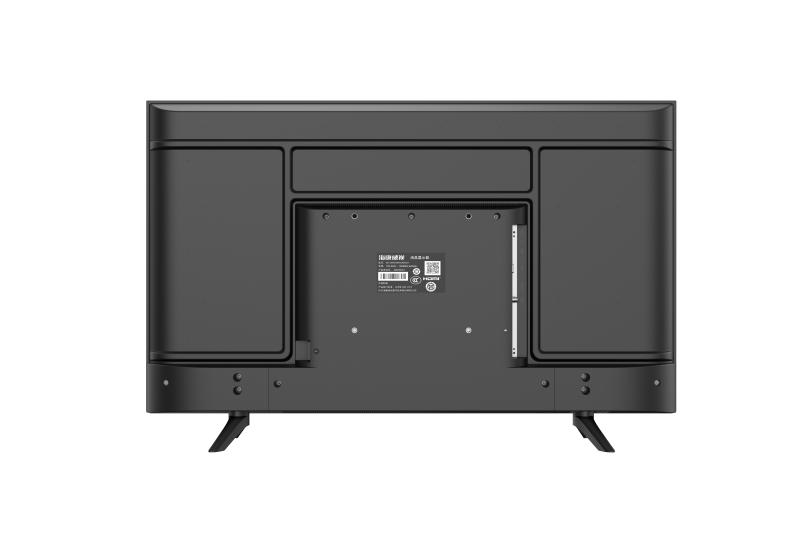

VESA200 × 200 mm (4 × M6 × 8 mm)
Bezel width1.1 mm (top/left/right), 24 mm (bottom)

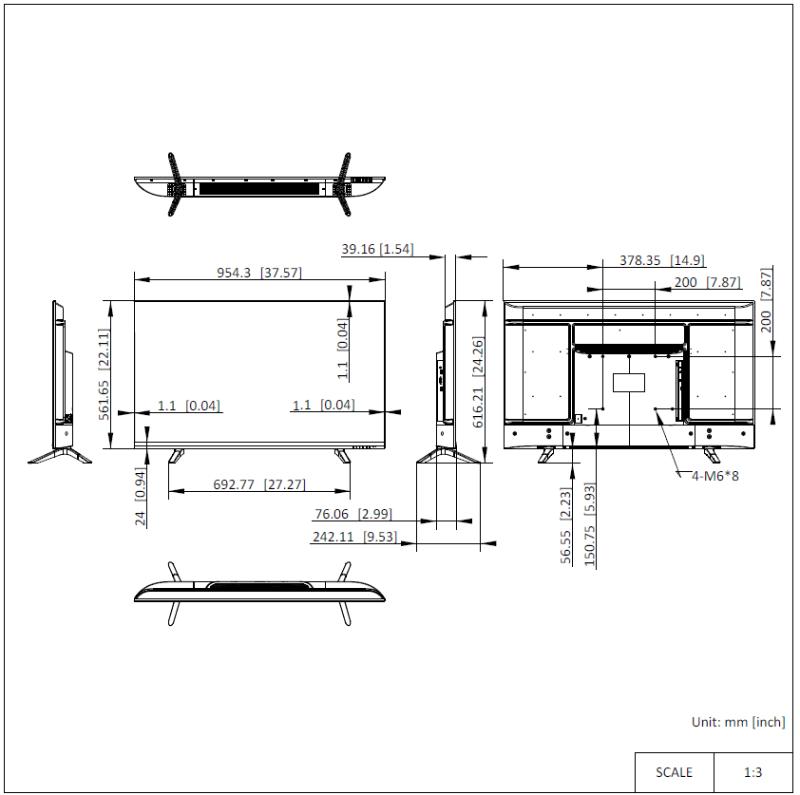

Dimensions without base954.3 × 561.65 × 76.06 mm (W × H × D)
Dimensions with base954.3 × 616.21 × 242.11 mm
Net weight6.85 ± 0.5 kg
In the boxMonitor, base, power cable, 1.5 m HDMI cable, remote control, 6 screws, manuals
Optional accessory (Hikvision)DS-DM4255W wall-mounted bracket

Specifications from the official Hikvision datasheet and product page. Dimensions and weights are nominal.

Professional Overview

The Hikvision DS-D5043F3-1V0S is a 43-inch Full HD monitor for large-format surveillance viewing — a control room, security desk, staff area or a public-view position where a big, clear picture matters. Its VA panel resolves 1920 × 1080 at 60 Hz with 178° viewing angles.

Image specifications are strong for the class: 300 cd/m² brightness from a D-LED backlight, 4000:1 contrast, 8-bit colour with a 72% NTSC gamut and a typical 6.5 ms response time. Hikvision adds 3D noise reduction and a low-blue-light design for operators watching for long shifts.

Mains power connects directly to the built-in 100–240 VAC supply (80 W or less), video arrives over HDMI 1.4 or VGA, and the monitor adds a USB 2.0 port, a 3.5 mm line output and two built-in 10 W speakers. A remote control is included.

Hikvision rates it for 7 × 24 h operation. The 1.1 mm border on three sides and VESA 200 × 200 mm pattern make for a neat wall installation — Hikvision lists the DS-DM4255W as its optional bracket. Australian stock from ARC IP Networks.

How it compares

Hikvision’s Value Series monitors share a Full HD VA panel and HDMI + VGA inputs. The choice comes down to screen size and viewing distance, speaker power and whether the monitor has a built-in mains supply.

FeatureDS-D5022F2-1V2S21.5-inchDS-D5024F2-BV2S23.8-inchDS-D5032F3-1V0S32-inchDS-D5043F3-1V0SThis monitor
Screen size21.5″23.8″32″43″
Resolution1920 × 10801920 × 10801920 × 10801920 × 1080
Panel / backlightVA / E-LEDVA / E-LEDVA / D-LEDVA / D-LED
Refresh rateMax. 100 HzMax. 100 HzMax. 75 Hz60 Hz
Response time8 ms7 ms8 ms6.5 ms (typ.)
Brightness250 cd/m²250 cd/m²300 cd/m²300 cd/m²
InputsHDMI 1.4, VGA, audio inHDMI 1.4, VGA, audio inHDMI 1.4, VGAHDMI 1.4, VGA, USB 2.0
Speakers2 × 2 W2 × 2 W2 × 10 W2 × 10 W
Power12 VDC adapter, ≤ 24 W12 VDC adapter, ≤ 24 W100–240 VAC, ≤ 48 W100–240 VAC, ≤ 80 W
VESA75 × 75 mm75 × 75 mm100 × 100 mm200 × 200 mm
Duty rating (datasheet)7 × 24 h7 × 16 h7 × 24 h7 × 24 h
Remote control——IncludedIncluded

All four are Full HD VA monitors with a desk base included. Figures from the official Hikvision datasheets; model names link to full specs and live pricing.

Complete your system

Pair the monitor with a Hikvision NVR — a large screen suits larger systems, such as the 16-channel DS-7616NI-M2/16P. For wall mounting, use a bracket rated for the screen and its VESA 200 × 200 mm pattern.

Browse Hikvision NVRs →

Works with your system

Plug straight into your recorder. Hikvision NVRs and DVRs output video over HDMI, and many models also over VGA — connect either to this monitor, then set the recorder’s output resolution to 1920 × 1080 to match the panel for a sharp, correctly scaled multi-camera live view.

Hikvision NVRs & DVRs

The recorder’s HDMI (or VGA) output drives live view, playback and the local menu directly — no PC needed.

PCs & VMS workstations

Use it as a second screen for iVMS-4200 or HikCentral client software on a control-room PC.

HDMI 1.4 + VGA

Digital HDMI for current recorders; analogue VGA for older recorders and PCs that lack HDMI.

USB 2.0 + line out

A USB 2.0 port and a 3.5 mm line output for external powered speakers sit alongside the built-in 10 W speakers.

VESA mounting

Remove the desk base and fix it to a wall bracket or monitor arm using the VESA holes on the back.

Full HD 1920 × 1080

Native Full HD — ideal for 4, 9 or 16-camera split screens from a recorder’s 1080p output.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

Hikvision monitorsNVR recordersDome & turret camerasBullet camerasWhere to buy

Frequently asked questions

It is a Full HD 1920 × 1080 @ 60 Hz monitor with a 43-inch VA panel. Set your NVR or DVR output to 1920 × 1080.

Yes — Hikvision’s datasheet rates it for 7 × 24 h reliability.

No. It has a built-in 100–240 VAC, 50/60 Hz supply (1.0 A max), with consumption of 80 W or less. A power cable is included.

HDMI 1.4 × 1 and VGA × 1 for video, a USB 2.0 port, and a 3.5 mm line output for external speakers.

Yes — two built-in 10 W speakers (8 Ω), plus a 3.5 mm line out.

200 × 200 mm with 4 × M6 × 8 mm screws. Hikvision lists the DS-DM4255W as its optional wall bracket; whatever bracket you choose must suit a 43-inch, 6.85 kg screen and the wall it is fixed to.

Yes. Connect the recorder’s HDMI output (or VGA, where the recorder has one); live view, playback and setup run on the recorder’s own on-screen interface.

The monitor, base, power cable, a 1.5 m HDMI cable, a remote control, six screws and the manuals.
Brand Hikvision
Resolution 1920 x 1080 (Full HD)
Power Input 100–240V AC (built-in supply)
Video Input HDMI 1.4 + VGA
Monitor Size 43 inch
VESA Pattern 200 x 200 mm
Panel Type VA
Refresh Rate 60 Hz
Response Time 6.5 ms
Built-in Speakers 2 × 10 W
Duty Rating 7 × 24 h
