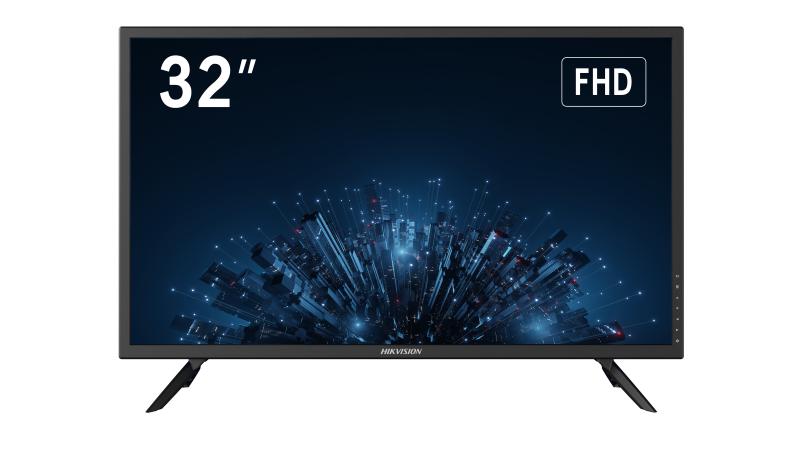

Hikvision DS-D5032F3-1V0S 32-Inch Full HD 75 Hz VA Monitor with 2 × 10 W Speakers, HDMI & VGA, 24/7 Rated

https://arcip.com.au/web/image/product.template/9994/image_1920?unique=6bbe47d
  • 32-inch Full HD 1920 × 1080 VA panel, 300 cd/m²
  • Up to 75 Hz refresh, 8 ms response
  • HDMI 1.4 and VGA inputs, 3.5 mm audio out
  • Built-in 2 × 10 W speakers and 100–240 VAC supply
  • Rated 7 × 24 h; VESA 100 × 100 mm; remote included

$ 358.70 358.7 AUD $ 358.70 incl. GST

Not Available For Sale


  • Brand
  • Resolution
  • Power Input
  • Video Input
  • Monitor Size
  • VESA Pattern
  • Panel Type
  • Refresh Rate
  • Response Time
  • Built-in Speakers
  • Duty Rating

This combination does not exist.

In stock online
Hikvision CCTV Monitor Full HD Monitor
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-D5032F3-1V0S
Tags
At a glance

The Hikvision DS-D5032F3-1V0S is a 32-inch Full HD (1920 × 1080) VA monitor with up to 75 Hz refresh, HDMI and VGA inputs, 2 × 10 W speakers and a built-in 100–240 VAC power supply. Rated 7 × 24 h, it is a wall- or desk-mounted screen for monitoring rooms and staff areas.

Screen size
32-inch (81.3 cm)
Resolution
1920 × 1080 Full HD
Panel
VA, D-LED backlight, 8-bit
Refresh rate
Max. 75 Hz (typ. 60 Hz)
Brightness
300 cd/m²
Inputs
HDMI 1.4 × 1, VGA × 1
Speakers
2 × 10 W built in
VESA
100 × 100 mm (M6)

Key Features

32″ Full HD
7 × 24 h Rated
2 × 10 W Speakers
Built-in AC Supply
HDMI + VGA
VESA 100 × 100

Why choose the DS-D5032F3-1V0S

The Hikvision DS-D5032F3-1V0S is sized for viewing from across a room. Its 32-inch Full HD VA panel makes a 16-camera split readable from a few metres away, with 300 cd/m² brightness, a 4000:1 contrast ratio and 178° viewing angles. Hikvision rates it for 7 × 24 h operation, and it has a built-in 100–240 VAC power supply — no external power brick to hide behind a wall-mounted screen. Two 10 W speakers are built in, there is a 3.5 mm audio output for external speakers, and a remote control is included. Inputs are HDMI 1.4 and VGA. Supplied by ARC IP Networks with genuine Australian stock and local support.

Good to know: this monitor has no 3.5 mm audio input — its audio port is an output. Hikvision’s packing list includes the desk base, a 1.5 m HDMI cable, remote control and wall-mount screws.

Best for

  • Staff rooms and offices: a 32-inch screen readable from across the room.
  • Always-on monitoring: rated by Hikvision for 7 × 24 h operation.
  • Wall-mounted displays: internal mains supply and VESA 100 × 100 mm.
  • Public-view monitors: a visible deterrent at entries and checkouts.
  • Sites with older DVRs: VGA input alongside HDMI.

Who it’s for

Retail

Public-view screens at entries and self-checkouts.

Hospitality

Wall-mounted live view in managers’ offices and bars.

Warehousing & logistics

Yard, dock and gate views for the dispatch office.

Education

Front-office and admin monitoring of entries and grounds.

Trade & industrial

Workshop and yard viewing from the site office.

Installers

A matched, 24/7-rated Hikvision screen for handover.

DS-D5032F3-1V0S
Hikvision DS-D5032F3-1V0S — 32-inch Full HD 75 Hz VA Monitor with 2 × 10 W Speakers, HDMI & VGA

Features

  • 32-inch VA panel, 1920 × 1080 Full HD, 8-bit colour
  • Refresh rate up to 75 Hz (typ. 60 Hz), 8 ms response time
  • 300 cd/m² brightness, 4000:1 contrast ratio
  • 178° horizontal and vertical viewing angles
  • Rated for 7 × 24 h operation
  • HDMI 1.4 and VGA inputs; 3.5 mm audio output
  • Built-in speakers, 2 × 10 W (8 Ω)
  • Built-in 100–240 VAC power supply
  • 3D noise reduction and low blue light design
  • VESA 100 × 100 mm; desk base and remote control included

Specifications

Display
Screen size32-inch (81.3 cm)
Active display area698.4 (H) × 392.85 (V) mm
Panel typeVA
Resolution1920 × 1080
BacklightD-LED
Pixel pitch0.12125 (H) × 0.36375 (V) mm
Brightness300 cd/m²
Viewing angle178° (H) / 178° (V)
Colour depth8-bit
Contrast ratio4000:1
Response time8 ms
Refresh rateTyp. 60 Hz, max. 75 Hz
Haze2%
Colour gamut72% NTSC
Reliability7 × 24 h
Interface
Video inputHDMI 1.4 × 1, VGA × 1
Audio output3.5 mm audio out × 1; built-in speakers × 2 (8 Ω, 10 W)
Data / control interfaceNone
Power
Power supply100–240 VAC, 50/60 Hz (built in)
Power consumption≤ 48 W
Standby consumption≤ 0.5 W
Working environment
Operating temperature0 °C to 40 °C
Operating humidity20% to 90% RH, non-condensing
Storage temperature−20 °C to 60 °C
General
CasingPlastic

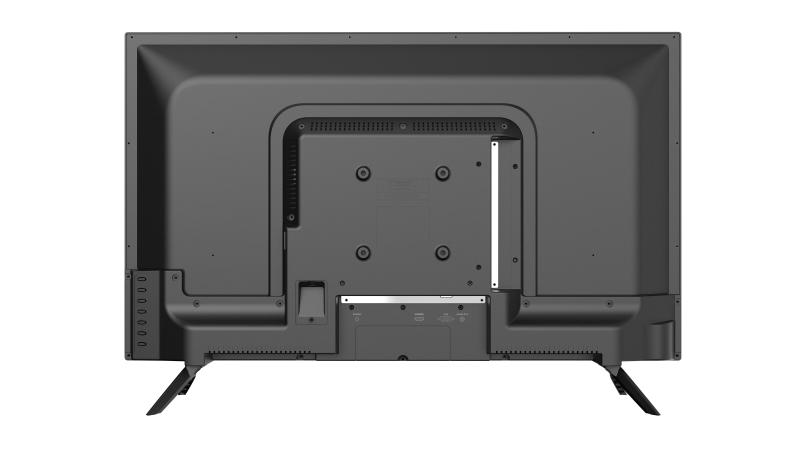

VESA100 × 100 mm (4 × M6 × 10 mm)
Bezel width16.7 mm (top/left/right), 20.5 mm (bottom)

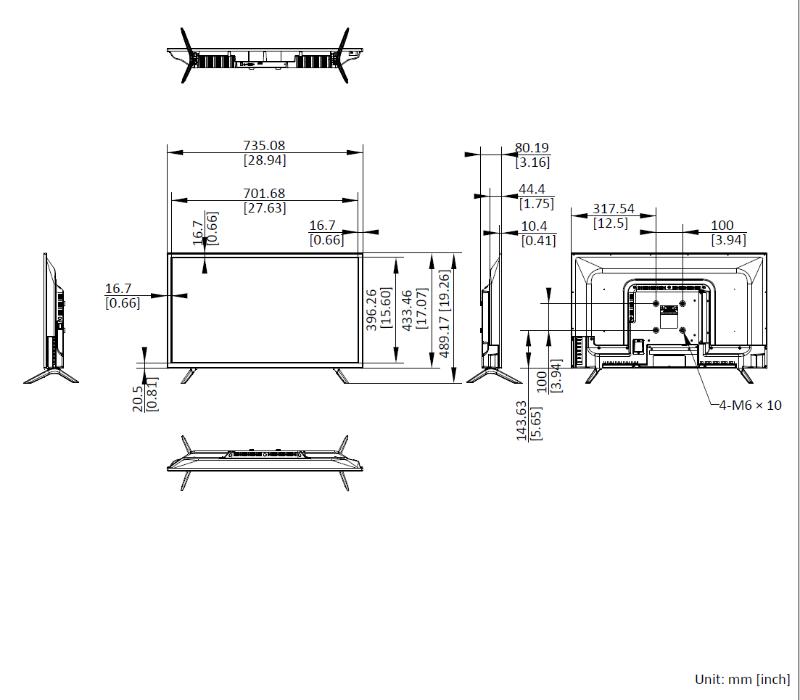

Dimensions with base735.08 × 489.16 × 207.95 mm (W × H × D)
Dimensions without base735.08 × 433.46 × 80.19 mm
Net weight4.55 ± 0.5 kg
In the boxMonitor, base, 1.5 m HDMI cable, remote control, 6 base screws, 4 wall-mount screws, manuals
Optional accessory (Hikvision)DS-DM1940W wall-mounted bracket

Specifications from the official Hikvision datasheet and product page. Dimensions and weights are nominal.

Professional Overview

The Hikvision DS-D5032F3-1V0S is a 32-inch Full HD monitor for surveillance viewing from a distance — a staff room, a manager’s office wall, a dispatch desk or a public-view position at a shop entry. Its VA panel resolves 1920 × 1080 with 178° viewing angles, so the picture holds up when viewed from the side of a room.

Brightness is 300 cd/m² from a D-LED backlight, contrast is 4000:1 and colour gamut is 72% NTSC. Refresh is up to 75 Hz (60 Hz typical) with an 8 ms response time, and Hikvision’s 3D noise reduction helps with grainy night footage.

Installation is tidy. Mains power goes straight into the monitor’s built-in 100–240 VAC supply, video comes in over HDMI 1.4 or VGA, and two 10 W speakers are built in, with a 3.5 mm audio output for external speakers. A remote control is included.

Hikvision rates the panel for 7 × 24 h operation. The VESA 100 × 100 mm pattern and supplied wall-mount screws suit a wall bracket — Hikvision lists the DS-DM1940W as its optional bracket. Australian stock from ARC IP Networks.

How it compares

Hikvision’s Value Series monitors share a Full HD VA panel and HDMI + VGA inputs. The choice comes down to screen size and viewing distance, speaker power and whether the monitor has a built-in mains supply.

FeatureDS-D5022F2-1V2S21.5-inchDS-D5024F2-BV2S23.8-inchDS-D5032F3-1V0SThis monitorDS-D5043F3-1V0S43-inch
Screen size21.5″23.8″32″43″
Resolution1920 × 10801920 × 10801920 × 10801920 × 1080
Panel / backlightVA / E-LEDVA / E-LEDVA / D-LEDVA / D-LED
Refresh rateMax. 100 HzMax. 100 HzMax. 75 Hz60 Hz
Response time8 ms7 ms8 ms6.5 ms (typ.)
Brightness250 cd/m²250 cd/m²300 cd/m²300 cd/m²
InputsHDMI 1.4, VGA, audio inHDMI 1.4, VGA, audio inHDMI 1.4, VGAHDMI 1.4, VGA, USB 2.0
Speakers2 × 2 W2 × 2 W2 × 10 W2 × 10 W
Power12 VDC adapter, ≤ 24 W12 VDC adapter, ≤ 24 W100–240 VAC, ≤ 48 W100–240 VAC, ≤ 80 W
VESA75 × 75 mm75 × 75 mm100 × 100 mm200 × 200 mm
Duty rating (datasheet)7 × 24 h7 × 16 h7 × 24 h7 × 24 h
Remote control——IncludedIncluded

All four are Full HD VA monitors with a desk base included. Figures from the official Hikvision datasheets; model names link to full specs and live pricing.

Complete your system

Pair the monitor with a Hikvision NVR — for a 32-inch screen, a 16-channel recorder such as the DS-7616NI-M2/16P makes good use of the space. Hikvision lists the DS-DM1940W wall-mounted bracket as an optional accessory for this monitor.

Browse Hikvision NVRs →

Works with your system

Plug straight into your recorder. Hikvision NVRs and DVRs output video over HDMI, and many models also over VGA — connect either to this monitor, then set the recorder’s output resolution to 1920 × 1080 to match the panel for a sharp, correctly scaled multi-camera live view.

Hikvision NVRs & DVRs

The recorder’s HDMI (or VGA) output drives live view, playback and the local menu directly — no PC needed.

PCs & VMS workstations

Use it as a second screen for iVMS-4200 or HikCentral client software on a control-room PC.

HDMI 1.4 + VGA

Digital HDMI for current recorders; analogue VGA for older recorders and PCs that lack HDMI.

Audio output

A 3.5 mm audio output feeds external powered speakers; two 10 W speakers are also built in.

VESA mounting

Remove the desk base and fix it to a wall bracket or monitor arm using the VESA holes on the back.

Full HD 1920 × 1080

Native Full HD — ideal for 4, 9 or 16-camera split screens from a recorder’s 1080p output.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

Hikvision monitorsNVR recordersDome & turret camerasBullet camerasWhere to buy

Frequently asked questions

It is a Full HD 1920 × 1080 monitor with a 32-inch VA panel. Set your NVR or DVR output to 1920 × 1080 to match.

Yes — Hikvision’s datasheet rates it for 7 × 24 h reliability.

No. It has a built-in 100–240 VAC, 50/60 Hz power supply, with consumption of 48 W or less.

Yes — two built-in 10 W speakers (8 Ω) and a 3.5 mm audio output for external speakers. It has no separate audio input.

Up to 75 Hz, with 60 Hz typical, and an 8 ms response time.

Yes, using its VESA 100 × 100 mm pattern (4 × M6 × 10 mm). Four wall-mount screws are included, and Hikvision lists the DS-DM1940W bracket as an optional accessory.

Yes. Connect the recorder’s HDMI output (or VGA, where the recorder has one); live view, playback and setup run on the recorder’s own on-screen interface.

The monitor, base, a 1.5 m HDMI cable, a remote control, six base screws, four wall-mount screws and the manuals.
Brand Hikvision
Resolution 1920 x 1080 (Full HD)
Power Input 100–240V AC (built-in supply)
Video Input HDMI 1.4 + VGA
Monitor Size 32 inch
VESA Pattern 100 x 100 mm
Panel Type VA
Refresh Rate 75 Hz (max)
Response Time 8 ms
Built-in Speakers 2 × 10 W
Duty Rating 7 × 24 h
