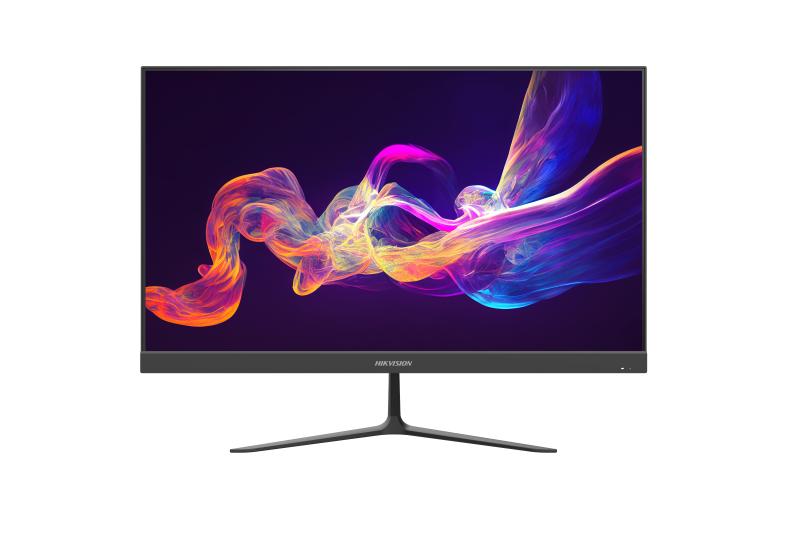

Hikvision DS-D5024F2-BV2S 23.8-Inch Full HD 100 Hz VA Monitor with Speakers, HDMI & VGA

https://arcip.com.au/web/image/product.template/9993/image_1920?unique=6bbe47d
  • 23.8-inch Full HD 1920 × 1080 VA panel, 4000:1 contrast
  • Up to 100 Hz refresh, 7 ms response
  • HDMI 1.4, VGA and 3.5 mm audio inputs
  • Built-in 2 × 2 W speakers, 3D noise reduction
  • VESA 75 × 75 mm; V-shaped base included

$ 180.64 180.64 AUD $ 180.64 incl. GST

Not Available For Sale


  • Brand
  • Resolution
  • Power Input
  • Video Input
  • Monitor Size
  • VESA Pattern
  • Panel Type
  • Refresh Rate
  • Response Time
  • Built-in Speakers

This combination does not exist.

In stock online
Hikvision CCTV Monitor Full HD Monitor
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-D5024F2-BV2S
Barcode
6942160487335
Tags
At a glance

The Hikvision DS-D5024F2-BV2S is a 23.8-inch Full HD (1920 × 1080) VA monitor with up to 100 Hz refresh, a 7 ms response time, HDMI and VGA inputs and built-in speakers. It is a slim, desk-sized screen for viewing an NVR or DVR, with 3D noise reduction and VESA 75 × 75 mm mounting.

Screen size
23.8-inch
Resolution
1920 × 1080 Full HD
Panel
VA, E-LED backlight, 8-bit
Refresh rate
Max. 100 Hz (typ. 60 Hz)
Response time
7 ms
Inputs
HDMI 1.4 × 1, VGA × 1, audio in × 1
Speakers
2 × 2 W built in
VESA
75 × 75 mm (M4)

Key Features

23.8″ Full HD
Up to 100 Hz
7 ms Response
HDMI + VGA
Built-in Speakers
Low Blue Light

Why choose the DS-D5024F2-BV2S

The Hikvision DS-D5024F2-BV2S is the step up in screen size for a desk-based viewing station. Its 23.8-inch Full HD VA panel gives each tile of a 9- or 16-camera split more room than a 21.5-inch screen, with 178° viewing angles and a 4000:1 contrast ratio for deeper blacks in night footage. Motion is handled well: refresh is up to 100 Hz and response time is 7 ms, and Hikvision adds 3D noise reduction. Inputs are HDMI 1.4 and VGA, plus a 3.5 mm audio input for the built-in speakers. The ultra-thin three-side border sits on a V-shaped base, and VESA 75 × 75 mm lets you wall-mount it. Supplied by ARC IP Networks with genuine Australian stock and local support.

Good to know: the current Hikvision datasheet rates this model for 7 × 16 h daily use. For a screen that must stay on around the clock, the DS-D5022F2-1V2S, DS-D5032F3-1V0S and DS-D5043F3-1V0S carry a 7 × 24 h rating.

Best for

  • Desk viewing stations: a larger Full HD screen for a 9- or 16-camera split at arm’s length.
  • Playback and review: 100 Hz refresh and 7 ms response keep motion smooth when scrubbing footage.
  • Mixed recorder fleets: HDMI for current NVRs, VGA for older DVRs.
  • Office and admin use: doubles as a general-purpose Full HD PC monitor.
  • Wall arms: VESA 75 × 75 mm with a lightweight 2.85 kg body.

Who it’s for

Small business

A single, larger screen for the office NVR.

Retail

Manager’s office review of shop-floor cameras.

Warehousing

Dock and yard views at the dispatch desk.

Schools & offices

Front-office monitoring of entries and car parks.

Installers

A matched Hikvision screen to hand over with the system.

Home offices

A desk monitor for home cameras and everyday PC work.

DS-D5024F2-BV2S
Hikvision DS-D5024F2-BV2S — 23.8-inch Full HD 100 Hz VA Monitor with Speakers, HDMI & VGA

Features

  • 23.8-inch VA panel, 1920 × 1080 Full HD, 8-bit (16.7 M colours)
  • Refresh rate up to 100 Hz (typ. 60 Hz)
  • 7 ms response time
  • 178° viewing angles and 4000:1 contrast ratio
  • 3D noise reduction
  • HDMI 1.4, VGA and 3.5 mm audio inputs
  • Built-in speakers, 2 × 2 W (4 Ω)
  • Ultra-thin border on three sides, V-shaped base
  • Low blue light design for eye care
  • VESA 75 × 75 mm wall-mount support

Specifications

Display
Screen size23.8-inch (60.45 cm)
Active display area527.04 (H) × 296.46 (V) mm
Panel typeVA
Resolution1920 × 1080
BacklightE-LED
Pixel pitch0.2745 × 0.2745 mm
Brightness250 cd/m²
Viewing angle178° (H) / 178° (V)
Colour depth8-bit, 16.7 M
Contrast ratio4000:1
Response time7 ms
Refresh rateTyp. 60 Hz, max. 100 Hz
Haze25%
Colour gamut72% NTSC
Reliability (datasheet)7 × 16 h
Interface
Video & audio inputHDMI 1.4 × 1, VGA × 1, audio in (3.5 mm) × 1
Audio outputBuilt-in speakers × 2 (4 Ω, 2 W)
Power
Power supply12 V DC, 2.0 A (external adapter included)
Power consumption≤ 24 W
Standby consumption≤ 0.5 W
Working environment
Operating temperature0 °C to 40 °C
Operating humidity20% to 90% RH, non-condensing
Storage temperature−20 °C to 60 °C

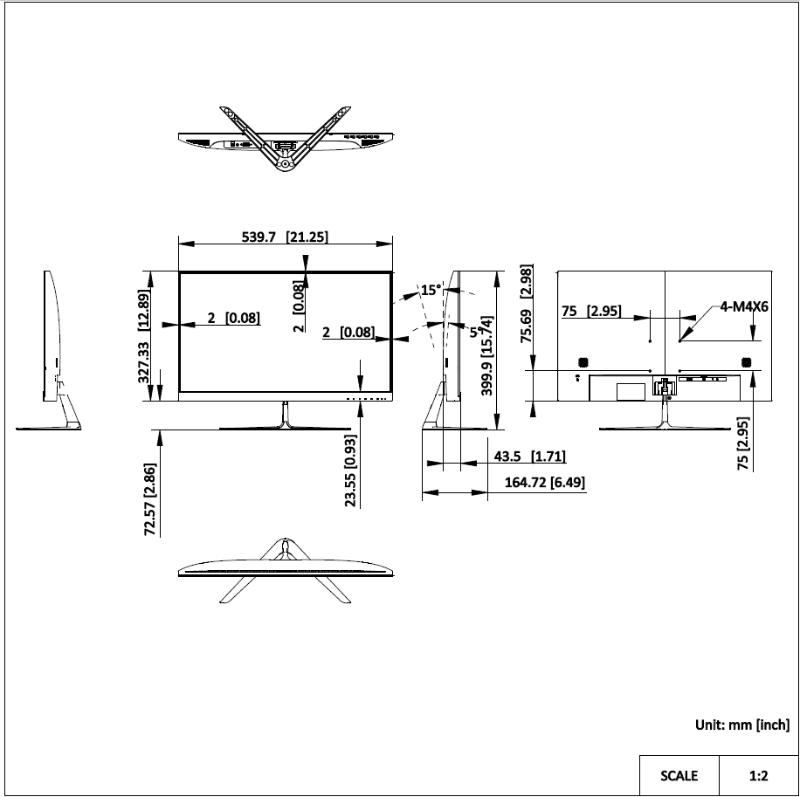

General
CasingPlastic
VESA75 × 75 mm (4 × M4 × 6 mm)
Bezel width2.0 mm (top/left/right), 23.55 mm (bottom)
Dimensions with base539.7 × 399.9 × 164.72 mm (W × H × D)
Dimensions without base539.7 × 327.33 × 43.5 mm
Net weight2.85 ± 0.5 kg
In the boxMonitor, base, 12 V 2 A power adapter, 1.5 m HDMI cable, manuals
Optional accessory (Hikvision)DS-DM1940W wall-mounted bracket

Specifications from the official Hikvision datasheet and product page. Dimensions and weights are nominal.

Professional Overview

The Hikvision DS-D5024F2-BV2S is a 23.8-inch Full HD monitor for surveillance and everyday desk use. Its VA panel delivers 1920 × 1080 resolution, 178° viewing angles and a 4000:1 contrast ratio — useful for night footage, where VA panels hold darker blacks than typical IPS screens.

Motion handling is a highlight. Refresh is up to 100 Hz (60 Hz typical) and response time is 7 ms, and Hikvision’s 3D noise reduction helps clean up grainy low-light images. Brightness is 250 cd/m² with 8-bit colour and a 72% NTSC gamut.

It connects to a recorder or PC over HDMI 1.4 or VGA, with a separate 3.5 mm audio input for the two built-in 2 W speakers. Power is from the supplied 12 V DC adapter at 24 W or less.

The slim body has an ultra-thin border on three sides and sits on a V-shaped base. Remove the base for VESA 75 × 75 mm wall or arm mounting — Hikvision lists the DS-DM1940W as its optional wall bracket. Australian stock from ARC IP Networks.

How it compares

Hikvision’s Value Series monitors share a Full HD VA panel and HDMI + VGA inputs. The choice comes down to screen size and viewing distance, refresh rate, speaker power and duty rating.

FeatureDS-D5022F2-1V2S21.5-inchDS-D5024F2-BV2SThis monitorDS-D5032F3-1V0S32-inchDS-D5043F3-1V0S43-inch
Screen size21.5″23.8″32″43″
Resolution1920 × 10801920 × 10801920 × 10801920 × 1080
Panel / backlightVA / E-LEDVA / E-LEDVA / D-LEDVA / D-LED
Refresh rateMax. 100 HzMax. 100 HzMax. 75 Hz60 Hz
Response time8 ms7 ms8 ms6.5 ms (typ.)
Brightness250 cd/m²250 cd/m²300 cd/m²300 cd/m²
InputsHDMI 1.4, VGA, audio inHDMI 1.4, VGA, audio inHDMI 1.4, VGAHDMI 1.4, VGA, USB 2.0
Speakers2 × 2 W2 × 2 W2 × 10 W2 × 10 W
Power12 VDC adapter, ≤ 24 W12 VDC adapter, ≤ 24 W100–240 VAC, ≤ 48 W100–240 VAC, ≤ 80 W
VESA75 × 75 mm75 × 75 mm100 × 100 mm200 × 200 mm
Duty rating (datasheet)7 × 24 h7 × 16 h7 × 24 h7 × 24 h
Remote control——IncludedIncluded

All four are Full HD VA monitors with a desk base included. Figures from the official Hikvision datasheets; model names link to full specs and live pricing.

Complete your system

Pair the monitor with a Hikvision NVR for a complete local viewing station: the recorder records and powers your cameras over PoE, and its HDMI output drives this screen. Hikvision lists the DS-DM1940W wall-mounted bracket as an optional accessory for this monitor.

Browse Hikvision NVRs →

Works with your system

Plug straight into your recorder. Hikvision NVRs and DVRs output video over HDMI, and many models also over VGA — connect either to this monitor, then set the recorder’s output resolution to 1920 × 1080 to match the panel for a sharp, correctly scaled multi-camera live view.

Hikvision NVRs & DVRs

The recorder’s HDMI (or VGA) output drives live view, playback and the local menu directly — no PC needed.

PCs & VMS workstations

Use it as a second screen for iVMS-4200 or HikCentral client software on a control-room PC.

HDMI 1.4 + VGA

Digital HDMI for current recorders; analogue VGA for older recorders and PCs that lack HDMI.

Audio in + speakers

A 3.5 mm audio input alongside HDMI and VGA, and two built-in 2 W speakers.

VESA mounting

Remove the desk base and fix it to a wall bracket or monitor arm using the VESA holes on the back.

Full HD 1920 × 1080

Native Full HD — ideal for 4, 9 or 16-camera split screens from a recorder’s 1080p output.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

Hikvision monitorsNVR recordersDome & turret camerasBullet camerasWhere to buy

Frequently asked questions

It is a Full HD 1920 × 1080 monitor with a 23.8-inch VA panel. Set your NVR or DVR output to 1920 × 1080 to match.

Yes. Connect the recorder’s HDMI output (or VGA, where the recorder has one). Hikvision recorders have their own on-screen interface, so live view, playback and setup run without a PC.

Hikvision’s current datasheet rates this model for 7 × 16 h. If the screen must run around the clock, choose the 21.5-inch DS-D5022F2-1V2S, 32-inch DS-D5032F3-1V0S or 43-inch DS-D5043F3-1V0S, which are rated 7 × 24 h.

Up to 100 Hz refresh (60 Hz typical) and a 7 ms response time.

Yes — two built-in 2 W speakers (4 Ω), plus a 3.5 mm audio input alongside HDMI and VGA.

Yes, using its VESA 75 × 75 mm pattern (4 × M4 × 6 mm). Hikvision lists the DS-DM1940W wall-mounted bracket as an optional accessory for this model.

From the included 12 V DC, 2.0 A adapter. Consumption is 24 W or less, and 0.5 W or less in standby.

The monitor, V-shaped base, 12 V 2 A power adapter, a 1.5 m HDMI cable, the user manual and a multilingual manual.
Brand Hikvision
Resolution 1920 x 1080 (Full HD)
Power Input 12V DC / 2A
Video Input HDMI 1.4 + VGA
Monitor Size 23.8 inch
VESA Pattern 75 x 75 mm
Panel Type VA
Refresh Rate 100 Hz (max)
Response Time 7 ms
Built-in Speakers 2 × 2 W
