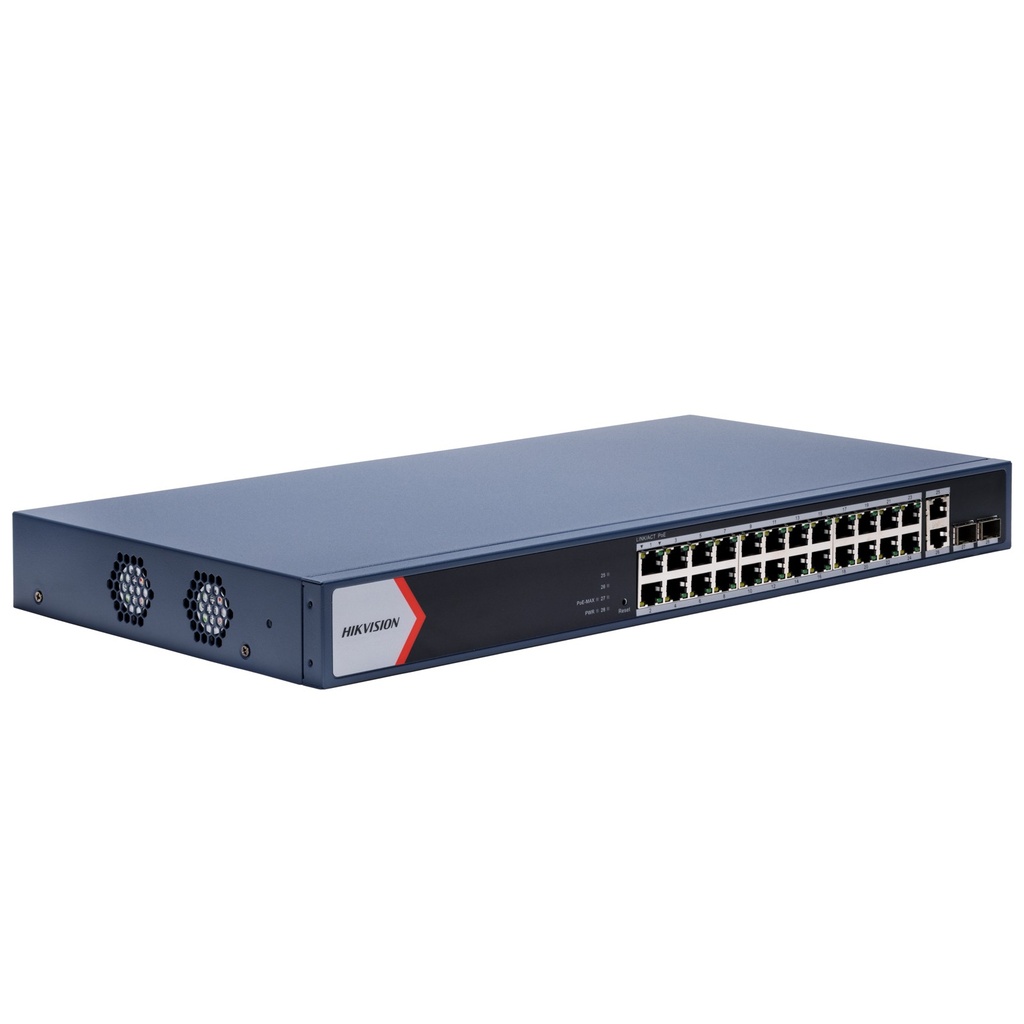

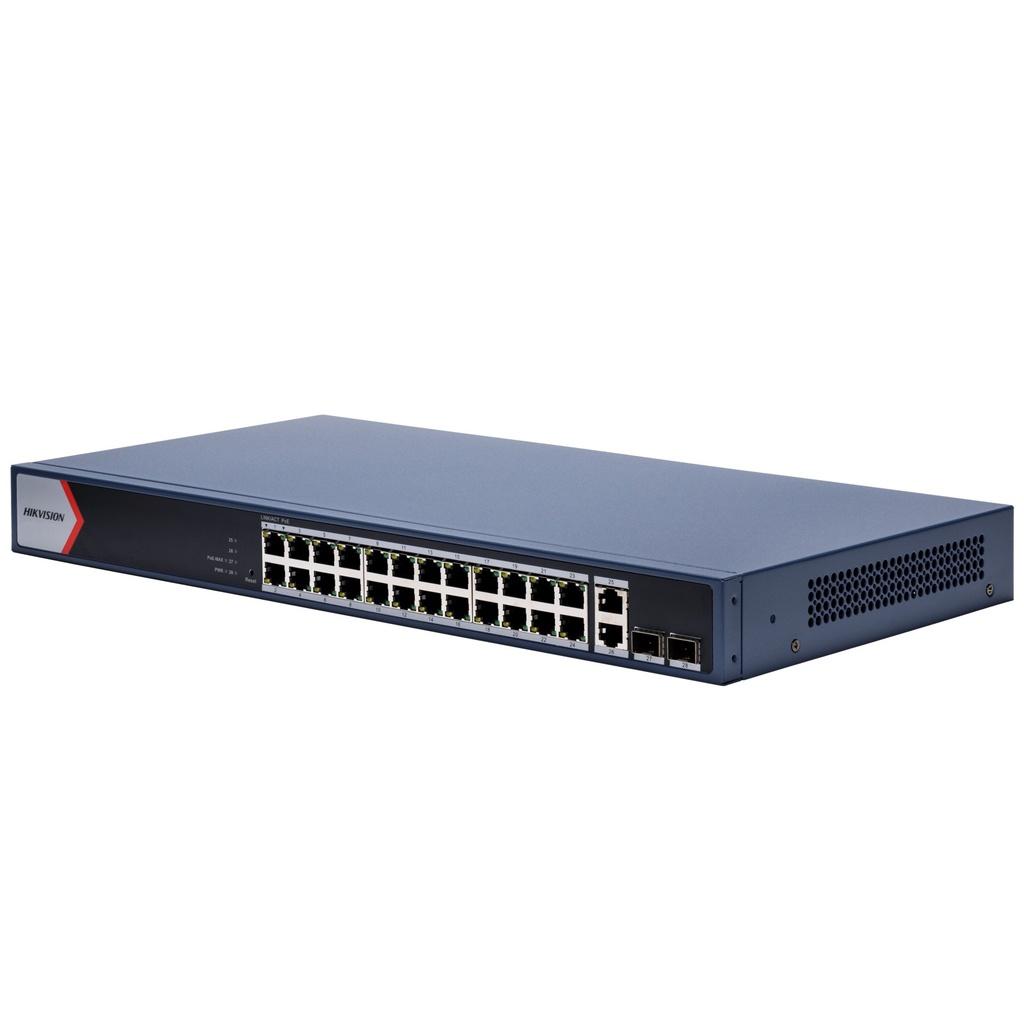

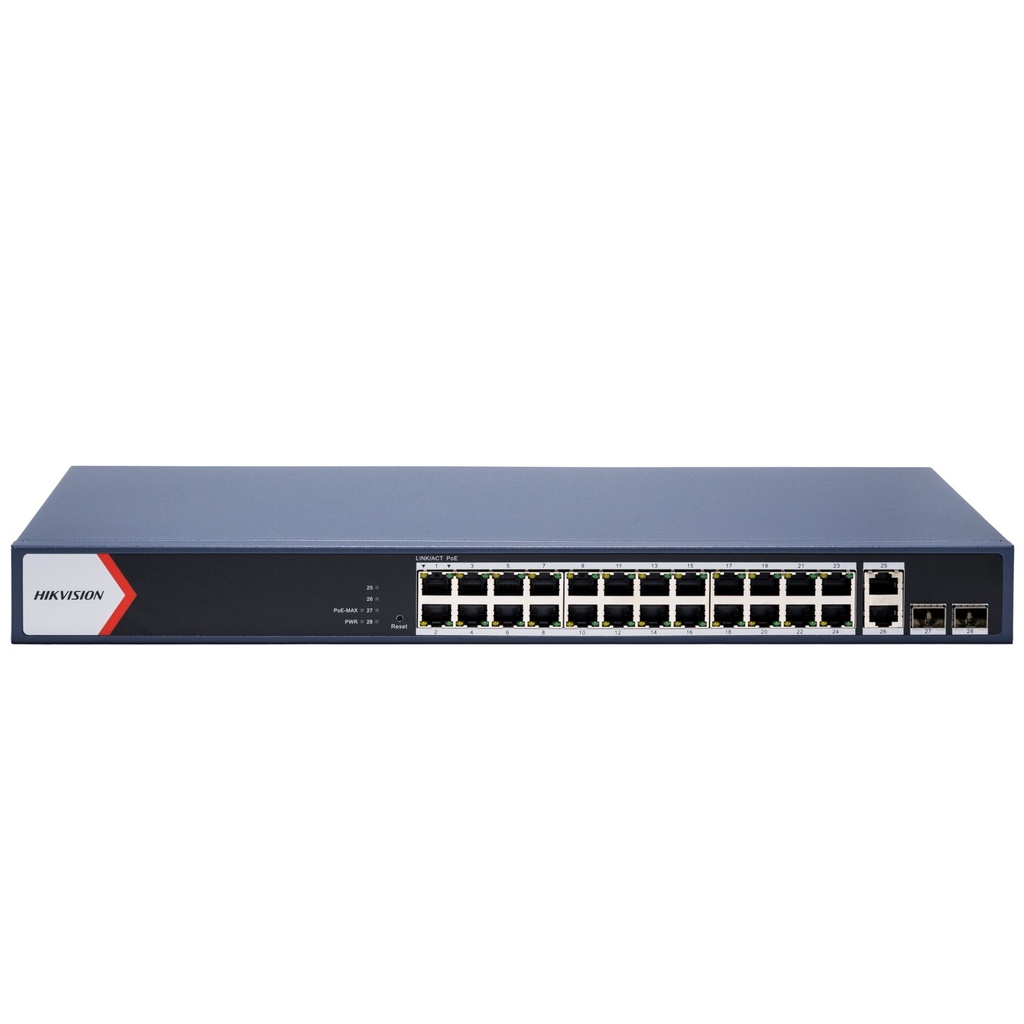

Hikvision DS-3E1528P-EI 24-Port Gigabit Smart Managed PoE Switch, 2 RJ45 + 2 SFP Uplinks, 370 W

https://arcip.com.au/web/image/product.template/11163/image_1920?unique=d95db27
  • 24 x gigabit PoE + 2 x gigabit RJ45 + 2 x gigabit SFP
  • 370 W PoE budget, up to 30 W per port (802.3af/at)
  • PoE watchdog and perpetual PoE
  • Up to 300 m long-range PoE
  • VLAN, DHCP snooping, QoS, Hik-Partner Pro management

$ 569.02 569.02 AUD $ 569.02 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Managed Switch Hikvision PoE Switch Network Switch Gigabit Switch
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
At a glance

The Hikvision DS-3E1528P-EI is a 24-port gigabit smart-managed PoE switch. Twenty-four gigabit PoE ports share a 370 W budget, with two gigabit RJ45 and two gigabit SFP fibre uplinks, PoE watchdog, perpetual PoE, VLANs, DHCP snooping and 300 m long-range PoE. 1U rack or desktop.

Device type
Smart-managed PoE switch
Ports
24 × gigabit PoE + 2 × gigabit RJ45 + 2 × gigabit SFP
PoE budget
370 W total
PoE standard
IEEE 802.3af / 802.3at
Power per port
Up to 30 W per port
Long-range PoE
Up to 300 m on ports 1–24
PoE watchdog
Yes — ports 1–24
Perpetual PoE
Yes — PoE stays on during a reboot
Switching capacity
68 Gbps
Packet forwarding
50.59 Mpps
MAC address table
16 K
Management
Web, HikCentral Pro, Hik-Partner Pro cloud
Power input
Internal PSU, 100–240 V AC
Installation
1U 19-inch rack (ears included) or desktop
Surge protection
6 kV
Operating temperature
0 to 45 °C

Key Features

24 Gig PoE + 4 Uplinks
370 W Budget
2 × SFP Fibre
PoE Watchdog
Perpetual PoE
300 m Long Range

Why choose the DS-3E1528P-EI

The Hikvision DS-3E1528P-EI is the flagship of the smart-managed range: 24 gigabit PoE ports on a generous 370 W budget, plus four gigabit uplinks — two RJ45 and two SFP fibre — so you can uplink to the recorder, the core network and a remote building at the same time, or aggregate links for more bandwidth.

It adds features the smaller models lack. Perpetual PoE keeps cameras powered while the switch reboots, so a firmware update does not black out the site. DHCP snooping blocks rogue DHCP servers, DSCP-based QoS with SP/WRR scheduling prioritises video, up to 8 static link-aggregation groups are supported, and DDM monitors the temperature, voltage and optical power of fitted SFP modules.

Everything else you expect is here: 802.1Q VLANs (up to 1,024), STP/RSTP, port isolation, port mirroring, LLDP, cable diagnostics, PoE watchdog and 300 m long-range PoE, all visible in Hik-Partner Pro. Supplied by ARC IP Networks as genuine Australian stock with local warranty and support.

Best for

  • Large camera systems: 24 PoE cameras on one managed switch.
  • Gigabit devices: gigabit on every port for cameras, APs and intercoms.
  • Fibre backbones: two SFP ports for building-to-building links.
  • Zero-downtime updates: perpetual PoE keeps cameras up during a reboot.
  • Secure networks: VLANs, DHCP snooping and port isolation.

Who it’s for

Installers

A high-budget 24-port switch with cloud visibility.

Enterprise & campus

Fibre uplinks between buildings and floors.

Warehouses & logistics

Large camera counts across big sites.

Education & government

Segregated, monitored camera networks.

Hospitality & retail

Cameras, access points and intercoms on one switch.

Multi-site operators

Remote topology, alarms and firmware upgrades.

DS-3E1528P-EI
24-Port Gigabit Smart-Managed PoE Switch

Features

  • 24 × gigabit PoE ports, 2 × gigabit RJ45 ports and 2 × gigabit SFP fibre ports
  • Total PoE power budget 370 W, up to 30 W per port (IEEE 802.3af/at)
  • Perpetual PoE — power stays on through a system reboot
  • PoE watchdog detects and restarts cameras that stop responding
  • Up to 300 m long-range PoE transmission on ports 1–24
  • 802.1Q VLAN (up to 1,024), STP/RSTP, port isolation, 8 link-aggregation groups
  • DSCP QoS, DHCP snooping, DDM optical monitoring, cable detection, port mirroring, LLDP
  • Web, HikCentral Professional and Hik-Partner Pro management

Specifications

Ports & performance
Ports24 × Gigabit PoE port, 2 × Gigabit RJ45 port, 2 × Gigabit fibre optical port
MAC address table16 K
Switching capacity68 Gbps
Packet forwarding rate50.59 Mpps
Internal cache8.4 Mbits
PoE
PoE standardIEEE 802.3af, IEEE 802.3at
PoE power pinsEnd-span: 1/2(−), 3/6(+)
PoE portsPorts 1 to 24
Max. port power30 W
PoE power budget370 W
Perpetual PoESupported (except during power outage or PSE firmware upgrade)
Software functions
Long rangePorts 1 to 24: up to 300 m (varies with camera model and cable condition)
Port isolationPorts 1 to 28
PoE watchdogPorts 1 to 24: auto detect and restart non-responding cameras
Link aggregationStatic, up to 8 aggregation groups
QoSPort-based priority, SP and WRR scheduling, DSCP-based QoS
Loop prevention802.1D STP, 802.1w RSTP (disabled by default)
VLAN802.1Q, VLAN ID 1–4094, Trunk/Access, max. 1,024 VLANs
DHCP snoopingSupported (disabled by default)
DDMReal-time optical module temperature, voltage, current and Rx/Tx power
ManagementWeb, DHCP client, Super IP 10.180.190.200, HikCentral Professional, Hik-Partner Pro
MaintenanceCable detection, 802.1ab LLDP, port mirroring
General
ShellMetal
Power supply100–240 V AC, 50/60 Hz, max. 6.3 A (internal)
Max. power consumption400 W
Idle power consumption20 W
Surge protection6 kV
InstallationDesk-mounted, rack (mounting ears included)
Operating temperature0 °C to 45 °C
Storage temperature−40 °C to 85 °C
Operating humidity5% to 95% (non-condensing)

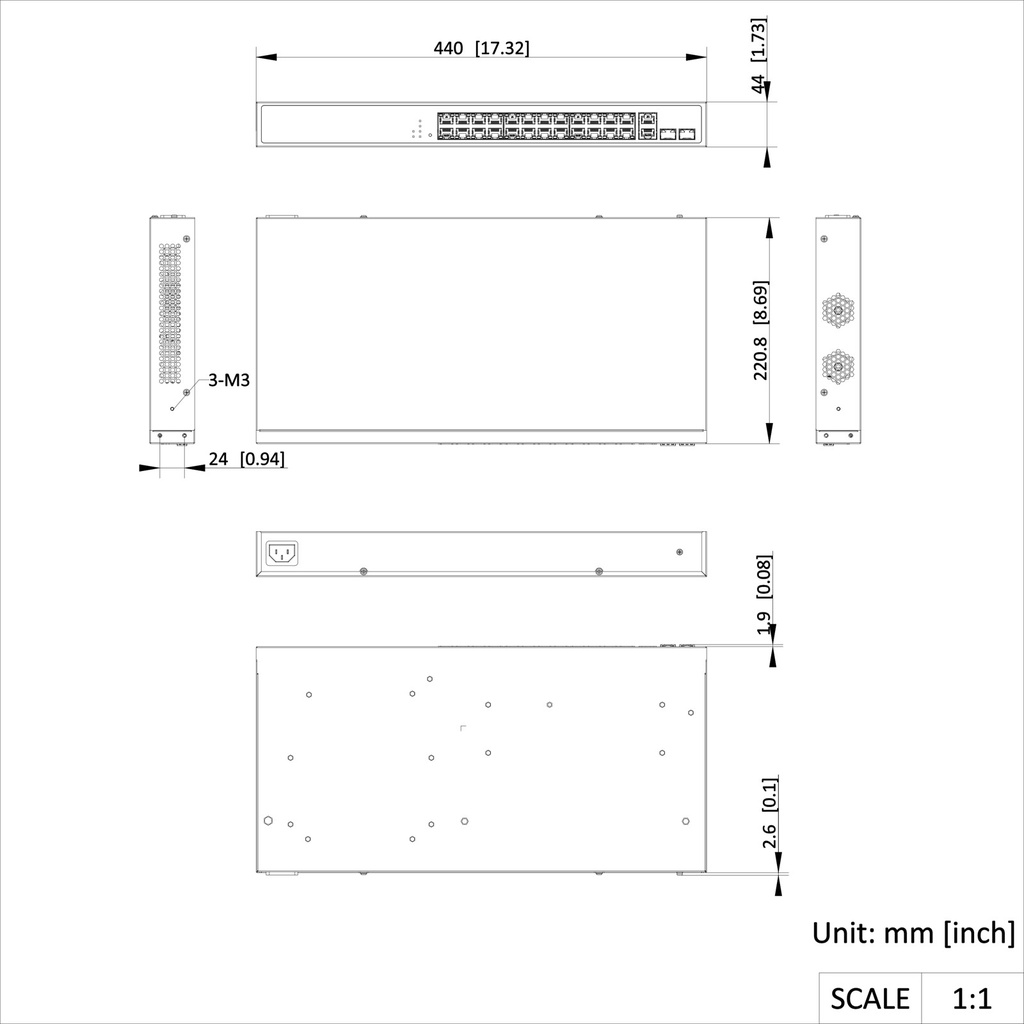

Dimensions (W × H × D)440 × 44 × 220.8 mm
Approvals
EMCCE-EMC (EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035)
SafetyUL (UL 60950-1), CB (IEC 60950-1, IEC 62368-1), CE-LVD
ChemistryCE-RoHS, WEEE, REACH

Specifications from the official Hikvision datasheet. Weight and dimensions are shown for reference only.

Professional Overview

The Hikvision DS-3E1528P-EI is a 24-port gigabit smart-managed PoE switch for larger surveillance and converged networks. All 24 PoE ports run at gigabit speed and can each deliver up to 30 W under IEEE 802.3at from a shared 370 W budget, while two gigabit RJ45 ports and two gigabit SFP fibre ports provide four independent uplinks — to a recorder, a core switch, another building, or combined through static link aggregation.

The feature set goes beyond the smaller -EI models. Perpetual PoE keeps powered devices running while the switch itself reboots, DHCP snooping allows DHCP traffic only from trusted ports, DSCP-based QoS with SP and WRR scheduling protects video traffic, and DDM reports the temperature, voltage, current and optical power of fitted SFP modules. Up to 1,024 VLANs, STP/RSTP loop prevention and port isolation across all 28 ports complete the security picture.

Day-to-day operation is simple. The PoE watchdog restarts cameras that stop responding, long-range mode reaches devices up to 300 m away, and cable detection finds open circuits, shorts and cable length. Hik-Partner Pro gives installers one-click activation, topology, PoE usage, alarm status, remote port restarts, remote long-range mode and remote firmware upgrades; HikCentral Professional and the built-in web interface are also supported.

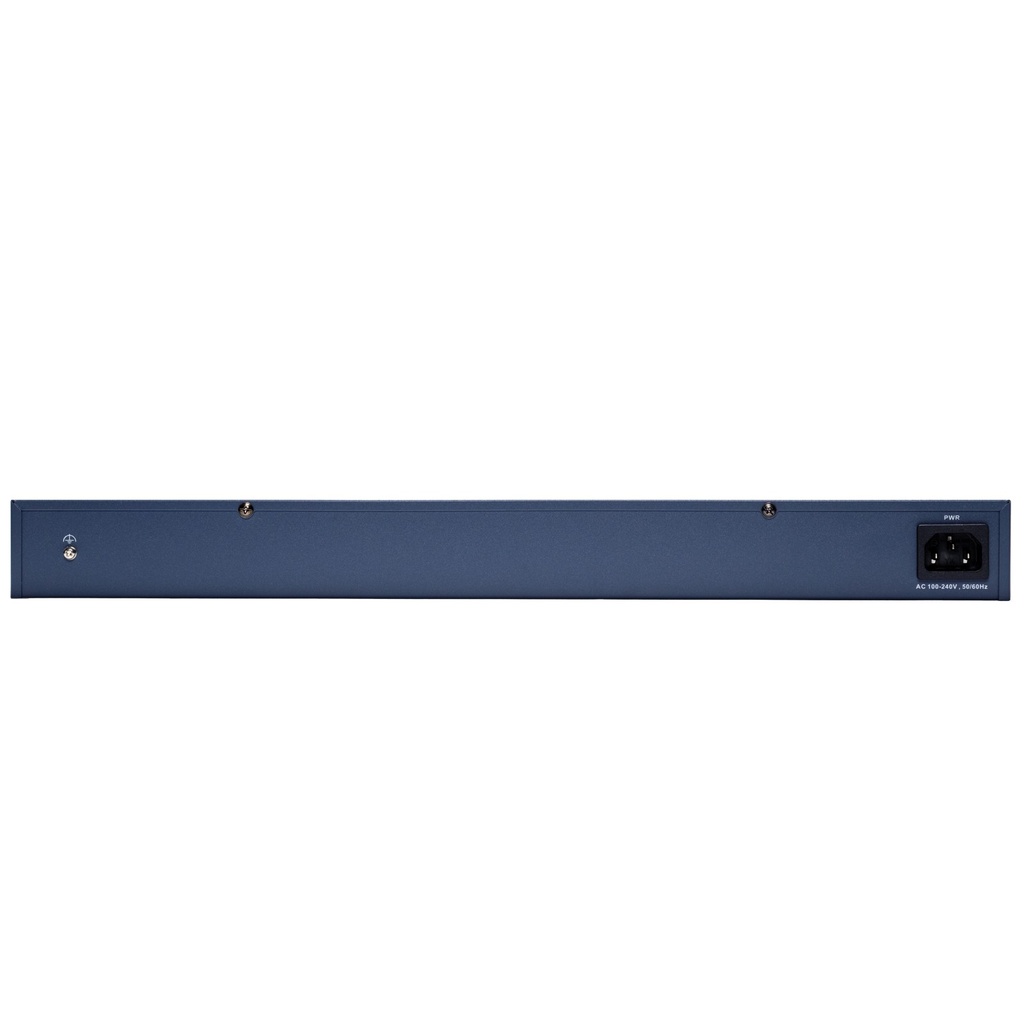

The 1U metal chassis has an internal 100–240 V AC power supply and can sit on a desk or mount in a 19-inch rack with the supplied ears. It suits warehouses, campuses, schools, hospitality and any site with up to 24 PoE cameras, access points or intercoms. Australian stock from ARC IP Networks.

How it compares

All three are 24-/16-port gigabit smart-managed (-EI) switches with PoE watchdog and 300 m long range. The DS-3E1528P-EI adds more uplinks, faster switching and perpetual PoE.

FeatureDS-3E1518P-EI16-portDS-3E1526P-EI24-portDS-3E1528P-EIThis product
PoE ports16 × Gigabit24 × Gigabit24 × Gigabit
Uplinks1 × RJ45 + 1 × SFP1 × RJ45 + 1 × SFP2 × RJ45 + 2 × SFP
PoE budget230 W370 W370 W
Max. per port30 W30 W30 W
Switching capacity56 Gbps56 Gbps68 Gbps
MAC table8 K8 K16 K
Max. VLANs32321,024
PoE watchdogYesYesYes
Mounting1U rack1U rack1U rack or desktop

Figures from the official Hikvision specifications for each model. Hikvision lists the DS-3E1518P-EI and DS-3E1526P-EI as discontinued; check their pages for current availability.

Complete your system

Pair this switch with Hikvision or HiLook PoE cameras and a non-PoE Hikvision NVR sized for your channel count. Keep the total device power under 370 W, and use the SFP ports with matching gigabit optical modules for fibre runs.

Browse Hikvision NVRs →Browse cameras →

Works with your system

Perpetual PoE. When the switch reboots — for example after a configuration change — PoE output stays on, so cameras keep recording. Hikvision notes the exceptions are a power outage or a PSE firmware upgrade.

Hikvision & HiLook cameras

Any IEEE 802.3af/at PoE camera — Hikvision, HiLook or third-party.

Hik-Partner Pro

One-click activation, topology, PoE usage, alarms, port restarts and remote firmware upgrades.

HikCentral Professional

Manage the switch alongside cameras and recorders in HikCentral Pro.

Web management

Built-in web GUI with DHCP client and a fixed “Super IP” (10.180.190.200) for direct access.

Any NVR or network

Standard Ethernet uplink to a non-PoE NVR, a router or your core switch.

Cable diagnostics

Detects open circuits, short circuits and cable length from the switch.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

It has 24 gigabit PoE ports and a 370 W total PoE budget, with up to 30 W per port. Twenty-four typical fixed cameras fit comfortably; higher-draw devices use more, so add up each device’s maximum power and keep the total under 370 W.

Four: two gigabit RJ45 ports and two gigabit SFP fibre ports. Use them to connect the recorder, the core network or another building, or bond them with static link aggregation for more bandwidth and redundancy.

PoE output stays on while the switch reboots, so your cameras do not lose power and stop recording. Hikvision notes PoE is interrupted only by a power outage or a PSE firmware upgrade.

A camera occasionally locks up and stops sending video while still drawing power. The PoE watchdog on the DS-3E1528P-EI detects a camera that stops responding and power-cycles that port automatically to restart it — so a frozen camera recovers itself instead of needing a site visit.

Standard Ethernet is specified to 100 m. In long-range mode the DS-3E1528P-EI can reach a powered camera up to 300 m away on its PoE ports. Hikvision notes long-range performance varies with the camera model and cable condition, so use good-quality solid-copper Cat6 for long runs.

Each PoE port supplies up to 30 W (IEEE 802.3af/at), which runs standard fixed cameras and many compact PTZs. Large PTZs, heated housings or devices needing more than 30 W require a Hi-PoE (802.3bt) switch or the camera’s own power supply. Always check the camera’s maximum power draw.

Yes. It is a standard IEEE 802.3af/at PoE switch, so it works with any compliant PoE camera — Hikvision, HiLook or third-party — and connects to any NVR, router or network switch through its uplink port(s).

Through a built-in web interface, through HikCentral Professional, or remotely through the Hik-Partner Pro cloud, which shows port rate, bandwidth use, PoE usage, topology and alarms and lets you restart ports, enable long-range mode and upgrade firmware remotely.

Yes. Hikvision lists both desk-mounted and rack installation; rack-mounting ears are included for a standard 1U 19-inch space.
Brand Hikvision
Switching Capacity 68 Gbps
Network Layer Layer 2 (Smart Managed)
Form Factor Rack Mount (1U) / Desktop
Port Speed (24) GbE + (2) GbE + (2) 1G SFP
Ports 28 Ports
Uplink 2 x GbE RJ45 + 2 x GbE SFP
PoE Specification Up to PoE+ / 370W Budget
DS-3E1528P-EI_Datasheet.pdf
