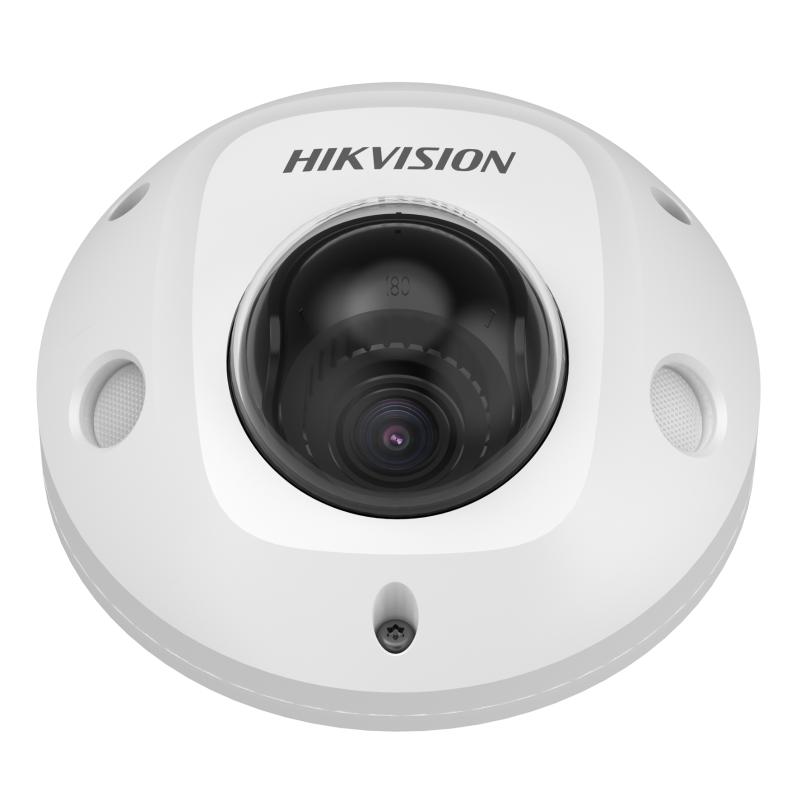

Hikvision DS-2XM6726G1-ID 2 MP Mobile Dome Network Camera for Vehicles, 2.8 mm, IR 30 m, Built-in Mic, IP67, IK10, 9–36 VDC / PoE

https://arcip.com.au/web/image/product.template/11234/image_1920?unique=d825bc3
  • 2 MP (1920 × 1080) mobile dome for buses, trains and service vehicles
  • 2.8 mm fixed lens, 105° horizontal, IR up to 30 m
  • Built-in microphone, microSD up to 256 GB
  • RJ45; 9–36 VDC or PoE 802.3af, max. 7.5 W
  • IP67, IK10, EN 50155, EN 45545, E-Mark

$ 312.26 312.26 AUD $ 312.26 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision IP Camera Mobile Dome 2MP Vehicle Camera
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2XM6726G1-ID-2.8MM
Tags
DS-2XM6726G1-ID (2.8 mm)
Hikvision DS-2XM6726G1-ID – 2 MP Mobile Dome Network Camera for Vehicles, 2.8 mm Lens, IR 30 m, Built-in Mic, IP67, IK10, 9–36 VDC / PoE
At a glance

The Hikvision DS-2XM6726G1-ID is a compact 2 MP mobile dome camera designed for buses, coaches, trains, emergency and service vehicles. This model has a 2.8 mm fixed lens (105° horizontal view), IR up to 30 m, a built-in microphone and an onboard microSD slot. The -ID version has an RJ45 Ethernet port and runs on either 9–36 VDC vehicle power or 802.3af PoE. It is rated IP67 and IK10 and certified to rail (EN 50155, EN 45545) and vehicle (E-Mark ECE R10) standards.

Resolution
2 MP, 1920 × 1080
Lens
2.8 mm fixed, F1.6
IR range
Up to 30 m
Audio
Built-in microphone
Connection
RJ45 10/100 Mbps
Power
9–36 VDC or PoE 802.3af
Protection
IP67, IK10
Approvals
EN 50155, EN 45545, E-Mark

Key features

  • Built for vehicles – anti-vibration design certified to EN 50155 (railway electronics), EN 45545 (railway fire protection) and E-Mark ECE R10 for road vehicles.
  • 2 MP Full HD video – 1920 × 1080 at 25 fps (50 Hz) or 30 fps (60 Hz) from a 1/2.8″ progressive scan CMOS sensor.
  • 2.8 mm fixed lens – Horizontal 105°, vertical 56°, diagonal 126° field of view, aperture F1.6.
  • IR up to 30 m – 850 nm infrared with Smart Supplement Light for clear images in dark cabins and at night.
  • 120 dB WDR – balances bright windows and darker cabin interiors.
  • Built-in microphone – mono audio with environment noise filtering for passenger and driver incidents.
  • Flexible power (-ID model) – 9–36 VDC through a Ø5.5 mm coaxial plug, suitable for 12 V and 24 V vehicle systems, or 802.3af PoE from a mobile NVR or switch. Max. 7.5 W.
  • Onboard storage – built-in microSD (TF) slot for up to 256 GB.
  • Low-profile, adjustable dome – 110 × 57.4 mm metal body with pan −30° to +30°, tilt 0° to 75° and 360° rotation.
  • IP67 and IK10 – dust and water resistant and vandal resistant, operating from −30 °C to 75 °C.
  • Transit analytics – passenger congestion detection in carriages and detection of articles and people left behind, plus line crossing, intrusion and more.

Specifications

Camera
Image sensor1/2.8″ progressive scan CMOS
Resolution2 MP
Min. illumination0.002 lux @ (F1.6, AGC ON), 0 lux with IR
Shutter speed1/3 s to 1/100,000 s
Day & nightIR cut filter
Angle adjustmentPan −30° to +30°, tilt 0° to 75°, rotate 0° to 360°
Lens (this product: 2.8 mm)
Focal length2.8 mm fixed
Field of viewHorizontal 105°, vertical 56°, diagonal 126°
Max. apertureF1.6
Lens mountM12
FocusManual
Illuminator
Supplement light typeInfrared
IR rangeUp to 30 m
IR wavelength850 nm
Smart supplement lightYes
Video & Audio
Max. resolution1920 × 1080
Main stream50 Hz: 25 fps; 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-streamUp to 704 × 576
Third streamUp to 1920 × 1080
Video compressionH.264, H.265, H.264+, H.265+ (sub-stream also MJPEG)
Video bit rateMain: 256 Kbps to 12,288 Kbps
Audio1 built-in microphone, mono; G.711/G.726/G.722/AAC/PCM; noise filtering
WDR120 dB
Image enhancementBLC, HLC, 2DNR, 3DNR
SNR> 50 dB
Privacy maskUp to 4 areas
Day/night switchDay, night, auto, schedule
Smart Functions
Transit analyticsPassenger congestion detection in carriages; detection of articles and personnel left behind
Smart eventsLine crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, face detection with picture upload, scene change, defocus, loitering, people gathering, fast moving, parking
Basic eventsMotion detection, video tampering
LinkageUpload to FTP, notify monitoring centre, send email, trigger recording
Network & Interface
Ethernet1 × RJ45 10/100 Mbps (-ID model)
APIONVIF (Profile S, G, T), ISAPI, SDK
Simultaneous live viewUp to 8 channels
UsersUp to 16 users, 3 levels
On-board storageBuilt-in microSD (TF) slot, up to 256 GB
Video outputNot supported
General
Power supply9–36 VDC (Ø5.5 mm coaxial plug) or PoE IEEE 802.3af (36–57 V)
Power consumptionMax. 7.5 W
Cable length50 cm
MaterialMetal

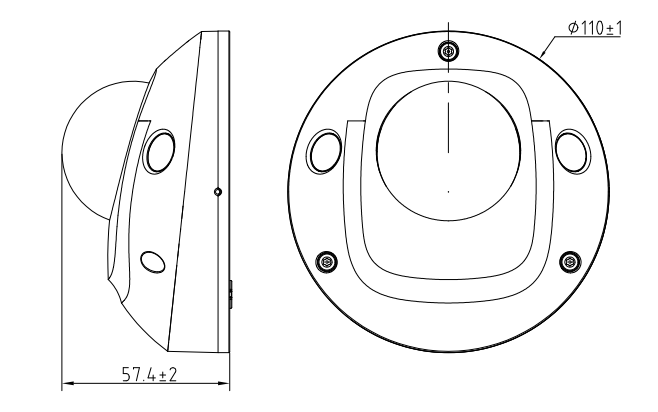

Dimensions110 × 57.4 mm
WeightApprox. 452 g
Operating conditions−30 °C to 75 °C, humidity 95% or less (non-condensing)
ProtectionIP67, IK10
Automotive & railwayEN 50155:2017, EN 45545-2, E-Mark (ECE R10)
ApprovalsCE, FCC, RCM, UL, CB

Specifications are from Hikvision’s official product page and datasheet for the DS-2XM6726G1-I(D)(M)(/ND). Lens values shown are for the 2.8 mm -ID model.

Best for

  • Bus, coach and school bus interiors, doorways and driver areas.
  • Train, tram and metro carriages that need EN 50155 and EN 45545 certified cameras.
  • Ambulances, police, fire and council service vehicles.
  • Mobile NVR systems that supply PoE, or vehicles with 12 V or 24 V power.
  • The 2.8 mm lens balances width and detail, suiting aisle, doorway and driver-area views.

Who it’s for

Transport operators

Passenger and driver safety footage with audio, inside buses and coaches.

Rail & light rail

Certified for railway electronics and fire protection standards.

Emergency services

Compact, vandal-resistant cabin cameras for patient and crew areas.

Fleet integrators

RJ45 with PoE or 9–36 VDC for flexible mobile NVR designs.

Councils

Waste, maintenance and community transport vehicles.

Security installers

ONVIF Profile S/G/T for integration beyond Hikvision recorders.

Mobile Dome FAQ – DS-2XM6726G1-ID 2.8 mm

It is a 2 MP mobile dome network camera for vehicles with a 2.8 mm fixed lens (105° horizontal), IR up to 30 m, a built-in microphone and a microSD slot. The -ID version connects by RJ45 Ethernet and runs on 9–36 VDC or 802.3af PoE.

The -ID version accepts 9–36 VDC through a Ø5.5 mm coaxial power plug, which suits 12 V and 24 V vehicle systems, or IEEE 802.3af PoE through its RJ45 port. Maximum consumption is 7.5 W.

The -ID model uses a standard RJ45 Ethernet port and supports both DC and PoE power. The -IM/ND model uses a four-core M12 aviation connector and is PoE powered only.

Yes. Hikvision lists EN 50155:2017 (railway electronics, including vibration testing), EN 45545-2 (railway fire protection) and E-Mark ECE R10 (vehicle EMC).

Yes. It has a built-in microphone with mono audio and environment noise filtering. It does not have a speaker.

Yes. A built-in microSD (TF) slot supports cards up to 256 GB, alongside recording on a mobile NVR.

The 2 mm lens covers 132° horizontally for whole-cabin views, while the 2.8 mm lens covers 105° with more detail at a distance. Hikvision also offers 4 mm and 6 mm versions for longer aisles.

Professional overview

The Hikvision DS-2XM6726G1-ID is a 2 MP mobile dome network camera from Hikvision’s Intelligent Vehicle Solutions range. It is built for buses, coaches, metros, trams and emergency vehicles, where cameras must handle constant vibration, wide temperature swings and passenger tampering. This model uses a 2.8 mm fixed lens with a 105° horizontal field of view.

A 1/2.8″ progressive scan CMOS sensor delivers 1920 × 1080 video at up to 30 fps with H.265+ compression, 120 dB WDR and IR up to 30 m. A built-in microphone records cabin audio, and the onboard microSD slot holds up to 256 GB as local backup to the mobile recorder. The low-profile 110 × 57.4 mm metal dome adjusts −30° to +30° in pan, 0° to 75° in tilt and 360° in rotation.

Beyond line crossing, intrusion and region rules, the camera supports transit-specific analytics: passenger congestion detection in carriages and detection of articles and people left behind. It supports ONVIF Profile S, G and T, ISAPI and SDK, and up to 8 simultaneous live view channels.

The -ID version connects over RJ45 and runs on 9–36 VDC or 802.3af PoE (max. 7.5 W). It is rated IP67 and IK10, operates from −30 °C to 75 °C, and carries EN 50155, EN 45545 and E-Mark approvals. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45)
Night Vision IR
Resolution 2 MP
Camera Type Mobile Dome
Lens 2.8 mm fixed
Ingress Protection IP67, IK10
Power 9–36 VDC / PoE (802.3af)
IR Range Up to 30 m
Audio / Alarm Built-in microphone
DS-2XM6726G1-ID_Datasheet.pdf
