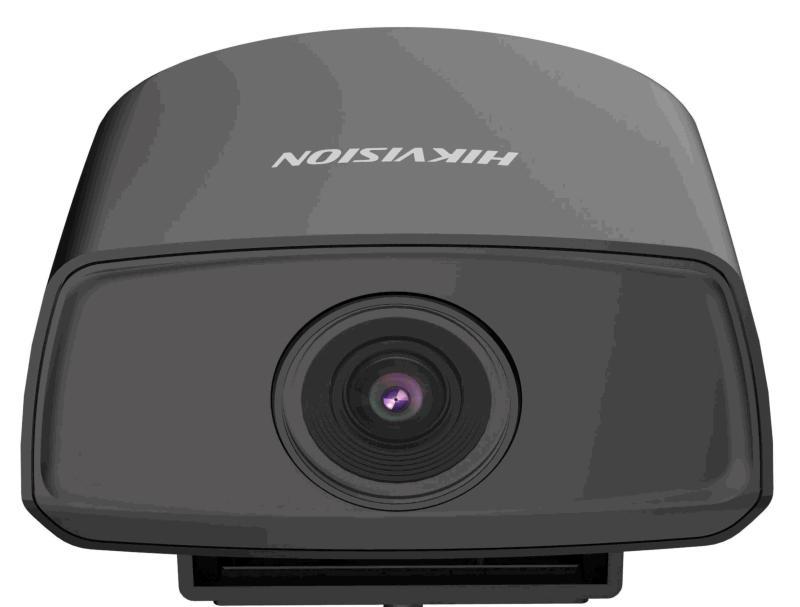

Hikvision DS-2XM6222G1-ID 2 MP Mobile Bullet Network Camera for Vehicles, 4 mm, IR 30 m, 120 dB WDR, IP68, 9–36 VDC / PoE

https://arcip.com.au/web/image/product.template/11244/image_1920?unique=d825bc3
  • 2 MP (1920 × 1080) mobile bullet for buses, trucks, trains and service vehicles
  • 4 mm fixed lens, 87° horizontal, IR up to 30 m
  • 120 dB WDR, microSD up to 256 GB
  • RJ45; 9–36 VDC or PoE 802.3af, max. 7.5 W
  • IP68 metal body, EN 50155, EN 45545, E-Mark

$ 312.26 312.26 AUD $ 312.26 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Ingress Protection
  • Power
  • IR Range

This combination does not exist.

In stock online
Hikvision IP Camera Mobile Bullet 2MP Vehicle Camera
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2XM6222G1-ID-4MM
Tags
DS-2XM6222G1-ID (4 mm)
Hikvision DS-2XM6222G1-ID – 2 MP Mobile Bullet Network Camera for Vehicles, 4 mm Lens, IR 30 m, 120 dB WDR, IP68, 9–36 VDC / PoE
At a glance

The Hikvision DS-2XM6222G1-ID is a compact 2 MP mobile bullet network camera for buses, coaches, trucks, trains and service vehicles. This model has a 4 mm fixed lens (87° horizontal view), IR up to 30 m, 120 dB WDR and an onboard microSD slot. The -ID version uses a standard RJ45 Ethernet port and runs on either 9–36 VDC vehicle power or 802.3af PoE. Its metal body is rated IP68 and certified to rail (EN 50155, EN 45545) and vehicle (E-Mark ECE R10) standards.

Resolution
2 MP, 1920 × 1080
Lens
4 mm fixed, F1.6
IR range
Up to 30 m
WDR
120 dB
Connection
RJ45 10/100 Mbps
Power
9–36 VDC or PoE 802.3af
Protection
IP68, metal
Approvals
EN 50155, EN 45545, E-Mark

Key features

  • Built for vehicles – certified to EN 50155:2017 (railway electronics, including vibration and shock testing to IEC 61373), EN 45545-2 (railway fire protection) and E-Mark ECE R10.
  • 2 MP Full HD video – 1920 × 1080 at 25 fps (50 Hz) or 30 fps (60 Hz) from a 1/2.8″ progressive scan CMOS sensor.
  • 4 mm fixed lens – horizontal 87°, vertical 44°, diagonal 104° field of view at F1.6.
  • IR up to 30 m – 850 nm infrared with smart supplement light, down to 0.002 lux in colour and 0 lux with IR.
  • 120 dB WDR – clear images against strong backlight, such as windscreens, doorways and headlights.
  • Flexible power (-ID model) – 9–36 VDC via a Ø5.5 mm coaxial plug, suitable for 12 V and 24 V vehicle systems, or 802.3af PoE from a mobile NVR or switch. Max. 7.5 W.
  • Onboard storage – built-in microSD (TF) slot for cards up to 256 GB.
  • IP68 metal housing – dust tight and water resistant for exterior mounting, operating from −30 °C to 75 °C.
  • Three streams with H.265+ – main, sub and third streams with H.265+/H.264+ to reduce storage and 4G upload bandwidth.
  • Smart events – line crossing, intrusion, region entrance and exit, unattended baggage, object removal, face detection with picture upload, loitering, people gathering, fast moving and parking detection.
  • Open integration – ONVIF Profile S, G and T, ISAPI and SDK.

Specifications

Camera
Image sensor1/2.8″ progressive scan CMOS
Resolution2 MP
Min. illumination0.002 lux @ (F1.6, AGC ON), 0 lux with IR
Shutter speed1/3 s to 1/100,000 s
Day & nightIR cut filter
Angle adjustmentPan −20° to 0°, tilt −15° to 25°
White balanceManual/auto; fluorescent, incandescent, warm and natural light presets
Lens (this product: 4 mm)
Focal length4 mm fixed
Field of viewHorizontal 87°, vertical 44°, diagonal 104°
Max. apertureF1.6
Lens mountM12
FocusManual
Illuminator
Supplement light typeInfrared
IR rangeUp to 30 m
IR wavelength850 nm
Smart supplement lightYes
Video
Max. resolution1920 × 1080
Main stream50 Hz: 25 fps; 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-streamUp to 704 × 576
Third streamUp to 1920 × 1080
Video compressionMain/third: H.264, H.265, H.264+, H.265+; sub: also MJPEG
Video bit rateMain: 256 Kbps to 12,288 Kbps; sub: 256 Kbps to 4,096 Kbps
ROI2 fixed regions for main/sub stream
WDR120 dB
Image enhancementBLC, HLC, 2DNR, 3DNR
SNR> 50 dB
Privacy maskUp to 4 areas
Day/night switchDay, night, auto, schedule
OtherRotation mode, picture overlay, target cropping (third stream)
Smart Functions
Basic eventsMotion detection, video tampering alarm
Smart eventsLine crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, face detection with picture upload, scene change, defocus, loitering, people gathering, fast moving, parking detection
LinkageUpload to FTP, notify monitoring centre, send email, trigger recording
Network & Interface
Ethernet1 × RJ45 10/100 Mbps (-ID model)
APIONVIF (Profile S, G, T), ISAPI, SDK
Simultaneous live viewUp to 8 channels
UsersUp to 16 users, 3 levels
On-board storageBuilt-in microSD (TF) slot, up to 256 GB
Video outputNot supported
General
Power supply9–36 VDC (Ø5.5 mm coaxial plug) or PoE IEEE 802.3af (36–57 V)
Power consumptionMax. 7.5 W
Cable length50 cm
MaterialMetal

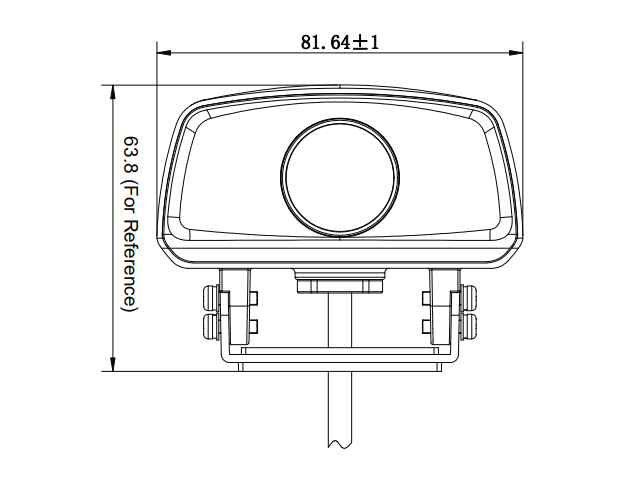

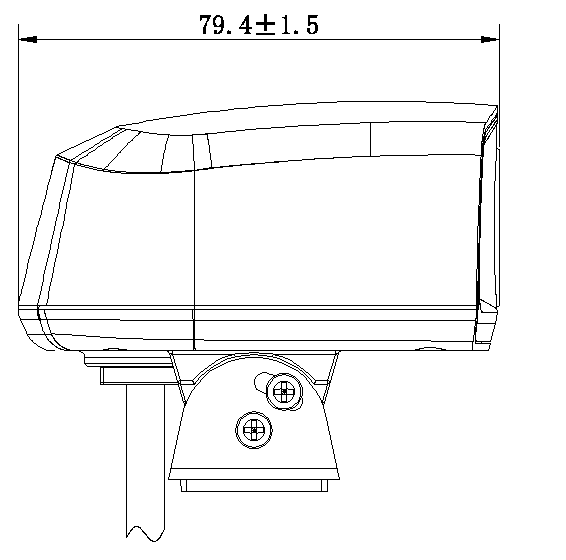

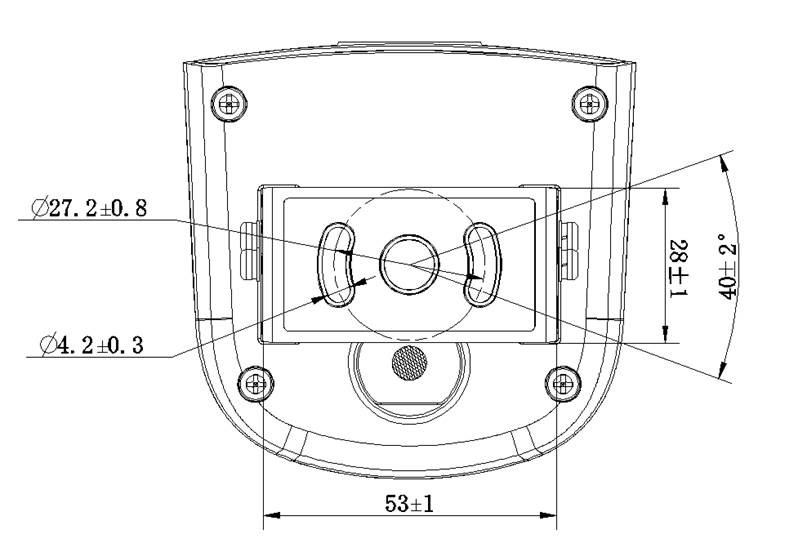

Dimensions78.8 × 81.6 × 63.8 mm
WeightApprox. 330 g
Operating conditions−30 °C to 75 °C, humidity 95% or less (non-condensing)
ProtectionIP68 (IEC 60529-2013)
Automotive & railwayEN 50155:2017, EN 45545-2, E-Mark (ECE R10)
ApprovalsCE, FCC, UL, CB

Specifications are from Hikvision’s official Australian product page and datasheet for the DS-2XM6222G1-I(D)(M)(/ND). Lens values shown are for the 4 mm -ID model.

Best for

  • Bus and coach doorways, aisles and driver areas.
  • Exterior side, rear and reversing views on trucks, vans and plant, thanks to the IP68 rating.
  • Train, tram and metro carriages that need EN 50155 and EN 45545 certified cameras.
  • Mobile NVR systems that supply PoE, or vehicles with 12 V or 24 V power.
  • The 4 mm lens suits medium-length views, such as a full bus aisle or a loading area behind a truck.

Who it’s for

Transport operators

Passenger and driver safety footage on buses and coaches.

Rail & light rail

Certified for railway electronics and fire protection standards.

Logistics fleets

Exterior blind-spot and loading-area coverage on trucks and vans.

Emergency services

Compact, rugged cameras for ambulances and service vehicles.

Fleet integrators

RJ45 with PoE or 9–36 VDC for flexible mobile NVR designs.

Security installers

ONVIF Profile S/G/T for integration beyond Hikvision recorders.

Mobile Bullet FAQ – DS-2XM6222G1-ID 4 mm

It is a 2 MP mobile bullet network camera for vehicles with a 4 mm fixed lens (87° horizontal), IR up to 30 m, 120 dB WDR and a microSD slot. The -ID version connects by RJ45 Ethernet and runs on 9–36 VDC or 802.3af PoE.

The -ID version accepts 9–36 VDC through a Ø5.5 mm coaxial power plug, which suits 12 V and 24 V vehicle systems, or IEEE 802.3af PoE through its RJ45 port. Maximum consumption is 7.5 W.

The -ID model uses a standard RJ45 Ethernet port and supports both DC and PoE power. The -IM/ND model uses a four-core M12 aviation connector and is PoE powered only.

Yes. It is rated IP68 with a metal body and operates from −30 °C to 75 °C, so it suits exterior side and rear mounting as well as cabin use.

Yes. Hikvision lists EN 50155:2017 (railway electronics, including IEC 61373 shock and vibration), EN 45545-2 (railway fire protection) and E-Mark ECE R10 (vehicle EMC).

Yes. A built-in microSD (TF) slot supports cards up to 256 GB, alongside recording on a mobile NVR.

The 4 mm lens covers 87° horizontally, a good balance of width and detail. Hikvision also offers 2.8 mm (105°) for wider views and 6 mm (53°) for longer, narrower views.

Professional overview

The Hikvision DS-2XM6222G1-ID is a 2 MP mobile bullet network camera from Hikvision’s onboard security range. It is designed for buses, coaches, trucks, trains and emergency vehicles, where cameras face constant vibration, wide temperature swings and weather. This model uses a 4 mm fixed lens with an 87° horizontal field of view.

A 1/2.8″ progressive scan CMOS sensor delivers 1920 × 1080 video at up to 30 fps with H.265+ compression and three streams, so the recorder can keep full-resolution footage while sending a lighter stream over 4G. It reaches 0.002 lux at F1.6 and 0 lux with its 850 nm IR, which covers up to 30 m, and 120 dB WDR handles bright windscreens and doorways.

Smart events include line crossing, intrusion, region entrance and exit, loitering, people gathering, fast moving and parking detection, plus face detection with picture upload. The camera supports ONVIF Profile S, G and T, ISAPI and SDK, up to 8 simultaneous live views, and a microSD slot for up to 256 GB of local recording.

The -ID version connects over RJ45 and runs on 9–36 VDC or 802.3af PoE (max. 7.5 W). Its metal body is rated IP68, operates from −30 °C to 75 °C, and carries EN 50155, EN 45545 and E-Mark approvals. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45)
Night Vision IR
Resolution 2 MP
Camera Type Mobile Bullet
Lens 4 mm fixed
Ingress Protection IP68
Power 9–36 VDC / PoE (802.3af)
IR Range Up to 30 m
DS-2XM6222G1-ID_Datasheet.pdf
