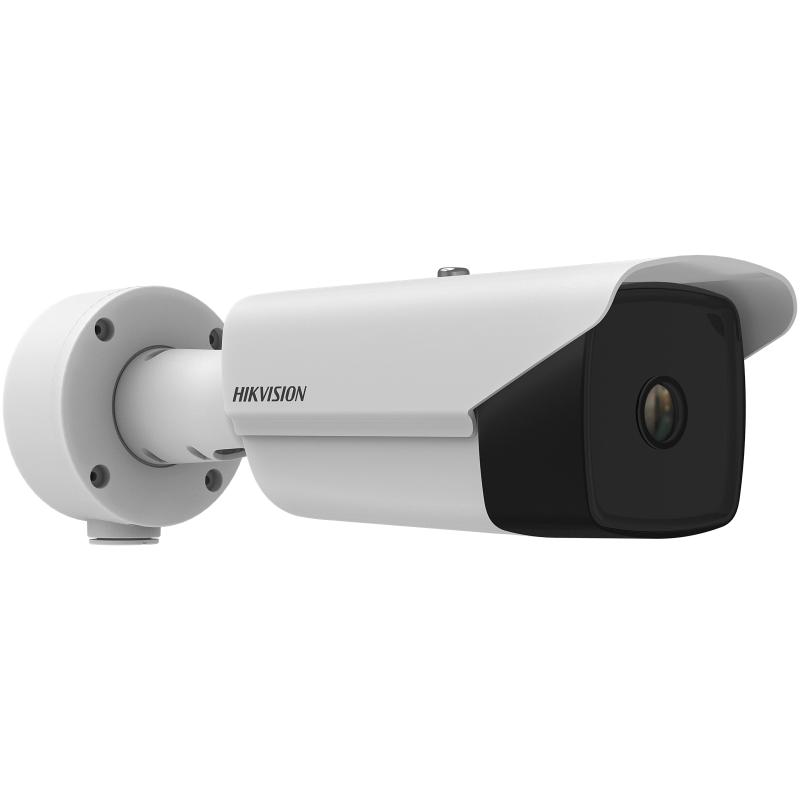

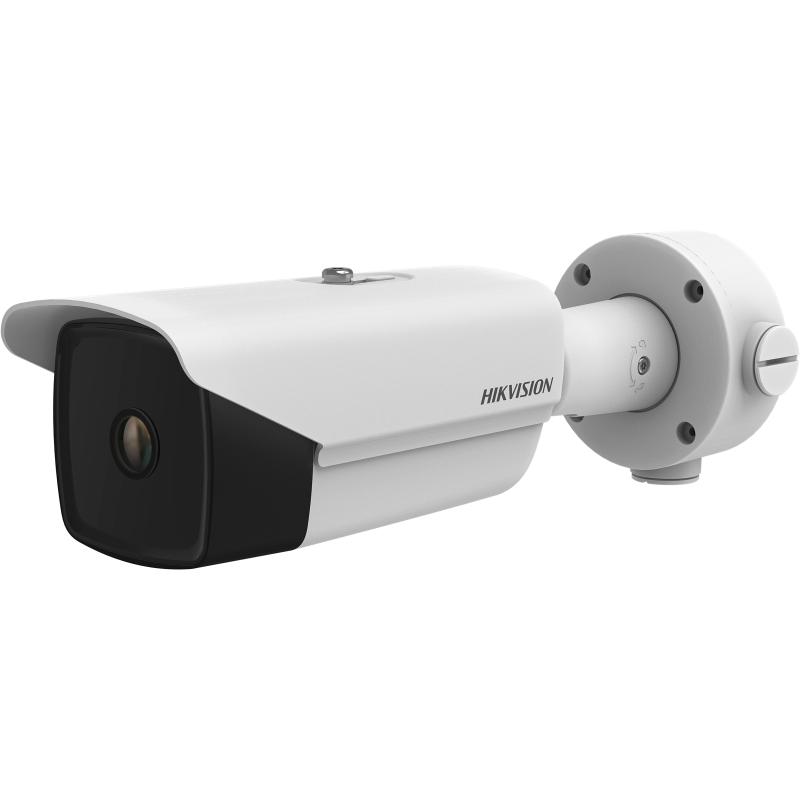

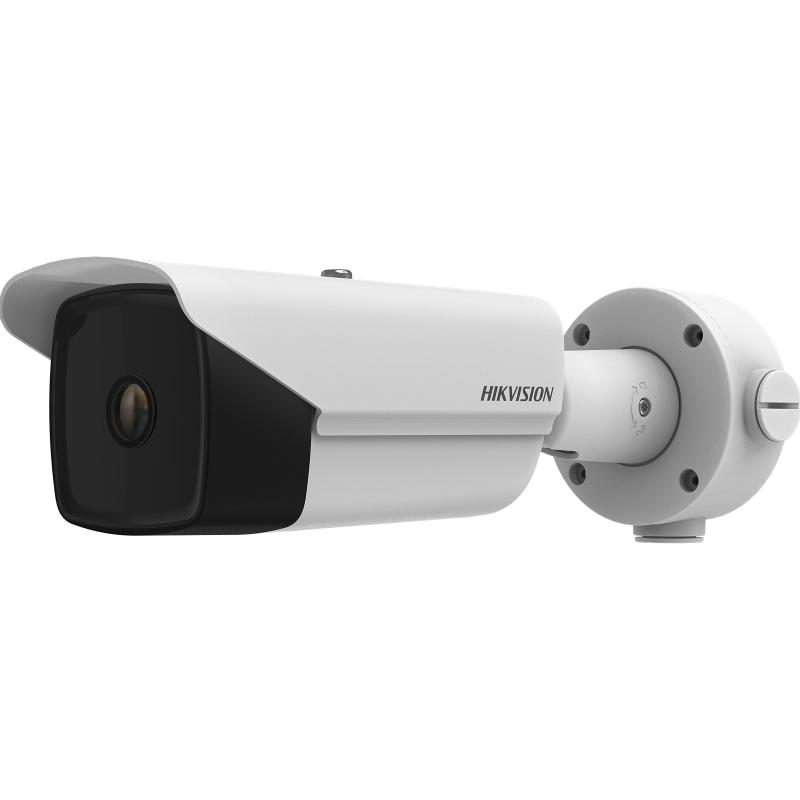

Hikvision DS-2TD2137T-4/QY Anti-Corrosion Thermographic Network Bullet Camera, 384 × 288, 4.4 mm, −20 to 550 °C Temperature Measurement

https://arcip.com.au/web/image/product.template/11221/image_1920?unique=6d43320
  • 384 × 288 VOx thermal detector, 17 μm, NETD ≤ 35 mK
  • 4.4 mm F1.0 lens, 90° × 65.3° field of view
  • Temperature measurement −20 to 550 °C, ±2 °C / ±2%
  • Temperature exception (fire prevention) alarm, smoking detection, human/vehicle VCA
  • Anti-corrosion, IP67, IK10, PoE 802.3af, 5 W

$ 5,068.29 5068.29 AUD $ 5,068.29 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision Bullet Thermal Fire Detection Temperature Measurement
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2TD2137T-4-QY
Tags
DS-2TD2137T-4/QY
Hikvision DS-2TD2137T-4/QY – Anti-corrosion Network Thermography Bullet Camera, 384 × 288 VOx, 4.4 mm, −20 °C to 550 °C Temperature Measurement
At a glance

The Hikvision DS-2TD2137T-4/QY is an anti-corrosion thermographic network bullet camera for temperature monitoring and early fire warning. A 384 × 288 vanadium oxide (VOx) uncooled detector with 17 μm pixels and NETD ≤ 35 mK sits behind a wide 4.4 mm F1.0 lens (90° × 65.3°). It measures temperatures from −20 °C to 550 °C with ±2 °C / ±2% accuracy, raises temperature-exception alarms, detects smoking and classifies people and vehicles. Hikvision suggests it for warehouses, construction sites, waste incineration plants and manufacturing workshops.

Thermal resolution
384 × 288 VOx
Pixel pitch / NETD
17 μm / ≤ 35 mK
Lens
4.4 mm, F1.0
Field of view
90° × 65.3°
Temp. range
−20 °C to 550 °C
Accuracy
Max. ±2 °C / ±2%
Protection
IP67, IK10
Power
PoE 802.3af / 12 VDC / 24 VAC

Key features

  • 384 × 288 VOx uncooled thermal detector with 17 μm pixel pitch and 8–14 μm spectral range, for clear thermal images in total darkness, smoke and light fog.
  • High sensitivity: NETD ≤ 35 mK (@ 25 °C, F1.0) to pick up small temperature differences.
  • Wide 4.4 mm F1.0 lens with a 90° × 65.3° field of view and 0.3 m minimum focusing distance – ideal for covering a whole room, bay or stockpile from close range.
  • Temperature measurement from −20 °C to 550 °C, accuracy max. ±2 °C or ±2%, with 21 rules (10 points, 10 areas and 1 line).
  • Temperature exception alarm for fire prevention – alert operators before a hot spot becomes a fire.
  • Smoking detection algorithm to flag people smoking in no-smoking or hazardous areas.
  • VCA with human/vehicle classification – line crossing, intrusion, region entrance and region exiting, up to 8 rules.
  • Thermal image processing – linear, histogram and self-adaptive AGC modes, DDE and 3D DNR, with white-hot / black-hot target colouration.
  • Anti-corrosion build – IP67, IK10-rated housing, TVS 4000 V lightning, surge and voltage-transient protection, −40 °C to 65 °C operation.
  • High-quality detector with a 10-year guarantee from Hikvision, and an included DS-1260ZJ-AC#SA junction box.

Specifications

Thermal Module
Image sensorVanadium oxide uncooled focal plane array
Resolution384 × 288
Pixel pitch17 μm
Spectral range8 μm to 14 μm
NETD≤ 35 mK (@ 25 °C, F1.0)
Focal length4.4 mm
IFOV3.86 mrad
ApertureF1.0
Field of view90° × 65.3° (H × V)
Min. focusing distance0.3 m
Digital zoom×2, ×4, ×8
Target colourationYes, in white-hot and black-hot modes
Smart Functions
Temperature measurement3 rule types, 21 rules in total (10 points, 10 areas, 1 line)
Temperature range−20 °C to 550 °C
Temperature accuracyMax. (±2 °C, ±2%)
VCA4 rule types (line crossing, intrusion, region entrance, region exiting), up to 8 rules
OtherTemperature exception alarm, smoking detection, human/vehicle classification
Detection Ranges (Johnson criteria)
DetectionVehicle 360 m; human 117 m
RecognitionVehicle 90 m; human 29 m
IdentificationVehicle 45 m; human 15 m
VCA rangeVehicle 92.4 m; human 30.8 m
Temperature measurement0.2 × 0.2 m object: 10 m; 1 × 1 m object: 52 m
Fire detection0.2 × 0.2 m object: 44 m
Smoking detection4.4 m
Video & Audio
Main stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
Sub-stream50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288)
Third stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
Video compressionMain: H.265/H.264; sub and third: H.265/H.264/MJPEG
Audio compressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network & Interface
Ethernet1 × RJ45 10/100 Mbps
APIONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, third-party platforms
Simultaneous live viewUp to 20 channels
StoragemicroSD/SDHC/SDXC up to 256 GB; NAS (NFS, SMB/CIFS); ANR
Alarm2 inputs (0–5 VDC), 2 outputs
Alarm actionsSD recording, relay output, smart capture, FTP upload, email linkage
Audio1 × 3.5 mm mic/line in; 1 line output
Other1 × RS-485 (half duplex); 1 analog output (BNC, PAL/NTSC)
ClientsiVMS-4200, Hik-Connect
General
Power supply24 VAC ±25%, 12 VDC ±25%, PoE (802.3af, class 3)
Power consumptionMax. 5 W (5.5 W on PoE)
ProtectionIP67; IK10-rated housing; TVS 4000 V lightning, surge and voltage-transient protection
Operating conditions−40 °C to 65 °C, humidity 95% or less

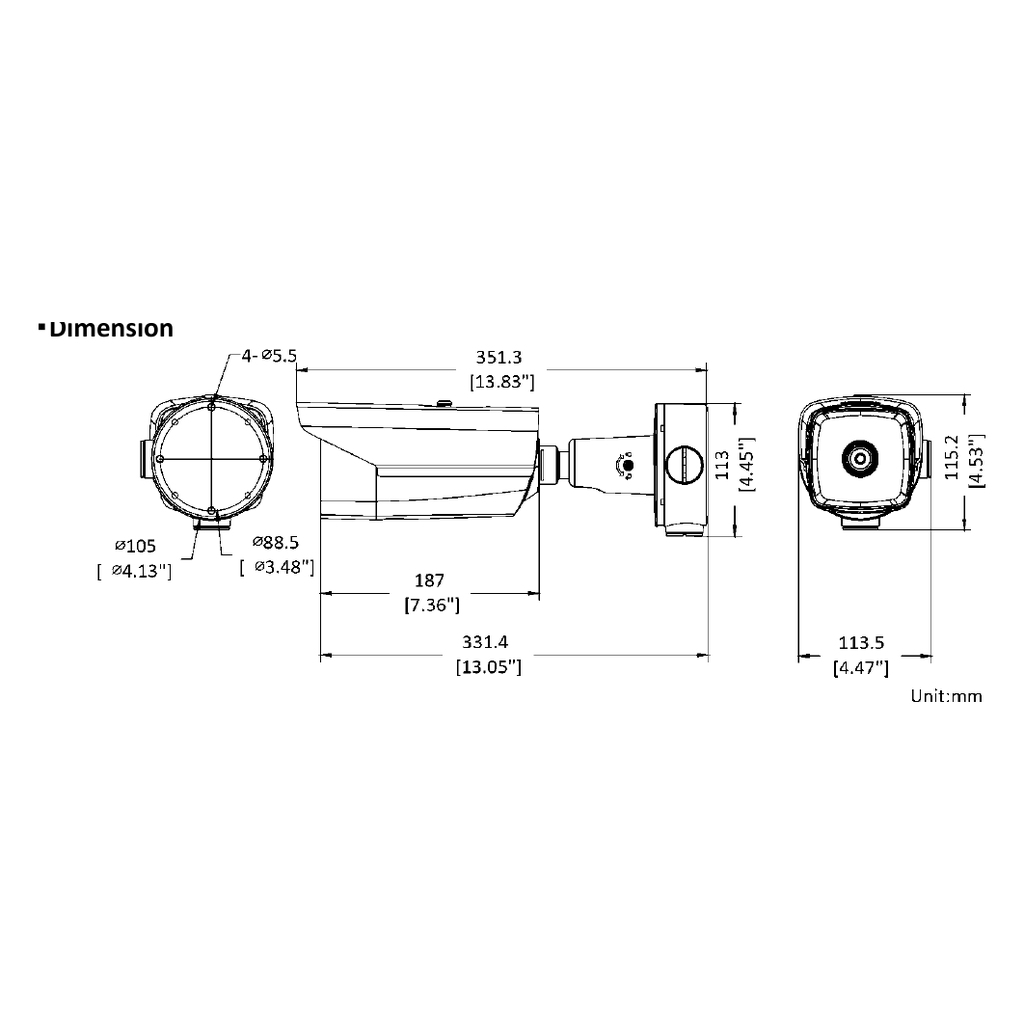

Camera dimensions351.3 × 113.5 × 115.2 mm
Camera weightApprox. 1.77 kg
Included accessoryDS-1260ZJ-AC#SA junction box

Specifications are from Hikvision’s official DS-2TD2137T-4/QY datasheet. Detection ranges are Hikvision reference figures and vary with the environment. Thermal products may be subject to export controls; please contact us if the camera will be exported from Australia.

Best for

  • Early fire warning in warehouses, recycling depots and stockpiles, using temperature-exception alarms on areas and points.
  • Waste incineration plants, manufacturing workshops and electrical rooms where overheating equipment needs to be watched 24/7.
  • Construction sites that need a camera that sees people and vehicles in total darkness without any visible lighting.
  • No-smoking zones near fuel, chemicals or dust, using the built-in smoking detection algorithm.
  • Corrosive or coastal environments where an anti-corrosion, IP67, IK10 housing is required.

Who it’s for

Facility & risk managers

Continuous temperature monitoring of high-risk areas, with alarms before a fire starts.

Security integrators

Thermal VCA with human/vehicle classification that works in darkness, smoke and glare.

Waste & recycling operators

Watch bunkers and stockpiles for self-heating hot spots.

Manufacturers

Monitor machinery, conveyors and process areas for abnormal temperatures.

Construction companies

Night-time intrusion detection without floodlighting.

Utilities

Rugged, low-power thermal coverage for remote sites on PoE.

Thermography Camera FAQ – DS-2TD2137T-4/QY

It is an anti-corrosion network thermography bullet camera with a 384 × 288 VOx thermal detector and a 4.4 mm F1.0 lens. It measures temperature from −20 °C to 550 °C and raises alarms for temperature exceptions, smoking and intrusions.

Hikvision specifies max. ±2 °C or ±2% across a range of −20 °C to 550 °C, with up to 21 measurement rules (10 points, 10 areas and 1 line). It is designed for equipment and fire-prevention monitoring, not body-temperature screening.

Using Johnson criteria, Hikvision quotes detection of a vehicle at 360 m and a human at 117 m, recognition at 90 m / 29 m and identification at 45 m / 15 m. VCA alarms work up to 92.4 m for vehicles and 30.8 m for people.

Yes. The temperature exception alarm supports fire prevention, with fire detection of a 0.2 × 0.2 m object out to 44 m, and the smoking detection algorithm works up to 4.4 m from the camera.

The 4.4 mm F1.0 lens gives a wide 90° × 65.3° view with a 0.3 m minimum focusing distance, which suits rooms, bays and short-range area monitoring.

It draws a maximum of only 5–5.5 W and runs from PoE (802.3af, class 3), 12 VDC or 24 VAC, so it can be fed from a standard PoE switch or NVR port.

It supports ONVIF Profile S and G, ISAPI and the Hikvision SDK. Video and basic events work with ONVIF recorders; full temperature data and thermal alarms are best managed in Hikvision NVRs, iVMS-4200 or HikCentral.

Professional overview

The Hikvision DS-2TD2137T-4/QY is an anti-corrosion network thermography bullet camera designed to watch for abnormal temperatures and fire risk while also providing round-the-clock intrusion detection. Hikvision positions it for warehouses, construction sites, waste incineration plants and manufacturing workshops, where an accurate temperature-measuring camera can send exception alarms early and help prevent loss.

At its core is a 384 × 288 vanadium oxide uncooled focal plane array with a 17 μm pixel pitch, 8–14 μm spectral range and NETD of 35 mK or better. The 4.4 mm F1.0 lens delivers a wide 90° × 65.3° field of view with focusing from 0.3 m, and image processing includes linear, histogram and self-adaptive AGC modes, DDE and 3D DNR, with white-hot and black-hot target colouration and up to ×8 digital zoom.

Temperature measurement covers −20 °C to 550 °C with max. ±2 °C / ±2% accuracy across up to 21 point, area and line rules. Alongside temperature exception and fire-prevention alarms, the camera runs a smoking detection algorithm and four VCA rule types with human and vehicle classification. Hikvision reference ranges include vehicle detection at 360 m, human detection at 117 m and fire detection of a 0.2 m object at 44 m.

The housing is rated IP67 with an IK10 enclosure and TVS 4000 V lightning, surge and voltage-transient protection, and operates from −40 °C to 65 °C. It draws just 5 W from 802.3af PoE, 12 VDC or 24 VAC, provides 2 alarm inputs and outputs, audio, RS-485 and microSD storage, and ships with a junction box. The detector carries Hikvision’s 10-year guarantee and the camera comes with the full manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 100M)
Resolution 384 × 288 thermal
Camera Type Bullet
Lens 4.4 mm thermal
Smart Features Temperature measurement, fire & smoking detection, human/vehicle VCA
Ingress Protection IP67, IK10
Power PoE (802.3af) / 12 VDC / 24 VAC
Audio / Alarm Audio in/out + 2×2 alarm I/O + RS-485
