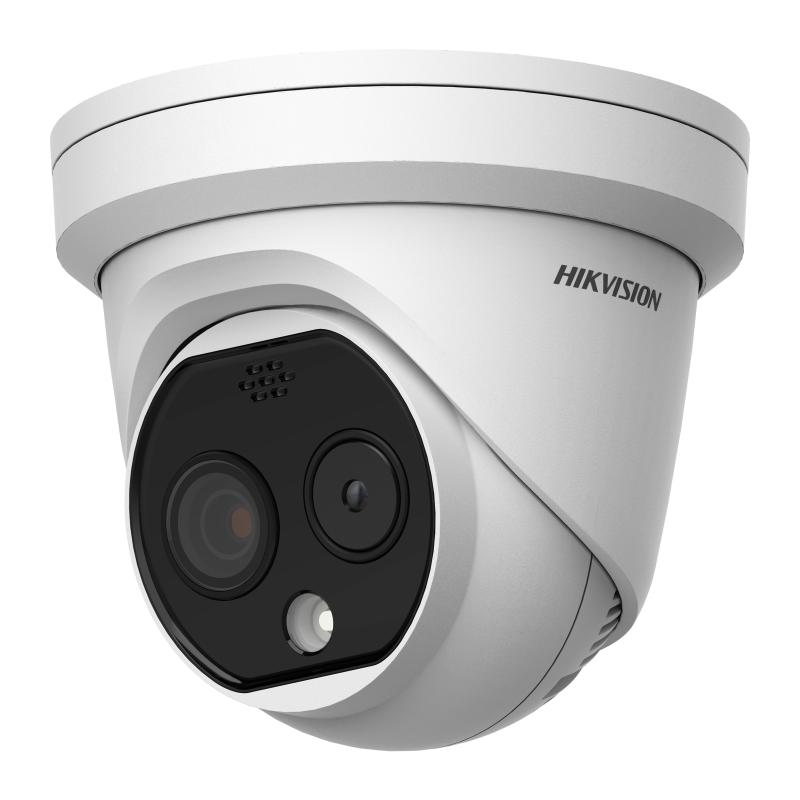

Hikvision DS-2TD1228-3/QA HeatPro Bi-Spectrum Thermal Turret Network Camera, 256 × 192 Thermal 3.6 mm, 4 MP Optical 4.3 mm

https://arcip.com.au/web/image/product.template/11226/image_1920?unique=d825bc3
  • 256 × 192 VOx thermal (3.6 mm) + 4 MP optical (4.3 mm)
  • Temperature alarms −20 °C to 150 °C, fire & smoking detection
  • Human/vehicle VCA, white light + voice alarm
  • IR 15 m, 120 dB WDR, microSD up to 256 GB
  • IP67, −40 °C to 65 °C, PoE 802.3af

$ 882.56 882.56 AUD $ 882.56 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision Turret 4MP Thermal Bi-Spectrum HeatPro Fire Detection
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2TD1228-3-QA
Tags
DS-2TD1228-3/QA
Hikvision DS-2TD1228-3/QA – HeatPro Thermal & Optical Bi-Spectrum Turret Camera, 256 × 192 Thermal 3.6 mm, 4 MP Optical 4.3 mm, Fire & Smoking Detection
At a glance

The Hikvision DS-2TD1228-3/QA is a HeatPro bi-spectrum turret that pairs a 256 × 192 VOx thermal sensor with a 4 MP optical camera in one housing. The thermal channel sees people, vehicles and heat sources in total darkness, and measures temperature from −20 °C to 150 °C to raise early fire and temperature-exception alarms. Deep-learning human/vehicle classification, smoking detection, a white-light strobe and audible alarm make it a compact perimeter and fire-prevention camera for warehouses, car parks, construction sites and plant rooms.

Thermal
256 × 192, 12 µm VOx
Thermal lens
3.6 mm, 50° × 37.3°
Optical
4 MP, 4.3 mm, 84° H
Temperature
−20 °C to 150 °C
Detection
Human/vehicle, fire, smoking
Deterrence
White light + audio alarm
Protection
IP67
Power
PoE 802.3af / 12 VDC

Key features

  • Bi-spectrum imaging – a 256 × 192, 12 µm vanadium oxide thermal sensor (NETD < 40 mK) alongside a 4 MP (2688 × 1520) optical camera.
  • Temperature exception alarms – 3 rule types and 21 rules (10 points, 10 areas, 1 line) across −20 °C to 150 °C, accuracy ±8 °C, for early fire prevention.
  • Fire and smoking detection – fire detection on heat sources, smoking detection, and a sun-reflection filter to reduce false alarms.
  • Deep-learning VCA – line crossing, intrusion, region entrance and region exiting with human/vehicle classification, up to 8 rules.
  • Active deterrence – white light up to 30 m with adjustable flashing, plus audible alarms with preset and 6 importable custom voice alerts.
  • Long thermal detection range – Hikvision rates detection at 460 m for vehicles and 150 m for humans (Johnson’s criteria).
  • Thermal image processing – linear, histogram and self-adaptive AGC modes, DDE and 3D DNR, with target colouration in white-hot and black-hot modes.
  • Optical channel – 1/2.7″ CMOS, 4.3 mm F1.6 lens, 84° horizontal view, 120 dB WDR and IR up to 15 m.
  • Integration ready – alarm 1/1, audio in/out, RS-485, microSD up to 256 GB, ONVIF Profile S/G, ISAPI and SDK.
  • Weather and surge protection – IP67, −40 °C to 65 °C operation and TVS 6000 V lightning protection.

Specifications

Thermal Module
Image sensorVanadium oxide uncooled focal plane array
Resolution256 × 192
Pixel pitch12 µm
Spectral range8 µm to 14 µm
NETD< 40 mK (25 °C, F1.1)
Focal length3.6 mm, F1.0
Field of view50.0° × 37.3° (H × V)
IFOV3.33 mrad
Min. focusing distance0.4 m
Digital zoom×2, ×4
Optical Module
Image sensor1/2.7″ progressive scan CMOS
Resolution2688 × 1520
Min. illumination0.0089 lux @ (F1.6, AGC ON); 0 lux with IR
Shutter speed1 s to 1/100,000 s
Focal length4.3 mm, F1.6
Field of view84.0° (H) × 43.1° (V)
WDR120 dB
IR distanceUp to 15 m
Temperature Measurement & Smart Functions
Temperature range−20 °C to 150 °C
Accuracy±8 °C
Measurement rules3 rule types, 21 rules (10 points, 10 areas, 1 line)
VCALine crossing, intrusion, region entrance, region exiting; up to 8 rules; human/vehicle classification
Other functionsFire detection, smoking detection, sun-reflection filter
Visual alarmWhite light up to 30 m, adjustable flashing frequency
Audible alarmVCA and temperature-exception alerts: 2 preset, 6 importable custom voice alerts
Detection Range (Johnson’s criteria)
DetectionVehicle 460 m, human 150 m
RecognitionVehicle 112 m, human 38 m
IdentificationVehicle 56 m, human 19 m
VCA rangeVehicle 75.6 m, human 28.4 m
Fire detection (0.2 × 0.2 m object)43.2 m
Temperature measurement11.7 m (0.2 × 0.2 m object), 58.3 m (1 × 1 m object)
Smoking detection5.4 m
Video, Network & Interface
Main streamThermal 25 fps up to 1280 × 720; optical 25/30 fps up to 2688 × 1520
Video compressionMain: H.265/H.264; sub: H.265/H.264/MJPEG
Ethernet1 × RJ45 10/100 Mbps
APIONVIF (Profile S, G), ISAPI, Hikvision SDK, ISUP
StoragemicroSD/SDHC/SDXC up to 256 GB; NAS; ANR
Alarm1 input, 1 output
Audio1 × 3.5 mm mic/line in; 1 audio output
RS-4851 (half duplex)
ClientsiVMS-4200, Hik-Connect
General
Power12 VDC ±25%, max. 6 W; PoE IEEE 802.3af Class 3, max. 6.5 W
Operating conditions−40 °C to 65 °C, humidity 95% or less
ProtectionIP67; TVS 6000 V lightning, surge and voltage transient protection

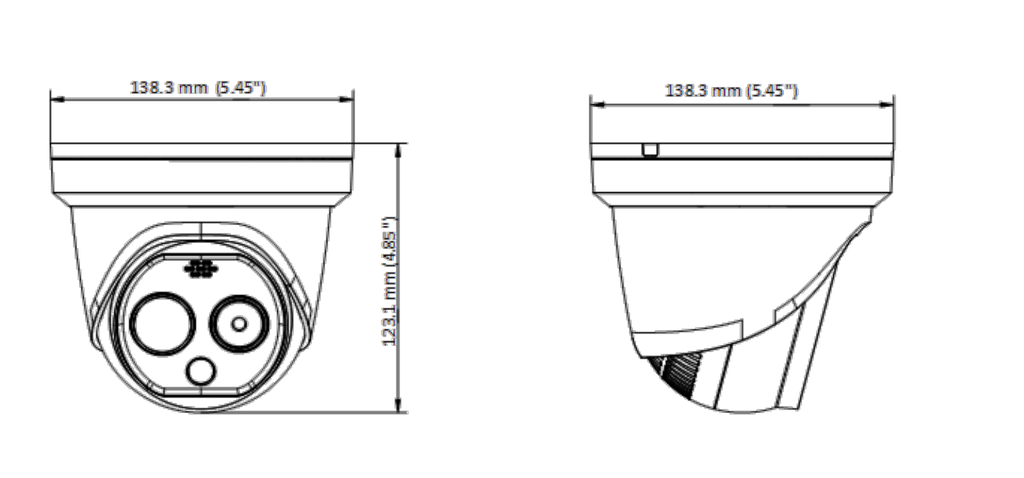

Dimensions138.3 × 138.3 × 123.1 mm
Weight940 g

Specifications are from Hikvision’s official Australian product page and datasheet for the DS-2TD1228-3/QA. Detection ranges are Hikvision reference figures and vary with the environment. Thermal products may be subject to export controls; please consult the relevant authorities before re-exporting.

Best for

  • Warehouses, bin stores and waste areas where an early temperature-exception alarm can prevent a fire.
  • Car parks and EV charging areas that need heat monitoring alongside intrusion detection.
  • Construction sites and yards that need reliable human/vehicle detection in total darkness.
  • No-smoking zones such as fuel areas and loading docks, using smoking detection.
  • Villas and communities wanting a compact turret that detects intruders and warns them off.

Who it’s for

Security integrators

A compact bi-spectrum turret that adds thermal detection without a separate thermal head.

Facility & risk managers

Point, area and line temperature rules for fire prevention.

Manufacturing sites

Watch machinery and workshops for abnormal heat.

Monitoring centres

Thermal VCA with human/vehicle classification works in complete darkness.

Construction & logistics

Detect intruders across yards with white light and voice warnings.

Property developers

Perimeter detection and fire alerts in one device for residential communities.

HeatPro Bi-Spectrum FAQ – DS-2TD1228-3/QA

It is a HeatPro thermal and optical bi-spectrum turret camera. It combines a 256 × 192 thermal sensor (3.6 mm lens) with a 4 MP optical camera (4.3 mm lens), and adds temperature measurement, fire and smoking detection, human/vehicle VCA and active white-light and audio alarms.

It measures temperature from −20 °C to 150 °C with ±8 °C accuracy, using up to 21 rules (10 points, 10 areas and 1 line). When a reading exceeds your threshold it raises a temperature-exception alarm, which is useful for early fire prevention.

Hikvision rates detection at 150 m for humans and 460 m for vehicles, recognition at 38 m and 112 m, and VCA (rule-based alarm) range at 28.4 m for humans and 75.6 m for vehicles. Figures are for reference and vary with conditions.

The number indicates the thermal lens. The DS-2TD1228-3/QA has a 3.6 mm thermal lens with a wide 50° × 37.3° view, suited to covering close areas, while the -7 model uses a longer lens for a narrower, longer-range view.

Yes. It has a white light (up to 30 m) with adjustable flashing and an audible alarm with 2 preset and 6 importable custom voice messages, triggered by VCA or temperature-exception events.

It runs on PoE IEEE 802.3af (Class 3), max. 6.5 W, or 12 VDC (max. 6 W), so a standard PoE switch or NVR port is enough.

Yes. It is rated IP67, operates from −40 °C to 65 °C and has TVS 6000 V lightning, surge and voltage transient protection.

Professional overview

The Hikvision DS-2TD1228-3/QA is a compact HeatPro bi-spectrum turret that combines thermal and optical imaging in one housing. The thermal module uses a 256 × 192, 12 µm vanadium oxide sensor with NETD below 40 mK behind a 3.6 mm F1.0 lens, giving a 50° × 37.3° view. The optical module adds a 4 MP image from a 1/2.7″ CMOS and 4.3 mm lens with an 84° horizontal view, so operators get both heat detection and recognisable colour detail. Hikvision positions it for villas, communities, car parks, warehouses, construction sites, waste facilities and manufacturing workshops.

Thermal imaging detects heat rather than visible light, so the camera’s deep-learning VCA keeps working in complete darkness. Line crossing, intrusion, region entrance and region exiting rules classify humans and vehicles, with Hikvision rating detection at 150 m for people and 460 m for vehicles. On the optical side, 120 dB WDR and IR up to 15 m keep the colour image useful at entrances and close range.

Fire prevention is the other half of the design. The camera measures temperature from −20 °C to 150 °C across up to 21 point, area and line rules, and raises temperature-exception alarms when a reading crosses your threshold. Fire detection, smoking detection and a sun-reflection filter round out the analytics. Alarms can trigger the white-light strobe and voice alerts, SD recording, relay output, smart capture, FTP upload or email.

The turret is rated IP67, operates from −40 °C to 65 °C and includes TVS 6000 V lightning protection. It draws just 6.5 W over 802.3af PoE, supports ONVIF Profile S and G, ISAPI and Hik-Connect, and records locally to microSD up to 256 GB. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired
Resolution 4 MP optical + 256 × 192 thermal
Camera Type Turret
Lens 3.6 mm thermal / 4.3 mm optical
Smart Features Fire & smoking detection, temperature alarm, human/vehicle VCA
Ingress Protection IP67
Power PoE (802.3af) / 12 VDC
IR Range 15 m
Audio / Alarm Audio in/out, 1/1 alarm I/O, white-light & audible alarm
DS-2TD1228-3_QA_Datasheet.pdf
