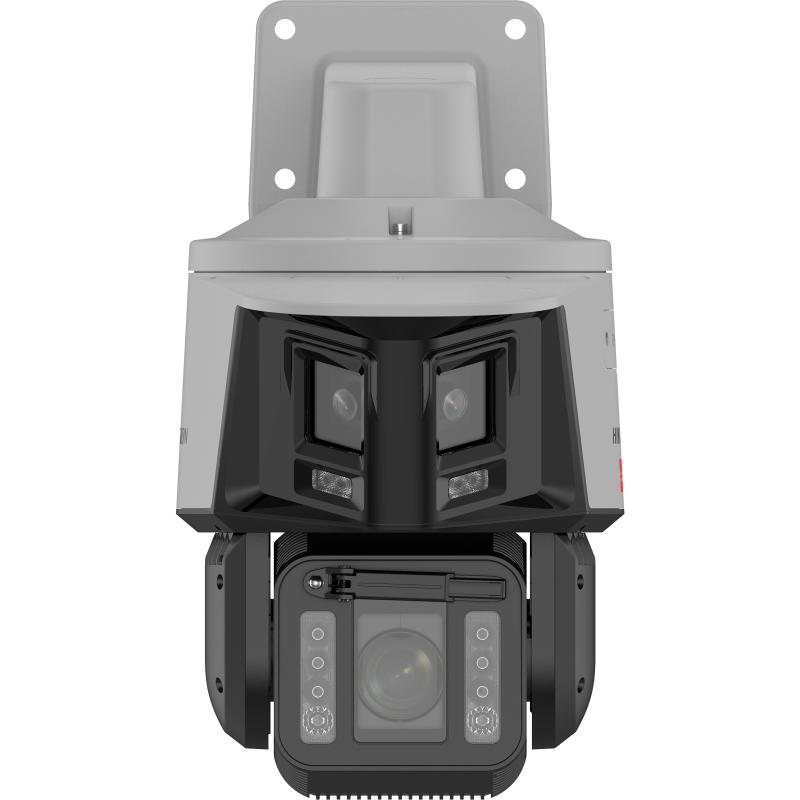

Name: Hikvision DS-2ST5C432MWG-EW/26(PA) TandemVu Polymer Anti-Corrosion PTZ, 6 MP 180° Panoramic + 4 MP 32× Zoom, IR 150 m, Wiper, NEMA 4X
Brand: Hikvision
SKU: DS-2ST5C432MWG-EW-26-PA
Price: 2747.05 AUD
Availability: InStock

DS-2ST5C432MWG-EW/26(PA)

Hikvision DS-2ST5C432MWG-EW/26(PA) – Polymer Anti-Corrosion TandemVu PTZ, 6 MP 180° Panoramic + 4 MP 32× PTZ, IR 150 m, Wiper, IP67, NEMA 4X, C5M

At a glance

The Hikvision DS-2ST5C432MWG-EW/26(PA) is a TandemVu dual-channel PTZ camera in a polymer anti-corrosion housing. One channel gives a 6 MP 180° stitched panoramic view with 24/7 colour; the second is a 4 MP PTZ with 32× optical zoom and IR up to 150 m. The PTZ channel automatically tracks and zooms on events the panoramic channel picks up. The PA + 50% glass fibre body is rated NEMA 4X and C5M for corrosive coastal and industrial sites, with IP67, a wiper and demist.

Panoramic channel

6 MP, 180°, 2.8 mm F1.0

PTZ channel

4 MP, 5.5–176 mm, 32×

Light range

IR 150 m / white light 30 m

AcuSense, face capture, LPR

Housing

PA + 50% glass fibre

Anti-corrosion

NEMA 4X, C5M

Protection

IP67, TVS 6000 V

Power

12 VDC / PoE 802.3bt, max. 60 W

Key features

TandemVu: two views in one camera – a 6 MP 180° stitched panoramic channel watches the whole scene while a 4 MP PTZ channel zooms in on detail, so nothing is missed while the PTZ is busy.
32× optical zoom – 5.5 to 176 mm motorised lens on the PTZ channel (horizontal field of view 60.7° to 2.3°) plus 16× digital zoom.
24/7 colour panoramic view – DarkFighter low-light imaging with an F1.0 aperture: colour down to 0.0005 lux on the panoramic channel, with white light up to 30 m.
IR up to 150 m – the PTZ channel uses infrared for long-range night views; smart supplement light prevents over-exposure.
Linked tracking – Auto-tracking 3.0, tracking takeover and linked tracking capture between the panoramic and PTZ channels.
Deep learning – AcuSense human and vehicle classification, multi-target detection and capture of people, faces and vehicles on the PTZ channel, and licence plate recognition in checkpoint scenarios.
Active deterrence – white flashing light and an audible warning from the built-in speaker can be triggered by events.
Polymer anti-corrosion housing – PA + 50% glass fibre body rated NEMA 4X (NEMA 250-2018) and C5M for coastal, marine, chemical and wastewater sites.
Weatherproof with wiper – IP67, built-in wiper and demist, TVS 6000 V lightning, surge and voltage transient protection, operating from −30 °C to 65 °C.
EIS with gyroscope – a built-in gyroscope improves electronic image stabilisation on the PTZ channel for pole-mounted installs.
Wall bracket included – the camera ships with a built-in wall bracket; other mounting options use optional Hikvision brackets.

Specifications

Camera
Image sensor	Panoramic channel: 1/2.5″ progressive scan CMOS; PTZ channel: 1/2.5″ progressive scan CMOS
Max. resolution	Panoramic: 3680 × 1656 (6 MP stitched); PTZ: 2688 × 1520 (4 MP)
Min. illumination	Panoramic: colour 0.0005 lux, B/W 0.0001 lux @ (F1.0, AGC ON), 0 lux with light; PTZ: colour 0.005 lux, B/W 0.001 lux @ (F1.6, AGC ON), 0 lux with light
Shutter speed	1 s to 1/30,000 s
Day & night	Panoramic: colour; PTZ: IR cut filter
Zoom	PTZ: 32× optical, 16× digital

Lens
Focal length	Panoramic: 2.8 mm; PTZ: 5.5 to 176 mm
Aperture	Panoramic: F1.0; PTZ: F1.6
Field of view	Panoramic: horizontal 190° ± 5°, vertical 80° ± 5°; PTZ: horizontal 60.7° to 2.3°, vertical 35.9° to 1.3°, diagonal 68.4° to 2.7°
Zoom speed	PTZ: approx. 3.6 s
Focus	Auto, semi-auto, manual

Illuminator
Supplement light type	Hybrid (IR + white light)
Range	Panoramic: white light up to 30 m; PTZ: IR up to 150 m
Smart supplement light	Yes

PTZ
Pan range	360° endless
Tilt range	Panoramic channel: 12° to 24°; PTZ channel: −10° to 90°
Pan / tilt speed	PTZ: 0.1° to 80°/s configurable, preset speed 80°/s
Presets	300
Patrol scan	8 patrols, up to 32 presets each
Pattern scan	4 pattern scans, over 10 minutes each
Other	3D positioning, power-off memory, park action, scheduled tasks, preset freezing

Video & Audio
Panoramic main stream	50 Hz: 25 fps; 60 Hz: 30 fps (3680 × 1656, 3632 × 1632)
PTZ main stream	50 Hz: 25 fps; 60 Hz: 30 fps (2688 × 1520 down to 1280 × 720)
Video compression	Main: H.265+/H.265/H.264+/H.264; sub and third streams: H.265/H.264/MJPEG
Video bit rate	32 Kbps to 16 Mbps
Audio compression	G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio	Built-in microphone and speaker; environment noise filtering

WDR	Panoramic: 120 dB; PTZ: 140 dB
Image enhancement	HLC, 3D DNR, digital defog
Image stabilisation	EIS with built-in gyroscope
Privacy mask	Panoramic: 8 polygon masks; PTZ: 24 polygon masks
SNR	≥ 52 dB

Smart & Deep Learning
AcuSense	Human and vehicle classification
Multi-target detection	PTZ channel: simultaneous detection and capture of human body, face and vehicle
Licence plate recognition	PTZ channel, checkpoint scenario; vehicle attributes, vehicle and non-vehicle counting; block/allow list up to 10,000 records
People density	Panoramic channel
Perimeter protection	Line crossing, intrusion, region entrance, region exiting
Smart events	Unattended baggage, object removal, loitering, people gathering, fast moving, parking detection
Tracking	Manual tracking, Auto-tracking 3.0, tracking takeover, linked tracking capture
Linkage	FTP/NAS/memory card upload, notify centre, email, alarm output, recording, audible warning, white light flashing, PTZ actions

Network & Interface
Ethernet	1 × RJ45 10/100 Mbps
API	ONVIF (Profile S, G, T, M), ISAPI, SDK, ISUP, OTAP
Simultaneous live view	Up to 20 channels
Users	Up to 32 users, 3 levels
On-board storage	microSD/SDHC/SDXC up to 512 GB
Alarm	2 inputs, 1 output
Audio	1 line in, 1 line out
RS-485	1 (half duplex; HIKVISION, Pelco-P, Pelco-D)
Security	HTTPS, 802.1X, IP filter, watermark, TPM 2.0 (FIPS 140-2 level 2)

General
Power	12 VDC ±15%, max. 60 W; or PoE IEEE 802.3bt (Type 3, Class 6), max. 60 W
Material	PA + 50% glass fibre
Wiper / demist	Yes / yes

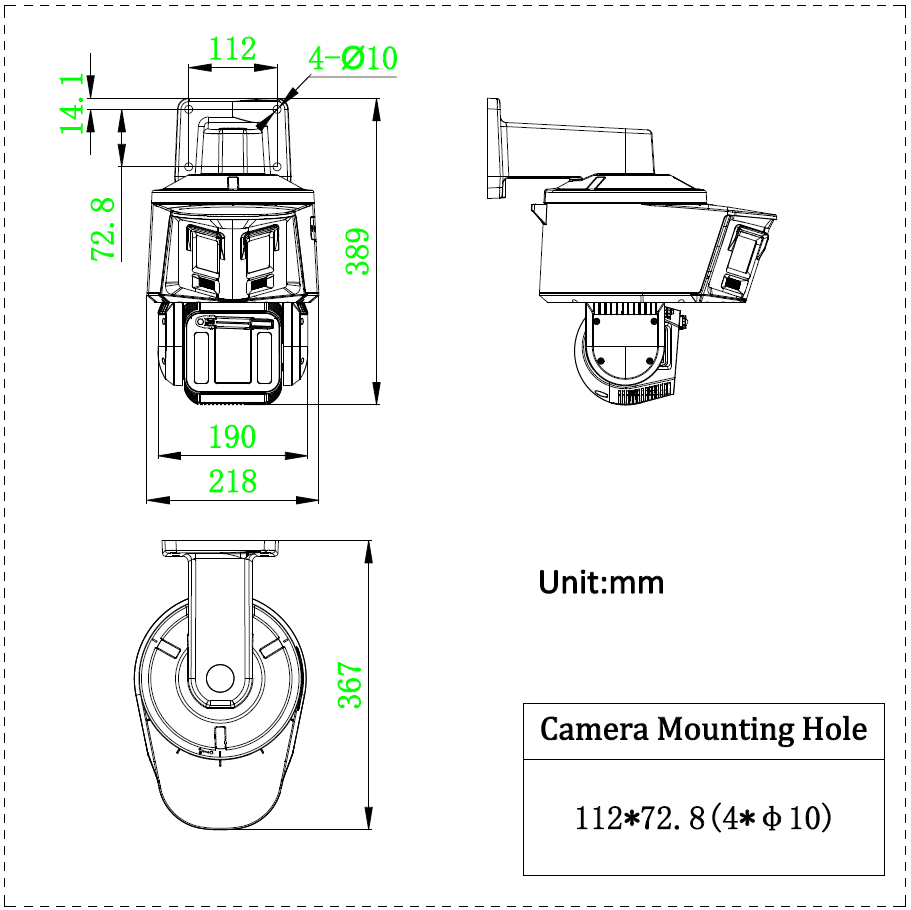

Dimensions	Ø218 × 389 mm
Weight	Approx. 5.4 kg
Operating conditions	−30 °C to 65 °C (speaker −30 °C to 55 °C), humidity 95% or less (non-condensing)
Protection	IP67 (IEC 60529-2013), TVS 6000 V lightning, surge and voltage transient protection
Anti-corrosion	NEMA 4X (NEMA 250-2018), C5M
Approvals	CE, RCM, IC, CB, CE-LVD

Specifications are from Hikvision’s official Australian product page and datasheet for the DS-2ST5C432MWG-EW/26(PA).

Best for

Ports, marinas, wharves and coastal infrastructure where salt air corrodes metal housings.
Water and wastewater treatment plants, chemical plants and fertiliser storage.
Large open areas such as yards, depots and car parks that need a wide overview plus long-range zoom.
Perimeters where PTZ auto-tracking should not leave the rest of the scene unwatched.
Sites that want event-triggered strobe and audio warnings to deter intruders.

Who it’s for

Ports & marine

NEMA 4X and C5M-rated polymer housing for salt-spray environments.

Utilities

Water, wastewater and energy sites with corrosive atmospheres.

Industrial operators

Chemical, mining and processing plants needing wide and detailed coverage.

Councils & transport

Foreshores, bus interchanges and depots with long sight lines.

Systems integrators

ONVIF Profile S/G/T/M and ISAPI for VMS integration, including HikCentral Pro.

Security monitoring

Linked tracking and active deterrence for live response.

Installation checklist

Power budget: use a PoE source that supports IEEE 802.3bt (Type 3, Class 6, 60 W) or a 12 VDC supply rated for 60 W. A standard 802.3af or 802.3at port does not supply enough power for the heater, light and PTZ.
Mounting: the camera ships with a wall bracket. For pole, corner or parapet mounting, add the matching Hikvision bracket and mounting adaptor.
Weight: the camera weighs approx. 5.4 kg, so use a structure and fixings rated for the load plus wind.
Corrosive sites: use stainless steel fixings and sealed cable glands so the rest of the installation matches the camera’s corrosion rating.
Network: the Ethernet port is 10/100 Mbps; plan bandwidth for two video channels at up to 16 Mbps each.

TandemVu Anti-Corrosion FAQ – DS-2ST5C432MWG-EW/26(PA)

It is a TandemVu PTZ camera in a polymer anti-corrosion housing. It combines a 6 MP 180° panoramic channel with 24/7 colour and a 4 MP PTZ channel with 32× optical zoom and IR up to 150 m, rated IP67, NEMA 4X and C5M.

TandemVu cameras have two camera channels in one unit: a fixed wide view and a PTZ. The panoramic channel keeps watching the whole scene while the PTZ zooms in, and Hikvision’s linked tracking hands targets from one channel to the other.

Yes. The housing is PA + 50% glass fibre rather than metal, and Hikvision rates it NEMA 4X (NEMA 250-2018) and C5M, which cover corrosive marine and industrial atmospheres. It is also IP67 with TVS 6000 V surge protection.

It needs 12 VDC (max. 60 W) or PoE IEEE 802.3bt Type 3 Class 6 (max. 60 W). Standard PoE (802.3af) and PoE+ (802.3at) ports are not enough.

The PTZ channel uses IR up to 150 m. The panoramic channel uses white light up to 30 m to keep colour images at night.

Yes. The PTZ channel supports licence plate recognition of vehicles and motorcycles in checkpoint scenarios, with vehicle attribute detection and block/allow lists of up to 10,000 records.

Yes. The -EW model includes a built-in wiper and demist to keep the window clear in rain and sea spray.

Professional overview

The Hikvision DS-2ST5C432MWG-EW/26(PA) is a TandemVu PTZ camera from Hikvision’s anti-corrosion series. It is built for sites where salt air and chemicals quickly damage ordinary metal housings, such as ports, marinas, water treatment plants and chemical facilities, and where a single camera must cover a large area in detail.

Its panoramic channel stitches a 6 MP, 180° image from a 2.8 mm F1.0 lens and keeps colour down to 0.0005 lux, with white light up to 30 m. The PTZ channel uses a 4 MP 1/2.5″ sensor with a 5.5–176 mm lens for 32× optical zoom, 140 dB WDR and IR up to 150 m. Pan is 360° endless with 300 presets, patrols and pattern scans.

Deep learning on the PTZ channel adds AcuSense human and vehicle classification, simultaneous capture of people, faces and vehicles, and licence plate recognition at checkpoints. Auto-tracking 3.0 and linked tracking let the PTZ follow targets while the panoramic channel keeps watching the whole scene, and events can trigger a white strobe light and audible warning.

The PA + 50% glass fibre body is rated IP67, NEMA 4X and C5M, with a wiper, demist and TVS 6000 V protection, and it operates from −30 °C to 65 °C. Power is 12 VDC or 802.3bt PoE (max. 60 W), and the camera supports ONVIF Profile S, G, T and M. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand	Hikvision
Network Connectivity	Wired (RJ45 100M)
Night Vision	Hybrid IR + White Light
Resolution	6 MP Panoramic + 4 MP PTZ
Camera Type	PTZ
Lens	2.8 mm + 5.5–176 mm (32× optical)
Smart Features	AcuSense, Face Capture, LPR, Auto-Tracking
Ingress Protection	IP67, NEMA 4X, C5M
Power	12 VDC / PoE 802.3bt
IR Range	150 m
Audio / Alarm	Built-in mic + speaker, 2/1 alarm I/O

DS-2ST5C432MWG-EW_26PA_Datasheet.pdf

Download
