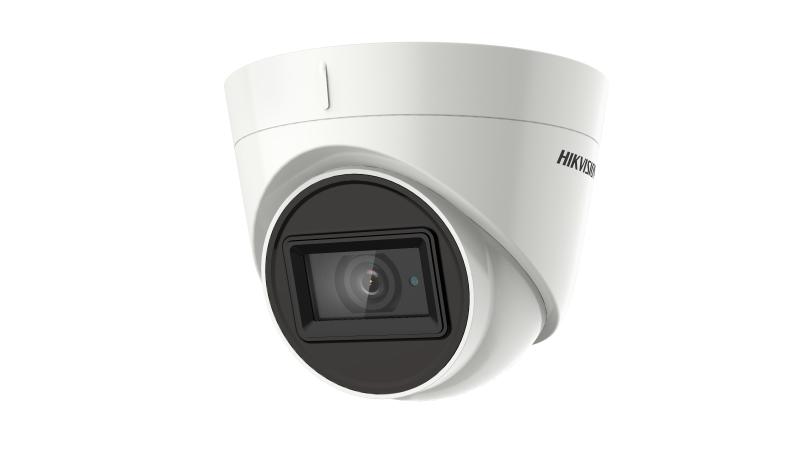

Hikvision DS-2CE78U7T-IT3F 8 MP 4K Turbo HD Turret Camera, 2.8 mm Fixed, 60 m EXIR, 4-in-1

https://arcip.com.au/web/image/product.template/11157/image_1920?unique=d95db27
  • 8 MP / 4K (3840 × 2160) Turbo HD analog turret
  • 2.8 mm fixed lens, 102° horizontal view
  • EXIR 2.0 infrared up to 60 m; 0.003 lux @ F1.6
  • 130 dB true WDR, 3D DNR
  • 4-in-1 TVI/AHD/CVI/CVBS output; needs a Turbo HD DVR
  • 12 V DC, max 4.2 W; IP67

$ 141.93 141.93 AUD $ 141.93 incl. GST

Not Available For Sale


  • Brand
  • Night Vision
  • Resolution
  • Video Output
  • Camera Type
  • Lens
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Camera Series

This combination does not exist.

In stock online
Hikvision 4K 8MP Turret DVR Turbo HD
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CE78U7T-IT3F
Tags

Key Features

8MP
8 MP / 4K Detail
60 m EXIR 2.0
130dB
130 dB True WDR
4-in-1 TVI/AHD/CVI/CVBS
Works Over Coax
0.003 Lux Low Light
12 V DC, Max 4.2 W
IP67 Weatherproof
At a glance

The Hikvision DS-2CE78U7T-IT3F is an 8 MP (4K) Turbo HD analog turret with a fixed 2.8 mm wide-angle lens (102° horizontal view). It delivers 4K detail over existing coax, EXIR 2.0 infrared to 60 m, 130 dB true WDR and switchable 4-in-1 output, and records to a Turbo HD DVR.

Resolution
8 MP / 4K (3840 × 2160)
Lens
2.8 mm fixed, 102° horizontal
Night vision
EXIR 2.0 infrared to 60 m
Low light
0.003 lux @ F1.6 (AGC on); 0 lux with IR
WDR
≥130 dB true WDR
Signal output
Switchable TVI / AHD / CVI / CVBS
Power
12 V DC ±25%, max 4.2 W
Environment
IP67, −40 to 60 °C

Why choose the DS-2CE78U7T-IT3F

The DS-2CE78U7T-IT3F is the straightforward way to put 4K resolution on an existing coax system. The 2.8 mm lens gives a wide 102° view that suits entries, driveways, shopfronts and rooms, while the 8.29 MP sensor keeps faces and fine detail sharp. At night, EXIR 2.0 infrared reaches up to 60 m — double the 30 m of the smaller DS-2CE76U7T-ITMF — and 130 dB true WDR handles bright doorways and windows. It draws a maximum of just 4.2 W from a 12 V DC supply. Supplied by ARC IP Networks from Australian stock with local support.

Before you order — this is an analog camera. It sends video over coaxial cable and needs a Turbo HD / HD-TVI DVR. It will not work with an NVR, and it has no Ethernet port and no PoE. At 8 MP your DVR must accept 8 MP / 4K TVI input; a 5 MP-max recorder will run the camera at a lower resolution. Not sure what you have? Ask us and we will check.

Best for

  • Upgrading an analog system to 4K: modern resolution over the RG59 or RG6 coax already in the walls.
  • Wide coverage close to the camera: the 2.8 mm lens covers entries, corridors, rooms and driveways.
  • Dark yards and car parks: 60 m EXIR 2.0 infrared for black-and-white night footage well beyond the fence line.
  • Backlit entrances: 130 dB true WDR balances bright doorways against darker interiors.
  • Mixed-brand recorders: 4-in-1 output switches between TVI, AHD, CVI and CVBS.

Who it’s for

Existing analog sites

A resolution upgrade without pulling new cable.

Homes & driveways

Wide-angle 4K coverage of entries and yards.

Retail & hospitality

Counters and doors with strong backlight.

Warehouses & yards

Long infrared reach for large dark areas.

Strata & property

Common areas, car parks and lobbies on legacy coax.

Installers

One 4-in-1 camera that suits almost any DVR on site.

DS-2CE78U7T-IT3F overview

8 MP 4K Ultra Low Light Fixed Turret Camera — 2.8 mm lens, EXIR 2.0, 4-in-1 output

The Hikvision DS-2CE78U7T-IT3F is a Value Series Turbo HD turret built around an 8.29 MP CMOS sensor with a maximum resolution of 3840 × 2160. Over HD-TVI it delivers 8 MP at 12.5 or 15 fps, 5 MP at 20 fps, and 4 MP or 1080p at 25/30 fps, so you can trade resolution for smoother motion if the scene calls for it. This listing is the 2.8 mm fixed-lens version, which gives a 102° horizontal field of view — the widest of the lens options Hikvision offers for this model.

Low-light performance is a strength. The sensor captures colour down to 0.003 lux at F1.6 with AGC on, and when the scene gets darker the ICR filter switches the camera to black-and-white with EXIR 2.0 infrared reaching up to 60 m. Smart IR adjusts the infrared output so subjects close to the camera are not washed out. Day/night mode can be set to auto, colour or black-and-white.

Image quality in difficult light is handled by ≥130 dB true WDR, BLC and HLC, while 3D DNR removes noise for cleaner footage and smaller recordings. Settings such as brightness, sharpness, mirror and Smart IR are adjusted from the DVR through the HIKVISION-C up-the-coax menu, so there is no need to climb to the camera after installation.

The housing pairs a metal main body with a plastic enclosure, is rated IP67 against dust and water, and operates from −40 °C to 60 °C. The 3-axis bracket (pan 360°, tilt 75°, rotate 360°) makes ceiling or wall mounting simple, and optional Hikvision corner, wall and pole mounts are available. Power is 12 V DC ±25% at a maximum of 4.2 W.

Specifications

Camera
Image sensor8.29 MP CMOS
Max. resolution3840 × 2160
Min. illumination0.003 lux @ F1.6 (AGC on), 0 lux with IR
Shutter timePAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
Day & nightICR
Angle adjustmentPan 0°–360°, tilt 0°–75°, rotate 0°–360°
Signal systemPAL / NTSC
Lens
Lens (this model)2.8 mm fixed
Field of view102° horizontal (2.8 mm)
Lens mountM16
Frame rateTVI: 8 MP @ 12.5/15 fps, 5 MP @ 20 fps, 4 MP @ 25/30 fps, 1080p @ 25/30 fps; AHD and CVI: 8 MP @ 12.5/15 fps; CVBS: PAL/NTSC
Image parametersSTD / HIGH-SAT
Image settingsBrightness, sharpness, mirror, Smart IR
Day/night modeAuto / colour / black and white
WDR≥130 dB
Image enhancementBLC, HLC
Noise reduction3D DNR
White balanceAuto / manual
AGCSupported
Interface
Video outputSwitchable TVI / AHD / CVI / CVBS
AudioNot supported
General
IR rangeUp to 60 m (EXIR 2.0)
Power supply12 V DC ±25%
Power consumptionMax. 4.2 W
MaterialMetal main body, plastic enclosure

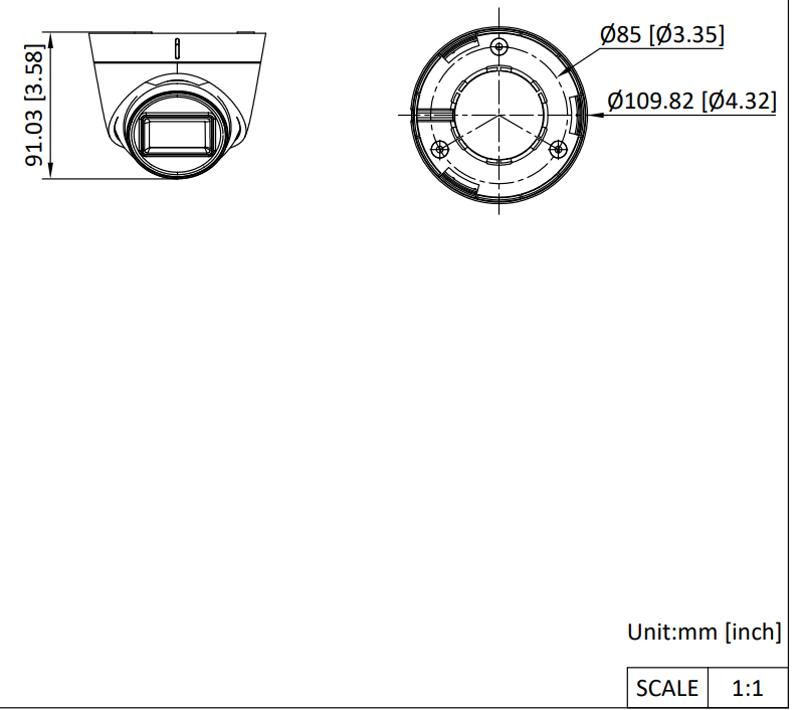

DimensionsØ109.82 × 91.03 mm
WeightApprox. 325 g
Operating conditions−40 °C to 60 °C, humidity 90% or less (non-condensing)
CommunicationHIKVISION-C (up the coax)
ProtectionIP67

Specifications from the official Hikvision datasheet. Product performance is based on testing in a controlled environment; results may vary with site conditions.

See the Technology in Action

An official Hikvision overview of Turbo HD — the HD-over-coax camera and DVR platform the DS-2CE78U7T-IT3F belongs to.

Hikvision Turbo HD 8.0 Launch Event Recap

How it compares

All three are IP67 Hikvision Turbo HD turrets with 8 MP or higher-end optics, 130 dB true WDR and 4-in-1 output. The choice is between infrared reach and fixed or motorised lens.

FeatureDS-2CE76U7T-ITMF8 MP fixed, compactDS-2CE78U7T-IT3FThis cameraDS-2CE79U7T-AIT3ZF8 MP motorised
Resolution8 MP / 4K8 MP / 4K8 MP / 4K
LensFixedFixed 2.8 mm (102°)Motorised 2.7–13.5 mm
Infrared range30 m60 m60 m
Min. illumination0.003 lux @ F1.60.003 lux @ F1.60.003 lux @ F2.4
True WDR130 dB130 dB130 dB
Signal output4-in-14-in-14-in-1
Power12 V DC, max 4.2 W12 V DC, max 4.2 W12 V DC or 24 V AC, max 11 W
Weightapprox. 310 gapprox. 325 gapprox. 620 g
Best forShort-range indoor/outdoorWide view with long IRRemote zoom at 4K

Specifications from each model’s official Hikvision datasheet. None of these models has a microphone or on-camera AI. All require a Turbo HD DVR.

Complete your system

This camera records to a Turbo HD / HD-TVI DVR over coaxial cable and needs a 12 V DC power supply at the camera. Hikvision AcuSense DVRs such as the iDS-7204HUHI-M2/S (4-channel), iDS-7208HUHI-M2/S (8-channel) and iDS-7216HUHI-M2/XT (16-channel) accept 8 MP HD-TVI input. If you are starting from scratch, an IP system with a PoE NVR is usually the better long-term choice.

Browse Turbo HD cameras & DVRs →

Works with your system

Analog or IP? Turbo HD gives you 4K resolution over coaxial cable that is already installed, which is usually the cheapest upgrade path. A brand-new installation is generally better served by IP cameras, which add on-camera AI, audio and single-cable PoE power.

Turbo HD DVRs

Required — this camera cannot connect to an NVR.

8 MP / 4K TVI input

Needed on the DVR to record at full resolution.

Existing coax cabling

Reuse what is already installed in most cases.

4-in-1 output

TVI, AHD, CVI or CVBS — suits most analog recorders.

12 V DC power supply

One supply per camera is recommended; no PoC on this model.

Hik-Connect

Remote viewing through a compatible Hikvision DVR.

Part of the Hikvision range

Hikvision cameras and recorders with Australian stock and local support — explore the range and guides:

Turbo HD cameras & DVRsTurret camerasBullet camerasDome camerasWhere to buy

Frequently asked questions

No. This is an analog (Turbo HD) camera — it sends video over coaxial cable, not Ethernet. It needs a Turbo HD / HD-TVI DVR. Because it is an 8 MP camera, the DVR must also accept 8 MP / 4K TVI input to record at full resolution.

This listing is the 2.8 mm fixed-lens version, with a 102° horizontal field of view. Hikvision also makes the model with 3.6, 6, 8 and 12 mm lenses for narrower, longer-range views.

EXIR 2.0 infrared reaches up to 60 m. Night footage under infrared is black and white; colour is retained in low light down to 0.003 lux before the camera switches to infrared.

It is a 4-in-1 camera, switchable between TVI, AHD, CVI and CVBS. TVI is Hikvision’s native format and supports the full 8 MP at up to 15 fps.

No. The DS-2CE78U7T-IT3F has no microphone and no audio. If you need audio over coax, look at a Hikvision Turbo HD model with built-in mic such as the DS-2CE72UF3T-LS.

In most cases yes — that is the main reason to choose Turbo HD over IP. Cable quality and run length still matter, so ask us if you are unsure about an older installation.

A 12 V DC supply (±25%). Maximum consumption is only 4.2 W. Hikvision recommends one power adapter per camera. It does not support Power over Coax.

Yes. It is IP67 rated against dust and water and operates from −40 °C to 60 °C. No IK vandal rating is published for this model.

No. This is a conventional analog camera with no on-camera analytics. A Hikvision AcuSense DVR can add human and vehicle classification to analog channels at the recorder.
Brand Hikvision
Night Vision EXIR 2.0 IR
Resolution 8 MP (4K)
Video Output 4-in-1 TVI/AHD/CVI/CVBS
Camera Type Turret
Lens 2.8 mm fixed
Ingress Protection IP67
Power 12 VDC
IR Range 60 m
Audio / Alarm None
Camera Series Turbo HD
DS-2CE78U7T-IT3F_Datasheet.pdf
