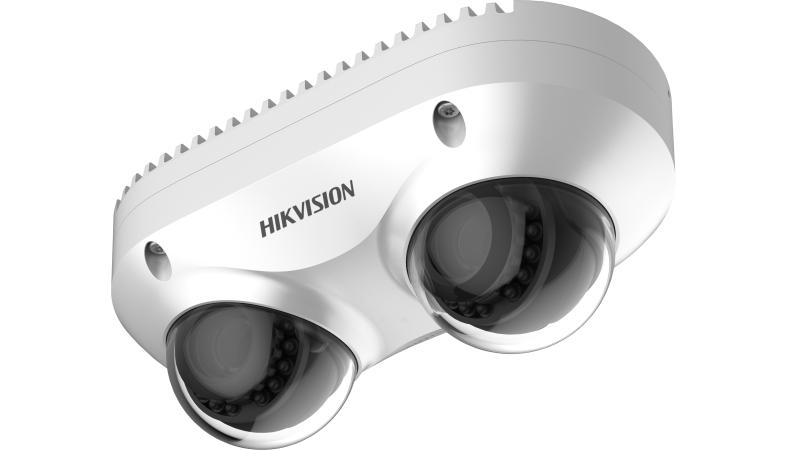

Hikvision DS-2CD6D42G2-IS PanoVu Dual-Directional 2 × 4 MP Multi-Sensor Network Camera, 2.8 mm, IR 15 m, IP67/IK10

https://arcip.com.au/web/image/product.template/11147/image_1920?unique=0359c03
  • Two 4 MP sensors, each with its own independently aimed 2.8 mm lens (110.4°)
  • Watch two directions from one mount and one PoE+ cable
  • Human & vehicle perimeter protection, 120 dB WDR, IR up to 15 m
  • 2 built-in mics, audio in/out, 2/2 alarm I/O, RS-485, microSD up to 1 TB
  • IP67 & IK10 aluminium-alloy housing

$ 704.51 704.51 AUD $ 704.51 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

Panoramic Hikvision IP Camera 4MP Multi-Sensor PanoVu Dual-Directional
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD6D42G2-IS
Tags

Key Features

2×4MP
Two 4 MP Sensors
Dual-Directional View
2.8 mm · 110.4° per Lens
Human & Vehicle Classification
120 dB WDR
IR up to 15 m
2 Built-in Mics
IP67 & IK10
At a glance

The Hikvision DS-2CD6D42G2-IS is a PanoVu dual-directional camera: two 4 MP sensors in one vandal-resistant housing, each behind its own 2.8 mm lens that can be aimed independently. One mounting point and one PoE cable watch two directions at once — both ends of a corridor, both sides of a corner, or both lanes of a driveway. Part of the Hikvision panoramic camera range.

Sensors
2 × 1/1.8″ CMOS
Resolution
2 × 4 MP (2688 × 1520)
Lens
2 × 2.8 mm (110.4° each)
IR range
Up to 15 m
Smart detection
Human & vehicle
Audio / alarm
2 mics · 2/2 alarm I/O
Protection
IP67 · IK10
Power
PoE+ (802.3at) / 12 VDC

Why choose the DS-2CD6D42G2-IS

Most cameras look one way. The DS-2CD6D42G2-IS looks two. Its two 1/1.8″ 4 MP sensors sit in one aluminium-alloy body, and each lens module can be panned (−90° to 90°), tilted (0° to 60° for the 2.8 mm version) and rotated (0° to 355°) on its own. Mount it once at a corridor junction, a building corner or above a gate and you get two full 2688 × 1520 views — with a 110.4° horizontal field on each — from a single cable run and a single installation.

Deep-learning perimeter protection (line crossing, intrusion, region entrance and region exiting) filters alarms down to people and vehicles, so rain, leaves and animals don’t flood your notifications. 120 dB WDR handles bright doorways and car-park entries, smart IR reaches up to 15 m, and the housing is rated IP67 and IK10 for outdoor and vandal-prone locations. Two built-in microphones, a line-in/line-out audio pair, 2 alarm inputs and 2 alarm outputs, RS-485 and microSD recording up to 1 TB round it out.

Best for

  • Corridors and walkways: one camera at the midpoint or end watches both directions of travel.
  • Building corners: cover two façades from one mount instead of two separate cameras.
  • Gates, driveways and lanes: watch traffic coming in and going out at the same time.
  • Aisles and loading docks: aim each lens down a different aisle or bay from one ceiling or wall point.
  • Reducing install cost: one cable, one PoE+ port and one IP address for two independently aimed 4 MP views.

Who it’s for

Retail & shopping centres

Watch both directions of a mall corridor or store aisle from a single mounting point.

Warehouses & logistics

Cover two aisles, a dock face or a corner of the building with one camera.

Schools & campuses

Monitor long hallways and building corners in both directions.

Car parks

See both lanes of a driveway or ramp, with human and vehicle alarm filtering.

Hospitals & offices

Discreet coverage of corridors and lift lobbies with built-in audio capture.

Installers & integrators

Halve the cable runs and mounts on corridor and corner jobs.

DS-2CD6D42G2-IS
PanoVu Dual-Directional 2 × 4 MP Multi-Sensor Network Camera, 2 × 2.8 mm, IR 15 m, IP67 / IK10

Professional Overview

The Hikvision DS-2CD6D42G2-IS is a dual-directional PanoVu network camera built around two 1/1.8″ progressive-scan CMOS sensors. Each sensor records its own 4 MP (2688 × 1520) stream at up to 20 fps through a 2.8 mm F1.6 lens with a 110.4° horizontal, 54.4° vertical and 136.8° diagonal field of view. Because each lens module adjusts independently, the camera is not a stitched panorama — it is two separately aimed views from one housing, which suits corridors, corners and junctions where a single wide lens would waste pixels on walls or ceiling.

Low-light performance is rated at 0.002 lux in colour and 0.001 lux in black-and-white (F1.6, AGC on), with 0 lux using the built-in 850 nm smart IR that reaches up to 15 m. 120 dB WDR keeps faces readable against bright doorways. H.265+ compression, a 32 Kbps to 8 Mbps bit rate range and three streams per channel keep bandwidth and storage under control.

On-camera deep learning handles perimeter protection — line crossing, intrusion, region entrance and region exiting — triggered by human and vehicle targets. Additional smart events include unattended baggage, object removal, loitering, people gathering, fast moving, parking and scene change detection. The camera has two built-in microphones, a 3.5 mm audio input and output, 2 alarm inputs and 2 alarm outputs, RS-485 and a microSD slot supporting cards up to 1 TB.

It is powered by PoE+ (IEEE 802.3at, Class 4, max. 14 W) or 12 VDC, connects over a gigabit RJ45 port and operates from −30 °C to 60 °C. The aluminium-alloy body is rated IP67 and IK10. Note that Hikvision lists this model with no specific anti-corrosion protection, so choose a dedicated anti-corrosion camera for coastal or chemical sites. Australian stock from ARC IP Networks.

Features

  • Two 1/1.8″ progressive-scan CMOS sensors, 4 MP (2688 × 1520) per channel
  • Dual-directional design — each lens independently pans, tilts and rotates
  • 2.8 mm F1.6 lens per channel: 110.4° horizontal FOV
  • Smart IR up to 15 m (850 nm)
  • 120 dB WDR, EIS, BLC, HLC, 3D DNR
  • Deep-learning perimeter protection with human / vehicle filtering
  • H.265+ / H.265 / H.264+ / H.264 compression
  • 2 built-in microphones, audio in/out, 2 alarm inputs / 2 alarm outputs, RS-485
  • microSD/SDHC/SDXC slot, up to 1 TB
  • PoE+ (802.3at) or 12 VDC
  • IP67 and IK10 aluminium-alloy housing

Specifications

Camera
Image Sensor2 × 1/1.8″ Progressive Scan CMOS
Max. Resolution2688 × 1520 per channel (2 channels)
Min. IlluminationColour: 0.002 lux @ (F1.6, AGC ON); B/W: 0.001 lux @ (F1.6, AGC ON); 0 lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan −90° to 90°, tilt 0° to 60° (2.8 mm), rotate 0° to 355°
Lens
Focal Length & FOV2.8 mm: horizontal 110.4°, vertical 54.4°, diagonal 136.8°
ApertureF1.6
Lens MountM12
DORI (2.8 mm)Detect 67 m, Observe 26 m, Recognise 13 m, Identify 6 m
Illuminator
TypeIR, 850 nm, smart supplement light
RangeUp to 15 m
Video
Main StreamPer channel: 20 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub / Third StreamSub: 20 fps (704 × 576 / 640 × 480); Third: 20 fps up to 1920 × 1080
Video CompressionMain: H.264+/H.265+/H.265/H.264; Sub: MJPEG/H.265/H.264; Third: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
Region of Interest4 fixed regions per stream
WDR120 dB
Image EnhancementEIS, BLC, HLC, 3D DNR
Privacy Mask8 programmable polygon masks
Smart Functions
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting — human and vehicle target triggering
Smart EventsUnattended baggage, object removal, loitering, people gathering, fast moving, parking, scene change
Basic EventsMotion detection (human / vehicle), video tampering, exceptions, alarm in/out, video quality diagnosis
Interface
Ethernet1 × RJ45 10/100/1000 Mbps
On-board StoragemicroSD/SDHC/SDXC, up to 1 TB
Audio2 built-in microphones; 1 line in + 1 line out (3.5 mm)
Alarm2 inputs, 2 outputs (max. 36 VDC, 30 mA)
RS-4851 (half duplex)
ResetYes
Network
APIONVIF (Open Network Video Interface), ISAPI, SDK, ISUP
ClientsiVMS-4200, Hik-Connect
Network StorageNAS (NFS, SMB/CIFS), ANR
Simultaneous Live ViewUp to 20 channels
General
Power12 VDC ± 20%, 1.2 A, max. 14 W; PoE IEEE 802.3at, Class 4, max. 14 W
MaterialAluminium alloy body
Dimensions164.3 × 84.6 × 67.4 mm
WeightApprox. 810 g
Operating Conditions−30 °C to 60 °C, humidity 95% or less (non-condensing)
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-corrosionNo specific protection (per Hikvision)

Specifications from the official Hikvision DS-2CD6D42G2-IS datasheet for the 2.8 mm model. The datasheet is attached below for download.

How it compares

Weighing up the ways to cover a wide area with one camera? Here’s how the dual-directional DS-2CD6D42G2-IS compares with a 180° stitched panoramic turret and a fisheye.

FeatureDS-2CD2346G2P-ISU/SL180° panoramicDS-2CD6D42G2-ISThis cameraDS-2CD2955G0-IS(U)Fisheye
View styleOne stitched 180° imageTwo independently aimed viewsOne 180° fisheye image
Resolution4 MP (3040 × 1368)2 × 4 MP (2688 × 1520)5 MP (2560 × 1920)
Lens2 × 2.8 mm, 180° combined2 × 2.8 mm, 110.4° each1.05 mm, 180°
IR rangeUp to 30 mUp to 15 mUp to 8 m
PoE802.3af802.3at (PoE+)802.3af
Best forWide open frontagesCorridors, corners & junctionsOverhead room coverage

Figures from each model’s official Hikvision datasheet. Model names link to full specs and live pricing.

Complete your system

Every Hikvision IP camera records to a network video recorder (NVR). The DS-2CD6D42G2-IS streams two video channels (one per sensor), so allow two recorder channels per camera, and power it from a PoE+ (IEEE 802.3at) port — it draws up to 14 W. A Hikvision PoE NVR with 802.3af/at ports, such as the DS-7608NI-M2/8P, handles power and recording on one cable.

Browse all Hikvision NVRs →

Works with your system

Two views, one cable. H.265+ compression keeps the bandwidth and storage of two 4 MP channels manageable, and the camera’s own microSD slot (up to 1 TB) can back-fill footage after a network outage via ANR.

Hikvision NVRs

Records both channels; plug-and-play over PoE+ with Hikvision PoE recorders.

Hik-Connect app

Live view, playback and push notifications on iOS & Android.

iVMS-4200

Free Hikvision desktop software for multi-camera and multi-site management.

ONVIF

Integrates with compatible third-party NVRs and VMS platforms.

Alarm & RS-485

2 alarm inputs and 2 outputs plus RS-485 for sirens, sensors and access hardware.

Part of the Hikvision range

Genuine Australian Hikvision stock from ARC IP Networks — explore the range, technology and guides:

Panoramic camerasDome camerasAcuSense camerasNVR recordersWhere to buyBuyer’s guide

Frequently asked questions

The DS-2CD6D42G2-IS houses two 4 MP sensors, each with its own 2.8 mm lens, in one body. Each lens module pans, tilts and rotates independently, so one camera can watch two different directions — for example both ends of a corridor — from a single mounting point and a single cable.

No. Each sensor produces its own 2688 × 1520 stream (two channels). That is what lets you aim the two views in different directions rather than into one continuous 180° picture.

With the 2.8 mm lens each channel covers 110.4° horizontally, 54.4° vertically and 136.8° diagonally. Hikvision rates DORI at 67 m detect, 26 m observe, 13 m recognise and 6 m identify.

The built-in 850 nm smart IR reaches up to 15 m. Without IR the camera is rated to 0.002 lux in colour and 0.001 lux in black-and-white at F1.6.

Yes. It has two built-in microphones, a 3.5 mm audio input and output, 2 alarm inputs, 2 alarm outputs and an RS-485 port.

It runs on PoE+ (IEEE 802.3at, Class 4, max. 14 W) or 12 VDC. Because it streams two video channels, allow two channels on your NVR for each camera.

Yes. The aluminium-alloy housing is rated IP67 against dust and water and IK10 for impact. It operates from −30 °C to 60 °C. Hikvision lists it with no specific anti-corrosion protection, so it is not intended for coastal or chemical environments.

Yes. The built-in slot takes microSD/SDHC/SDXC cards up to 1 TB for on-camera recording and network-outage back-fill.
Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Resolution 2 × 4 MP (2688×1520 each)
Camera Type Dual-Directional Multi-Sensor
Lens 2 × 2.8 mm fixed
Smart Features Human/Vehicle Perimeter Protection
Ingress Protection IP67, IK10
Power PoE 802.3at / 12 VDC
IR Range Up to 15 m
Audio / Alarm 2 mics + audio in/out + 2×2 alarm I/O + RS-485
