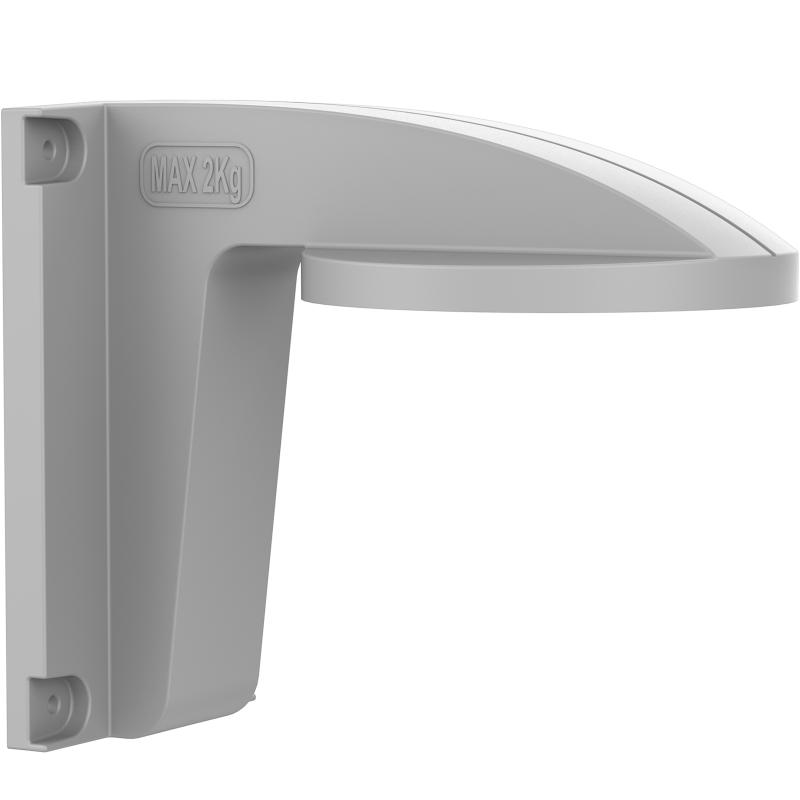

Hikvision DS-1258ZJ-L-428CPY Polymer Anti-Corrosion Wall Mount Bracket for DS-2XC3386G0H / DS-2XC3346G0H (PA) Turret Cameras

https://arcip.com.au/web/image/product.template/11232/image_1920?unique=d825bc3
  • Polymer anti-corrosion wall mount bracket, grey
  • For DS-2XC3386G0H and DS-2XC3346G0H (PA) polymer turrets
  • 212.68 × 111.2 × 183.53 mm, approx. 338 g
  • Wall holes 4 × Ø5 mm on 158 × 85.7 mm; max. load 2 kg

$ 40.00 40.0 AUD $ 40.00 incl. GST

Not Available For Sale


  • Brand
  • Material
  • Accessory Type

This combination does not exist.

In stock online
Hikvision Wall Mount Anti-Corrosion Bracket
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-1258ZJ-L-428CPY
Tags
DS-1258ZJ-L-428CPY
Hikvision DS-1258ZJ-L-428CPY – Polymer Anti-Corrosion Wall Mount Bracket for DS-2XC3386G0H and DS-2XC3346G0H (PA) Turret Cameras
At a glance

The Hikvision DS-1258ZJ-L-428CPY is a grey polymer wall mount bracket from Hikvision’s Explosion-Proof and Anti-Corrosion Series. It is the matching bracket for the polymer (PA) anti-corrosion turret cameras, so the camera and its mount share the same corrosion-resistant material on coastal, marine and industrial sites.

Type
Wall mount bracket
Material
Polymer
Colour
Grey
Max. load
2 kg
Dimensions
212.68 × 111.2 × 183.53 mm
Weight
Approx. 338 g
Wall holes
4 × Ø5 mm, 158 × 85.7 mm
Camera holes
Double gang 4 × M4; Ø128 mm 3 × M4

Key features

  • Polymer construction – the same material family as the (PA) polymer anti-corrosion turrets, so there is no painted metal bracket to rust beside a corrosion-rated camera.
  • Designed for the PA anti-corrosion turrets – Hikvision lists it as the accessory for the DS-2XC3386G0H-LISU/SL (PA), DS-2XC3386G0H-LI(S)(U) (PA), DS-2XC3346G0H-LISU/SL (PA) and DS-2XC3346G0H-LI(S)(U) (PA).
  • Wall mounting – four Ø5 mm fixing holes on a 158 × 85.7 mm pattern.
  • Camera mounting – double-gang 4 × M4 and Ø128 mm 3 × M4 hole patterns on the camera plate.

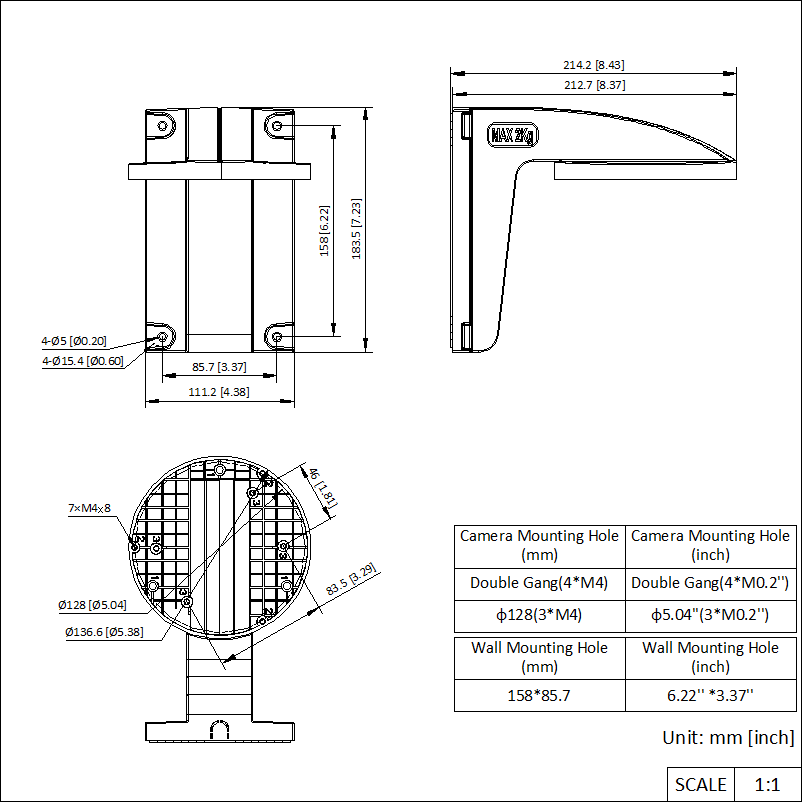

  • 2 kg maximum load – as marked on the bracket in Hikvision’s dimension drawing.
  • Grey finish to match the polymer camera housings.

Specifications

Specifications
DescriptionWall mount
AppearanceGrey
MaterialPolymer
Dimensions212.68 × 111.2 × 183.53 mm
Weight338.34 g
Maximum load2 kg (marked on bracket)
Wall mounting holes4 × Ø5 mm, 158 × 85.7 mm pattern
Camera mounting holesDouble gang (4 × M4); Ø128 mm (3 × M4)
ModelDS-1258ZJ-L-428CPY (STD)
Compatible cameras (per Hikvision datasheet)
8 MPDS-2XC3386G0H-LISU/SL (PA), DS-2XC3386G0H-LI(S)(U) (PA)
4 MPDS-2XC3346G0H-LISU/SL (PA), DS-2XC3346G0H-LI(S)(U) (PA)

Specifications are from Hikvision’s official product page, datasheet and dimension drawing for the DS-1258ZJ-L-428CPY. Hikvision does not publish a separate corrosion rating for the bracket itself.

Best for

  • Wall mounting a Hikvision polymer (PA) anti-corrosion turret on coastal buildings, jetties and marinas.
  • Industrial and chemical sites where a painted steel or aluminium bracket would corrode.
  • Installers who want the bracket listed by Hikvision as the matching accessory for the camera.

Who it’s for

Security installers

The listed wall bracket for the DS-2XC3386G0H and DS-2XC3346G0H (PA) turrets.

Marine & port sites

A polymer mount for cameras installed near salt water.

Facility managers

A matching grey finish with the polymer camera housing.

Anti-Corrosion Bracket FAQ – DS-1258ZJ-L-428CPY

It is a grey polymer wall mount bracket from Hikvision’s Explosion-Proof and Anti-Corrosion Series. It measures 212.68 × 111.2 × 183.53 mm and weighs about 338 g.

Hikvision lists it for the polymer anti-corrosion turrets DS-2XC3386G0H-LISU/SL (PA), DS-2XC3386G0H-LI(S)(U) (PA), DS-2XC3346G0H-LISU/SL (PA) and DS-2XC3346G0H-LI(S)(U) (PA).

A polymer bracket does not rust. When the camera is installed for its corrosion resistance, a polymer mount avoids a metal bracket becoming the weak point on coastal or industrial sites.

The wall plate has four Ø5 mm holes on a 158 × 85.7 mm pattern. The camera plate has double-gang 4 × M4 and Ø128 mm 3 × M4 hole patterns.

Hikvision’s dimension drawing shows the bracket marked MAX 2 kg. The DS-2XC3386G0H-LISU/SL (PA) camera weighs approximately 670 g.

Professional overview

The Hikvision DS-1258ZJ-L-428CPY is a wall mount bracket made for Hikvision’s polymer anti-corrosion fixed turret cameras. It belongs to the Explosion-Proof and Anti-Corrosion Series and is listed by Hikvision as the accessory for the DS-2XC3386G0H and DS-2XC3346G0H (PA) models.

The bracket is made of grey polymer, measures 212.68 × 111.2 × 183.53 mm and weighs about 338 g. The wall plate fixes with four Ø5 mm screws on a 158 × 85.7 mm pattern, and the camera plate offers double-gang 4 × M4 and Ø128 mm 3 × M4 hole patterns. The bracket is marked for a maximum load of 2 kg.

Using a polymer bracket with a polymer anti-corrosion camera keeps the whole installation free of exposed painted metal, which is what typically fails first near salt water or chemical fumes. It suits coastal buildings, jetties, marinas, ports and industrial plants.

The DS-1258ZJ-L-428CPY is a genuine Hikvision accessory and comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Material Polymer
Accessory Type Camera Wall Bracket
DS-1258ZJ-L-428CPY_Datasheet.pdf
