D-Link DGS-1210-28P 28-Port Gigabit WebSmart PoE+ Switch with 193W Budget

Price:

877.61


Ubiquiti UA-G2-Black UniFi Access Reader G2 Black
Ubiquiti UA-G2-Black UniFi Access Reader G2 Black
280.50
280.50
Ubiquiti UACC-HDD-E-16TB Unifi Protect Industrial Grade 3.5in HDD 16TB
Ubiquiti UACC-HDD-E-16TB Unifi Protect Industrial Grade 3.5in HDD 16TB
810.70
810.70

D-Link DGS-1210-28P 28-Port Gigabit WebSmart PoE+ Switch with 193W Budget

https://arcip.com.au/web/image/product.template/8629/image_1920?unique=2a91b2c
D-Link DGS-1210-28P Smart Managed Layer 2+ switch with 24 Gigabit PoE+ ports (193W budget), 4 Gigabit SFP/RJ45 combo uplinks, 56 Gbps switching capacity and full 802.1X / ACL / ARP Spoofing Prevention security. Web GUI, CLI, SNMP, D-View 7.0, and D-Link Network Assistant management. 3.75 kg, 1U rack mount. Australian stock from ARC IP Networks.

877.61 877.61 AUD 877.61 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DGS-1210-28P
DGS-1210-28P

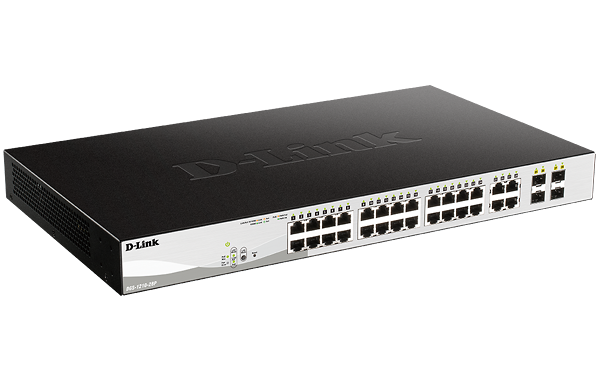

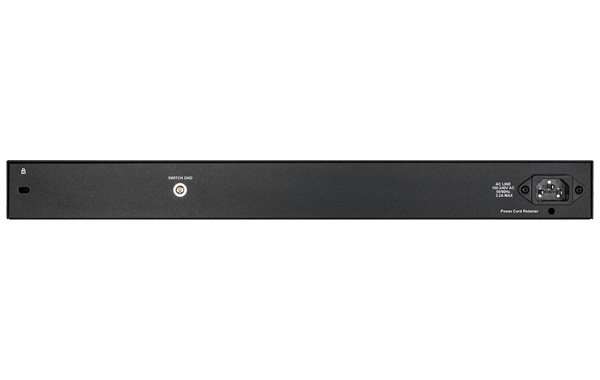

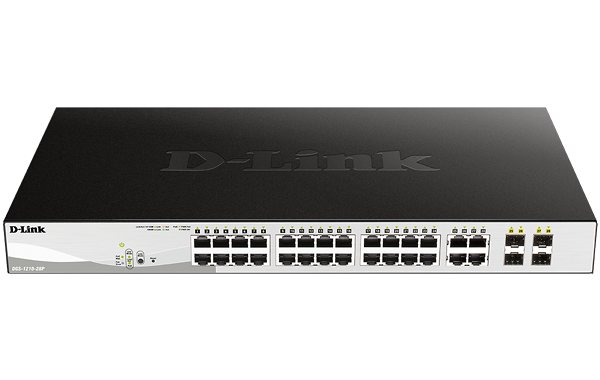

D-Link DGS-1210-28P — 28-Port Gigabit Smart Managed PoE+ Switch with 193 W Budget

Features

  • 28 Gigabit ports: 24× 10/100/1000BASE-T PoE + 4× 100/1000 Mbps GbE/SFP combo
  • 193 W PoE budget — supports IEEE 802.3af (PoE) and 802.3at (PoE+)
  • 56 Gbps switching capacity, 41.7 Mpps forwarding rate
  • Layer 2+ with IPv4/IPv6 static routing (124 IPv4 / 50 IPv6 entries)
  • Auto Voice VLAN and Auto Surveillance VLAN with ONVIF camera detection
  • D-Link Safeguard Engine, 802.1X, ACL, ARP Spoofing Prevention, DHCP Server Screening
  • D-Link Network Assistant (DNA) utility, D-View 7.0 SNMP, Telnet CLI, Web GUI
  • IEEE 802.3az Energy Efficient Ethernet, D-Link Green power saving
  • 19-inch rack mountable, dual fans, internal universal PSU 100–240 V AC

Specifications

Hardware
Hardware VersionF2
Interfaces24× 10/100/1000BASE-T PoE + 4× 100/1000 Mbps GbE/SFP combo
Port StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at, 802.3az, 802.3x
Network CablesUTP Cat.5e or better, up to 100 m
Performance
Switching Capacity56 Gbps
Max 64-Byte Forwarding Rate41.7 Mpps
MAC Address Table8K entries
Packet Buffer4.1 Mbits
CPU MemoryDDR3 128 MB
Flash Memory32 MB
Jumbo FrameUp to 10,000 bytes
PoE
PoE Ports1–24
PoE Budget193 W
PoE StandardsIEEE 802.3af / 802.3at
L2 / VLAN / QoS
VLAN256 static VLAN groups, 802.1Q, Auto Voice VLAN, Auto Surveillance VLAN
Spanning Tree802.1D STP, 802.1w RSTP, 802.1s MSTP
Link Aggregation802.3ad — max 8 groups, 8 ports per group
IGMP Snoopingv1/v2/v3, 256 groups, Querier support
QoS802.1p, 8 queues per port, DSCP, ToS, IPv6 Traffic Class
L3 FeaturesIP interface (4), IPv6 Neighbor Discovery, Static Routing (124 IPv4 / 50 IPv6)
Security
Authentication802.1X port-based, RADIUS (IPv4/IPv6), EAP/OTP/TLS/TTLS/PEAP
Access Control ListMax 50 ACLs, 768 rules shared by IPv4/MAC/IPv6
Attack ProtectionD-Link Safeguard Engine, DoS prevention, Storm Control, ARP Spoofing, DHCP Server Screening
Port SecurityUp to 64 MAC addresses per port
Management
InterfacesWeb GUI, Compact CLI, Telnet, SNMP v1/v2c/v3, D-Link DNA utility, D-View 7.0
MaintenanceTFTP client, dual image, dual configuration, firmware backup/upgrade, system log (500 entries)
Physical / Environmental
Dimensions (L × W × H)440 × 250 × 44 mm
Weight3.75 kg
Fans2
Power Input100–240 V AC 50/60 Hz internal PSU
Max Power (PoE on)263.9 W @ 100 V / 247.4 W @ 240 V
Standby Power19.6 W @ 100 V / 16.6 W @ 240 V
Operating Temperature−5 to 50 °C
Storage Temperature−20 to 70 °C
Humidity0–95% RH (non-condensing)
AcousticsHigh speed 51.7 dB(A), Low speed 44.9 dB(A)
Certifications
EMICE Class A, VCCI Class A, FCC Class A, BSMI, CCC
SafetyCB, UL, BSMI, CCC
MTBF469,262 hours

Smart Managed PoE+ Switch FAQ — DGS-1210-28P

How much PoE power does the DGS-1210-28P deliver?

The DGS-1210-28P has a 193 W PoE budget shared across its 24 PoE ports and supports both IEEE 802.3af (up to 15.4 W per port) and IEEE 802.3at PoE+ (up to 30 W per port). That is sufficient to run roughly 12 standard PoE IP cameras or VoIP phones at full 15.4 W, or around 6 PoE+ Wi-Fi 6 access points at 30 W each. For denser PoE+ deployments, consider the DGS-1210-28MP (370 W).

What is the difference between the DGS-1210-28P and the DGS-1210-28MP?

The DGS-1210-28P and DGS-1210-28MP share the same 28-port Gigabit architecture, 56 Gbps switching capacity, and Layer 2+ feature set. The key difference is PoE budget: the 28P provides 193 W across 24 PoE ports, while the 28MP provides 370 W. Choose the 28P for smaller IP camera or VoIP deployments; the 28MP when you need to simultaneously power many PoE+ devices such as Wi-Fi 6 access points.

Does the DGS-1210-28P support VLANs and static routing?

Yes. The DGS-1210-28P is a Layer 2+ Smart Managed Switch supporting 256 static 802.1Q VLAN groups, Auto Voice VLAN, and Auto Surveillance VLAN (ONVIF). For inter-VLAN routing it supports 4 IP interfaces and 124 IPv4 / 50 IPv6 static routes, plus IPv6 Neighbor Discovery — enough for most SMB networks without a dedicated Layer 3 core.

Is the DGS-1210-28P rack mountable?

Yes. The DGS-1210-28P ships in a standard 19-inch 1U metal chassis measuring 440 × 250 × 44 mm and weighs 3.75 kg. Rack-mount ears are included. It can also sit on a desk or shelf, and has two internal fans for active cooling under PoE load.

How do I manage the DGS-1210-28P?

You can manage the DGS-1210-28P through a multilingual web-based GUI, a compact CLI over Telnet, SNMP v1/v2c/v3 (for D-View 7.0 or any third-party NMS), and the free D-Link Network Assistant (DNA) utility for bulk discovery and firmware upgrade. It does not require a cloud license.

Is the DGS-1210-28P Australian stock with local warranty?

Yes. ARC IP Networks supplies the DGS-1210-28P as Australian stock with full D-Link Australia warranty support and RCM compliance. Certifications include CE, VCCI, FCC Class A, BSMI, CCC EMI and CB, UL, BSMI, CCC safety. Designed for continuous operation from −5 to 50 °C and 0–95% non-condensing humidity.

Professional Overview

The D-Link DGS-1210-28P is a Smart Managed Layer 2+ switch built for growing business networks that need dense Gigabit connectivity with moderate PoE delivery. It provides 24 10/100/1000BASE-T PoE+ ports and 4 Gigabit SFP/RJ45 combo uplinks in a single 1U rack-mount appliance.

A 193 W PoE budget and full IEEE 802.3af / 802.3at compliance support standard PoE IP cameras, VoIP phones, and moderate numbers of PoE+ access points. Combined with 56 Gbps non-blocking switching capacity and 41.7 Mpps forwarding, the DGS-1210-28P delivers line-rate performance for surveillance and voice traffic.

Auto Voice VLAN and Auto Surveillance VLAN (ONVIF camera discovery) simplify convergence, while D-Link’s Safeguard Engine, 802.1X authentication, ACLs, ARP Spoofing Prevention, and DHCP Server Screening protect users and infrastructure at the edge.

Management options include a multilingual web GUI, compact CLI, SNMP v1/v2c/v3 for D-View 7.0 integration, and the free D-Link Network Assistant utility for bulk discovery and firmware updates. IEEE 802.3az Energy Efficient Ethernet and D-Link Green power scheduling keep running costs down.

Backed by a 440 × 250 × 44 mm 1U rack-mount chassis and full Australian certifications (RCM, FCC, CE, CB, UL, BSMI, CCC), the DGS-1210-28P is a dependable, cost-effective core for SMB access-layer deployments. Australian stock from ARC IP Networks.

Brand D-LINK
Switching Capacity 56 Gbps
Network Layer Layer 2+
Form Factor Rack Mount (1U)
Port Speed (24) GbE PoE+ + (4) GbE SFP Combo
Ports 28 Ports
Network Connectivity Wired
Uplink 4 x GbE SFP Combo
PoE Specification PoE+ 802.3at / 193 W Budget
Switch Features Auto Surveillance VLAN, Auto Voice VLAN, Static Routing, IPv6
DGS-1210-28P_Datasheet.pdf
