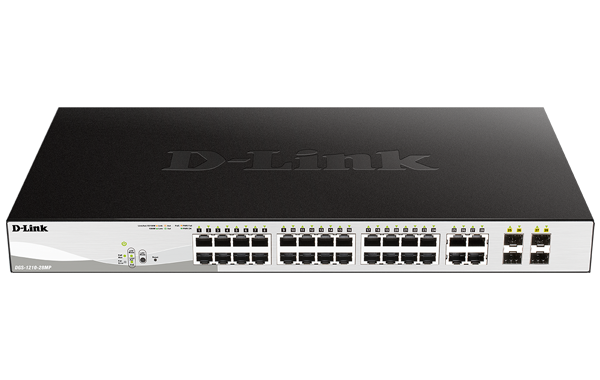

D-Link DGS-1210-28MP 28-Port Gigabit Smart Managed PoE+ Switch with 370W Budget

https://arcip.com.au/web/image/product.template/8628/image_1920?unique=d25be67

1,269.79 1269.79 AUD 1,269.79 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DGS-1210-28MP
D-Link DGS-1210-28MP — 28-Port Gigabit Smart Managed PoE+ Switch with 370 W Budget

Features

  • 28 Gigabit ports: 24× 10/100/1000BASE-T PoE + 4× 100/1000 Mbps GbE/SFP combo
  • 370 W PoE budget — supports IEEE 802.3af (PoE) and 802.3at (PoE+)
  • 56 Gbps switching capacity, 41.7 Mpps forwarding rate
  • Layer 2+ with IPv4/IPv6 static routing (124 IPv4 / 50 IPv6 entries)
  • Auto Voice VLAN and Auto Surveillance VLAN with ONVIF camera detection
  • D-Link Safeguard Engine, 802.1X, ACL, ARP Spoofing Prevention, DHCP Server Screening
  • D-Link Network Assistant (DNA) utility, D-View 7.0 SNMP, Telnet CLI, Web GUI
  • IEEE 802.3az Energy Efficient Ethernet, D-Link Green power saving
  • 19-inch rack mountable, dual fans, internal universal PSU 100–240 V AC

Specifications

Hardware
Hardware VersionF2
Interfaces24× 10/100/1000BASE-T PoE + 4× 100/1000 Mbps GbE/SFP combo
Port StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at, 802.3az, 802.3x
Network CablesUTP Cat.5e or better, up to 100 m
Performance
Switching Capacity56 Gbps
Max 64-Byte Forwarding Rate41.7 Mpps
MAC Address Table8K entries
Packet Buffer4.1 Mbits
CPU MemoryDDR3 128 MB
Flash Memory32 MB
Jumbo FrameUp to 10,000 bytes
PoE
PoE Ports1–24
PoE Budget370 W
PoE StandardsIEEE 802.3af / 802.3at
L2 / VLAN / QoS
VLAN256 static VLAN groups, 802.1Q, Auto Voice VLAN, Auto Surveillance VLAN
Spanning Tree802.1D STP, 802.1w RSTP, 802.1s MSTP
Link Aggregation802.3ad — max 8 groups, 8 ports per group
IGMP Snoopingv1/v2/v3, 256 groups, Querier support
QoS802.1p, 8 queues per port, DSCP, ToS, IPv6 Traffic Class
L3 FeaturesIP interface (4), IPv6 Neighbor Discovery, Static Routing (124 IPv4 / 50 IPv6)
Security
Authentication802.1X port-based, RADIUS (IPv4/IPv6), EAP/OTP/TLS/TTLS/PEAP
Access Control ListMax 50 ACLs, 768 rules shared by IPv4/MAC/IPv6
Attack ProtectionD-Link Safeguard Engine, DoS prevention, Storm Control, ARP Spoofing, DHCP Server Screening
Port SecurityUp to 64 MAC addresses per port
Management
InterfacesWeb GUI, Compact CLI, Telnet, SNMP v1/v2c/v3, D-Link DNA utility, D-View 7.0
MaintenanceTFTP client, dual image, dual configuration, firmware backup/upgrade, system log (500 entries)
Physical / Environmental
Dimensions (L × W × H)440 × 250 × 44 mm
Weight3.94 kg
Fans2
Power Input100–240 V AC 50/60 Hz internal PSU
Max Power (PoE on)446.1 W @ 100 V / 424.8 W @ 240 V
Standby Power18.5 W @ 100 V / 17.1 W @ 240 V
Operating Temperature−5 to 50 °C
Storage Temperature−20 to 70 °C
Humidity0–95% RH (non-condensing)
AcousticsHigh speed 51.7 dB(A), Low speed 44.9 dB(A)
Certifications
EMICE Class A, VCCI Class A, FCC Class A, BSMI, CCC
SafetyCB, UL, BSMI, CCC
MTBF277,967 hours

Smart Managed PoE+ Switch FAQ — DGS-1210-28MP

How many PoE devices can the D-Link DGS-1210-28MP power at once?

The DGS-1210-28MP has a 370 W PoE budget shared across its 24 PoE ports, supporting both IEEE 802.3af (up to 15.4 W per port) and 802.3at PoE+ (up to 30 W per port). That is enough to run up to 24 standard PoE IP cameras or VoIP phones, or roughly 12 PoE+ Wi-Fi 6 access points simultaneously at full power.

Does the DGS-1210-28MP support VLAN routing and Layer 3 features?

Yes. The DGS-1210-28MP is a Layer 2+ Smart Managed Switch that supports up to 4 IP interfaces and 124 IPv4 / 50 IPv6 static routes, plus 256 static VLAN groups with 802.1Q tagging, Auto Voice VLAN, and Auto Surveillance VLAN (ONVIF camera detection). This is ideal for SMB networks that need inter-VLAN routing without a dedicated Layer 3 core.

Is the DGS-1210-28MP rack-mountable and how big is the chassis?

Yes. The DGS-1210-28MP ships in a standard 19-inch 1U metal chassis measuring 440 × 250 × 44 mm and weighs 3.94 kg. Rack-mount ears are included in the box. It can also sit on a desk or shelf thanks to rubber feet, and has two internal fans for active cooling under PoE load.

What are my options for managing the DGS-1210-28MP?

You can manage the DGS-1210-28MP through four interfaces: a multilingual web-based GUI, a compact CLI over Telnet, SNMP v1/v2c/v3 (for integration with D-View 7.0 or any third-party NMS), and the free D-Link Network Assistant (DNA) utility. DNA allows bulk discovery, IP assignment, firmware upgrade, and password change across multiple DGS-1210 switches in the same L2 segment.

What uplink options do the 4 SFP combo ports provide?

The last four ports on the DGS-1210-28MP are 100/1000 Mbps Gigabit SFP/RJ45 combo slots. Use them with copper uplinks to another switch, or populate them with D-Link SFP transceivers (e.g. DEM-310GT for 10 km single-mode fibre, DEM-311GT for 550 m multi-mode) for long-distance fibre uplinks to the core.

Does the DGS-1210-28MP come with Australian warranty and stock?

Yes. ARC IP Networks supplies the DGS-1210-28MP as Australian stock with official RCM compliance and full D-Link Australia warranty support. Units hold CE, VCCI, FCC Class A, BSMI, CCC EMI certifications and CB, UL, BSMI, CCC safety certifications, and are designed for continuous operation between −5 and 50 °C with 0–95% non-condensing humidity.

Professional Overview

The D-Link DGS-1210-28MP is a Smart Managed Layer 2+ switch purpose-built for growing business networks that need dense PoE delivery, reliable Gigabit connectivity, and intuitive management. With 24 10/100/1000BASE-T PoE+ ports and 4 Gigabit SFP/RJ45 combo uplinks, it provides a flexible foundation for connecting IP cameras, VoIP phones, wireless access points, and servers on a single rack-mount appliance.

A generous 370 W PoE budget and full IEEE 802.3af / 802.3at compliance allow the switch to power a wide range of PoE and PoE+ devices simultaneously, including high-draw endpoints such as AX-class APs and dome cameras. Combined with 56 Gbps non-blocking switching capacity and 41.7 Mpps packet forwarding, the DGS-1210-28MP delivers line-rate performance even in traffic-heavy surveillance and voice deployments.

Auto Voice VLAN and Auto Surveillance VLAN with ONVIF camera discovery simplify convergence: voice and video traffic are automatically identified, segmented, and prioritised, eliminating the need for dedicated voice or CCTV switches. For layered security, D-Link’s Safeguard Engine protects the control plane from broadcast/unicast storms, while 802.1X authentication, ACLs, ARP Spoofing Prevention, DHCP Server Screening, and IP-MAC-Port Binding protect users and infrastructure at the edge.

The switch is managed through a multilingual web GUI, compact CLI via Telnet, and SNMP v1/v2c/v3 for integration with D-View 7.0 or third-party NMS. The free D-Link Network Assistant utility allows simultaneous discovery, IP assignment, firmware upgrade, and password management across multiple DGS-1210 switches in the same L2 segment — ideal for multi-site rollouts.

Backed by IEEE 802.3az Energy Efficient Ethernet, D-Link Green power scheduling, a 440 × 250 × 44 mm 1U rack-mount chassis, and full Australian certifications (RCM, FCC, CE, CB, UL), the DGS-1210-28MP is a dependable, certified, and cost-effective core for SMB access-layer deployments. Australian stock from ARC IP Networks.

Brand D-LINK
Switching Capacity 56 Gbps
Network Layer Layer 2+
Form Factor Rack Mount (1U)
Port Speed (24) GbE PoE+ + (4) GbE SFP Combo
Ports 28 Ports
Network Connectivity Wired
Uplink 4 x GbE SFP Combo
PoE Specification PoE+ 802.3at / 370 W Budget
Switch Features Auto Surveillance VLAN, Auto Voice VLAN, Static Routing, IPv6
DGS-1210-28MP_Datasheet.pdf
Download
