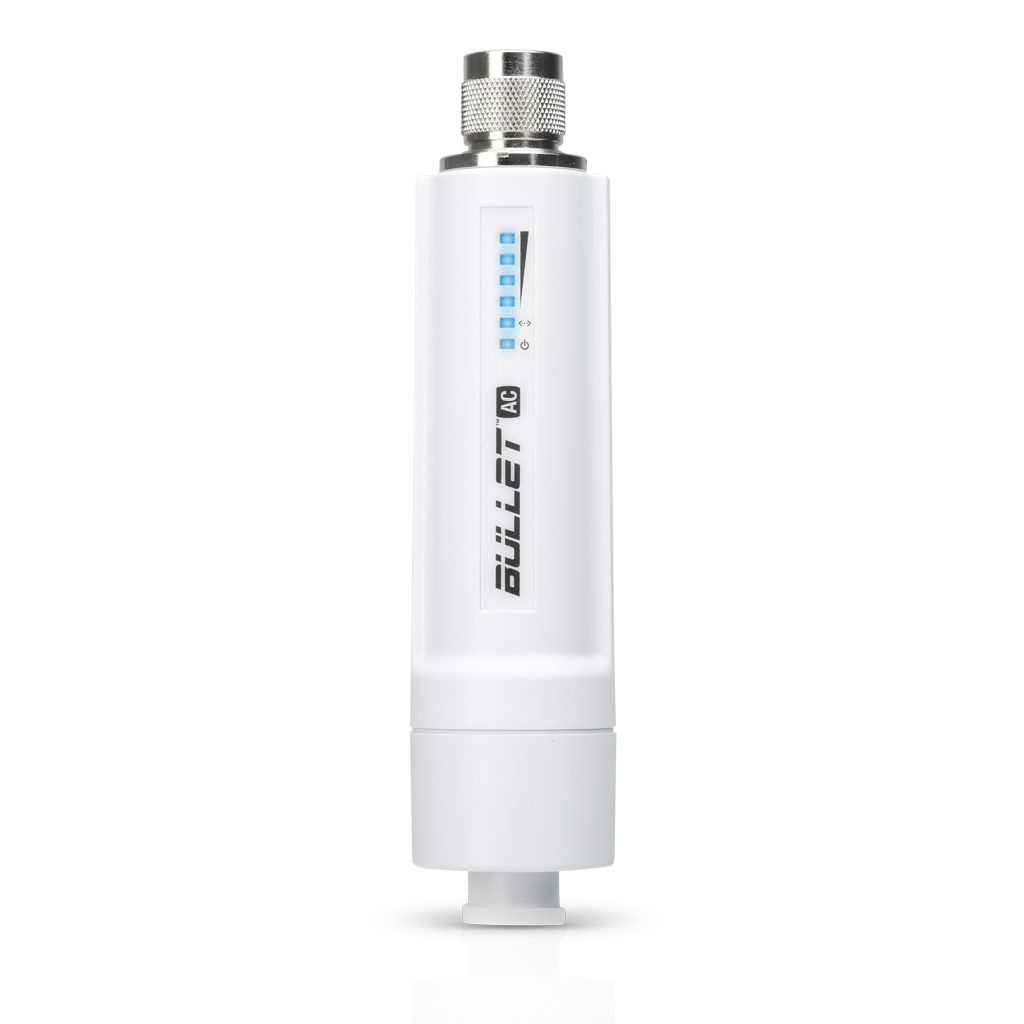

Ubiquiti B-DB-AC Bullet Dual-Band 2.4 & 5GHz AC

Price:

159.50


Ubiquiti AMO-5G13 5GHz AirMax Dual Omni, 13dBi w/ Rocket Mounting Kit (Rocket not Included)
Ubiquiti AMO-5G13 5GHz AirMax Dual Omni, 13dBi w/ Rocket Mounting Kit (Rocket not Included)
255.20
255.20
Ubiquiti BulletAC-IP67 Bullet Dual Band AC Titanium
Ubiquiti BulletAC-IP67 Bullet Dual Band AC Titanium
221.10
221.10

Ubiquiti B-DB-AC Bullet Dual-Band 2.4 & 5GHz AC

https://arcip.com.au/web/image/product.template/2728/image_1920?unique=b2df8e6
The B-DB-AC. Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.

159.50 159.5 AUD 159.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
B-DB-AC
Barcode
817882021319
Tags
B-DB-AC
Ubiquiti airMAX Bullet AC Dual-Band Radio

Features

  • Covers both 2.4 and 5 GHz bands
  • 300+ Mbps throughput*
  • Plug-and-play integration with airMAX antennas
  • *Only at 5 GHz frequency band.

Professional Overview

The B-DB-AC is a UISP networking device. Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.

Australian stock, fast shipping from ARC IP Networks.

Ubiquiti B-DB-AC: 2.4/5 GHz outdoor wireless radio

The airMAX Bullet AC Dual-Band Radio is a 2.4/5 GHz outdoor wireless radio with 5 GHz: 300+ Mbps 2.4 GHz: 160+ Mbps of throughput.

Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.

Link performance

SpecificationValue
Operating modesAccess Point / Station
Total throughput5 GHz: 300+ Mbps 2.4 GHz: 160+ Mbps
QoSWMM packet classification with user-level priority: High, Medium, Low

The B-DB-AC runs as either end of a link — access point or station — so a point-to-point hop is built from two units, one at each site, unless you are connecting to an existing base station.

Antenna

SpecificationValue
Antenna connectorN-Type Connector

The B-DB-AC has no integrated dish — it takes an external antenna, which is ordered separately and determines the gain and beamwidth of the finished link.

Frequency and regulatory

SpecificationValue
Supported frequency range2400 - 2483.5 MHz 5150 - 5875 MHz

The figures above are the radio's full capability. In Australia the unit must be set to the local regulatory domain and operated within the ACMA class licence for the band — the available channels and power limits here are narrower than the radio's worldwide range.

Power and network

SpecificationValue
Network interface(1) GbE RJ45 port
Power methodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power supply24V DC, 0.3A gigabit PoE adapter (Not Included)
Supported voltage range20–27V DC
Max. power consumption7W

The PoE injector is not supplied. Order one alongside, or power the unit from a PoE port — see the switch range.

Power is passive PoE, not 802.3af/at. A standard PoE switch port will not power it correctly — use the matching injector or a passive-PoE capable port at the right voltage.

Build, mounting and environment

SpecificationValue
EnclosurePolycarbonate
Dimensions190 x 46 mm (7.5 x 1.8")
Weight116 g (4.1 oz)
Operating temperature-40 to 70° C (-40 to 158° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Ubiquiti publishes independent environmental testing for the B-DB-AC covering shock and vibration — the reason this hardware survives on a tower or a coastal rooftop.

Rated for -40 to 70° C (-40 to 158° F), which covers rooftop and tower mounting anywhere in Australia.

Who the B-DB-AC suits

  • Installs where the antenna is chosen separately to suit the path
  • Towers and rooftops with existing antenna infrastructure
  • Operators standardising the radio and varying only the dish

Planning a link with the B-DB-AC

Whatever the topology, budget for the mount, earthing and surge protection as part of the job — an outdoor radio on an un-earthed mast is the single most common cause of a failed link after a storm.

Browse PoE switches and cloud gateways for the wired side, or read the Australian Ubiquiti buying guide.

Frequently Asked Questions

What is the Ubiquiti B-DB-AC?

The airMAX Bullet AC Dual-Band Radio is a 2.4/5 GHz outdoor wireless radio.

What throughput does the B-DB-AC deliver?

5 GHz: 300+ Mbps 2.4 GHz: 160+ Mbps. Real-world results depend on path length, line of sight, interference and the channel width you can legally use.

What frequencies does the B-DB-AC use?

2400 - 2483.5 MHz 5150 - 5875 MHz. In Australia it must be set to the local regulatory domain and operated within the ACMA class licence for the band.

Does the B-DB-AC include a PoE injector?

No — the PoE injector is not supplied and needs to be ordered separately.

How is the B-DB-AC powered?

Passive PoE 2-pair (4, 5+; 7, 8 return). This is passive PoE, not 802.3af/at, so a standard PoE switch port will not power it correctly.

Is the Ubiquiti B-DB-AC available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti B-DB-AC in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the B-DB-AC from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for WISPs, installers and multi-site rollouts

Browse PoE switches, cloud gateways and the wider Ubiquiti range. More on buying from an authorised Ubiquiti reseller in Australia.
