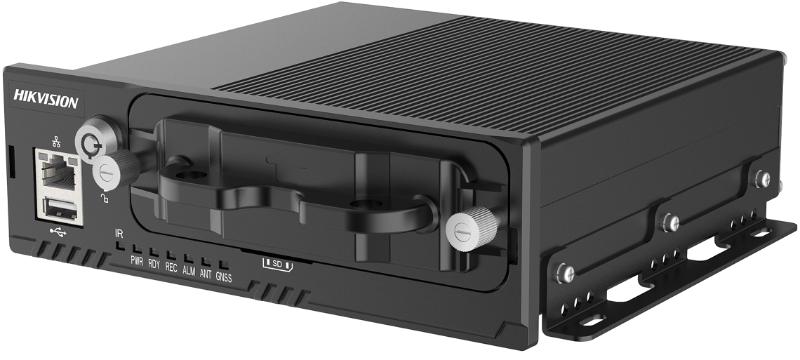

Hikvision AE-MD5043 4-Channel 1080p Mobile DVR for Vehicles, HD-TVI, 2 × 2.5" HDD/SSD, GPS, ADAS/DSM, 9–36 VDC

https://arcip.com.au/web/image/product.template/11243/image_1920?unique=d825bc3
  • 4-channel mobile DVR for HD-TVI analog cameras, up to 1080p
  • 2 × 2.5″ HDD/SSD bays (SSD up to 4 TB each)
  • Built-in GPS/GLONASS and G-sensor; optional 4G and Wi-Fi modules
  • ADAS, DSM, blind spot and driver ID (up to 3 at once)
  • 9–36 VDC, fanless aluminium, EN 50155, E-Mark

$ 745.79 745.79 AUD $ 745.79 incl. GST

Not Available For Sale


  • Brand
  • HDD Bays
  • Max Resolution
  • Smart Features
  • Power
  • Recorder Type
  • Channels
  • Signal Inputs

This combination does not exist.

In stock online
Hikvision Mobile DVR Mobile DVR Vehicle Recorder
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
AE-MD5043
Tags
AE-MD5043
Hikvision AE-MD5043 – 4-Channel 1080p Mobile DVR for Vehicles, 2 × 2.5″ HDD/SSD Bays, GPS, ADAS/DSM, 9–36 VDC, Fanless Aluminium Chassis
At a glance

The Hikvision AE-MD5043 is a 4-channel mobile digital video recorder for buses, coaches, trucks and service vehicles. It records four HD-TVI analog cameras at up to 1080p through rugged aviation connectors, stores video on two removable 2.5″ HDD/SSD bays, and has built-in GPS/GLONASS and a G-sensor. It runs up to three AI functions at once (ADAS, DSM and driver identification by default) and takes optional plug-in 4G and Wi-Fi modules. Note: it records analog (TVI) cameras, not IP cameras.

Channels
4 × HD-TVI analog, up to 1080p
Compression
H.265 / H.264
Storage
2 × 2.5″ HDD/SSD
Positioning
GPS + GLONASS
Wireless
Optional 4G / Wi-Fi modules
AI
ADAS, DSM, BSD, driver ID
Power
9–36 VDC, ≤ 45 W
Operating temp.
−25 °C to 70 °C

Key features

  • 4-channel HD-TVI recording – connects four Hikvision-wired analog cameras at up to 1080p, encoded in H.265 or H.264 with dual streams.
  • Dual removable drive bays – two pluggable 2.5″ HDD/SSD bays (SSD up to 4 TB, HDD up to 2 TB each) with redundant backup recording to both drives.
  • Optional 4G and Wi-Fi – pluggable 4G module (FAKRA antenna, industrial SIM) and 2.4 GHz or 5.8 GHz Wi-Fi module for live view, remote playback and automatic offload at the depot.
  • Built-in GPS and GLONASS – records vehicle position in the video stream for route and incident review.
  • AI driver safety – ADAS (FCW, LDW, SLW, HMW, PCW, TSR), driver status monitoring, right-side blind spot detection and driver identification; up to 3 AI features at once.
  • Vehicle signal inputs – 4 sensor inputs for turn signals, braking and reversing, plus 4 alarm inputs, a pulse input, a button input and 2 relay outputs.
  • Power protection – wide 9–36 VDC input, built-in super-capacitor against sudden power loss, shutdown delay (0–6 h) and scheduled start-up/shutdown.
  • Rugged, fanless design – die-cast aluminium chassis with aviation connectors for signal stability, operating from −25 °C to 70 °C.
  • Rail and vehicle approvals – EN 50155, EN 45545 and E-Mark (ECE R10).
  • Easy operation – local GUI by mouse, IR remote, touchscreen or web browser, plus a software firewall.

Specifications

Video & Audio Input
Analog cameras4 channels, Hikvision wiring sequence, max. 1080p (HD-TVI)
Two-way audio1, via EXT.DEV interface
Audio output1
Video output1 main output, via EXT.DEV interface
Encoding
Video compressionH.265 / H.264
Audio compressionG.711a, G.711u, G.722.1, G.726
Audio bit rate16 Kbps
Stream typeVideo, video & audio; dual stream
Frame ratePAL: 1–25 fps; NTSC: 1–30 fps
Main stream resolution1080p / 720p / WD1 / 4CIF
Sub-stream resolution720p / WD1 / 4CIF / 2CIF / CIF
Storage
HDD/SSD2 × 2.5″ pluggable bays; SSD up to 4 TB, HDD up to 2 TB
SD card1 × SD card up to 512 GB (not on baseline units – specify when ordering)
OptionsHDD/SSD export converter; heated hard disk case
RedundancyBackup recording to redundant HDD/SSD
Wireless & Positioning
4G1 × 4G card slot, 1 × FAKRA antenna (with optional 4G module); 5G module optional
Wi-Fi2.4 GHz model: 1 antenna; 5.8 GHz model: 2 antennas (optional module)
SIMIndustrial SIM cards required
GNSSGPS and GLONASS, 1 × FAKRA antenna
G-sensorBuilt-in
Smart Functions
ADASForward collision (FCW), lane departure (LDW), speed limit (SLW), headway monitoring (HMW), pedestrian collision (PCW), traffic sign recognition (TSR)
DSMDistraction, fatigue, calling, smoking, unfastened seat belt, yawning, absence from post, IR-blocking sunglasses, occlusion
Blind spotRight-side blind spot detection and alerts
Driver identificationDriver modelling, detection and comparison, driver change alerts, attendance tracking
ConcurrencyUp to 3 AI features at once; default ADAS + DSM + DI
Interfaces
NetworkFront: 1 × RJ45 10/100 Mbps; rear: 1 × 10/100 Mbps 6-pin aviation connector (different network segments)
Alarm input4 high/low level inputs, 1 pulse input, 1 button input
Alarm output2 relay outputs
Sensor input4 high/low level inputs
Serial2 × RS-232 (harness optional), 1 × RS-422
USBFront: 1 × USB 2.0; rear: 1 × USB 2.0 (5-pin aviation)
General
Power supply+9 to +36 VDC
Power consumptionStandby ≤ 0.5 W; full load ≤ 45 W (≤ 20 W without peripherals and storage)

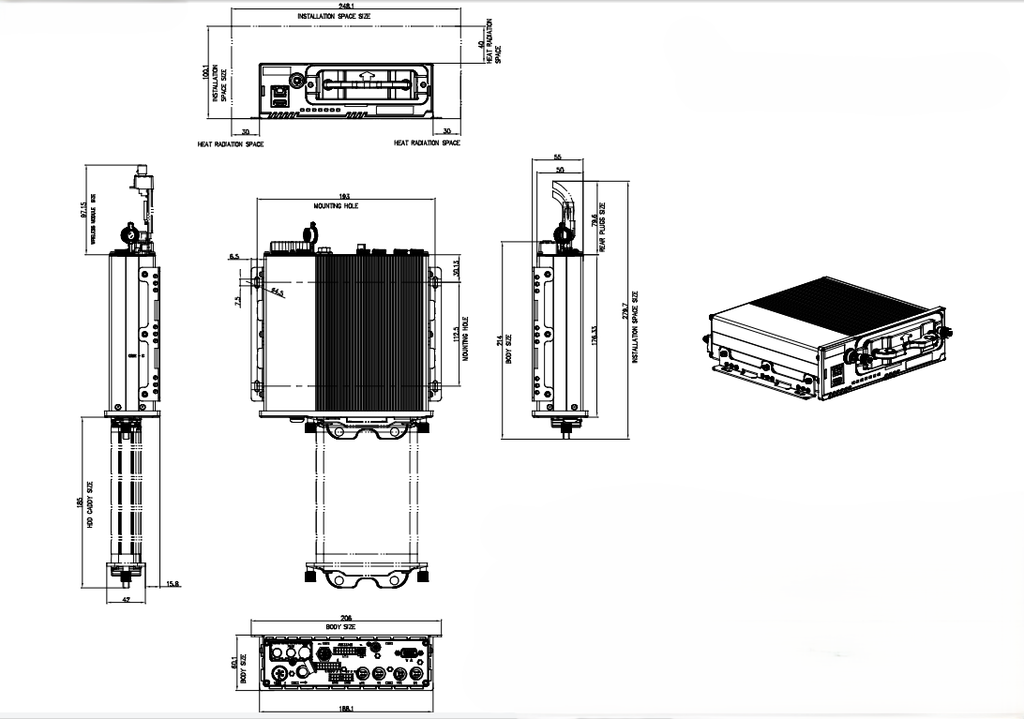

Dimensions206 × 225.4 × 60.1 mm
Weight1.7 kg (without storage media)
Operating temperature−25 °C to 70 °C
Operating humidity10% to 95% (non-condensing)
OperationMouse, IR remote, web, touchscreen
Automotive & railwayEN 50155:2017, EN 45545-2, E-Mark (ECE R10)
ApprovalsFCC, CE-EMC, CB, CE-LVD, CE-RoHS

Specifications are from Hikvision’s official AE-MD5043 product page and user manual. 4G and Wi-Fi modules, hard drives and cameras are listed as options and are not part of the specifications above.

Best for

  • Buses, coaches and school buses that need four cameras recorded on removable drives.
  • Trucks and delivery fleets combining forward, cabin, side and rear analog cameras.
  • Fleets adding ADAS, driver fatigue monitoring and blind spot alerts to analog camera systems.
  • Vehicles with 12 V or 24 V electrics, thanks to the 9–36 VDC input.
  • Upgrading older analog mobile DVR installations while keeping TVI cameras.

Who it’s for

Bus & coach operators

Four-camera recording with GPS for passenger and driver safety.

Transport & logistics

Driver behaviour monitoring and incident evidence.

Rail & light rail

EN 50155 and EN 45545 certified recorder.

Fleet managers

Optional 4G for live view and remote playback.

Councils

Waste, maintenance and community transport fleets.

Fleet installers

Aviation connectors, sensor inputs and relay outputs.

Before you install

  • Cameras: the AE-MD5043 records analog HD-TVI cameras with Hikvision aviation-plug wiring. It does not record IP/network cameras; for IP cameras choose a mobile NVR.
  • Storage: fit 2.5″ drives in the two bays (SSD up to 4 TB, HDD up to 2 TB each). Hikvision recommends using factory-recommended drives.
  • 4G / Wi-Fi: remote access needs the optional plug-in 4G module, antennas and an industrial SIM card; ordinary SIM cards are not supported.
  • Power: connect 9–36 VDC, ignition (ACC) and ground, and set the shutdown delay so recording continues after the engine stops.
  • AI functions: ADAS, DSM, blind spot detection and driver identification rely on correctly placed cameras on the matching channels; plan camera positions before installation.

Mobile DVR FAQ – AE-MD5043

It is a 4-channel mobile DVR for vehicles that records four HD-TVI analog cameras at up to 1080p onto two removable 2.5″ HDD/SSD bays, with built-in GPS, a G-sensor, AI driver-safety functions and optional 4G/Wi-Fi.

No. It records analog HD-TVI cameras connected through Hikvision aviation connectors. For IP cameras, use a Hikvision mobile NVR instead.

Two 2.5″ HDD/SSD bays: SSDs up to 4 TB or HDDs up to 2 TB in each. It can also record a redundant backup copy across both drives.

4G and Wi-Fi are pluggable modules. With the 4G module fitted, the recorder uses a FAKRA antenna and an industrial SIM card; the Wi-Fi module comes in 2.4 GHz and 5.8 GHz versions.

ADAS (forward collision, lane departure, speed limit, headway, pedestrian collision, traffic signs), DSM driver fatigue and distraction alerts, right-side blind spot detection and driver identification. Up to three run at once.

It accepts +9 to +36 VDC, so it suits 12 V and 24 V vehicles. Full-load consumption is up to 45 W, and a built-in super-capacitor protects against sudden power loss.

Yes. Hikvision lists EN 50155 (railway electronics), EN 45545 (railway fire protection) and E-Mark ECE R10.

Professional overview

The Hikvision AE-MD5043 is a 4-channel mobile digital video recorder from Hikvision’s onboard security range. It is designed for buses, coaches, trucks and service vehicles that use analog HD-TVI cameras, and records four channels at up to 1080p with H.265 or H.264 compression and dual streams.

Video is stored on two pluggable 2.5″ drive bays that accept SSDs up to 4 TB or HDDs up to 2 TB, with optional redundant recording to both. Built-in GPS and GLONASS add the vehicle position to the video stream, a G-sensor flags harsh events, and sensor inputs log turn signals, braking and reversing. Optional plug-in 4G and Wi-Fi modules provide live view, remote playback and data offload.

The recorder runs up to three AI functions at once, by default ADAS, driver status monitoring and driver identification, with right-side blind spot detection also available. ADAS covers forward collision, lane departure, speed limit, headway and pedestrian collision warnings plus traffic sign recognition, and DSM covers distraction, fatigue, phone use, smoking, yawning and seat belt use.

A fanless die-cast aluminium chassis, aviation connectors, a 9–36 VDC input with super-capacitor protection and a −25 °C to 70 °C operating range suit life on the road, and the recorder carries EN 50155, EN 45545 and E-Mark approvals. It comes with the full Hikvision manufacturer’s warranty. Australian stock from ARC IP Networks.

Brand Hikvision
HDD Bays 2 × 2.5" HDD/SSD
Max Resolution 1080p
Smart Features ADAS, DSM, BSD, Driver ID
Power 9–36 VDC
Recorder Type Mobile Digital Video Recorder (DVR)
Channels 4-Channel
Signal Inputs HD-TVI (aviation connectors)
