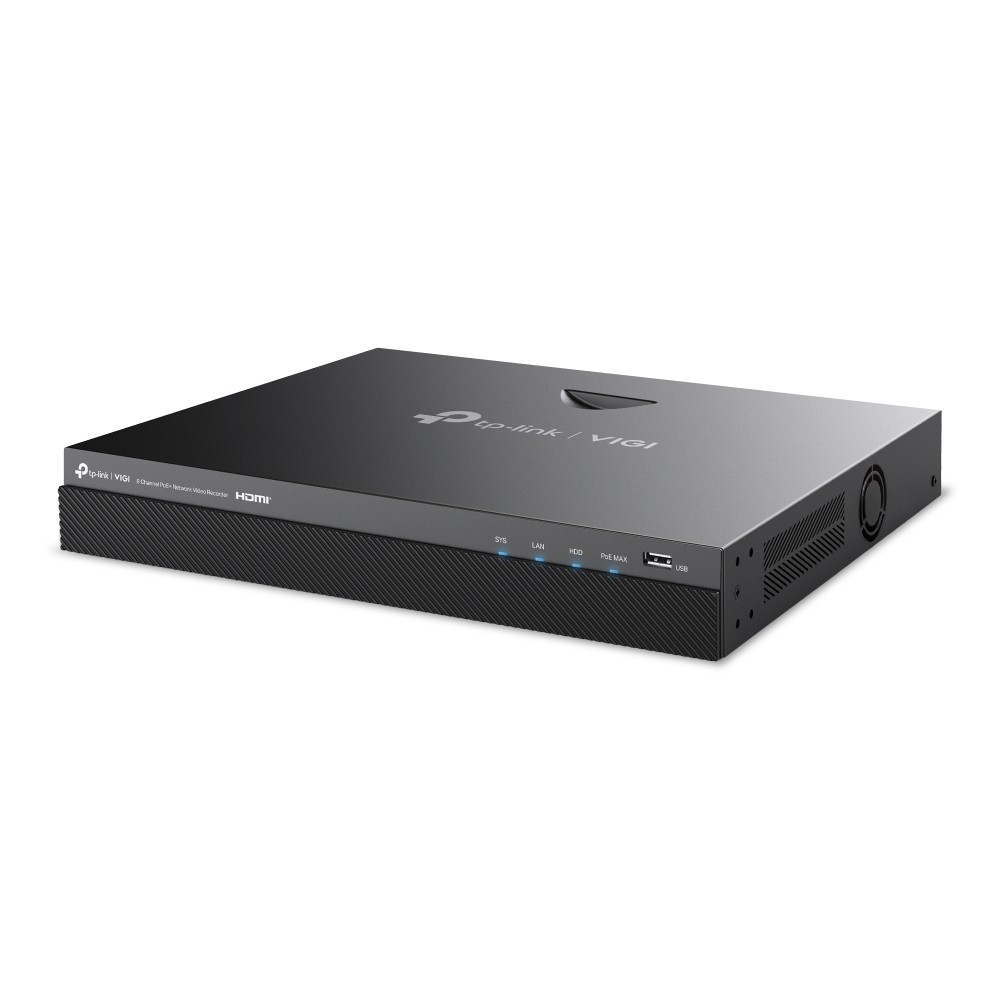

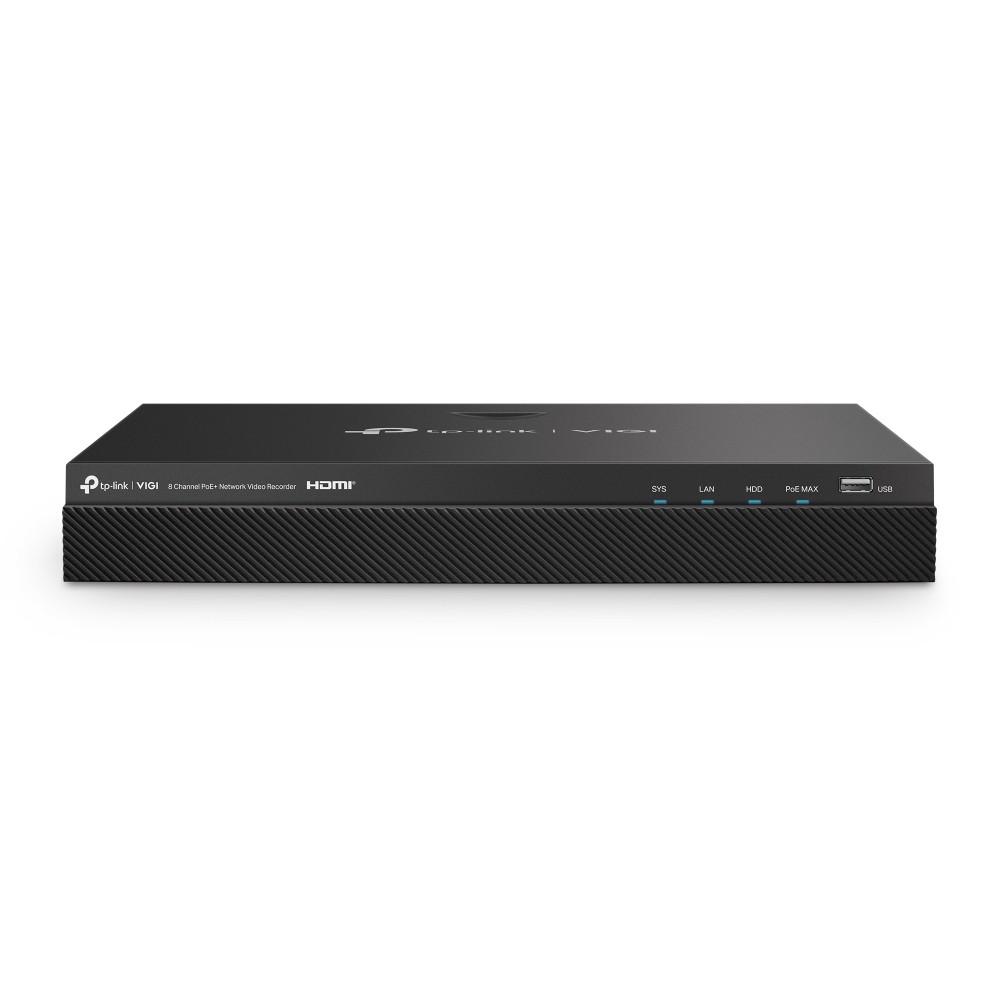

TP-Link VIGI NVR2008H-8MP 8-Channel PoE+ Network Video Recorder

https://arcip.com.au/web/image/product.template/11419/image_1920?unique=d9e3c13

The TP-Link VIGI NVR2008H-8MP is an 8-channel network video recorder with eight 10/100 Mbps PoE+ ports sharing a 90 W budget (30 W maximum per port). It handles 160 Mbps incoming and outgoing bandwidth and decodes four channels at 8MP or eight at 4MP at 30 fps. Two SATA bays support up to 16 TB per drive (HDD not included), with eSATA, a gigabit uplink, front USB 2.0 and rear USB 3.0, 6/4 alarm I/O, and HDMI up to 3840 x 2160 plus VGA. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 550.63 550.63 AUD $ 550.63 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR2008H-8MP
Barcode
8885020622027

The TP-Link VIGI NVR2008H-8MP is an 8-channel PoE+ network video recorder in the larger two-bay VIGI chassis. Eight PoE+ ports share a 90 W budget, bandwidth is 160 Mbps in and out, and it takes two SATA drives of up to 16 TB each (32 TB total, not included) plus eSATA, with a gigabit uplink, 6/4 alarm I/O and 4K HDMI plus VGA.

VIGI NVR2008H-8MP overview

The VIGI NVR2008H-8MP puts eight PoE+ channels into the 330 x 285 x 45 mm two-bay chassis size TP-Link uses for its NVR2016H models. Its eight RJ-45 10/100 Mbps PoE+ ports, compliant with 802.3at and 802.3af, share 90 W with up to 30 W per port; TP-Link notes this is calculated from laboratory testing, and that actual data is not guaranteed and will vary with client limitations and environmental factors. Power comes from a 53.5 V DC 2.43 A supply, and maximum consumption is 8.5 W without disks and 40 W with disks.

Compared with TP-Link's NVR1008H-8P and NVR1008H-8MP, which accept eight channels at 80 Mbps with one drive bay, the NVR2008H-8MP doubles bandwidth to 160 Mbps incoming and 160 Mbps outgoing, and its decoding capability is listed as four channels at 8MP, six at 5MP or eight at 4MP at 30 fps. Eight channels play back synchronously; TP-Link notes fewer than 8, or none, may play if total resolution exceeds 32MP. Live view layouts are one, four, six, eight or nine windows, and record resolutions run from 8MP to QCIF.

Storage is two SATA interfaces, each up to 16 TB, for up to 32 TB in total, plus one eSATA interface; TP-Link states the HDD is not included. One-Click System Initialise handles quick camera additions, HDD initialisation and storage scheduling with a single click. Outputs are HDMI up to 3840 x 2160 at 30 Hz and VGA up to 1920 x 1080 at 60 Hz. TP-Link's highlights describe HDMI and VGA independent output, while the specification table on the same page lists simultaneous output. Other connections are a 10/100/1000 Mbps uplink, front USB 2.0 and rear USB 3.0, 1-channel RCA audio in and out, and six alarm inputs and four alarm outputs.

Smart alarms, which require a camera, include line-crossing, intrusion, region entering and exiting, loitering, object abandoned or removed, vehicle and human detection, abnormal sound, scene change and Smart Frame, with video loss, IP conflict, disk, login and fan exception alerts. Interoperability is ONVIF Profile S and CGI, and web access includes Safari 11+ as well as Chrome, Firefox and Edge. The recorder weighs 2.1 kg, and TP-Link recommends a tray (not included) when rack mounting with angle iron. In the box are the recorder, power adapter, power cable, HDD power and data cables, mounting accessories, mouse and quick installation guide.

Key features

Eight PoE+ ports

802.3at/af, 10/100 Mbps.

90 W PoE budget

Up to 30 W per port; laboratory figure, actual data varies.

160 Mbps in and out

Decodes four channels at 8MP or eight at 4MP at 30 fps.

Two SATA bays

Up to 16 TB each (32 TB total), plus eSATA; HDD not included.

Gigabit uplink

One 10/100/1000 Mbps Ethernet port.

6/4 alarm I/O

Six alarm inputs and four alarm outputs.

4K HDMI plus VGA

HDMI up to 3840 x 2160 at 30 Hz.

One-Click System Initialise

Camera additions, HDD initialisation and storage scheduling.

VIGI NVR2008H-8MP specifications

At a glance

8-channel PoE+ NVR
8 x PoE+ ports
90 W PoE budget
160 Mbps in/out
2 SATA, up to 32 TB
eSATA
6/4 alarm I/O
4K HDMI + VGA
VIGI NVR2008H-8MP full specifications
Video and Audio
IP Video Input8-Channel
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback8-Channel 2
Capability30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+), Safari (11+)
InteroperabilityONVIF Profile S, CGI

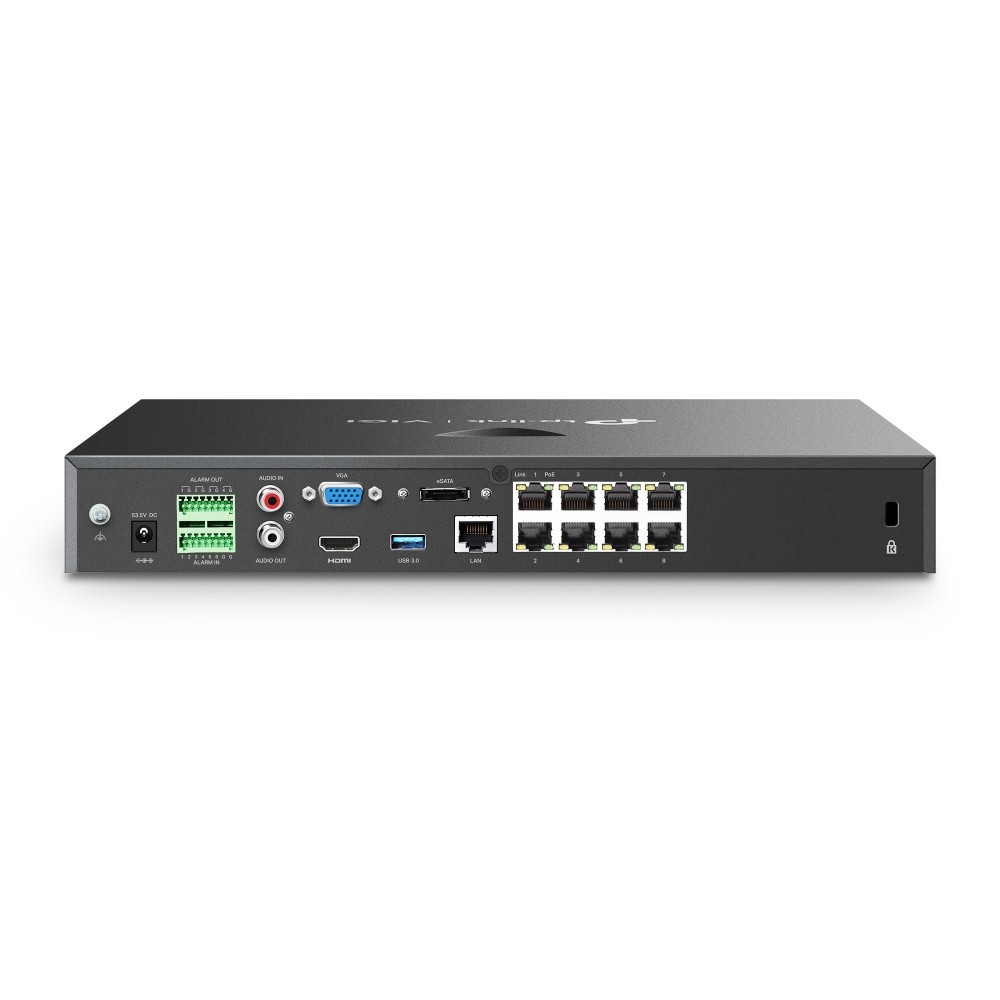

External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out6/4
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
Hard Disk
SATA2 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD 3
PoE
Standard802.3at/af Compliant
Interface8, RJ-45 10/100 Mbps PoE+ Ports
PoE Budget90 W 1 Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40℃ to 70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10℃ to 55 °C; Power Adapter: 0℃ to 40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )13 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight2.1 Kg 4
Gross Weight3.9 Kg 4
Power Supply53.5V DC/2.43A
Max. Power Consumption8.5 W (Without Disk); 40 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cable
  • HDD Power Cables
  • HDD Data Cables
  • Mounting Accessories
  • Mouse
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR2008H-8MP is for

Eight high-resolution cameras

  • Four channels at 8MP at 30 fps
  • Eight channels at 4MP at 30 fps
  • 160 Mbps incoming

More storage on 8 channels

  • Two SATA bays
  • Up to 32 TB in total
  • eSATA port

VIGI NVR2008H-8MP compared

TP-Link lists three 8-channel PoE+ VIGI recorders. The NVR2008H-8MP has double the bandwidth, two drive bays and alarm I/O; the NVR1008H models are single-bay. Figures are from each model's TP-Link product page.

FeatureVIGI NVR2008H-8MPVIGI NVR1008H-8MPVIGI NVR1008H-8P
PoE budget90 W113 W53 W
Bandwidth in/out160 / 160 Mbps80 / 60 Mbps80 / 60 Mbps
SATA2, up to 16 TB each1, up to 16 TB1, up to 16 TB
Network uplink10/100/1000 Mbps10/100 Mbps10/100 Mbps
Alarm in/out6/4NoneNone
Dimensions330 x 285 x 45 mm294 x 180 x 44 mm294 x 180 x 44 mm

Source: TP-Link Australia product pages for each model.

Buy the VIGI NVR2008H-8MP from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR2008H-8MP from the ARC IP Networks team.

Last reviewed October 2026.

Eight 10/100 Mbps PoE+ ports, compliant with 802.3at/af.

90 W shared, up to 30 W per port. TP-Link notes this is a laboratory figure.

Two SATA drives of up to 16 TB each, 32 TB in total, plus eSATA. Drives are not included.

The NVR2008H-8MP has 160 Mbps bandwidth, two drive bays, a gigabit uplink and 6/4 alarm I/O. The NVR1008H-8MP has 80 Mbps, one bay and a larger 113 W PoE budget.

Four channels at 8MP, six at 5MP or eight at 4MP at 30 fps.

Up to eight, but fewer, or none, if total resolution exceeds 32MP.

TP-Link's highlights say independent output, but its specification table lists simultaneous output. Both list HDMI up to 3840 x 2160.

ONVIF Profile S, plus CGI.

The recorder, power adapter, power cable, HDD power cables, HDD data cables, mounting accessories, mouse and quick installation guide.

Need more than one VIGI NVR2008H-8MP for a multi-site camera rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
