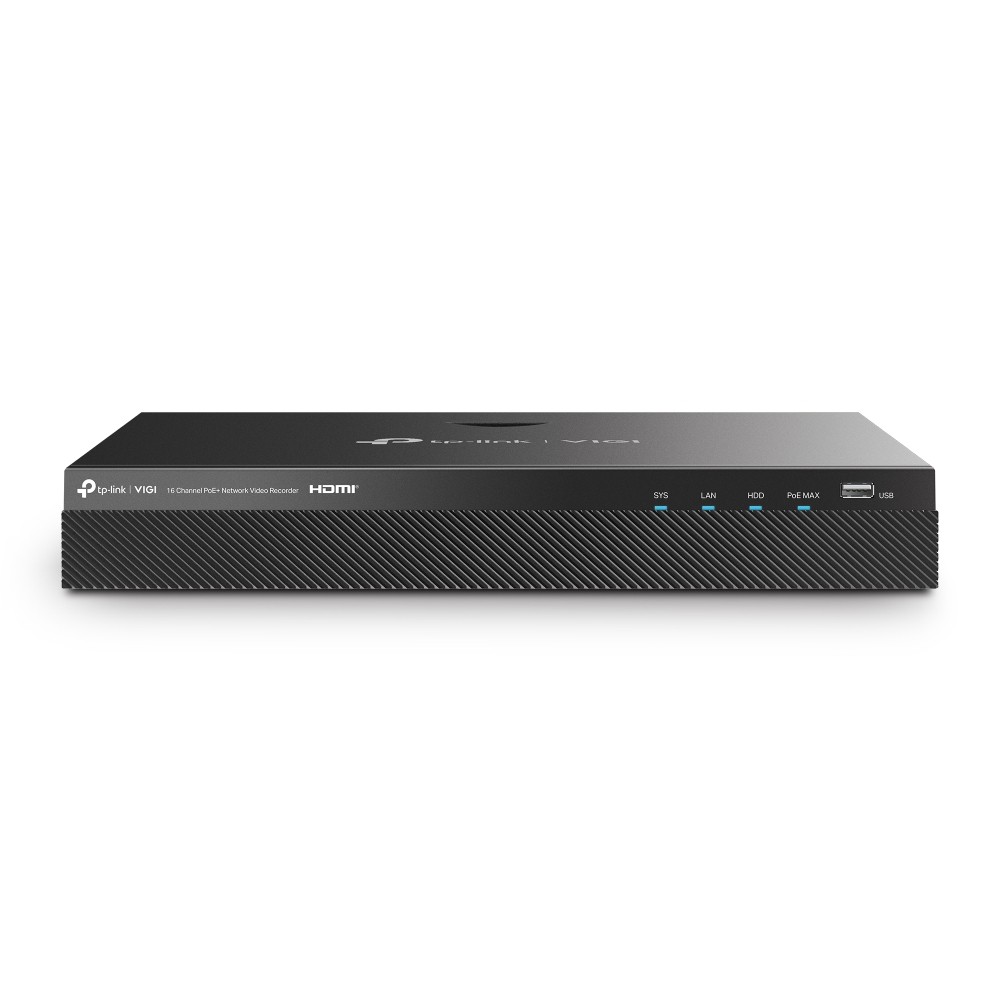

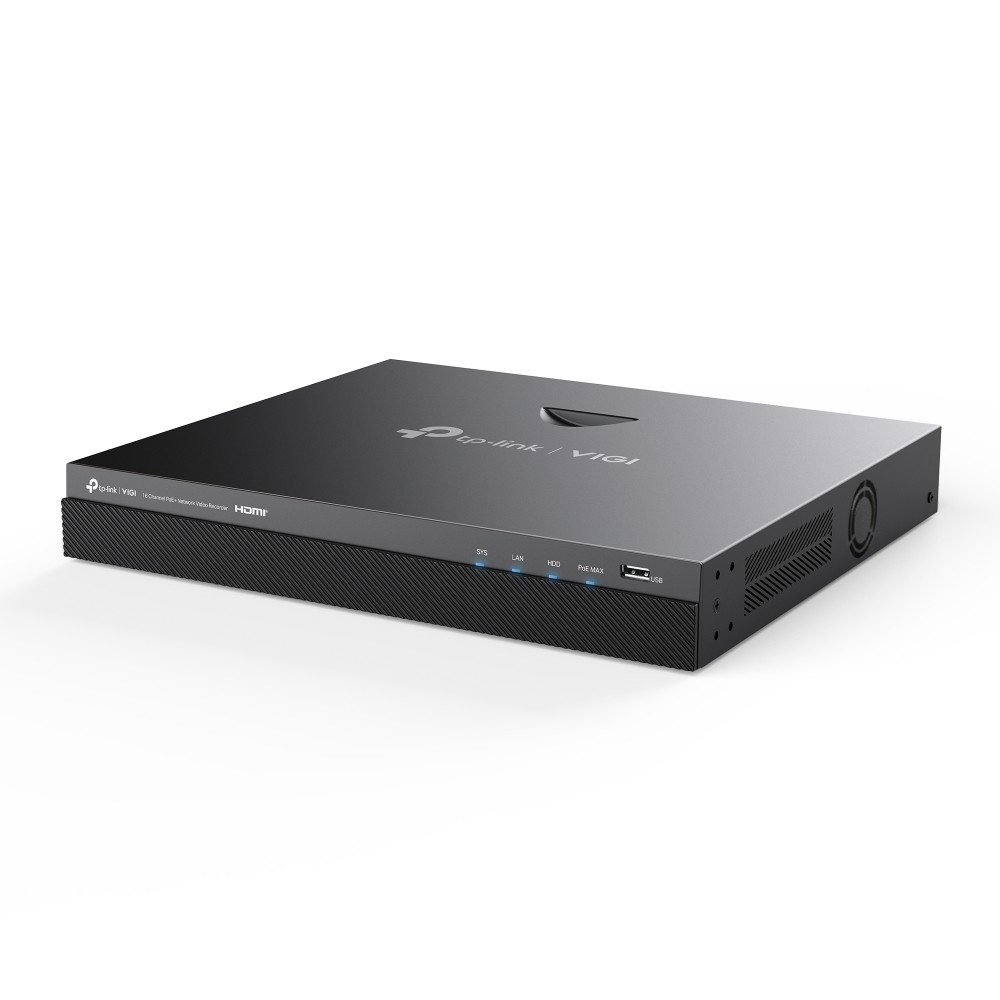

TP-Link VIGI NVR2016H-16MP 16-Channel PoE+ Network Video Recorder

https://arcip.com.au/web/image/product.template/11420/image_1920?unique=da2fe62

The TP-Link VIGI NVR2016H-16MP is a 16-channel PoE+ network video recorder with sixteen 802.3at/af PoE+ ports and a 140 W budget (30 W maximum per port). It handles 320 Mbps incoming and outgoing bandwidth, decodes up to sixteen 1080p channels at 25 fps, and supports AI by NVR on up to four channels. It has two SATA bays up to 16 TB per drive (HDD not included), eSATA, a gigabit uplink, 6/4 alarm I/O and independent HDMI (up to 4K) and VGA output. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 741.55 741.55 AUD $ 741.55 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
VIGI-NVR2016H-16MP
Barcode
4895252504026

The TP-Link VIGI NVR2016H-16MP lists the largest PoE budget and the most bandwidth of TP-Link's three VIGI NVR2016H models. Sixteen PoE+ ports share a 140 W budget, bandwidth is 320 Mbps in and out, and it adds AI by NVR (motion, line crossing and intrusion detection with human and vehicle classification) on up to four channels, alongside two 16 TB SATA bays, eSATA, 6/4 alarm I/O and independent 4K HDMI and VGA.

VIGI NVR2016H-16MP overview

The VIGI NVR2016H-16MP shares its sixteen PoE+ ports and 330 x 285 x 45 mm dimensions with the NVR2016H-16P, but TP-Link lists it with more power and more bandwidth. The sixteen RJ-45 10/100 Mbps PoE+ ports, compliant with 802.3at and 802.3af, share a 140 W budget with up to 30 W per port, against 90 W on the 16P. TP-Link notes the calculation is based on laboratory testing and that actual data is not guaranteed and will vary with client limitations and environmental factors. It runs from a 53.5 V DC 3.37 A supply and draws 6.2 W without disks and 40 W with disks.

Incoming and outgoing bandwidth are both 320 Mbps, double the 160 Mbps of the 16P and the non-PoE NVR2016H. Decoding capability is listed as ten channels at 3MP or sixteen at 1080p at 25 fps, and four channels at 8MP, six at 5MP or eight at 4MP at 30 fps. Sixteen channels play back synchronously; TP-Link notes fewer than 16, or none, may play if total resolution exceeds 32MP. HDMI reaches 3840 x 2160 at 30 Hz and VGA 1920 x 1080 at 60 Hz, as independent outputs, with up to sixteen windows.

The 16MP is the NVR2016H model whose page lists Intelligent Analytics. AI by NVR provides motion detection, line crossing detection and intrusion detection, enhanced with human and vehicle classification for more accurate alerts, on up to four channels simultaneously. AI by Camera, when used with cameras that support it, lists people and vehicle attributes analytics, motion, intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection. TP-Link notes the alarm function requires the use of a camera.

Storage is two SATA interfaces supporting up to 16 TB per drive plus one eSATA interface; TP-Link states a hard disk drive (not included) must be installed for operation. One-Click System Initialise handles quick camera additions, HDD initialisation and storage scheduling with a single click. Other connections include a 10/100/1000 Mbps uplink, front USB 2.0 and rear USB 3.0, 1-channel RCA audio in and out, and six alarm inputs and four alarm outputs. Interoperability is ONVIF Profile S and CGI. The unit weighs 2.2 kg, and TP-Link recommends a tray (not included) for rack mounting with angle iron. The box contains the recorder, power adapter, power cable, HDD power and data cables, mounting accessories, mouse and quick installation guide.

Key features

140 W PoE budget

Sixteen PoE+ ports, up to 30 W per port.

320 Mbps in and out

Double the bandwidth of the NVR2016H-16P.

AI by NVR

Motion, line crossing and intrusion with human and vehicle classification, up to 4 channels.

16-channel 1080p decoding

Sixteen channels at 1080p at 25 fps.

Two SATA bays

Up to 16 TB per drive, plus eSATA; HDD not included.

Independent HDMI and VGA

HDMI up to 3840 x 2160 at 30 Hz.

6/4 alarm I/O

Six alarm inputs and four alarm outputs.

One-Click System Initialise

Camera additions, HDD initialisation and storage scheduling.

VIGI NVR2016H-16MP specifications

At a glance

16-channel PoE+ NVR
140 W PoE budget
320 Mbps in/out
AI by NVR, 4 ch
2 SATA, 16 TB each
eSATA
6/4 alarm I/O
Independent HDMI/VGA
VIGI NVR2016H-16MP full specifications
Intelligent Analytics
AI by NVRMotion Detection; Line Crossing Detection; Intrusion Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts Number of Channels; Up to 4-ch Simultaneous Output
AI by CameraPeople & Vehicle Attributes Analytics; Motion Detection; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts
Video and Audio
IP Video Input16-Channel
Incoming Bandwidth320 Mbps
Outgoing Bandwidth320 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Independent Output
Multi-View Display1/4/6/8/9/16
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps: 10-ch @ 3MP, 16-ch @ 1080P; 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP
Record Management
Record ModeManual Recording; Scheduling Recording; Motion Detection Recording
Playback ModeInstant Playback; Regular Playback; Tag Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off
Network
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+), Safari (11+)
InteroperabilityONVIF Profile S, CGI

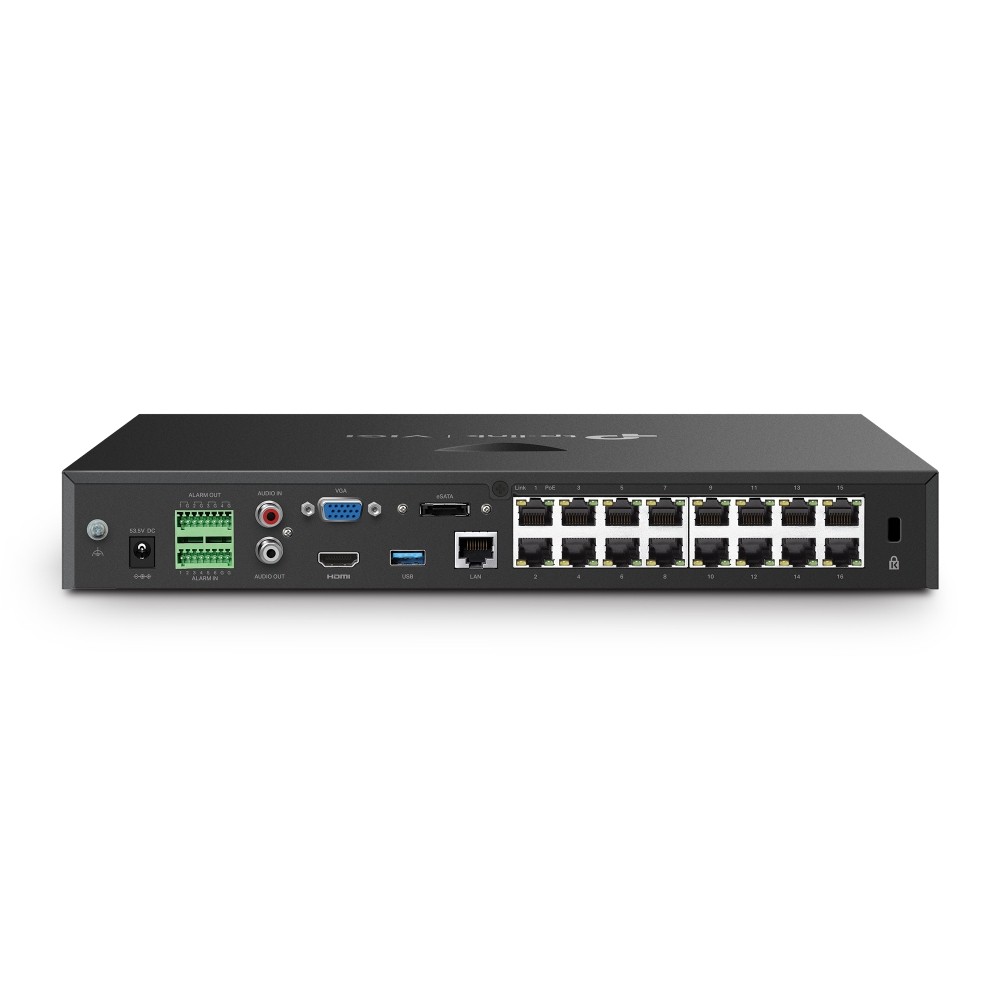

External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out6/4
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
Hard Disk
SATA2 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD
PoE
Standard802.3at/af Compliant
Interface1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget140 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame Note: The alarm function requires the use of a camera.
Anomaly AlarmVideo Loss; Offline and IP Conflict; Disk Exception; Login Exception; Fan Exception Note: The alarm function requires the use of a camera.
Alarm LinkageRecording; White Light Alarm; Buzzer; Log; Audible Alarm Note: The alarm function requires the use of a camera.
General
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10–55 °C; Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight2.2 Kg #
Gross Weight4.2 Kg #
Power Supply53.5V DC/3.37A
Max. Power Consumption6.2 W (Without Disk); 40 W (With Disk)
CertificationsCE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cable
  • HDD Power Cables
  • HDD Data Cables
  • Mounting Accessories
  • Mouse
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the VIGI NVR2016H-16MP is for

Higher-power PoE camera sets

  • 140 W shared budget
  • Sixteen PoE+ ports
  • 53.5 V 3.37 A supply

Smarter alerts from the recorder

  • AI by NVR on up to 4 channels
  • Human and vehicle classification
  • 6/4 alarm I/O

VIGI NVR2016H-16MP compared

TP-Link's VIGI NVR2016H line shares 16 channels, two 16 TB SATA bays, eSATA, 6/4 alarm I/O and 330 x 285 x 45 mm dimensions. The 16MP lists the largest PoE budget, the most bandwidth and AI by NVR, per each model's TP-Link product page.

FeatureVIGI NVR2016H-16MPVIGI NVR2016H-16PVIGI NVR2016H
PoE16 x PoE+, 140 W16 x PoE+, 90 WNone
Bandwidth in/out320 / 320 Mbps160 / 160 Mbps160 / 160 Mbps
Decoding at 25 fps16 ch @ 1080p10 ch @ 1080p10 ch @ 1080p
HDMI/VGA modeIndependentSimultaneousIndependent
Playback limit32MP total16MP total20MP total
AI by NVRListed, up to 4 chNot listedNot listed

Source: TP-Link Australia product pages for each model.

Buy the VIGI NVR2016H-16MP from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI NVR2016H-16MP from the ARC IP Networks team.

Last reviewed October 2026.

140 W across sixteen PoE+ ports, up to 30 W per port. TP-Link notes this is a laboratory figure.

The 16MP lists 140 W PoE against 90 W, 320 Mbps bandwidth against 160 Mbps, independent rather than simultaneous HDMI/VGA output, and AI by NVR.

Motion, line crossing and intrusion detection enhanced with human and vehicle classification, on up to four channels simultaneously.

No. A hard disk drive must be installed for operation. Two SATA bays support up to 16 TB per drive.

Sixteen at 1080p or ten at 3MP at 25 fps; four at 8MP or eight at 4MP at 30 fps.

Up to 16, but fewer, or none, if total resolution exceeds 32MP.

Yes, six alarm inputs and four alarm outputs.

ONVIF Profile S, plus CGI.

Mounting accessories are included; TP-Link recommends a tray (not included) when rack mounting with angle iron.

The recorder, power adapter, power cable, HDD power cables, HDD data cables, mounting accessories, mouse and quick installation guide.

Need more than one VIGI NVR2016H-16MP for a multi-site camera rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
