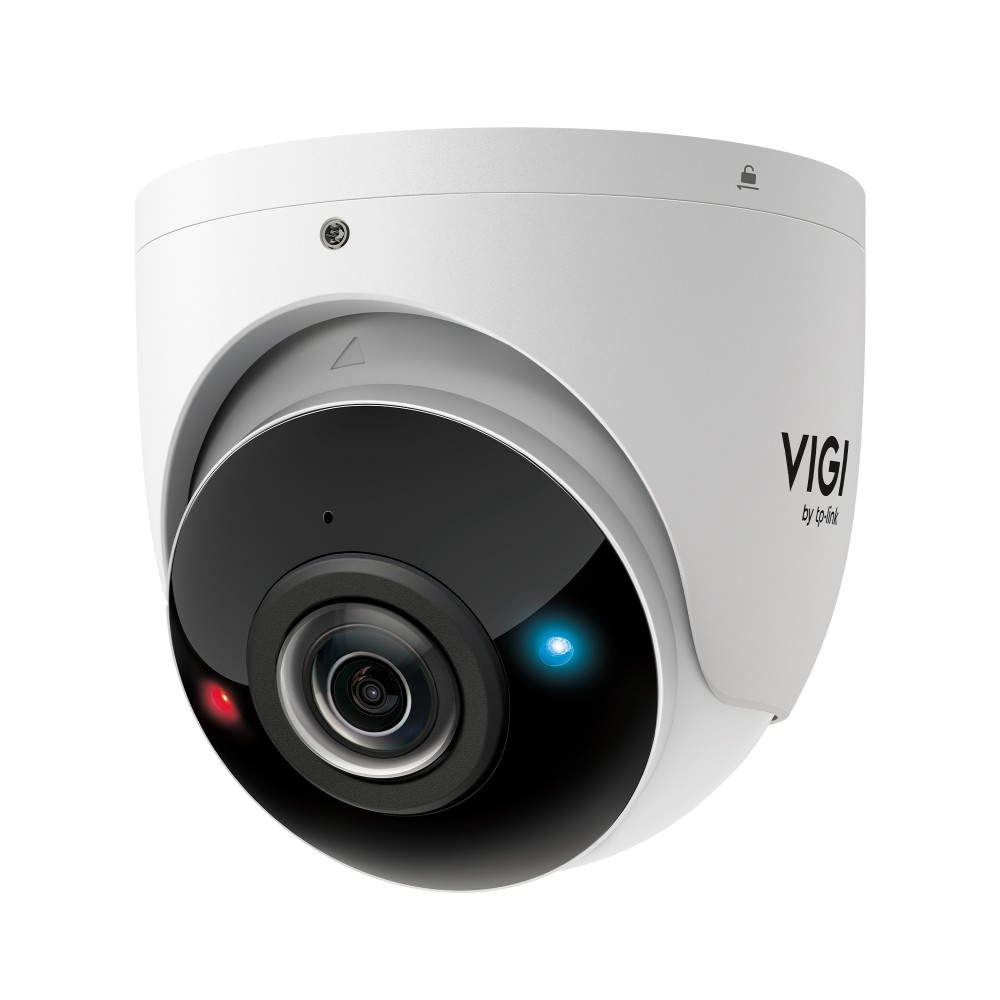

TP-Link VIGI InSight S485PI 8MP IR Panoramic Turret Network Camera

https://arcip.com.au/web/image/product.template/11415/image_1920?unique=0cc3102

The TP-Link VIGI InSight S485PI puts a 180° panoramic view into an 8MP turret. Through a 1.65 mm F2.0 lens it records up to 3840 x 2160 across 180° horizontally and 86° vertically, and TP-Link's DORI figures reach 44 m for detection. At night it uses four 850 nm IR LEDs (20 m in TP-Link laboratory testing), while red-blue warning lights, a built-in speaker and custom voice audio handle Active Defence. Audio and alarm interfaces, microSD recording, Class 4 802.3at PoE and an IK10, IP67 turret weighing 0.76 kg complete the package. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 370.34 370.34 AUD $ 370.34 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S485PI
Barcode
8885020627886

The TP-Link VIGI InSight S485PI is an 8MP (4K) IR panoramic turret network camera with a 1.65 mm lens that sees 180° horizontally. It pairs red-blue warning lights and a built-in speaker for Active Defence with four IR LEDs rated to 20 m in TP-Link's laboratory tests, plus audio and alarm in/out, human and vehicle classification, 802.3at PoE and an IP67, IK10 metal turret.

InSight S485PI overview

The VIGI InSight S485PI is the turret form of TP-Link's 8MP IR panoramic camera, promoted as '180° Panorama View with Huge Vision'. In place of a conventional lens it uses a 1.65 mm F2.0 panoramic lens with a 180° horizontal, 86° vertical and 180° diagonal field of view, recorded at up to 3840 x 2160 from a 1/2.7" progressive scan CMOS. TP-Link points out that general cameras need several units to cover blind spots in large spaces such as hotel lobbies, playgrounds, intersections and warehouses, and that one panoramic 4K camera cuts installation, deployment and maintenance costs while covering more area. DORI distances for the 1.65 mm lens are 44 m detect, 18.33 m observe, 8.8 m recognise and 4.4 m identify.

Frame rate reaches 25 fps on 50 Hz or 30 fps on 60 Hz, and 20 fps when the image is rotated 90° or 270°. Main-stream bit rate is adjustable from 256 Kbps to 8 Mbps with H.265+, H.265, H.264+ or H.264 compression. For H.265+, TP-Link claims storage savings of 57.5% against H.264 and 15% against H.265; those numbers come from its own laboratory tests on a 3MP VIGI camera and will differ with how much activity is recorded, the resolution and other variables. For night-time the S485PI relies on infrared rather than white light: four 850 nm IR LEDs with a 20 m range, which TP-Link calculates from laboratory testing and says is not guaranteed and varies with client limitations and environmental factors. Minimum illumination is 0.005 lux, and 0 lux with IR. Image processing includes 120 dB True WDR, BLC, 3D DNR, HLC and Smart IR, four privacy masks and up to four ROI regions.

Deterrence comes from Active Defence, which TP-Link describes as using deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, with support for user-created custom voice audio. The S485PI's warning lights are red-blue, and TP-Link says red-blue flashing lights are more effective than white lights and create a strong deterrent when paired with audio alarms. Event alerts are pushed to your phone when the AI detects an event or an external alarm device signals the camera; TP-Link notes AI-triggered notifications support playback of the event clip, while external-alarm notifications support live view only. Other linkage actions are memory card recording, FTP upload, an alarm output device, an alarm server and email.

The turret has audio in/out and alarm in/out interfaces for external speakers, pickups, buzzers or sensors, plus a built-in microphone (5 m radius) and built-in speaker. Human and vehicle classification separates people and vehicles from moving animals, falling leaves and changing lights, and the smart events cover intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change. TP-Link also lists people and vehicle analytics for this model, but notes the feature is in development, will update with future software iterations and must be used with VIGI specified software. Power is 802.3at PoE (class 4, maximum 21 W) or 12 V DC (maximum 18 W). The metal turret is IP67 waterproof and IK10 vandal proof, measures 112.3 x 112.3 x 110.2 mm and weighs 0.76 kg, with 0-360° pan, 0-75° tilt and 0-360° rotation. It works with the VIGI App, Web UI, VIGI VMS and VIGI Cloud VMS, and supports microSD cards up to 512 GB; the microSD card and pole mounting kits are not included.

Key features

180° panorama

1.65 mm F2.0 lens, 180° horizontal and 86° vertical.

4K 8MP

3840 x 2160 at up to 30 fps on 60 Hz.

DORI for 1.65 mm

Detect 44 m, observe 18.33 m, recognise 8.8 m, identify 4.4 m.

Red-blue Active Defence

Flashing red-blue lights and loud sound alarms.

Custom voice audio

Play user-created voice messages as a deterrent.

20 m IR

Four 850 nm IR LEDs, range from TP-Link laboratory testing.

Audio and alarm interfaces

Audio in/out and alarm in/out for external devices.

Human and vehicle classification

Distinguishes people and vehicles from animals, leaves and lighting changes.

IP67 and IK10 turret

Metal housing, 0.76 kg, -30 to 60 °C.

802.3at PoE

Class 4, maximum 21 W; or 12 V DC up to 18 W.

InSight S485PI specifications

At a glance

8MP 3840x2160
1.65 mm panoramic
180° horizontal FOV
Red-blue lights
IR up to 20 m
Audio + alarm I/O
802.3at PoE
IP67 / IK10
InSight S485PI full specifications
Camera
Image Sensor1/2.7“ Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length1.65 mm
ApertureF2.0
FOV1.65mm:; Horizontal FOV: 180°; Vertical FOV: 86°; Diagonal FOV: 180°
Lens MountM12
DORI Distance1.65mm; Detect: 144.36 ft (44 m); Observe: 60.15 ft (18.33 m); Recognize: 28.87 ft (8.8 m); Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution3840x2160
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI4 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputBuilt-in Microphone Audio In Interface
Audio OutputBuilt-in Speaker Audio Out Interface
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Upload to FTP Server; Alarm Output Device; Push Notifications; Send to Alarm Server; Active Defence-Sound Alarm; Active Defence-Light Alarm; Email Alarm
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. 3
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB 5
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30 to 60 °C
Storage Temperature-40 °C to 60 °C
Operating Humidity95% or Less (Non-condensing)
Storage Humidity95% or Less (Non-condensing)
MaterialMetal
Net Weight0.76 Kg
Power Supply12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 21 W
ProtectionIP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
CertificationsCE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S485PI is for

Covering wide spaces with one unit

  • 180° horizontal panorama
  • Hotel lobbies and playgrounds, per TP-Link
  • Intersections and warehouses, per TP-Link

Visible and audible deterrence

  • Red-blue warning lights
  • Real-time sound alarms
  • Custom voice audio

Connecting external devices

  • Alarm in/out for sensors and buzzers
  • Audio in/out for speakers and pickups
  • Alarm server linkage

InSight S485PI compared

The S485PI turret shares its 8MP 180° panoramic optics with the S385PI outdoor bullet. Figures are from each model's TP-Link Australia product page.

SpecS485PI (turret)S385PI (bullet)
Lens / FOV1.65 mm, 180° H1.65 mm, 180° H
Detect / identify44 m / 4.4 m44 m / 4.4 m
Manual tilt0° to 75°0° to 90°
Net weight0.76 kg1.01 kg
Dimensions112.3 x 112.3 x 110.2 mm266 x 100 x 101 mm
People and vehicle analyticsListed as in developmentSupported with VIGI software
ProtectionIP67, IK10IP67, IK10

Source: TP-Link Australia product pages for each model.

Buy the InSight S485PI from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S485PI from the ARC IP Networks team.

Last reviewed October 2026.

180° horizontal, 86° vertical and 180° diagonal through a 1.65 mm F2.0 panoramic lens.

No. TP-Link titles it an IR panoramic camera: night vision uses four 850 nm IR LEDs, and its warning lights are red-blue rather than white.

With its 1.65 mm panoramic lens, TP-Link quotes 44 m for detection and 4.4 m for identification, with observation at 18.33 m and recognition at 8.8 m.

TP-Link rates it at 20 m, calculated from laboratory testing. It notes actual data is not guaranteed and varies with client limitations and environmental factors.

Deep learning or an external alarm device triggers flashing red-blue lights and loud sounds in real time, and it supports user-created custom voice audio.

TP-Link lists it, but states the feature is in development, will update with future software iterations, and must be used with VIGI specified software.

Yes. It has alarm in/out and audio in/out interfaces, as well as a built-in microphone and speaker.

AI-triggered notifications support playback of the specific event clip; notifications triggered by external alarm devices only support live view.

802.3at PoE (class 4, maximum 21 W) or 12 V DC (maximum 18 W).

IP67 waterproof and IK10 vandal proof, operating from -30 to 60 °C. TP-Link notes the microSD card and pole mounting kits are not included.

Need more than one InSight S485PI for a VIGI panoramic turret rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
