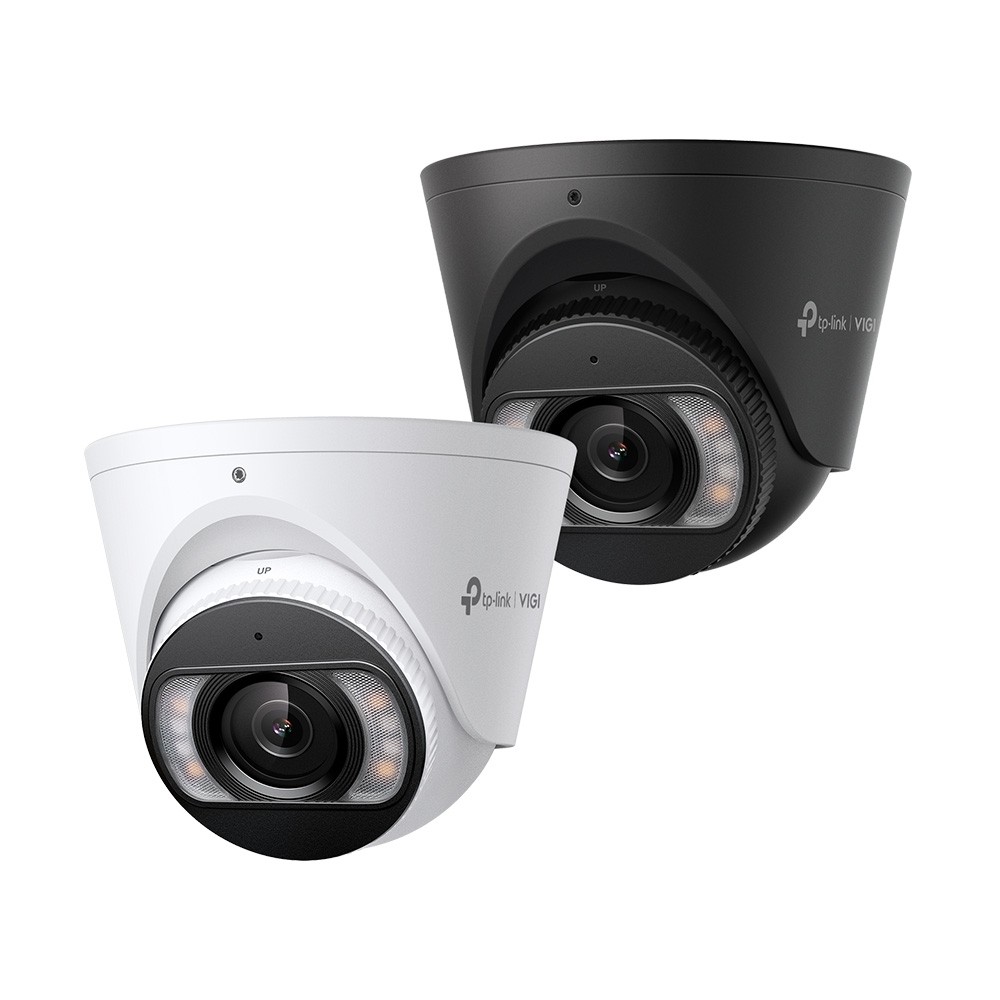

TP-Link VIGI InSight S485(4mm) 8MP Full-Colour Turret Network Camera

https://arcip.com.au/web/image/product.template/11414/image_1920?unique=b23dec0

The TP-Link VIGI InSight S485(4mm) is an 8MP full-colour turret network camera recording up to 3840 x 2160. The 4 mm F1.6 lens covers 91.5° horizontally, 46.1° vertically and 109.6° diagonally, with TP-Link DORI distances of 107 m detect, 44 m observe, 21 m recognise and 11 m identify. Four white LEDs and four 850 nm IR LEDs reach 30 m. It also offers two-way audio, human and vehicle classification, people and vehicle analytics, a microSD slot up to 512 GB, 802.3af/at PoE and an IP67 metal housing. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 212.52 212.52 AUD $ 212.52 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S485-4MM
Barcode
8885020628302

The TP-Link VIGI InSight S485(4mm) is an 8MP (4K) full-colour turret network camera with a 4 mm F1.6 lens. It covers 91.5° horizontally and, per TP-Link, detects at 107 m and identifies at 11 m. Four white and four IR LEDs reach 30 m, and the IP67 metal turret includes a speaker and microphone, human and vehicle classification, people and vehicle analytics, microSD recording and PoE.

InSight S485(4mm) overview

TP-Link builds the VIGI InSight S485 8MP full-colour turret in two lens versions, and this listing is the 4 mm one. Compared with the 2.8 mm lens, the 4 mm F1.6 lens gives up some width to see further: TP-Link specifies a 91.5° horizontal, 46.1° vertical and 109.6° diagonal field of view, and DORI distances of 107 m to detect, 44 m to observe, 21 m to recognise and 11 m to identify. The 2.8 mm model, by contrast, covers 111.4° but detects to 85 m and identifies to 8 m.

TP-Link's tagline for the S485 is '4K Empowered. Security Reinvented.' The 1/2.7" progressive scan CMOS sensor resolves up to 3840 x 2160, and the main stream can be set from that resolution down through 2560 x 1440, 2304 x 1296, 2048 x 1280 and 1920 x 1080 to 1280 x 720. It runs at up to 25 fps on 50 Hz and 60 Hz alike; TP-Link limits it to 20 fps if the image is rotated 90° or 270° or 120 dB WDR is switched on. Main-stream bit rate is 256 Kbps to 8 Mbps in H.265+, H.265, H.264+ or H.264. TP-Link quotes H.265+ storage savings of 57.5% over H.264 and 15% over H.265, based on laboratory testing with a 3MP VIGI camera; actual savings depend on the amount of activity, resolution and other variables.

There are four white LEDs and four 850 nm IR LEDs, all with a 30 m range, giving a choice of full-colour or infrared imaging after dark under auto, scheduled, always-on or always-off control. Minimum illumination is 0.005 lux, and 0 lux with IR or white light. TP-Link lists 120 dB True WDR, BLC, 3D DNR, HLC and Smart IR, with True WDR blending different exposures so bright and dark areas both remain properly exposed. People and vehicle analytics lets you search for and filter people or vehicles of interest by many attributes; TP-Link specifies that it must be used with VIGI specified software and that only DWDR is supported when it is turned on.

Event detection starts with motion detection enhanced by human and vehicle classification and extends to intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change. Events can trigger memory card recording, message push, an audible warning and white light flashing, and the built-in speaker and microphone (5 m radius) allow two-way audio with environment noise filtering. Power is 802.3af/at PoE (class 0, maximum 12.5 W) or 12 V DC (maximum 11.5 W). The camera works with the VIGI App, VIGI Security Manager, Web UI, VIGI VMS and VIGI Cloud VMS and supports ONVIF Profile S/T/G. Its IP67 metal housing measures 111 x 111 x 83.7 mm, weighs 0.48 kg and operates from -30 to 60 °C, with 0-360° pan, 0-75° tilt and 0-360° rotation. The microSD slot supports up to 512 GB; TP-Link notes the card is not included.

Key features

4 mm F1.6 lens

91.5° horizontal, 46.1° vertical and 109.6° diagonal view.

Longer DORI reach

Detect 107 m, observe 44 m, recognise 21 m, identify 11 m.

8MP 4K resolution

3840 x 2160 at up to 25 fps from a 1/2.7" CMOS.

Eight illuminators

Four white LEDs and four 850 nm IR LEDs, 30 m range.

People and vehicle analytics

Attribute-based search with VIGI specified software.

Human and vehicle classification

More accurate motion alerts.

Built-in speaker and mic

Two-way audio with noise filtering.

Sound and light deterrence

Audible warning and white light flashing linkage.

IP67 metal turret

111 x 111 x 83.7 mm, 0.48 kg, -30 to 60 °C.

PoE powered

802.3af/at, class 0, up to 12.5 W; or 12 V DC.

InSight S485(4mm) specifications

At a glance

8MP 3840x2160
4 mm F1.6
91.5° horizontal FOV
Detect 107 m
Identify 11 m
4 white + 4 IR LEDs
802.3af/at PoE
IP67
InSight S485(4mm) full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8/4 mm
ApertureF1.6
FOV2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°; 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
Lens MountM12 P 0.5
DORI Distance2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft); 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 4 Range: 30m Wavelength: 850nm
White LEDQuantity: 4 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution3840 X 2160
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIONVIF Profile S/T/G
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.48 Kg
Power Supply12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W
ProtectionIP67
Product Dimensions (L x W x H)4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S485(4mm) is for

More distance from a turret

  • Detect to 107 m
  • Identify to 11 m
  • 91.5° horizontal view

Colour footage at night

  • Four white LEDs to 30 m
  • Four IR LEDs to 30 m
  • 0 lux with IR or white light

Two-way audio and alarms

  • Built-in speaker and microphone
  • Audible warning
  • White light flashing

InSight S485(4mm) compared

The S485 turret comes with a 2.8 mm or 4 mm lens. Figures are from TP-Link Australia's S485 page; only the lens-dependent values differ.

SpecS485 (4mm)S485 (2.8mm)
Horizontal FOV91.5°111.4°
Vertical FOV46.1°58.8°
Diagonal FOV109.6°134°
Detect107 m85 m
Observe44 m35 m
Recognise21 m17 m
Identify11 m8 m

Source: TP-Link Australia product pages for each model.

Buy the InSight S485(4mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S485(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

91.5° horizontal, 46.1° vertical and 109.6° diagonal, through a 4 mm F1.6 fixed lens.

TP-Link quotes 107 m detect, 44 m observe, 21 m recognise and 11 m identify.

The 4 mm reaches further (107 m detect and 11 m identify, against 85 m and 8 m) with a narrower 91.5° view instead of 111.4°. Everything else is the same.

3840 x 2160 (8MP) at up to 25 fps. TP-Link notes frame rate is limited to 20 fps when the image is rotated 90° or 270° or when 120 dB WDR is turned on.

Four white LEDs provide full-colour imaging and four 850 nm IR LEDs provide infrared night vision, each to 30 m.

Yes. It has a built-in speaker and a built-in microphone that records within a 5 m radius.

TP-Link states it must be used with VIGI specified software, and only DWDR is supported while it is enabled.

Yes, the metal housing is rated IP67 and operates from -30 to 60 °C.

Up to 12.5 W on 802.3af/at PoE (class 0), or up to 11.5 W from 12 V DC.

No. The camera supports microSD cards up to 512 GB and TP-Link notes the SD card is not included.

Need more than one InSight S485(4mm) for a VIGI 4K turret rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
