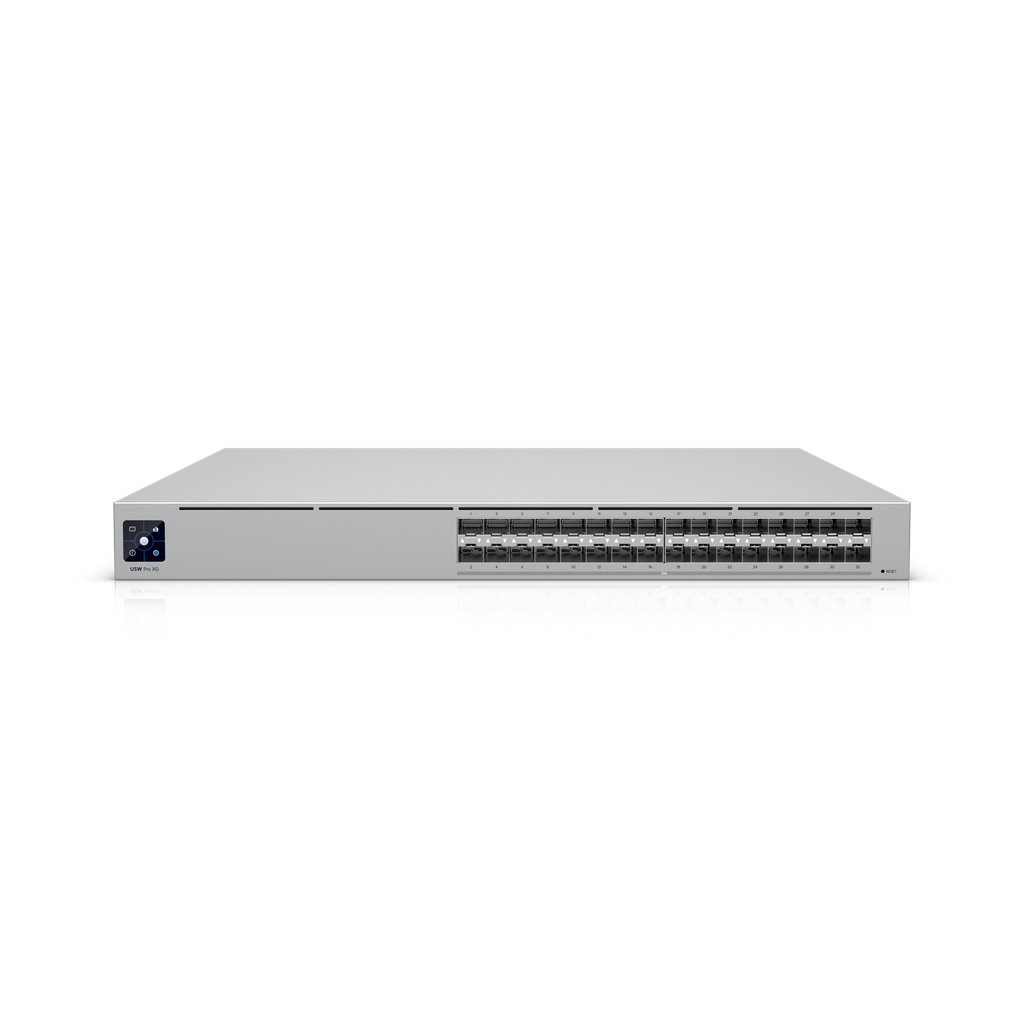

Ubiquiti USW-Pro-XG-Aggregation UniFi 32 x 25G SFP28 Port, Layer 3 Etherlighting™ Pro XG Aggregation Switch

https://arcip.com.au/web/image/product.template/4057/image_1920?unique=68bd5c0
The Ubiquiti USW-Pro-XG-Aggregation is a Layer 2 managed switch with (32) 25G SFP28. Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

4,097.87 4097.87 AUD 4,220.70 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

In stock online
UniFi Switch Rackmount SFP+ Managed Switch Ubiquiti 25GbE 32-Port 1.6 Tbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
USW-Pro-XG-Aggregation
Barcode
810177162926
Tags
USW-Pro-XG-Aggregation
Ubiquiti UniFi Switch Pro XG Aggregation — 1.6 Tbps Switching
USW-Pro-XG-Aggregation
USW-Pro-XG-Aggregation
USW-Pro-XG-Aggregation

Features

Specifications

Overview
Dimensions442.4 x 43.7 x 480 mm
25G SFP2832 / (25G/10G/1G)
RedundancyDC Power Backup
Form FactorRack Mount (1U)
Performance
Switching Capacity1.6 Tbps
Total Non-Blocking Throughput800 Gbps
Forwarding Rate1.2 Bpps
Supported VLANs1,000
MAC Address Table Size32,000
ARP Entries128,000
IPv4 Routes256,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
Max. Power Consumption200W
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 200W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation682 BTU/hr
WeightWithout mounting bracket: 7.1 kg / With mounting bracket:7.2 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 12kV, contact: ± 8kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 05977-25-08356

Professional Overview

The Ubiquiti USW-Pro-XG-Aggregation is a Layer 2 managed switch with (32) 25G SFP28. Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

With 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput at 1.2 Bpps forwarding rate, the switch delivers wire-speed performance for demanding network environments.

The USW-Pro-XG-Aggregation features DC Power Backup redundancy, a Rack Mount (1U) form factor measuring 442.4 x 43.7 x 480 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mounting bracket: 7.1 kg / With mounting bracket:7.2 kg, the USW-Pro-XG-Aggregation is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

USW-Pro-XG-Aggregation vs Pro Aggregation vs Aggregation — Which UniFi Core Switch?

The Pro XG Aggregation is UniFi's biggest core switch: (32) 25G SFP28 ports and 1.6 Tbps of switching capacity (800 Gbps non-blocking) for aggregating multi-gigabit access switches, servers and gateways like the EFG or UDM-Beast. The Pro Aggregation mixes (28) 10G SFP+ with (4) 25G SFP28, and the compact Aggregation provides (8) 10G SFP+ for small cores.

SpecificationAggregationPro AggregationPro XG Aggregation
SFP ports(8) 10G SFP+(28) 10G SFP+ + (4) 25G SFP28(32) 25G SFP28
Switching capacity160 Gbps760 Gbps1.6 Tbps
Non-blocking throughput80 Gbps380 Gbps800 Gbps
Supported VLANs1,0001,0001,000
Redundant power (USP-RPS)YesYes

Choose the Pro XG Aggregation when your access layer runs Pro XG / Enterprise switches with 25G-capable uplinks, or you are consolidating storage and virtualisation hosts at 25G. Choose the Pro Aggregation for 10G-centric cores with 25G headroom, and the Aggregation for small networks. Browse the full range on our Ubiquiti UniFi switches guide. Australian stock from ARC IP Networks.

Frequently Asked Questions — Ubiquiti USW-Pro-XG-Aggregation

What is the Ubiquiti USW-Pro-XG-Aggregation?

The USW-Pro-XG-Aggregation is UniFi's flagship aggregation switch: (32) 25G SFP28 ports (each supporting 25G/10G/1G modules) with 1.6 Tbps switching capacity and 800 Gbps fully non-blocking throughput, Layer 3 routing and Etherlighting, with USP-RPS redundant power support.

What connects to a Pro XG Aggregation switch?

It aggregates the uplinks of access switches (such as the Pro XG and Enterprise series with 25G/10G uplinks), high-throughput servers and NAS, and 25G-capable gateways like the EFG or UDM-Beast - forming the core of a multi-gigabit UniFi network.

What is the difference between the Aggregation, Pro Aggregation and Pro XG Aggregation?

The Aggregation has (8) 10G SFP+ ports (160 Gbps) for small cores. The Pro Aggregation offers (28) 10G SFP+ plus (4) 25G SFP28 (760 Gbps). The Pro XG Aggregation is all-25G: (32) SFP28 ports and 1.6 Tbps - roughly ten times the small Aggregation's capacity.

Are its ports compatible with 10G modules?

Yes. Each of the 32 SFP28 ports also accepts 10G and 1G SFP modules and DACs, so you can migrate to 25G progressively without replacing the core again.

Where can I buy the Ubiquiti USW-Pro-XG-Aggregation in Australia?

The Ubiquiti USW-Pro-XG-Aggregation is available in Australia from ARC IP Networks, an Australian Ubiquiti reseller, with stock on hand. Order online on this page with a GST tax invoice, Australia-wide shipping, or free warehouse pickup from Melbourne. Trade and volume pricing for enterprise core network projects is available on request or via 1300 100 440.

How much does the USW-Pro-XG-Aggregation cost in Australia?

Current Australian pricing is shown live on this page in AUD including GST, and is kept competitive against other Australian retailers. Project pricing is available - request a trade quote.

Ubiquiti USW-Pro-XG-Aggregation: Layer 3 Etherlighting switch

The Switch Pro XG Aggregation is a Layer 3 UniFi switch offering 800 Gbps of non-blocking throughput, 1.6 Tbps switching capacity.

Port layout is 32 × 25G SFP28.

Etherlighting ports illuminate to show port location, speed and link state, and the native VLAN — genuinely useful when tracing a patch lead in a busy rack. Ubiquiti recommends pairing them with UniFi Etherlighting patch cables for best brightness.

Ports and PoE

InterfaceCount & speeds
25G SFP2832 (25G/10G/1G)

Switching performance

Non-blocking throughput800 Gbps
Switching capacity1.6 Tbps
Forwarding rate1.2 Bpps
Supported VLANs1,000
MAC address table32,000
IPv4 static routes512
Packet buffer8 MB

Because it supports IPv4 static routes it can route between VLANs itself rather than sending all inter-VLAN traffic up to the gateway — see the UniFi cloud gateway range if you also need the routing and firewall layer.

Who the USW-Pro-XG-Aggregation suits

  • Core and aggregation duty collecting uplinks from access switches.
  • 25 Gigabit backbones between racks, floors or buildings.
  • Growing networks where access switches have outgrown a single 10G uplink.
  • Fibre-heavy designs using SFP28 and SFP+ modules.

Physical, power and mounting

Form factorRack Mount (1U)
Dimensions442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
WeightWithout mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs)
Supported rack depth482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
Power supplyAC/DC, internal, 200W
Power method(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Max. power consumption200W
Heat dissipation682 BTU/hr
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen
EnclosureSGCC steel
ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti USW-Pro-XG-Aggregation in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the USW-Pro-XG-Aggregation from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi switch range, plus cloud gateways, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Switching Capacity 1.6 Tbps
Network Layer Layer 2
Form Factor Rack Mount (1U)
Port Speed (32) 25G SFP28
Ports 32 Ports
Network Connectivity Wired
Uplink 32 25G SFP28
PoE Specification Non-PoE
Switch Features DC Power Backup
