Ubiquiti USW-Pro-XG-Aggregation UniFi 32 x 25G SFP28 Port, Layer 3 Etherlighting™ Pro XG Aggregation Switch

Price:

4,730.00


Ubiquiti USW-Pro-XG-48-PoE UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE (4) 25G SFP28 ports
Ubiquiti USW-Pro-XG-48-PoE UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE (4) 25G SFP28 ports
4,948.35
4,948.35
Ubiquiti USW-Ultra Unifi Switch
Ubiquiti USW-Ultra Unifi Switch
172.49
189.20 (9% OFF)

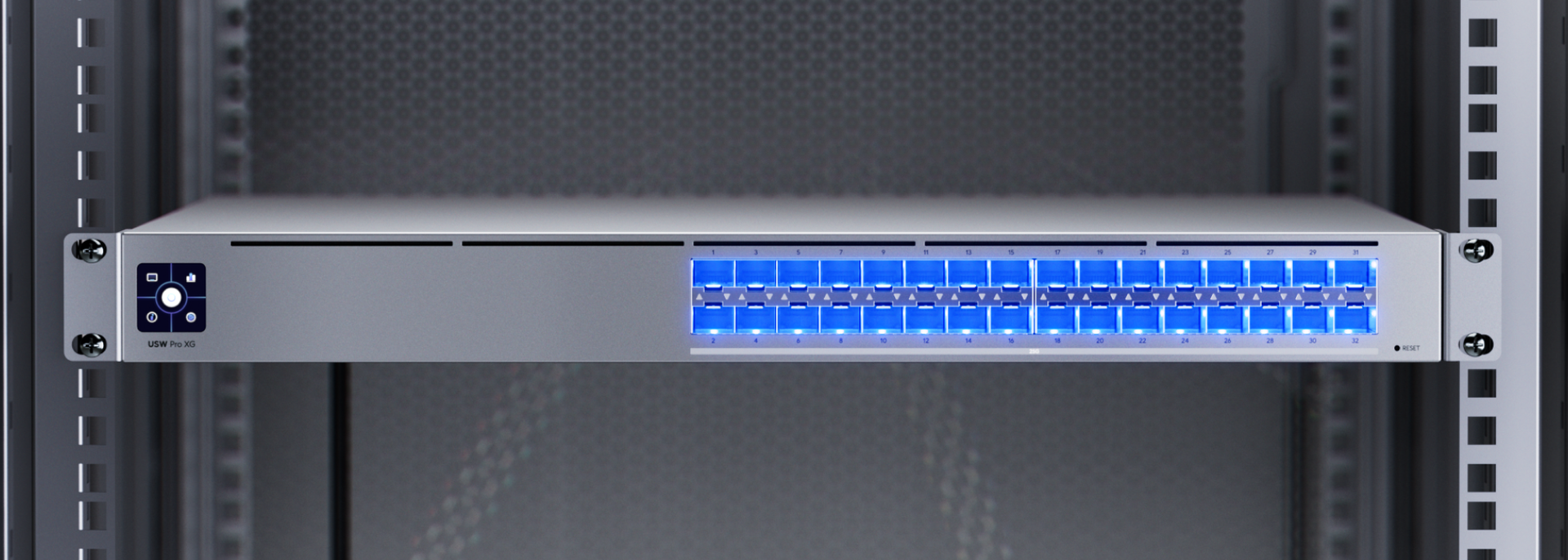

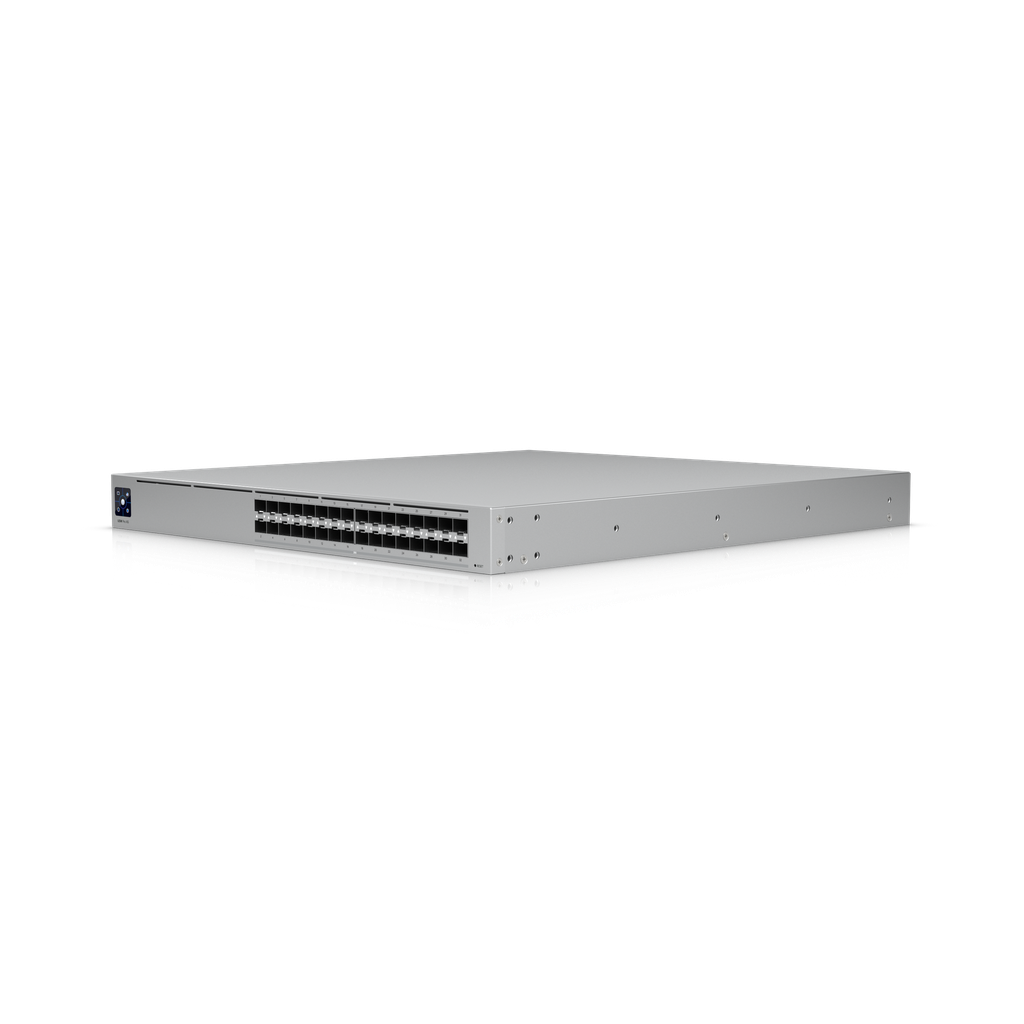

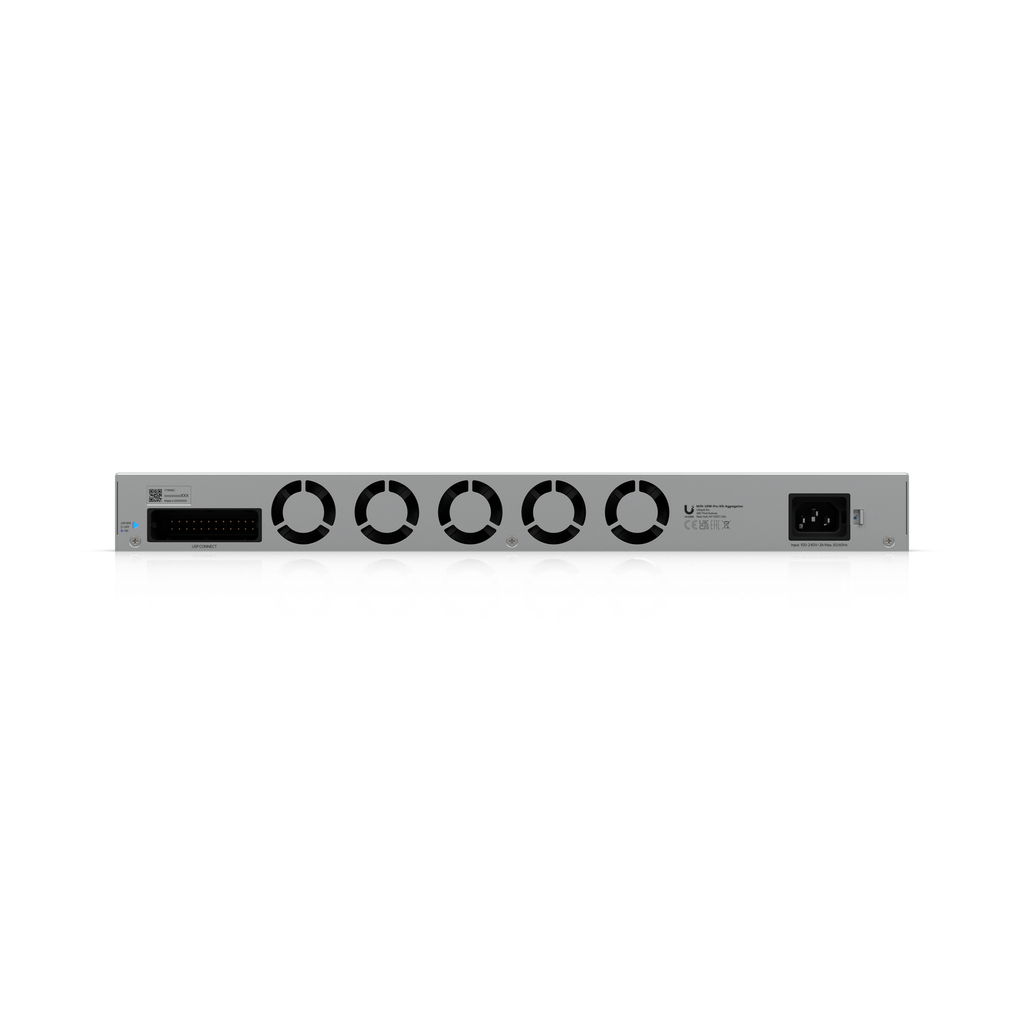

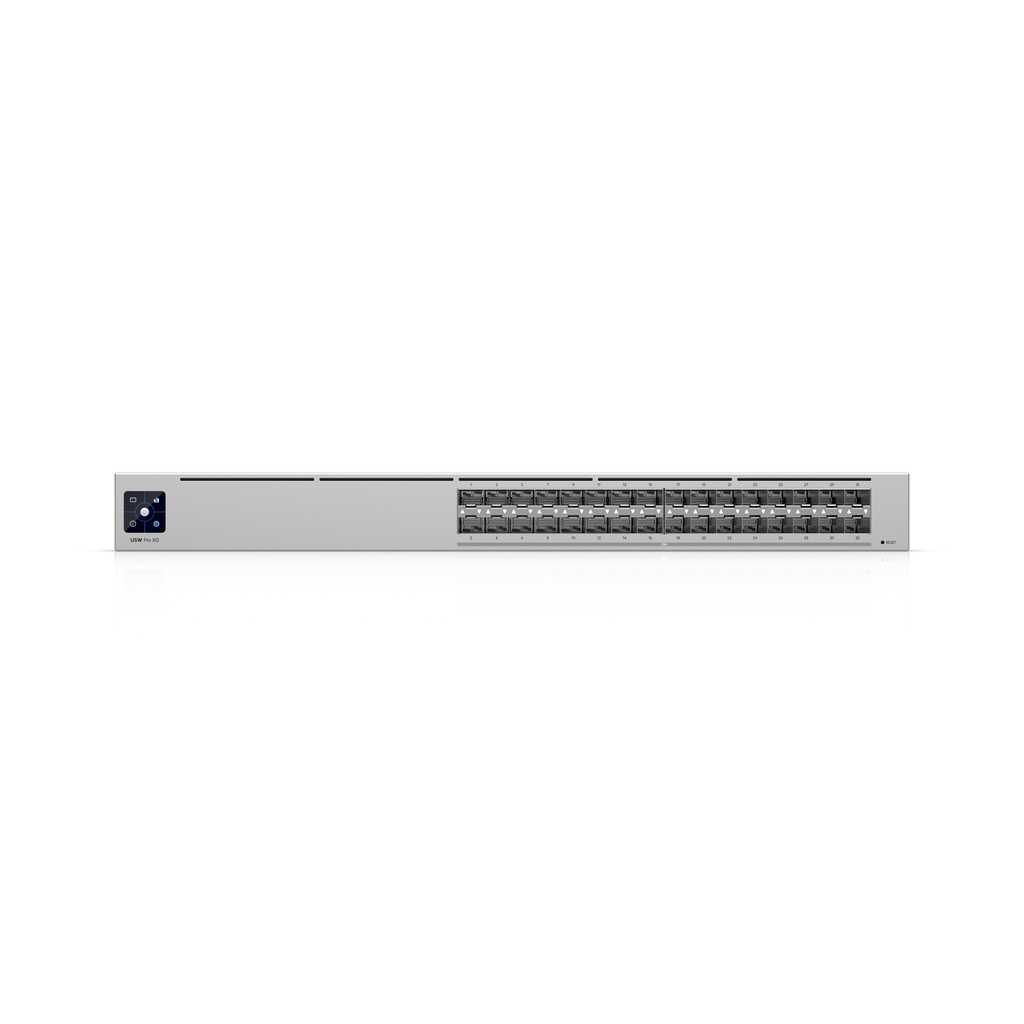

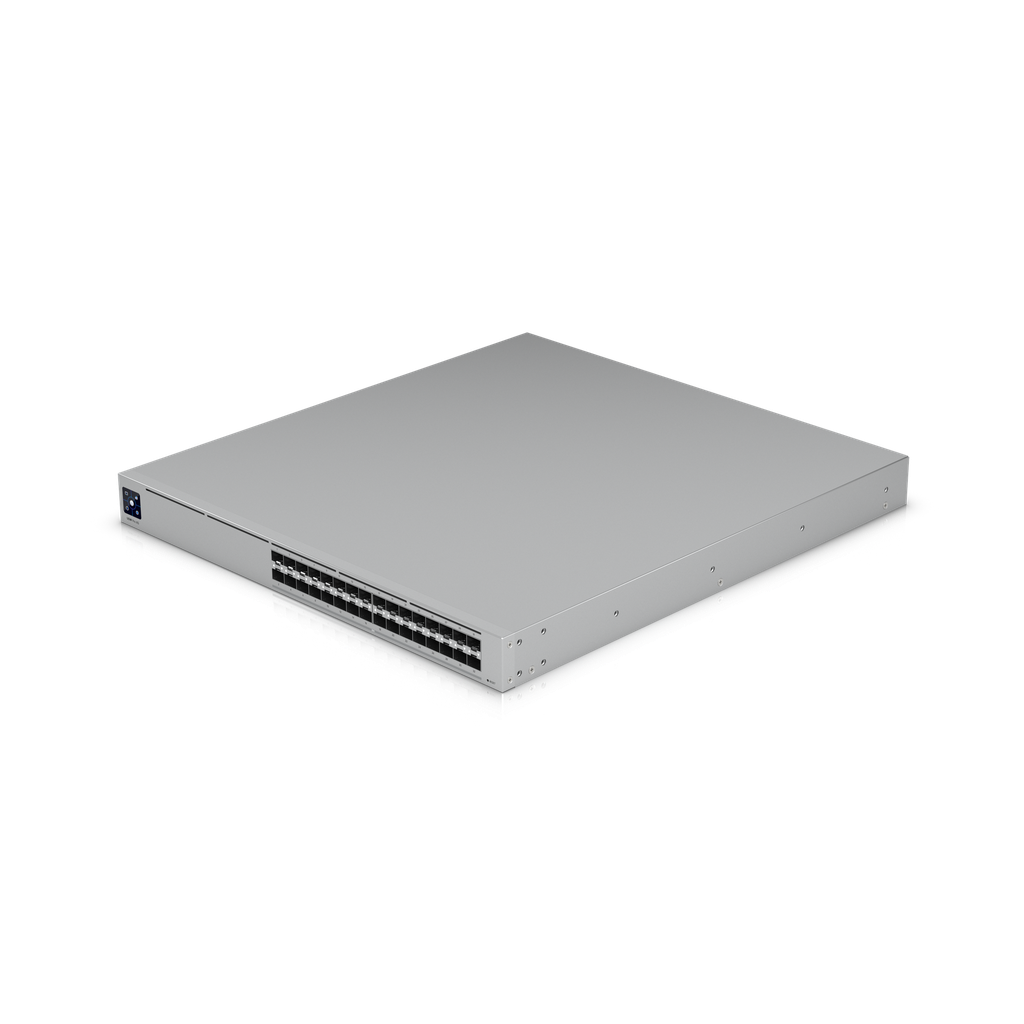

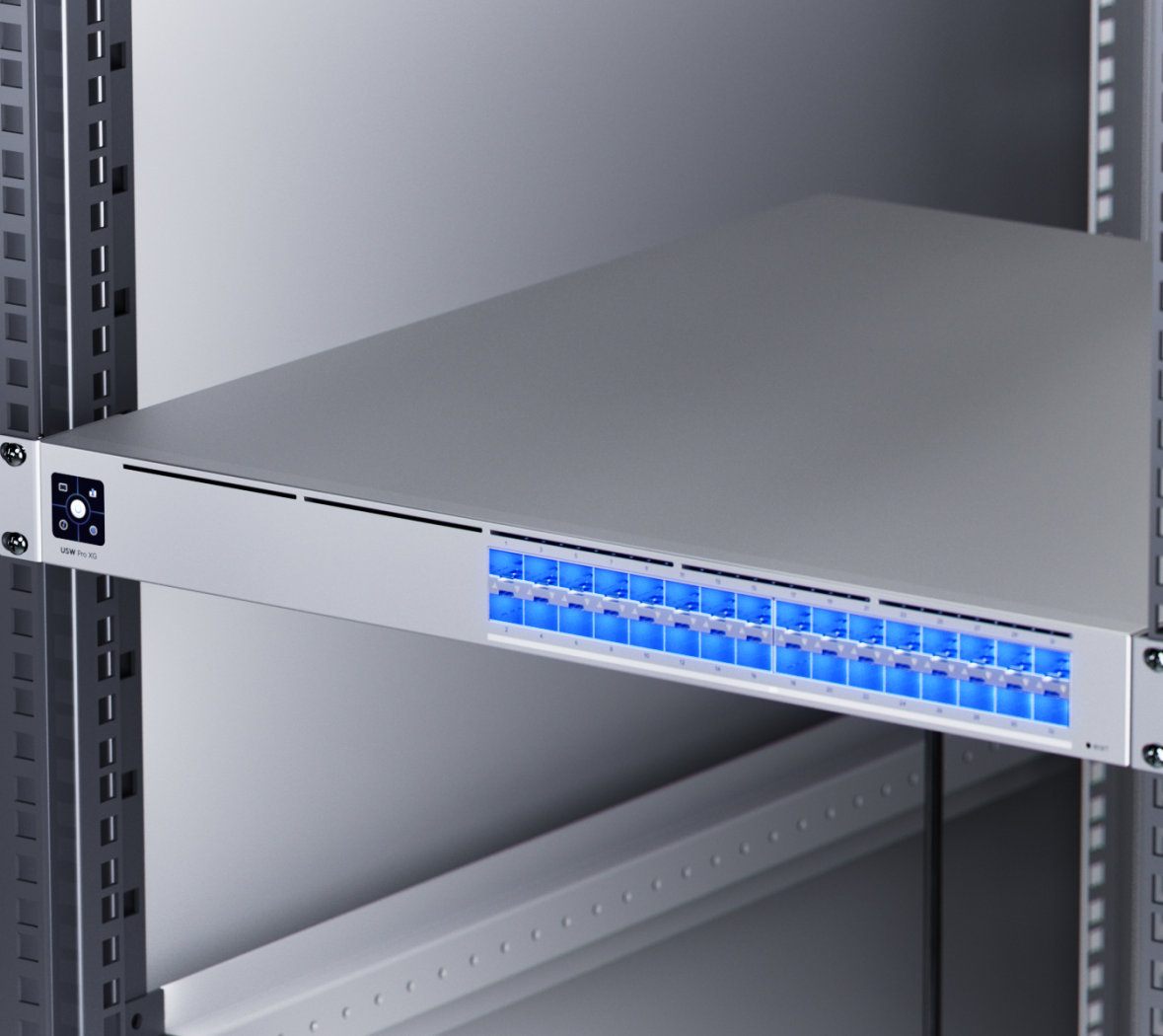

Ubiquiti USW-Pro-XG-Aggregation UniFi 32 x 25G SFP28 Port, Layer 3 Etherlighting™ Pro XG Aggregation Switch

https://arcip.com.au/web/image/product.template/4057/image_1920?unique=41ce099
The Ubiquiti USW-Pro-XG-Aggregation is a Layer 2 managed switch with (32) 25G SFP28. Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

4,730.00 4730.0 AUD 4,730.00 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

UniFi Switch Rackmount SFP+ Managed Switch Ubiquiti 25GbE 32-Port 1.6 Tbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
USW-Pro-XG-Aggregation
Tags
USW-Pro-XG-Aggregation
Ubiquiti UniFi Switch Pro XG Aggregation — 1.6 Tbps Switching
USW-Pro-XG-Aggregation
USW-Pro-XG-Aggregation
USW-Pro-XG-Aggregation

Features

Specifications

Overview
Dimensions442.4 x 43.7 x 480 mm
25G SFP2832 / (25G/10G/1G)
RedundancyDC Power Backup
Form FactorRack Mount (1U)
Performance
Switching Capacity1.6 Tbps
Total Non-Blocking Throughput800 Gbps
Forwarding Rate1.2 Bpps
Supported VLANs1,000
MAC Address Table Size32,000
ARP Entries128,000
IPv4 Routes256,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
Max. Power Consumption200W
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 200W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation457 BTU/hr
WeightWithout mounting bracket: 7.1 kg / With mounting bracket:7.2 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel

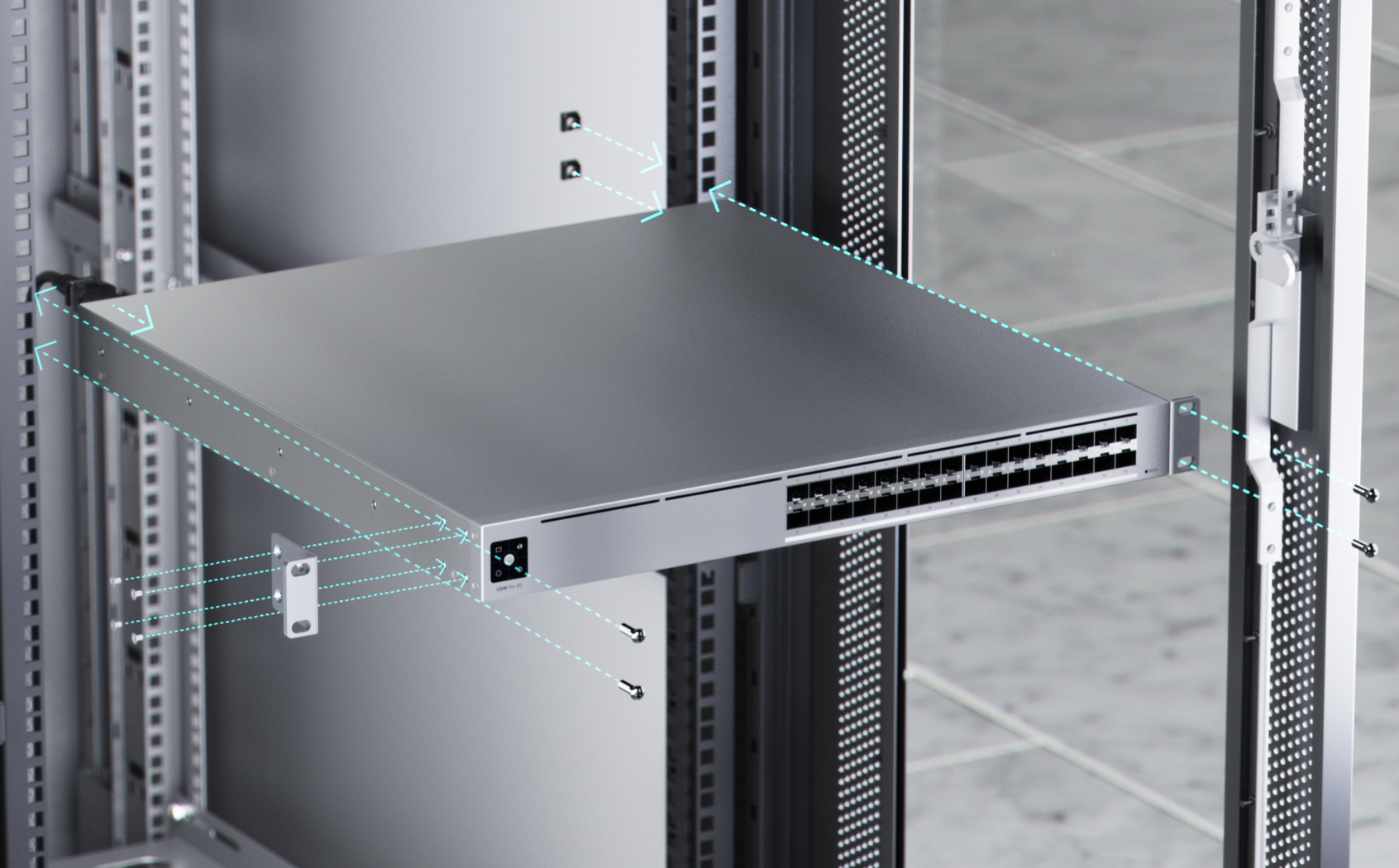

Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 12kV, contact: ± 8kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 05977-25-08356

Professional Overview

The Ubiquiti USW-Pro-XG-Aggregation is a Layer 2 managed switch with (32) 25G SFP28. Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

With 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput at 1.2 Bpps forwarding rate, the switch delivers wire-speed performance for demanding network environments.

The USW-Pro-XG-Aggregation features DC Power Backup redundancy, a Rack Mount (1U) form factor measuring 442.4 x 43.7 x 480 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mounting bracket: 7.1 kg / With mounting bracket:7.2 kg, the USW-Pro-XG-Aggregation is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Switching Capacity 1.6 Tbps
Network Layer Layer 2
Form Factor Rack Mount (1U)
Port Speed (32) 25G SFP28
Ports 32 Ports
Network Connectivity Wired
Uplink 32 25G SFP28
PoE Specification Non-PoE
Switch Features DC Power Backup
