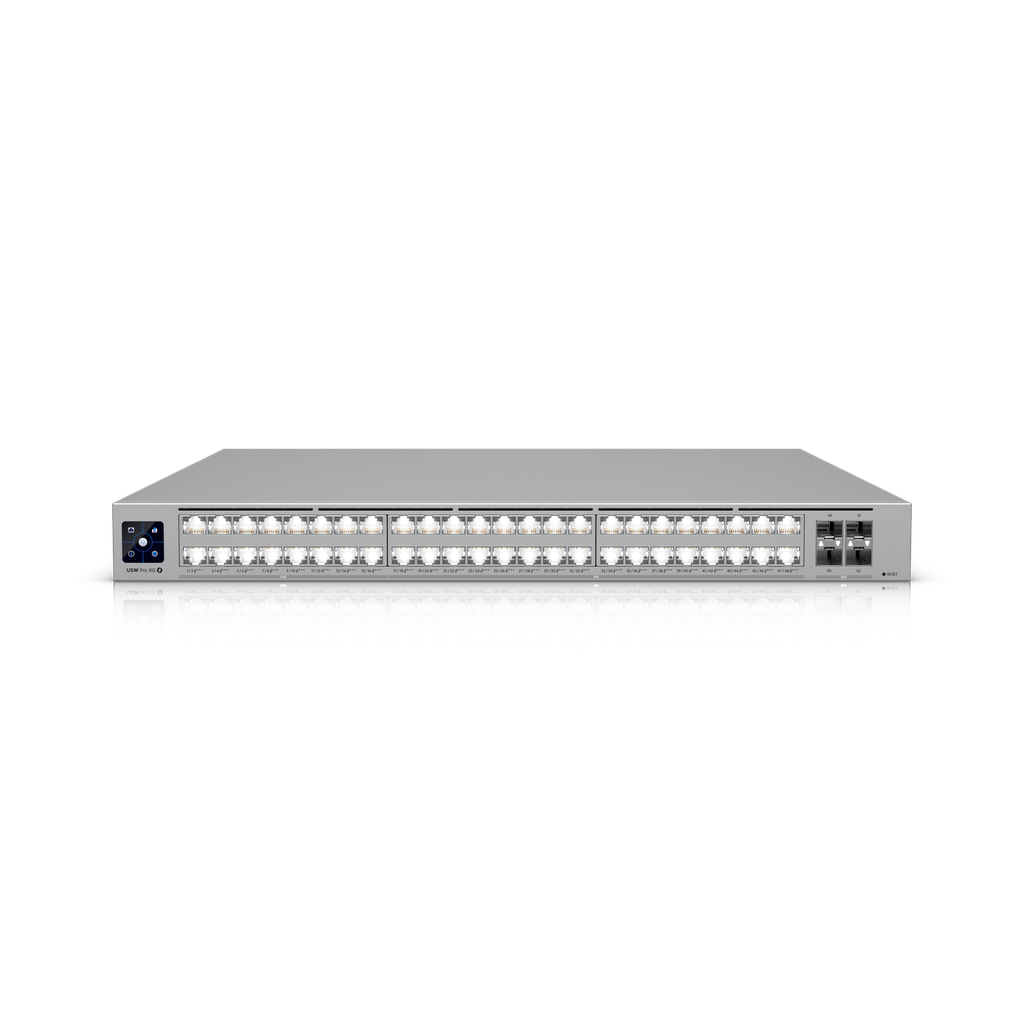

Ubiquiti USW-Pro-XG-48-PoE UniFi Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE (4) 25G SFP28 ports

https://arcip.com.au/web/image/product.template/4055/image_1920?unique=68bd5c0
The Ubiquiti USW-Pro-XG-48-PoE is a Layer 2 managed switch with (16) 2.5 GbE + (32) 10G RJ45 + (4) 25G SFP28. Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

4,069.15 4069.15 AUD 4,191.55 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

In stock online
2.5GbE 10GbE UniFi Switch Rackmount SFP+ PoE Managed Switch Ubiquiti Etherlighting 52-Port 25GbE 920 Gbps 200-240V AC: 1080W / 100-120V AC: 972W PoE
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
USW-Pro-XG-48-PoE
Ubiquiti UniFi Switch Pro XG 48 PoE — 920 Gbps Switching, 200-240V AC: 1080W / 100-120V AC: 972W PoE
USW-Pro-XG-48-PoE
USW-Pro-XG-48-PoE
USW-Pro-XG-48-PoE

Features

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
  • (4) 25G SFP28 ports
  • DC power backup ready**
  • 1,080W total PoE availability
  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.**Requires UniFi RPS.

Specifications

Overview
Dimensions442 x 480 x 44 mm
2.5 GbE RJ4516 (All PoE+++) / (2.5G/1G/100M/10M)
10 GbE RJ4532 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M)
25G SFP284 / (25G/10G/1G)
Max. PoE OutputUp to PoE+++
Total PoE Availability200-240V AC: 1080W / 100-120V AC: 972W
RedundancyDC Power Backup
Form FactorRack mount (1U)
Performance
Switching Capacity920 Gbps
Total Non-Blocking Throughput460 Gbps
Forwarding Rate684 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
ARP Entries32,000
IPv4 Routes256,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
PoE+++48
PoE15.4W
PoE+30W
PoE++60W
PoE+++90W
Max. Power Consumption200W (Excluding PoE Output) / / 200-240V: 1,280W / / 100-120V AC: 1,172W (Including PoE Output)
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 1,350W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
WeightWithout mounting brackets: 8.7 kg / With mounting brackets: 8.8 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 30kV, contact: ± 20kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 04322-25-08356
Software
UniFi NetworkVersion 9.1.120 and later

Professional Overview

The Ubiquiti USW-Pro-XG-48-PoE is a Layer 2 managed switch with (16) 2.5 GbE + (32) 10G RJ45 + (4) 25G SFP28. Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

With 920 Gbps switching capacity and 460 Gbps non-blocking throughput at 684 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments. The 200-240V AC: 1080W / 100-120V AC: 972W PoE budget powers access points, cameras, and VoIP phones over Ethernet.

The USW-Pro-XG-48-PoE features DC Power Backup redundancy, a Rack mount (1U) form factor measuring 442 x 480 x 44 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mounting brackets: 8.7 kg / With mounting brackets: 8.8 kg, the USW-Pro-XG-48-PoE is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

USW-Pro-XG-48-PoE vs Pro XG 24 PoE vs Enterprise 48 PoE — Which High-Power UniFi Switch?

The Pro XG 48 PoE is UniFi's most powerful access switch: (32) 10 GbE + (16) 2.5 GbE ports, (4) 25G SFP28 uplinks, and up to a 1080W PoE budget with 90W PoE+++ per port, at 920 Gbps switching capacity. The Pro XG 24 PoE offers the same 10G/PoE+++ formula at half the density (720W), while the Enterprise 48 PoE covers 48 ports of 2.5 GbE PoE+ at a lower price point.

SpecificationEnterprise 48 PoEPro XG 24 PoEPro XG 48 PoE
RJ45 ports48× 2.5 GbE16× 10 GbE + 8× 2.5 GbE32× 10 GbE + 16× 2.5 GbE
Total PoE budget720W720WUp to 1080W
Max. PoE classPoE+ (32W)PoE+++ (90W)PoE+++ (90W)
Uplinks(4) 10G SFP+(2) 25G SFP28(4) 25G SFP28
Switching capacity160 Gbps460 Gbps920 Gbps
Layer 3 / redundant powerYes / USP-RPS supported

Choose the Pro XG 48 PoE for high-density multi-gigabit access with serious power — WiFi 7 AP fleets like the UniFi E7, PTZ cameras and AV endpoints all at full speed from one rack unit. Browse the full range on our Ubiquiti UniFi switches guide. Australian stock from ARC IP Networks.

Frequently Asked Questions — Ubiquiti USW-Pro-XG-48-PoE

What is the Ubiquiti USW-Pro-XG-48-PoE?

The USW-Pro-XG-48-PoE is a 48-port Layer 3 UniFi Etherlighting switch with (32) 10 GbE and (16) 2.5 GbE RJ45 ports, (4) 25G SFP28 uplinks, up to a 1080W PoE budget (200-240V AC) and 90W PoE+++ per port, delivering 920 Gbps switching capacity with USP-RPS redundant power support.

How much PoE does the Pro XG 48 PoE deliver?

Up to 1080W total on 200-240V AC power (972W on 100-120V), with PoE (15.4W), PoE+ (30W), PoE++ (60W) and PoE+++ (90W) per port - the largest PoE budget in the UniFi access line.

What is the difference between the Pro XG 48 PoE and Enterprise 48 PoE?

The Pro XG 48 PoE provides 10 GbE on 32 ports, 90W PoE+++, 25G uplinks and 920 Gbps capacity for maximum-performance deployments. The Enterprise 48 PoE provides 2.5 GbE with PoE+ on all 48 ports at 160 Gbps - ideal where every port needs multi-gigabit but not 10G or high-power PoE.

Which devices can it power?

Any current UniFi device: WiFi 7 access points like the E7 (PoE++, 10 GbE), AI and PTZ cameras, the AI Key, Protect displays and third-party 802.3af/at/bt devices - each over a single cable at full speed.

Does it support Layer 3 routing and redundant power?

Yes. It is a Layer 3 switch with 1,000 VLANs, managed by UniFi Network with no licensing fees, and supports a USP-RPS DC input alongside its internal supply.

Where can I buy the Ubiquiti USW-Pro-XG-48-PoE in Australia?

The Ubiquiti USW-Pro-XG-48-PoE is available in Australia from ARC IP Networks, an Australian Ubiquiti reseller, with stock on hand. Order online on this page with a GST tax invoice, Australia-wide shipping, or free warehouse pickup from Melbourne. Trade and volume pricing for schools, integrators and enterprise rollouts is available on request or via 1300 100 440.

How much does the USW-Pro-XG-48-PoE cost in Australia?

Current Australian pricing is shown live on this page in AUD including GST, and is kept competitive against other Australian retailers. Volume pricing for rollouts is available - request a trade quote.

Ubiquiti USW-Pro-XG-48-PoE: Layer 3 Etherlighting switch

The Switch Pro XG 48 PoE is a Layer 3 UniFi switch offering 200-240V AC: 1080W 100-120V AC: 972W of PoE, 460 Gbps of non-blocking throughput, 920 Gbps switching capacity.

Port layout is 16 × 2.5 GbE RJ45, 32 × 10 GbE RJ45, 4 × 25G SFP28.

Etherlighting ports illuminate to show port location, speed and link state, and the native VLAN — genuinely useful when tracing a patch lead in a busy rack. Ubiquiti recommends pairing them with UniFi Etherlighting patch cables for best brightness.

Ports and PoE

InterfaceCount & speeds
2.5 GbE RJ4516 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ4532 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP284 (25G/10G/1G)
Total PoE availability200-240V AC: 1080W 100-120V AC: 972W
Max. PoE outputUp to PoE+++

Per-port PoE classes: PoE (802.3af) up to 15.4W; PoE+ (802.3at) up to 30W; PoE++ (802.3bt) up to 60W; 48 ports at PoE+++ up to 90W.

Total PoE availability is 200-240V AC: 1080W 100-120V AC: 972W, which is the budget shared across all powered ports — not a per-port figure. Add up the draw of everything you intend to power before committing; our access point comparison lists the consumption of each UniFi AP.

Switching performance

Non-blocking throughput460 Gbps
Switching capacity920 Gbps
Forwarding rate684 Mpps
Supported VLANs1,000
MAC address table32,000
IPv4 static routes512
Packet buffer8 MB

Because it supports IPv4 static routes it can route between VLANs itself rather than sending all inter-VLAN traffic up to the gateway — see the UniFi cloud gateway range if you also need the routing and firewall layer.

Who the USW-Pro-XG-48-PoE suits

  • Large 10 Gigabit access deployments — 48 ports of multi-gig PoE in one rack unit.
  • High-density WiFi 7 rollouts across a whole building.
  • Server and workstation aggregation where gigabit is the bottleneck.
  • Campus access with high-speed uplinks to the core.

Physical, power and mounting

Form factorRack mount (1U)
Dimensions442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
WeightWithout mounting brackets: 8.7 kg (19.2 lb) With mounting brackets: 8.8 kg (19.4 lb)
Supported rack depth482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
Power supplyAC/DC, internal, 1,350W
Power method(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Max. power consumption200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen
EnclosureSGCC steel
RequiresVersion 9.1.120 and later

Two power figures are quoted: the switch itself, and the total including PoE output. Size the circuit and any UPS on the higher figure.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti USW-Pro-XG-48-PoE in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the USW-Pro-XG-48-PoE from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi switch range, plus cloud gateways, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Switching Capacity 920 Gbps
Network Layer Layer 2
Form Factor Rack mount (1U)
Port Speed (16) 2.5 GbE + (32) 10G RJ45 + (4) 25G SFP28
Ports 52 Ports
Network Connectivity Wired
Uplink 4 25G SFP28
PoE Specification Up to PoE+++ / 200-240V AC: 1080W / 100-120V AC: 972W Budget
Switch Features Etherlighting, DC Power Backup
