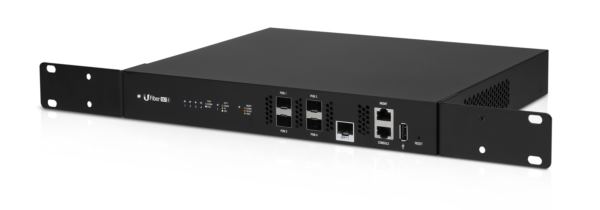

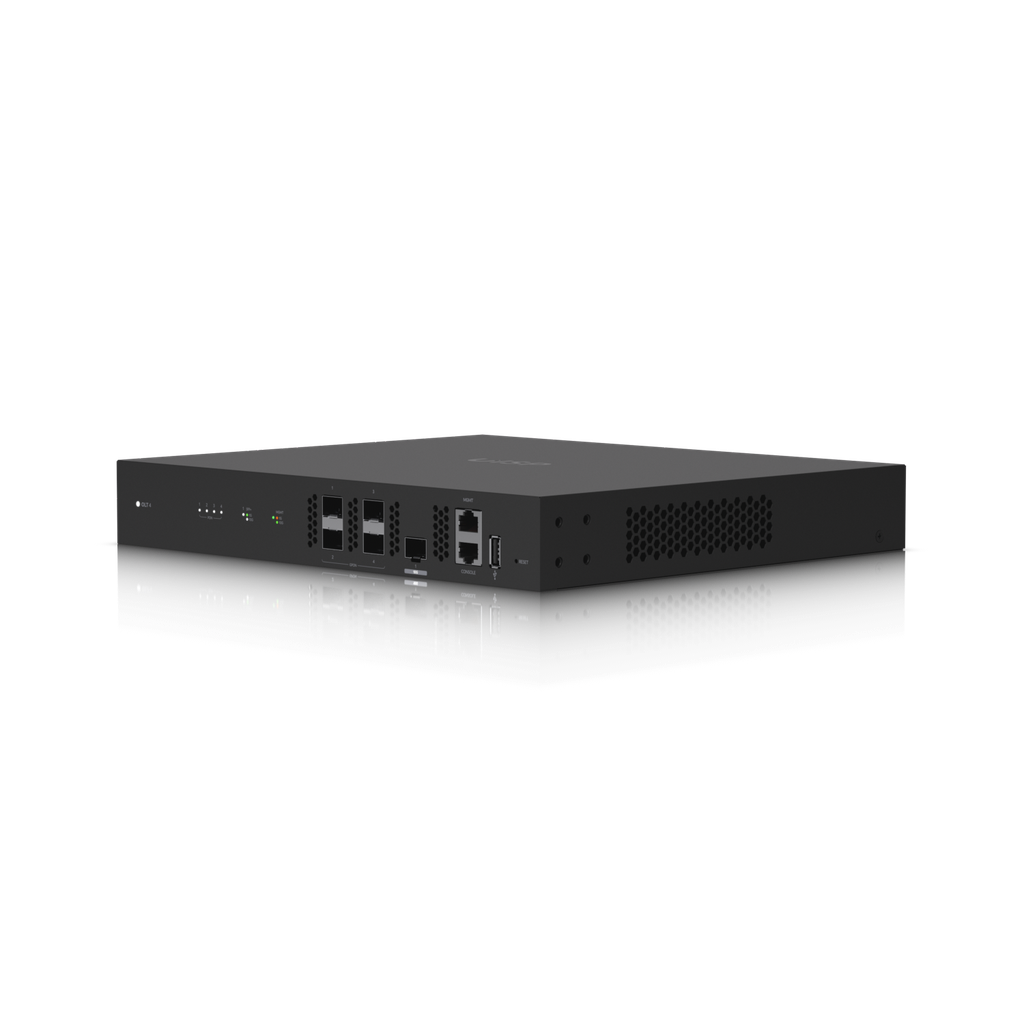

Ubiquiti UF-OLT-4 U Fiber 256 Client Capacity GPON OLT with UNMS Management System

https://arcip.com.au/web/image/product.template/3966/image_1920?unique=8867584
The Ubiquiti UF-OLT-4 is a compact, high-performance 4-port GPON Optical Line Terminal, providing a cost-effective and scalable solution for deploying high-speed fiber-to-the-home (FTTH) networks.

1,746.25 1746.25 AUD 1,746.25 incl. GST

Not Available For Sale


This combination does not exist.

Ubiquiti
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UF-OLT-4
Barcode
817882023672
Tags
UF-OLT-4
Ubiquiti UF-OLT-4 U Fiber 256 Client Capacity GPON OLT with UNMS Management System

Features

  • (4) GPON SFP Ports and (1) 10G SFP+ Uplink Port
  • Supports up to 512 concurrent clients (128 per GPON port)
  • Flexible dual power options: AC/DC power adapter and DC terminal block
  • 2.488 Gbps downstream and 1.244 Gbps upstream per GPON port
  • Compact 1U rack-mountable enclosure
  • Centrally managed by the Ubiquiti ISP (UISP) platform

Specifications

Interfaces
Networking(4) GPON SFP
(1) 10G SFP+
Management(1) RJ45 Serial Console Port
(1) RJ45 10/100/1000M Ethernet for Out-of-Band Management
Performance
Concurrent Clients512 ONUs Total (128 per Port)
GPON Speeds2.488 Gbps Downstream
1.244 Gbps Upstream
General
Power Method100-240VAC/50-60 Hz, Universal AC/DC Power Adapter (Included)
DC Terminal Block
Max. Power Consumption30W (Excluding SFP Modules)
Form Factor1U Rack-Mountable
Operating Temperature-10 to 45° C (14 to 113° F)
Dimensions442.4 x 285.6 x 43.7 mm
Weight2.95 kg

Professional Overview

The Ubiquiti UF-OLT-4 is a powerful yet compact Optical Line Terminal (OLT) that serves as the central hub of a high-performance Gigabit Passive Optical Network (GPON). It is meticulously designed for Wireless Internet Service Providers (WISPs) and other service providers seeking a cost-effective, scalable, and easily manageable solution for deploying Fiber-to-the-x (FTTx) services. The UF-OLT-4 brings carrier-class features to a price point that makes building a next-generation fiber network accessible to a wider range of operators.

Engineered for performance, the device features four GPON SFP ports, each capable of supporting downstream speeds of 2.488 Gbps and upstream speeds of 1.244 Gbps. Each port can handle up to 128 client ONUs, allowing the compact 1U chassis to serve a total of 512 subscribers. To prevent network bottlenecks and provide a high-capacity connection to the internet backbone, the UF-OLT-4 is equipped with a 10G SFP+ uplink port, ensuring that the aggregate traffic from your subscribers can be efficiently routed to your core network.

Reliability and deployment flexibility are key strengths of the UF-OLT-4. It offers versatile power options with both an external AC/DC adapter and a DC terminal block input. This dual-power capability allows for the implementation of a redundant power system, a critical feature for service providers who need to guarantee maximum uptime. Its slim 1U rack-mount design allows for seamless integration into standard server racks for a clean and professional installation.

Management is streamlined through Ubiquiti's powerful and intuitive ISP (UISP) platform (formerly UNMS). This centralized management system provides a single pane of glass to configure the OLT, provision new ONUs, manage subscriber plans, and monitor the health and performance of the entire GPON network. This simplifies network operations, reduces administrative overhead, and allows for rapid scaling as your subscriber base grows, making the UF-OLT-4 an intelligent choice for any modern fiber deployment.
