Ubiquiti UF-GP-B+ U Fiber GPON OLT Class B+ SFP Module

Price:

129.25


Ubiquiti UCG-Max-AU UniFi Controller Cloud Gateway Max
Ubiquiti UCG-Max-AU UniFi Controller Cloud Gateway Max
524.15
524.15
Ubiquiti UISP-Cable-Pro Cat5e FTP Outdoor Cable 305m
Ubiquiti UISP-Cable-Pro Cat5e FTP Outdoor Cable 305m
270.60
270.60

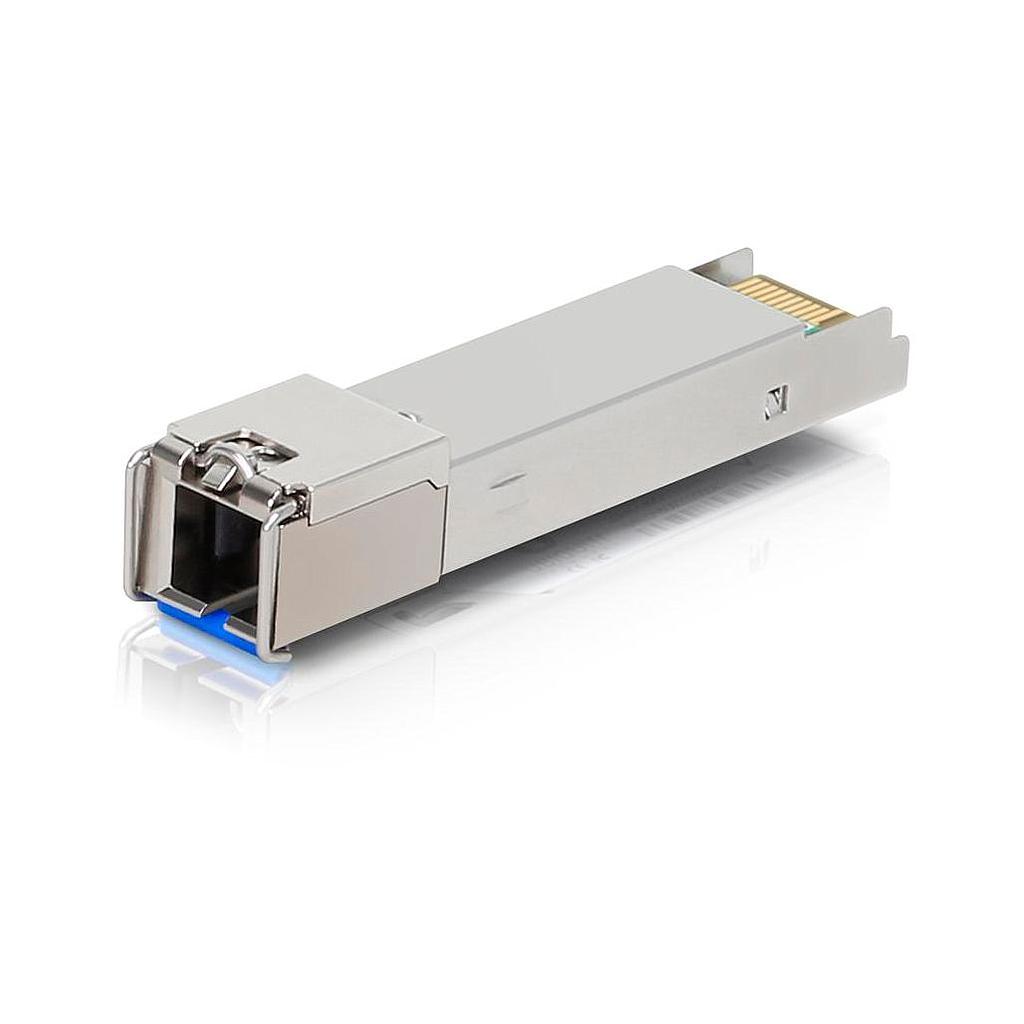

Ubiquiti UF-GP-B+ U Fiber GPON OLT Class B+ SFP Module

https://arcip.com.au/web/image/product.template/3963/image_1920?unique=8867584
The Ubiquiti UF-GP-B+ is a high-performance GPON OLT SFP module, designed to expand your UFiber network by connecting up to 128 ONUs per GPON port with reliable Class B+ optics.

129.25 129.25 AUD 129.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UF-GP-B+
Barcode
817882020305
Tags
UF-GP-B+
Ubiquiti UF-GP-B+ U Fiber GPON OLT Class B+ SFP Module

Features

  • GPON OLT SFP Module for UFiber OLTs
  • Class B+ Optics for reliable performance
  • Supports up to 128 ONUs per GPON Port
  • 2.488 Gbps Downstream / 1.244 Gbps Upstream Data Rates
  • Hot-Pluggable SFP form factor for easy installation
  • SC/UPC fiber connector for single-mode fiber

Specifications

Network
MediaSingle-Mode Fiber (SMF)
Connector TypeSC/UPC
Data Rate Downstream2.488 Gbps
Data Rate Upstream1.244 Gbps
Max. Distance20 km
General
TX Wavelength1490 nm
RX Wavelength1310 nm
TX Power Range1.5 to 5 dBm
RX Power Range-8 to -28 dBm
Form FactorSFP
Operating Temperature-10 to 70° C (14 to 158° F)

Professional Overview

The Ubiquiti UF-GP-B+ is a high-performance, carrier-class SFP module that serves as the essential optical interface for the Ubiquiti UFiber Optical Line Terminal (OLT). This module is the key component that enables the OLT to connect to the passive optical network, providing the foundation for building a robust and scalable Fiber-to-the-Home (FTTH) or Fiber-to-the-Business (FTTB) network. It is designed for seamless integration and optimal performance within the UFiber ecosystem.

Engineered to the GPON standard with Class B+ optics, the UF-GP-B+ delivers reliable, high-speed connectivity. It supports a downstream data rate of 2.488 Gbps and an upstream rate of 1.244 Gbps, providing ample bandwidth for modern internet services. A single UF-GP-B+ module installed in an OLT port can support connections for up to 128 clients (ONUs), making it a highly scalable and cost-effective solution for service providers. It is designed for use with single-mode fiber and an SC/UPC connector, enabling link distances of up to 20 km.

Installation and maintenance are streamlined thanks to the module's hot-pluggable SFP form factor. This allows network administrators to easily add or replace modules in a UFiber OLT (such as the UF-OLT or UF-OLT-4) without any service interruption or network downtime, a critical feature for any service provider environment. As an official Ubiquiti accessory, it guarantees flawless compatibility and performance, providing a simple, plug-and-play solution for expanding your fiber network.

For any WISP or network operator building a new GPON network or expanding an existing one, the UF-GP-B+ module offers an unmatched combination of performance, scalability, and value. It is the definitive choice for lighting up your UFiber OLT ports and delivering next-generation fiber internet service to your customers.

Brand UBIQUITI
