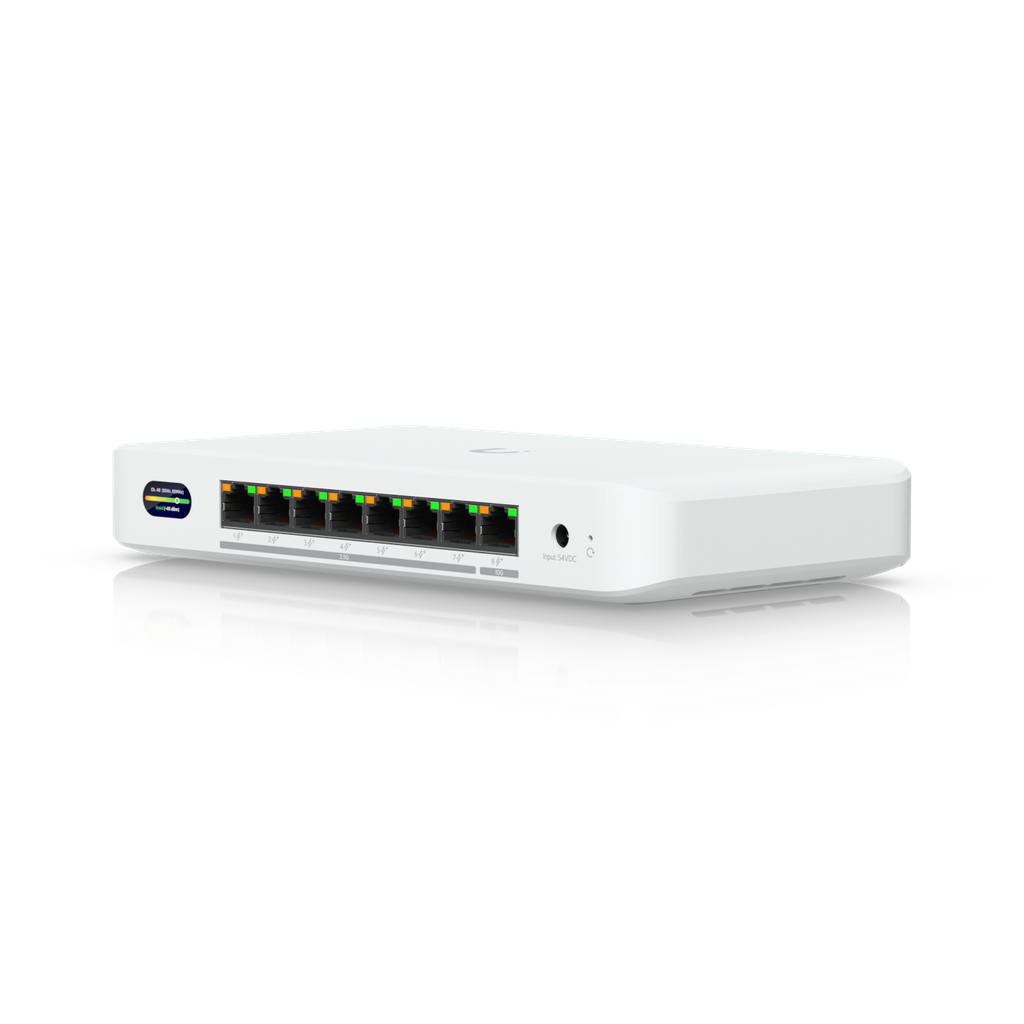

Ubiquiti UDB-Switch Device Bridge Switch

https://arcip.com.au/web/image/product.template/7887/image_1920?unique=2e0834f
Device Bridge Switch. Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. Australian stock. Available for store pickup or shipping.

525.12 525.12 AUD 570.90 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • Antenna Gain
  • Operating Temperature

This combination does not exist.

In stock online
WiFi 7 2.5GbE UniFi Switch PoE Ubiquiti Point-to-Point Wireless Bridge
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDB-Switch
Barcode
810084698211
Tags
UDB-Switch
Device Bridge Switch

UDB-Switch

UDB-Switch

UDB-Switch

Specifications

Overview
Dimensions212.9 x 113 x 32.5 mm / (8.4 x 4.4 x 1.3")
WiFi StandardWiFi 7
Spatial Streams4
Mounting LocationsDesktop, wall
Power MethodDC jack (54V DC/1.1A)
Power Supply54V DC/1.1A (Adapter included)
Performance
6 GHz2 x 2
5 GHz2 x 2
6 GHz5.8 Gbps (BW320)
5 GHz4.3 Gbps (BW240)
6 GHz8 dBi
5 GHz8 dBi
6 GHz23 dBm
5 GHz26 dBm
Max. Conducted TX Power26 dBm (Combined)
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA3 SAE (Always On)
Hardware
Max. Power Consumption25W (Excluding PoE output)
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 port / (7) 2.5 GbE RJ45 ports
PoE Interface(8) PoE+ ports
Max. PoE Wattage per Port30W
Total PoE Availability60W AC adapter input: 35W / 210W AC adapter input: 185W
Antennas(1) Internal
ManagementEthernet / WiFi
Channel Bandwidth20/40/80/160/240/320 MHz
WeightDevice: 548 g (1.21 lb) / With mount: 563 g (1.24 lb)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
LCM Display0.96" status display
Button(1) Factory reset
CertificationsCE, FCC, IC
Operating FrequencyWorldwide: / 5150—5875 MHz / 5945—7125 MHz
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 10.0.156 or later.

Professional Overview

The Ubiquiti UDB-Switch is Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi..

The UDB-Switch delivers reliable performance for demanding network environments.

The UDB-Switch integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of Device: 548 g (1.21 lb) / With mount: 563 g (1.24 lb), featuring CE, FCC, IC, operating temperature range of -30 to 40° C (-22 to 104° F). Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Frequently asked questions

What makes the UDB-Switch different from a normal PoE switch?

It is a switch and a wireless bridge in one. You get (1) 10 GbE and (7) 2.5 GbE PoE+ ports as you would on any compact switch, but the uplink can be a WiFi 7 wireless link instead of a cable. That means a remote building can have a full switched, PoE-powered network without a fibre or copper run back to the main site.

How fast is the wireless uplink?

Up to 5.8 Gbps on 6 GHz at 320 MHz channel width, or 4.3 Gbps on 5 GHz at 240 MHz, using WiFi 7 with four spatial streams. Real-world throughput depends on distance, channel width and interference, but it is comfortably faster than the gigabit links most bridges deliver.

How much PoE can it supply?

Eight PoE+ ports at up to 30 W each. Total budget is 185 W with the supplied 54 V adapter, dropping to 35 W if the unit is itself powered over PoE. Specify the adapter if you intend to power cameras or access points from it.

Can it be used purely as a switch?

Yes. Plug the 10 GbE port into your network and it behaves as a standard UniFi PoE+ switch, adopted and managed in the UniFi controller like any other. The bridging capability sits there unused until you need it.

Is it suitable for outdoor installation?

No. It has no published IP rating and operates from -30 to 40 degrees C, so it belongs indoors or in a sheltered enclosure. For an outdoor link use the UDB-Pro and bring the connection inside to the switch.

Ubiquiti UDB-Switch: Device Bridge Switch

The Device Bridge Switch is part of the UniFi accessory range. Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.

Ports and interfaces

Networking interface(1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
Total PoE availability60W AC adapter input: 35W 210W AC adapter input: 185W

System

Display0.96" status display

Networking and power

Networking interface(1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
PoE interface(8) PoE+ ports
Power methodDC jack (54V DC/1.1A)
Max. power consumption25W (Excluding PoE output)
Supported voltage range42.5–57V DC

Power and data share the one Ethernet run, so the cable that connects the device also feeds it.

Who the UDB-Switch suits

  • Device Bridge deployments needing switch ports at the far end
  • Point-to-point links feeding several wired devices
  • Sites extending a network across a gap without fibre

Physical and environment

Dimensions212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
WeightDevice: 548 g (1.21 lb) With mount: 563 g (1.24 lb)
Enclosure materialPolycarbonate
Operating temperature-30 to 40° C (-22 to 104° F)
Operating humidity5 to 95% noncondensing

Additional published specifications

WiFi StandardWiFi 7
Spatial Streams4
Mounting LocationsDesktop, wall
Power Supply54V DC/1.1A (Adapter included)
6 GHz2 x 2
5 GHz2 x 2
Max. Conducted TX Power26 dBm (Combined)
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA3 SAE (Always On)
Max. PoE Wattage per Port30W
Antennas(1) Internal
ManagementEthernet WiFi
Channel Bandwidth20/40/80/160/240/320 MHz
Button(1) Factory reset
Operating FrequencyWorldwide: 5150—5875 MHz 5945—7125 MHz
UniFi NetworkVersion 10.0.156 or later.

Compliance and cabling

CertificationsCE, FCC, IC
ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UDB-Switch in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UDB-Switch from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the UniFi accessory range, plus cloud gateways, switches, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Desktop / Wall Mount
Ports (1) 10 GbE + (7) 2.5 GbE RJ45
Network Connectivity Wired
PoE Specification 8 x PoE+ 802.3at, 30 W per port, 185 W budget
WiFi Standard WiFi 7
Frequency Band Dual-Band (5 GHz / 6 GHz)
Max Throughput 5.8 Gbps (6 GHz, BW320)
Antenna Gain 8 dBi
Operating Temperature -30 to 40 degrees C
