Ubiquiti UA-SK-Gate specifications
Overview
| In the Box | (1) Gate Hub / (1) Intercom / (1) PoE++ adapter / (2) 2-wire PoE extenders |
|---|
Gate Hub
| Dimensions | 175 x 126 x 26 mm / (6.9 x 5 x 1") |
|---|
| Supported Doors | 1 gate, 1 side door |
|---|
| Maximum User Count | 6,000 |
|---|
| Input Terminals | (1) Gate exit request / (1) Gate position / (1) Side door exit request / (1) Side door position / (1) Emergency |
|---|
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mounting | DIN-rail (Included) |
|---|
| Weight | 460 g (1 lb) |
|---|
| Indoor and Outdoor Use | Indoor only: device itself / Outdoor: with waterproof junction box |
|---|
| Networking Interface | (5) 10/100/1000 Base-T |
|---|
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 55W aggregated) |
|---|
| Max. Power Consumption | 22W (Without PoE output) / 60W (With PoE output) |
|---|
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
|---|
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A / (1) Aux: rated 30V DC, up to 1A |
|---|
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
|---|
| LEDs | W/B Learn More |
|---|
| Button | (1) Factory reset |
|---|
| UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
|---|
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Other locks
(1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
|---|
| Ambient Operating Humidity | 5 to 90% noncondensing |
|---|
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Document number, and issue date and/or revision level | UA-Hub-Gate, V01 |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
|---|
Wire PoE Extenders
| Model | UACC-Extender-2Wire-PoE-Tx/Rx |
|---|
| Dimensions | 40 x 105 x 25 mm / (1.6 x 4.1 x 1") |
|---|
| Weight | PoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mounting Material | Polycarbonate |
|---|
| Networking Interface | (1) 10/100 MbE / (1) Homeplug AV |
|---|
| PoE Interface | PoE input: (1) PoE++, 50V DC, Max. 1.2A / PoE output: (1) PoE+, 48V DC, 0.72A |
|---|
| Management | (1) 10/100 MbE |
|---|
| Power Method | PoE++ |
|---|
| Max. Power Consumption | 3W (Without PoE output) |
|---|
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
|---|
| LEDs | White |
|---|
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC |
|---|
PoE++ Adapter
| Model | U-PoE++ |
|---|
| Dimensions | 106 x 63 x 34 mm / (4.2 x 2.5 x 1.3") |
|---|
| Weight | 210 g (7.4 oz) |
|---|
| Output Voltage | 48V DC @ 1.25A |
|---|
| Rated Voltage | 100–240V AC at 50/60Hz |
|---|
| Input Current | 1.3A @ 120V AC / 0.75A @ 230V AC |
|---|
| Inrush Current | <100A peak @ 120V AC / <200A peak @ 230V AC |
|---|
| Efficiency | 85+% |
|---|
| Output Ripple | 1% max. |
|---|
| Switching Frequency | 65 kHz |
|---|
| Line Regulation | ≤ 1% |
|---|
| Load Regulation | ≤ 3% |
|---|
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Data In / PoE | RJ45 shielded socket |
|---|
| Surge Protection | Difference and common mode |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Max. Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Shunt Capacitance | <5 pF data |
|---|
| Response Time | <1 ns |
|---|
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
|---|
| Power Supply | AC/DC |
|---|
| Supported Voltage Range | 100–240V AC |
|---|
| Max. PoE+ Wattage per Port by PSE | 60W |
|---|
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
|---|
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
|---|
| Ambient Operating Humidity | 10 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
|---|
Specifications from Ubiquiti's official product data for the UA-SK-Gate, checked October 2026.
The UniFi Gate Access Starter Kit in depth
Gate control with the connected Intercom

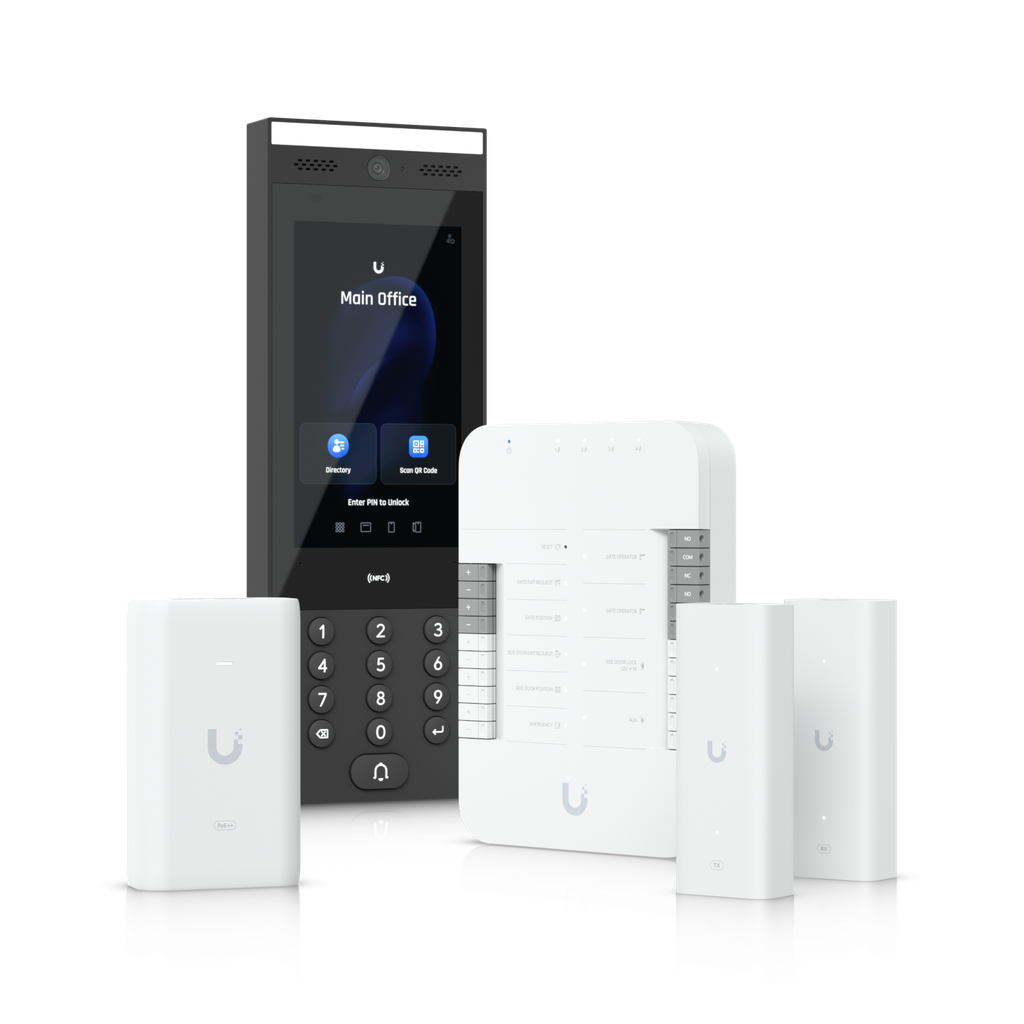

The UA-SK-Gate brings together a Gate Hub, an Intercom, a PoE++ adapter and (2) 2-wire PoE extenders to control a vehicle gate. The Gate Hub supports 1 gate and 1 side door, with up to 6,000 users, and is managed through UniFi Access. It has dedicated input terminals for gate exit request, gate position, side door exit request, side door position and emergency.
License Plate Unlock
When paired with a compatible Protect AI camera, the kit can authorise gate access with License Plate Unlock. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses. The record notes that Access integration for G6 Series is coming soon.
Gate Hub connectivity and power
The Gate Hub has (5) 10/100/1000 Base-T ports and (1) PoE++ input, with (4) PoE outputs at 50V DC and 30W per port (max 55W aggregated). It includes (2) Operator dry output relays and (1) Aux dry output relay, each rated 30V DC up to 1A, plus a powered side door lock output of 12V DC up to 1A. The polycarbonate unit mounts on a DIN rail (included) and is indoor only. Outdoor use requires a waterproof junction box.
Intercom hardware
The Intercom has a 177 mm (7") capacitive multi-touch display with up to 1000 nits (typical) brightness, a 2W speaker and a camera with a field of view of H: 79.4°, V: 97.5°, D: 118.2°. It is IP65-rated, with BLE 4.2 and NFC connectivity. The enclosure is aluminium alloy, UV-stabilised polycarbonate and glass, and the mount is powder-coated stainless steel. A wall mount and an adapter to the gooseneck pedestal are included.
