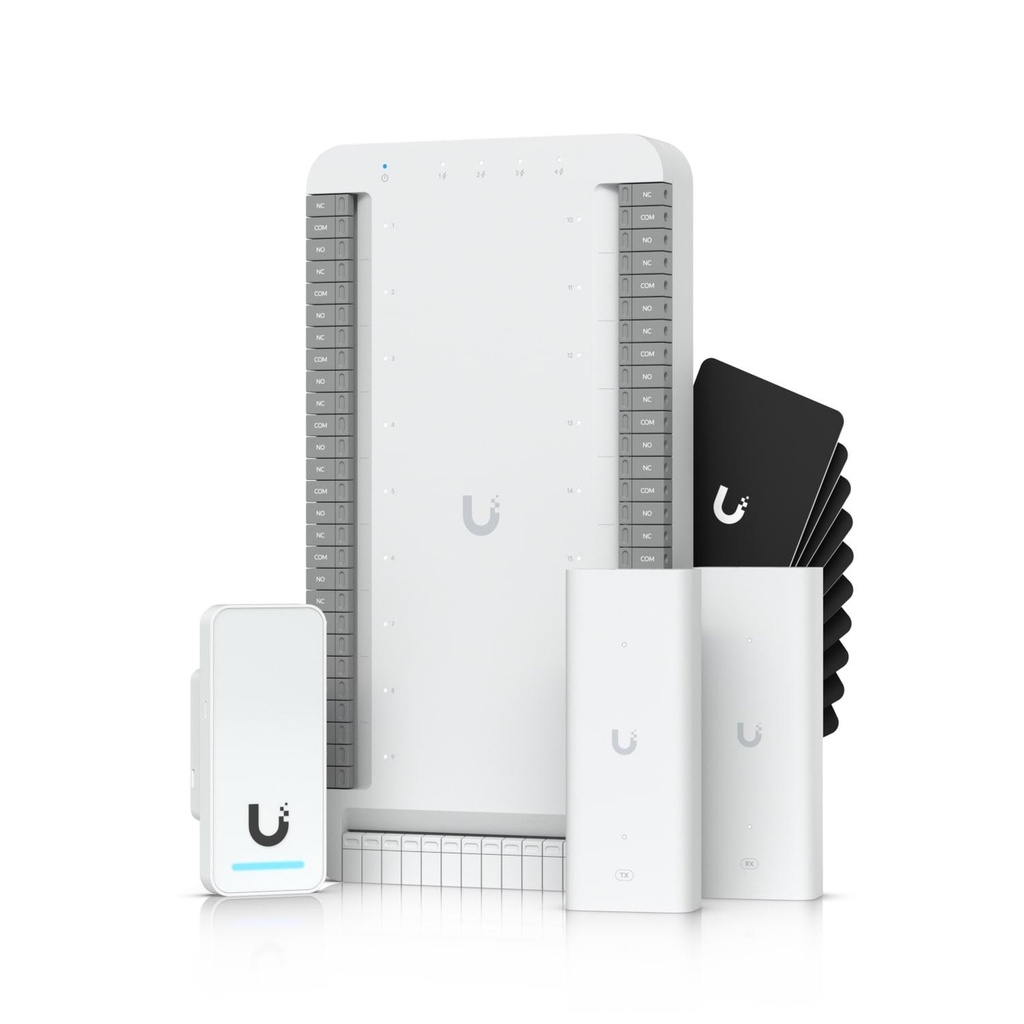

Ubiquiti UA-SK-Elevator UniFi Access Elevator Starter Kit - PoE++, Floor Control

https://arcip.com.au/web/image/product.template/9912/image_1920?unique=fcc241c

The Ubiquiti UA-SK-Elevator (Access Elevator Starter Kit) connects to in-elevator readers with PoE to authorise floor selection. It supports up to 18 floors, with digital inputs for elevator car status and emergency. In the box: one Elevator Hub, one G2 Reader, two 2-wire PoE extenders and 10 Access Cards. The Elevator Hub has four PoE+ outputs (30W per port, 45W aggregated), is powered by PoE++ and supports up to 6,000 users. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,764.20 1764.2 AUD $ 1,901.90 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UA-SK-Elevator
Barcode
810010079152

Ubiquiti UA-SK-Elevator at a glance

The Ubiquiti UA-SK-Elevator (Access Elevator Starter Kit) is a UniFi Access kit that connects to in-elevator readers with PoE to authorise floor selection. It supports up to 18 floors, with digital inputs for elevator car status and emergency. The kit includes an Elevator Hub, a G2 Reader, (2) 2-wire PoE extenders and (10) Access Cards.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Elevator Starter Kit from Australian stock with the full manufacturer's warranty.

Floors supportedUp to 18
Max users (hub)6,000
Hub PoE outputs(4) PoE+, 30W per port, 45W max aggregated
Relay outputs(18) relays, 30V DC/2A
G2 Reader ratingIP55
G2 Reader connectivityBLE 4.1 / NFC
In the boxHub, G2 Reader, (2) extenders, (10) cards

Best for

  • Authorising floor selection from in-elevator readers
  • Elevators serving up to 18 floors
  • Access control managed through UniFi Access

Consider instead

  • Ubiquiti UA-G3-SK-Elevator: the Access G3 Elevator Starter Kit, which has the same floor-selection description and up to 18 floors
  • Ubiquiti UA-G2-SK: a single-door kit with a Door Hub, G2 Reader and (10) Access Cards instead of elevator control

Key features

Ubiquiti UA-SK-Elevator specifications

Overview

In the Box(1) Elevator Hub / (1) G2 Reader / (2) 2-wire PoE extenders / (10) Access Cards

Elevator Hub

Dimensions129.3 x 244.7 x 33.6 mm / (5.1 x 9.6 x 1.3")
Maximum User Count6,000
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Weight537 g (1.2 lb)
Enclosure MaterialPolycarbonate
Mounting MaterialPolycarbonate
Networking Interface(4) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1.2A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated)
Management(1) 10/100/1000 Base-T
Max. Power Consumption7W (Without PoE output)
Digital Input(1) Emergency / (1) Car position (5-bit) / (1) Car status: Up/Down/Stop/Full / (1) Door status: Open/Close
Outputs(18) Relays / Rating 30V DC/2A
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
LEDsB/W Learn More
Buttons(1) Factory reset / Terminal blocks
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com

G2 Reader

Dimensions93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4")
WeatherproofingIP55
Weight82 g (2.9 oz)
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminium alloy
MountingIn-wall, gang box (Included) / Junction box (Optional)
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 / NFC
Power MethodPoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
SensorsProximity sensor
Speaker(1) Yes, 0.7W
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Read Range< 30 mm (1.18'')
NFC Frequency13.56 MHz
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
Ambient Operating Temperature-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G2/UA-G2-Black, V02
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com

Access Card

Dimensions85.6 x 53.98 x 0.84 mm / (3.37 x 2.13 x 0.03")
Weight5 g (0.18 oz)
FormatISO 7810 ID-1
NFC Frequency13.56 MHz
NFC TechnologyISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol

Wire PoE Extenders

ModelUACC-Extender-2Wire-PoE-Tx/Rx
Dimensions40 x 105 x 25 mm / (1.6 x 4.1 x 1")
WeightPoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz)
Enclosure MaterialPolycarbonate
Mounting MaterialPolycarbonate
Networking Interface(1) 10/100 MbE / (1) Homeplug AV
PoE InterfacePoE input: (1) PoE++, 50V DC, Max. 1.2A / PoE output: (1) PoE+, 48V DC, 0.72A
Management(1) 10/100 MbE
Power MethodPoE++
Max. Power Consumption3W (Without PoE output)
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
LEDsWhite
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Specifications from Ubiquiti's official product data for the UA-SK-Elevator, checked October 2026.

The UniFi Access Elevator Starter Kit in depth

Floor selection control with in-elevator readers

The Access Elevator Starter Kit connects to in-elevator readers with PoE to authorise floor selection. It supports up to 18 floors, and the Elevator Hub provides (18) relay outputs rated 30V DC/2A. Digital inputs cover emergency, car position (5-bit), car status (Up/Down/Stop/Full) and door status (Open/Close), so the hub can follow what the elevator car is doing.

What is included in the kit

The kit contains (1) Elevator Hub, (1) G2 Reader, (2) 2-wire PoE extenders and (10) Access Cards. The Elevator Hub has (4) 10/100/1000 Base-T networking ports and (4) PoE+ outputs at 50V DC, 30W per port, with a maximum of 45W aggregated. It is powered by a PoE++ input and supports up to 6,000 users. Management is through UniFi Access.

G2 Reader and Access Cards

The G2 Reader supports BLE 4.1 and NFC, with an NFC read range of less than 30 mm. It has IP55 weatherproofing, a proximity sensor, a 0.7W speaker and an RGBW LED. It mounts in-wall, with a gang box included. The Access Cards are ISO 7810 ID-1 format and use 13.56 MHz NFC with MIFARE DESFire.

Frequently asked questions

Straight answers about the UniFi Access Elevator Starter Kit from the ARC IP Networks team. Last reviewed October 2026.

It is the Access Elevator Starter Kit for UniFi Access. It connects to in-elevator readers with PoE to authorise floor selection and supports up to 18 floors.

The kit includes (1) Elevator Hub, (1) G2 Reader, (2) 2-wire PoE extenders and (10) Access Cards.

It supports up to 18 floors. The Elevator Hub provides (18) relay outputs rated 30V DC/2A.

The hub has digital inputs for emergency, car position (5-bit), car status (Up/Down/Stop/Full) and door status (Open/Close).

The hub is powered by a PoE++ input at 50V DC, 1.2A, or by a UL 294 Power-limited Class 2 PSU. Maximum power consumption is 7W without PoE output.

The Elevator Hub and G2 Reader are managed through UniFi Access.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UA-SK-Elevator from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti UA-SK-Elevator in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning elevator access control with the UA-SK-Elevator?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
