Ubiquiti UniFi UA-Retrofit-Reader (White) — Indoor/Outdoor OSDP v2 Door Access Reader with NFC, Apple Touch Pass and BLE 4.1, IP55 Weatherproof (for UA-Retrofit-Hub-2)
Ubiquiti UniFi UA-Retrofit-Reader (White) — Indoor/Outdoor OSDP v2 Door Access Reader with NFC, Apple Touch Pass and BLE 4.1, IP55 Weatherproof (for UA-Retrofit-Hub-2)
$ 367.40
$ 367.40

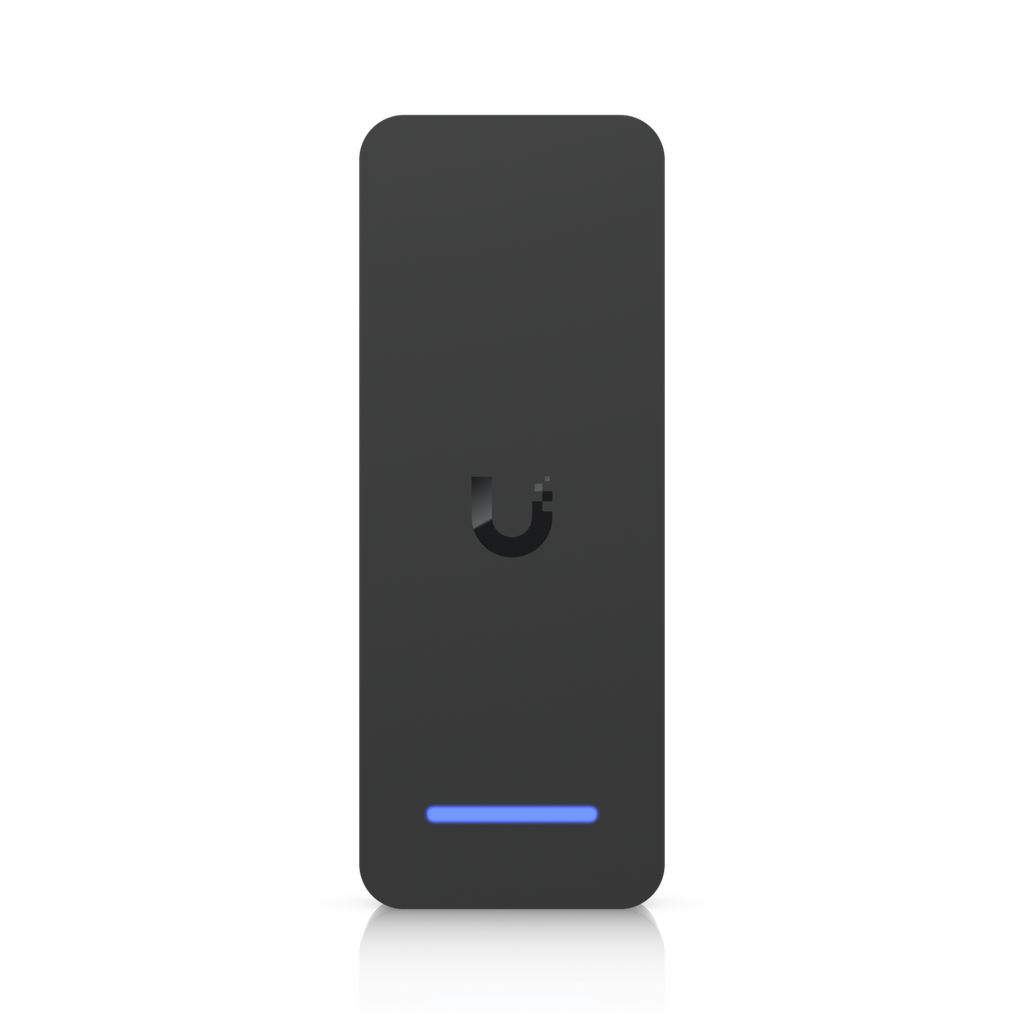

Ubiquiti UniFi UA-Retrofit-Reader (Black) — Indoor/Outdoor OSDP v2 Door Access Reader with NFC, Apple Touch Pass and BLE 4.1, IP55 Weatherproof (for UA-Retrofit-Hub-2)

https://arcip.com.au/web/image/product.template/9733/image_1920?unique=fa62116

The Ubiquiti UA-Retrofit-Reader-B (Access Retrofit Reader) is an indoor/outdoor OSDP reader with NFC card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling. It connects over RS-485 with OSDP v2 security, runs on 12V DC with 2.5W maximum consumption and is IP55 rated. The 13.56 MHz NFC reader supports MIFARE Classic, MIFARE Plus, MIFARE Ultralight and MIFARE DESFire. Black model with wall and gang-box mounting included, plus 10 free 1-year Touch Passes. Request a quote from ARC IP Networks for project pricing via Ubiquiti deal registration.

This product is supplied under the Ubiquiti Enterprise Program.


  • Brand
  • Connectivity
  • Door Access Form Factor
  • IP Rating
  • Display
  • Power Method
  • Reader Type
  • Intercom
  • Mount
  • Credentials
  • NFC Read Range

This combination does not exist.

Indoor Outdoor UniFi Ubiquiti Wall Mount Door Access UniFi Access NFC IP55 BLE OSDP Retrofit Reader Apple Touch Pass MIFARE Gang Box Ubiquiti Enterprise Program
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UA-Retrofit-Reader-B
Barcode
810177163381
Tags

Ubiquiti UA-Retrofit-Reader-B at a glance

The Ubiquiti UA-Retrofit-Reader-B (Access Retrofit Reader) is an indoor/outdoor OSDP reader with NFC Card and Touch Pass support. It is compatible with the UniFi Retrofit Hub using existing cabling. It is rated IP55, measures 117 x 45 x 13.3 mm and weighs 82 g.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Retrofit Reader under the Ubiquiti Enterprise programme with the full manufacturer's warranty. Contact us before ordering for project pricing and lead time.

Weather ratingIP55
SecurityOSDP v2
ConnectivityRS-485 / BLE 4.1 / NFC
PowerDC 12V, 2.5W max
NFC read range< 30 mm
Operating temperature-30 to 50° C
Dimensions117 x 45 x 13.3 mm

Best for

  • Retrofitting door access onto existing cabling with the UniFi Retrofit Hub
  • Indoor and outdoor entrances
  • NFC card and Touch Pass entry

Consider instead

💼

Ubiquiti Enterprise Program

The Ubiquiti Retrofit Reader Black (UA-Retrofit-Reader-B) is supplied under the Ubiquiti Enterprise Program. Please contact ARC IP Networks before ordering for project pricing and lead time.

Key features

See the UniFi Access Retrofit Reader




Introducing: UniFi Access Retrofit [Coming Soon] (Video: Ubiquiti)

UA-Retrofit-Reader-B Mounted Reader
UA-Retrofit-Reader-B NFC + Touch Pass

Ubiquiti UA-Retrofit-Reader-B specifications

Overview

Dimensions117 x 45 x 13.3 mm / (4.6 x 1.8 x 0.5")
UniFi Application SuiteAccess
WeatherproofingIP55

Mechanical

Weight82 g (2.9 oz)
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialStainless steel
MountingWall, gang-box mount (Included) / Junction box (Optional)

Hardware

Indoor and Outdoor UseYes
ConnectivityRS-485 / BLE 4.1 / NFC
SecurityOSDP v2
Power MethodDC 12V
Max. Power Consumption2.5W
Supported Voltage Range12V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO 14443A, 14443B, 15693 / NFC Tag 1,2,3,4,5 / MIFARE Classic / MIFARE Plus / MIFARE Ultralight / MIFARE DESFire
CertificationsCE, FCC, IC
Ambient Operating Temperature-30 to 50° C / (-22 to 122° F)
Ambient Operating Humidity5 to 90% noncondensing

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Specifications from Ubiquiti's official product data for the UA-Retrofit-Reader, checked October 2026.

The UniFi Access Retrofit Reader in depth

OSDP reader for retrofit installs

The Access Retrofit Reader is an indoor/outdoor OSDP reader designed to work with the UniFi Retrofit Hub using existing cabling. It communicates over RS-485 and uses OSDP v2 for security. It is managed through the UniFi Access application. That makes it a fit for doors that already have reader cabling in place.

NFC, BLE and Touch Pass credentials

The reader supports NFC Card and Touch Pass entry, and includes 10 free 1-year Touch Passes. NFC operates at 13.56 MHz with a read range under 30 mm. Supported NFC technologies include ISO 14443A, 14443B and 15693, NFC Tag 1 to 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight and MIFARE DESFire. BLE 4.1 is also built in. R/G/B/W LEDs provide status indication.

Built for exposed locations

The enclosure is polycarbonate and aluminium alloy with a stainless steel mount, and the reader carries an IP55 weatherproofing rating. It operates from -30 to 50° C at 5 to 90% noncondensing humidity. ESD/EMP protection is rated at ±15kV air and ±8kV contact. A gang-box mount is included, and a junction box mount is optional.

Frequently asked questions

Straight answers about the UniFi Access Retrofit Reader from the ARC IP Networks team. Last reviewed October 2026.

It is the Access Retrofit Reader, an indoor/outdoor OSDP reader with NFC Card and Touch Pass support. It is compatible with the UniFi Retrofit Hub using existing cabling.

Yes. It is rated for indoor and outdoor use with IP55 weatherproofing. It operates from -30 to 50° C and 5 to 90% noncondensing humidity.

It supports NFC cards and Touch Pass, and includes 10 free 1-year Touch Passes. NFC technologies include ISO 14443A/B, ISO 15693, NFC Tag 1 to 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight and MIFARE DESFire.

It connects over RS-485 using OSDP v2 and is powered by DC 12V, with a maximum power consumption of 2.5W. It is built to work with the UniFi Retrofit Hub using existing cabling.

A gang-box mount is included, and a junction box mount is available as an option. The mount is stainless steel.

ARC IP Networks is an authorised Ubiquiti reseller. The UA-Retrofit-Reader-B is part of the Ubiquiti Enterprise programme, so contact us for project pricing via Ubiquiti deal registration.

Buy the Ubiquiti UA-Retrofit-Reader-B in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Ubiquiti Enterprise programme: project pricing via Ubiquiti deal registration.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Retrofitting door access with the UniFi Retrofit Reader?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Connectivity RS-485 + BLE 4.1 + NFC
Door Access Form Factor Wall Mount Reader
IP Rating IP55
Display None
Power Method 12V DC, 2.5W
Reader Type NFC + BLE + OSDP v2
Intercom No
Mount Wall + Gang Box included; Junction Box optional
Credentials NFC Card (MIFARE Classic/Plus/Ultralight/DESFire), Apple Touch Pass, BLE Mobile
NFC Read Range < 30 mm
