Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single Door

Price:

$ 216.81


Ubiquiti UC-Display 21.5" Full HD PoE++ touchscreen designed for UniFi Connect
Ubiquiti UC-Display 21.5" Full HD PoE++ touchscreen designed for UniFi Connect
$ 1,006.50
$ 1,006.50
Cambium Networks N110082D073A - PTP 820 3' ANT,SP,11GHz,RFU-C TYPE&Std UBR100 - Andrew
Cambium Networks N110082D073A - PTP 820 3' ANT,SP,11GHz,RFU-C TYPE&Std UBR100 - Andrew
$ 2,710.79
$ 2,710.79

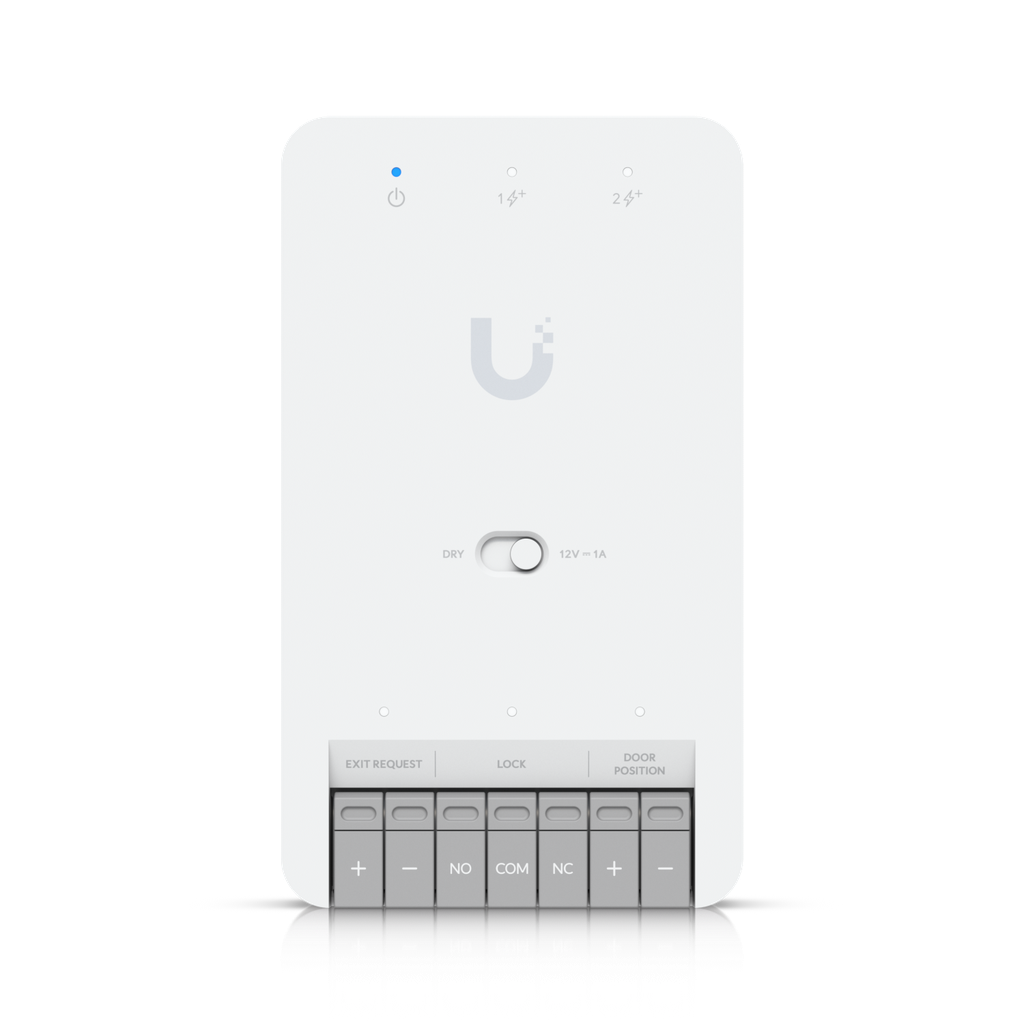

Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single Door

https://arcip.com.au/web/image/product.template/2823/image_1920?unique=6445a3e

The Ubiquiti UA-Hub-Door-Mini (Access Door Hub Mini) is a compact UniFi Access control hub for a single door. It has one lock terminal switchable between 12V and dry, two additional inputs for a door exit request and door position sensor, and two PoE+ outputs to connect up to two UniFi Access readers or Protect cameras. It is connected and powered via PoE++, supports up to 3,000 users, mounts on the included DIN rail and is for indoor use only. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 216.81 216.81 AUD $ 228.25 incl. GST

Not Available For Sale


  • Brand
  • Connectivity
  • Door Access Form Factor

This combination does not exist.

UniFi PoE Ubiquiti Door Access UniFi Access Access Hub
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UA-Hub-Door-Mini
Barcode
810084698839
Tags

Ubiquiti UA-Hub-Door-Mini at a glance

The Ubiquiti UA-Hub-Door-Mini (Access Door Hub Mini) is a compact access control hub for a single door. It provides 1 lock terminal (12V and Dry switchable), 2 additional inputs and 2 PoE ports, and is powered via PoE++. It supports a maximum of 3,000 users and measures 113 x 66 x 27.6 mm.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Door Hub Mini from Australian stock with the full manufacturer's warranty.

Lock terminal1 (12V and Dry switchable)
Additional inputs2 (sensor and button)
PoE(1) PoE++ input, (2) PoE+ outputs
Max users3,000
Dimensions113 x 66 x 27.6 mm
Operating temp0 to 40° C
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Best for

  • Single-door access control
  • Compact installs with DIN-rail mounting
  • Indoor door access with UniFi Access Readers or Protect Cameras

Consider instead

Key features

(1) Lock terminal (12V and Dry switchable)

(2) Additional inputs (sensor and button)

Connect and power via PoE++

Connect up to two UniFi Access Readers or Protect Cameras

See the UniFi Access Door Hub Mini




Introducing: Ubiquiti UniFi Access (Reader Pro, Reader Lite, Access Hub, Mission Critical) [2021] (Video: Ubiquiti)

UA-Hub-Door-Mini
UA-Hub-Door-Mini

Ubiquiti UA-Hub-Door-Mini specifications

Overview

Dimensions113 x 66 x 27.6 mm / (4.4 x 2.6 x 1.1")
Supported Doors1
Maximum User Count3,000
Input Terminals(1) Door exit request / (1) Door position
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I

Mechanical

Weight190 g (6.7 oz)
Enclosure MaterialPolycarbonate, metal
MountingDIN-rail (Included)

Hardware

Dry Output Relay30V DC, 1A
Wet Output Relay12V DC, 1A
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature0 to 40° C / (32 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
Networking Interface(3) GbE RJ45 ports
PoE Interface(1) PoE++ input, 50V DC, 1A / (2) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated)
Max. Power Consumption19W (Without PoE output) / 50W (With PoE output)
LEDsW/B Learn More
Buttons(1) Factory reset / (1) Dry/Wet switch
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Hub-Door-Mini, V01

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Specifications from Ubiquiti's official product data for the UA-Hub-Door-Mini, checked October 2026.

The UniFi Access Door Hub Mini in depth

Compact hub for a single door

The Access Door Hub Mini is a compact access control hub designed for a single door. It offers one lock terminal that switches between 12V and Dry, plus two additional inputs for a sensor and a button. The input terminals are a door exit request and a door position input. It is managed through the Access application.

Power and connectivity

The hub is connected and powered via PoE++, with a (1) PoE++ input and (2) PoE+ outputs rated 50V DC, 30W per port (max 45W aggregated). It has (3) GbE RJ45 ports and can connect up to two UniFi Access Readers or Protect Cameras. Maximum power consumption is 19W without PoE output and 50W with PoE output.

Hardware and build

The enclosure is polycarbonate and metal, weighs 190 g and includes DIN-rail mounting. The dry output relay is rated 30V DC, 1A and the wet output relay 12V DC, 1A. It is for indoor use only, with an operating temperature of 0 to 40° C and humidity of 5 to 90% noncondensing. Certifications include CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1.

Frequently asked questions

Straight answers about the UniFi Access Door Hub Mini from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti UA-Hub-Door-Mini is the Access Door Hub Mini, a compact access control hub for a single door. It has one lock terminal (12V and Dry switchable) and two additional inputs.

It is connected and powered via PoE++, using a PoE++ input at 50V DC, 1A. It also lists UL 294 Power-limited Class 2 PSU and UL 60950-1/62368-1 LPS/PS2 PSU as power methods.

You can connect up to two UniFi Access Readers or Protect Cameras. It has two PoE+ outputs rated 50V DC, 30W per port (max 45W aggregated).

No. The Access Door Hub Mini is rated for indoor use only, with an ambient operating temperature of 0 to 40° C.

It supports 1 door and a maximum of 3,000 users.

It uses DIN-rail mounting, and the DIN-rail mount is included.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UA-Hub-Door-Mini from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti UA-Hub-Door-Mini in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a single-door access control install with the UA-Hub-Door-Mini?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
