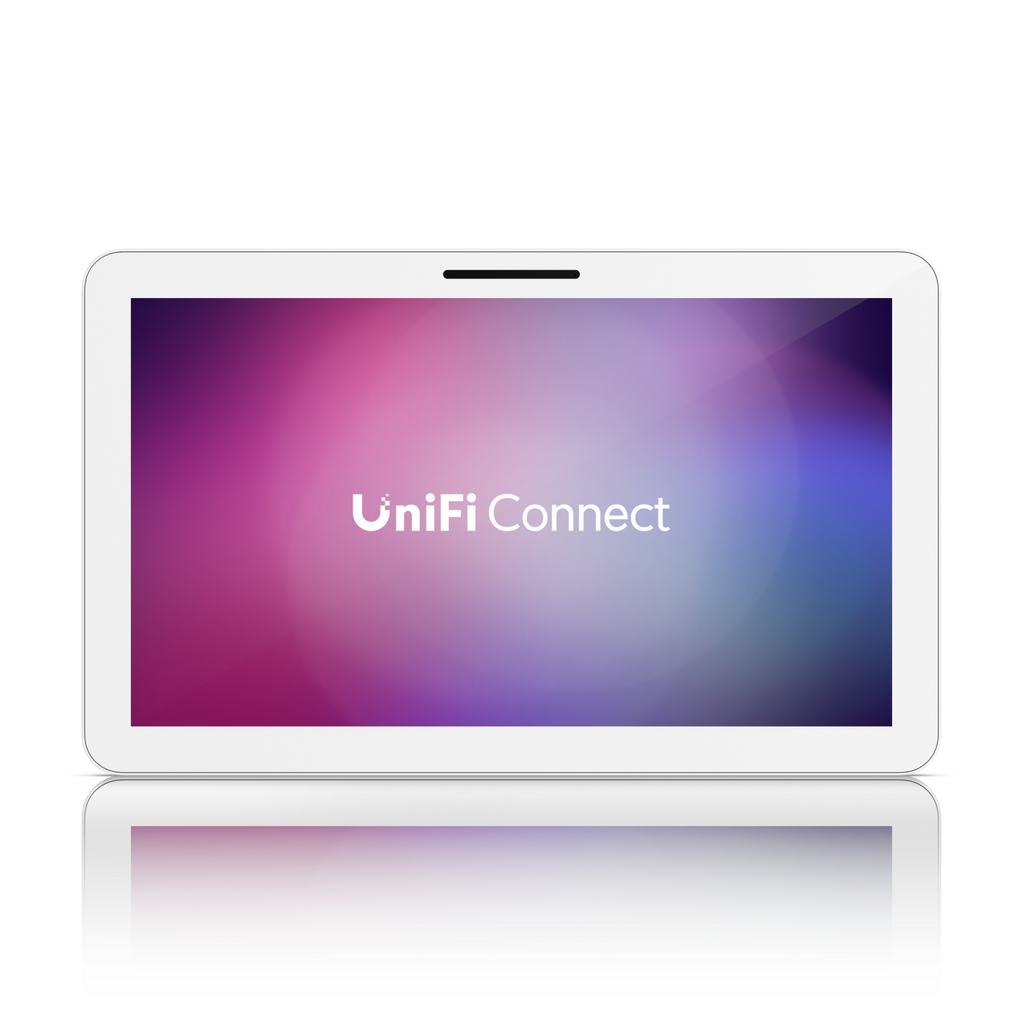

Ubiquiti UC-Display 21.5" Full HD PoE++ touchscreen designed for UniFi Connect

https://arcip.com.au/web/image/product.template/3948/image_1920?unique=6bbe47d

The Ubiquiti UC-Display (UniFi Connect Display) is a 21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications. It has a 1920 x 1080 capacitive multi-touch screen at 250 nits, an octa-core Cortex-A53 processor with 3 GB RAM and 32 GB storage, a GbE RJ45 port and Bluetooth 4.2, and draws up to 27W over a single PoE++ cable. A VESA mount adapter is included. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,006.50 1006.5 AUD $ 1,006.50 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UniFi Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UC-Display
Barcode
810010075345
Tags

Ubiquiti UC-Display at a glance

The Ubiquiti UC-Display (Connect Display) is a 21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications. It has a 1920 x 1080 FHD (16:9) capacitive multi-touch screen at 250 nits (typical), an octa-core ARM Cortex-A53 processor at 2.2 GHz, and a maximum power consumption of 27W.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Connect Display from Australian stock with the full manufacturer's warranty.

Screen546 mm (21.5") diagonal
Resolution1920 x 1080 FHD (16:9)
TouchCapacitive multi-touch
PowerPoE++, 27W max.
ProcessorOcta-core ARM Cortex-A53, 2.2 GHz
Memory32 GB storage / 3 GB RAM
Connectivity(1) GbE RJ45, Bluetooth 4.2
Weight4.9 kg

Best for

  • Interactive digital signage
  • Touchscreen displays powered over PoE++

Consider instead

  • Ubiquiti UC-Cast-Pro: a managed signage player for HDMI-compatible displays, with media up to 4K resolution, if you already have a display
  • Ubiquiti UC-Cast-Lite: a simpler signage player for HDMI displays with playback up to 1080p

Key features

See the UniFi Connect Display




Introducing: UniFi Connect (Video: Ubiquiti)

UC-Display
UC-Display
UC-Display

Ubiquiti UC-Display specifications

Overview

Dimensions538.3 x 330 x 37 mm / (21.2 x 13 x 1.5")

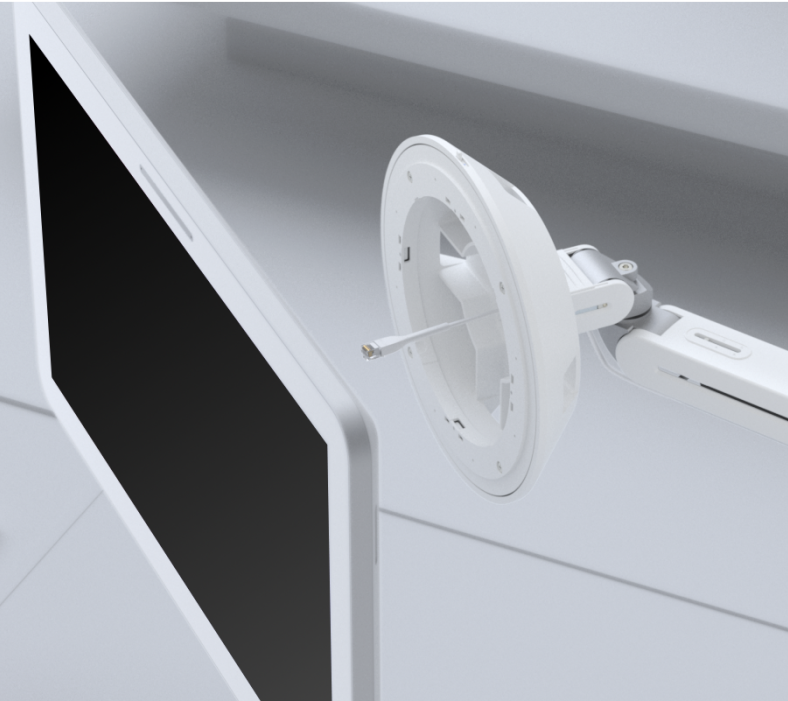

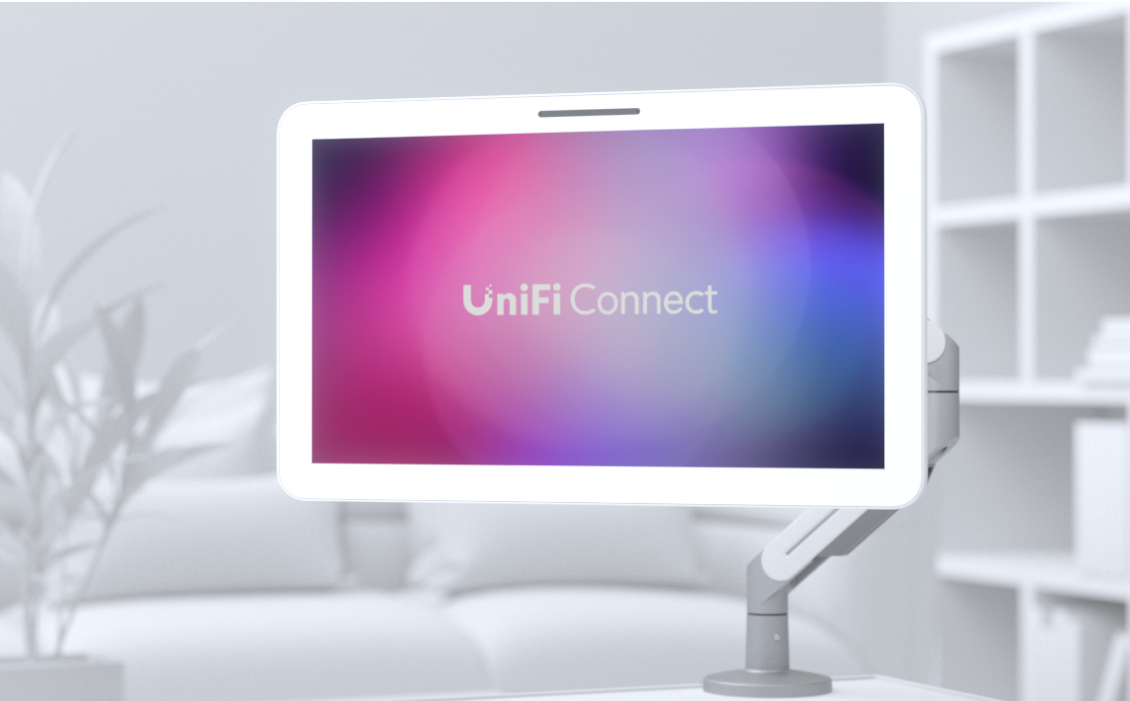

MountingVESA mount adapter (Included) / Table stand, surface, arm, flush mount (Optional)
Touch Screen TechnologyCapacitive multi-touch

Mechanical

Weight4.9 kg (10.8 lb)
Enclosure MaterialPolycarbonate, aluminum

Hardware

Size546 mm (21.5") diagonal
Brightness250 nits (Typical)
Resolution1920 x 1080 FHD (16:9)
ProcessorOcta-core ARM® Cortex®-A53 at 2.2 GHz
MemoryStorage: 32 GB / RAM: 3 GB
Power MethodPoE++
Max. Power Consumption27W
Connectivity(1) GbE RJ45 port / (1) USB-C port (Reserved feature for future function update) / Bluetooth® 4.2
Buttons(1) Factory Reset
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity20 to 90% noncondensing
CertificationsCE, FCC, IC

Software

UniFi Connect WebVersion 2.1.14 and later
UniFi Connect iOS™ and Android™Version 1.0.0 and later

Specifications from Ubiquiti's official product data for the UC-Display, checked October 2026.

The UniFi Connect Display in depth

Interactive signage on a 21.5" touchscreen

The Connect Display is a 21.5" Full HD touchscreen built for interactive digital signage. Its 546 mm diagonal panel runs at 1920 x 1080 FHD (16:9) with a typical brightness of 250 nits, and capacitive multi-touch technology handles input directly on the screen.

Single-cable PoE++ power and connectivity

The display is powered by PoE++ through its (1) GbE RJ45 port, with a maximum power consumption of 27W. It also includes Bluetooth 4.2 and a USB-C port, which is reserved for a future function update. An octa-core ARM Cortex-A53 processor at 2.2 GHz, 3 GB RAM and 32 GB storage run the unit.

Build and mounting

The enclosure is polycarbonate and aluminium, and the unit measures 538.3 x 330 x 37 mm and weighs 4.9 kg. A VESA mount adapter is included. A table stand, surface, arm and flush mount options are available separately. Operating range is 0 to 40° C at 20 to 90% noncondensing humidity.

Frequently asked questions

Straight answers about the UniFi Connect Display from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti UC-Display is the Connect Display, a 21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications. It uses capacitive multi-touch technology.

It is powered by PoE++ and has a maximum power consumption of 27W. It connects through a (1) GbE RJ45 port.

A VESA mount adapter is included. Table stand, surface, arm and flush mount options are listed as optional.

The screen is 546 mm (21.5") diagonal with 1920 x 1080 FHD (16:9) resolution and 250 nits typical brightness.

The ambient operating temperature is 0 to 40° C and the humidity range is 20 to 90% noncondensing.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UC-Display from Australian stock with the full manufacturer's warranty.

Related Ubiquiti products

Ubiquiti UC-Cast-Pro

Unifi Display Cast Pro

Ubiquiti UC-Cast-Lite

Unifi Display Cast Lite

Browse the full range: Ubiquiti products · Why buy Ubiquiti from ARC IP Networks

Buy the Ubiquiti UC-Display in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning an interactive signage deployment with the UC-Display?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
