Ubiquiti UA-G3-SK-Pro specifications
Overview
| In the Box | (1) Door Hub / (1) G3 Reader Pro / (1) G3 Reader / (2) Pocket Keyfobs |
|---|
| Touch Pass | 10 free 1-year Touch Passes included / Learn More |
|---|
Door Hub
| Dimensions | 174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3") |
|---|
| Supported Doors | 1 |
|---|
| Maximum User Count | 6,000 |
|---|
| Input Terminals | (2) Door exit request / (1) Door position / (1) Emergency |
|---|
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Weight | 363 g (12.8 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mount Material | Polycarbonate |
|---|
| Mounting | DIN-rail (Included) |
|---|
| Networking Interface | (5) 10/100/1000 Base-T |
|---|
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 45W aggregated) |
|---|
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
|---|
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
|---|
| Dry Output Relay | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
|---|
| Powered Output Relay | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A |
|---|
| LEDs | B/W Learn More |
|---|
| Button | (1) Factory reset |
|---|
| UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
|---|
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Other locks
(1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
|---|
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
|---|
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
|---|
G3 Reader
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
|---|
| Weatherproofing | IP55 |
|---|
| Weight | 82 g (2.9 oz) |
|---|
| Enclosure Material | Polycarbonate, glass |
|---|
| Mount Material | Aluminium alloy |
|---|
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
|---|
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|
| Connectivity | BLE 4.1 / NFC |
|---|
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Max. Power Consumption | 5W |
|---|
| Supported Voltage Range | 48V DC |
|---|
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
|---|
| Sensors | Proximity sensor |
|---|
| Speaker | (1) Yes, 0.7W |
|---|
| LEDs | R/G/B/W Learn More |
|---|
| Button | (1) Factory reset |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Read Range | < 30 mm (1.18'') |
|---|
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
|---|
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
|---|
| Ambient Operating Humidity | 5 to 90% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Document number, and issue date and/or revision level | UA-G3, V01 |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
|---|
Pocket Keyfob
| Dimensions | 84 x 39 x 7.4 mm / (3.3 x 1.5 x 0.29") |
|---|
| Weight | 16 g (0.56 oz) |
|---|
| Enclosure Material | Polycarbonate, stainless steel, silicone rubber |
|---|
| Weatherproofing | IP54 |
|---|
| Ambient Operating Humidity | 10 to 90% noncondensing |
|---|
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire EV3 4K / UniFi Access Proprietary Security Protocol |
|---|
| Certification | CE |
|---|
Specifications from Ubiquiti's official product data for the UA-G3-SK-Pro, checked October 2026.
The UniFi Access G3 Starter Kit Pro in depth

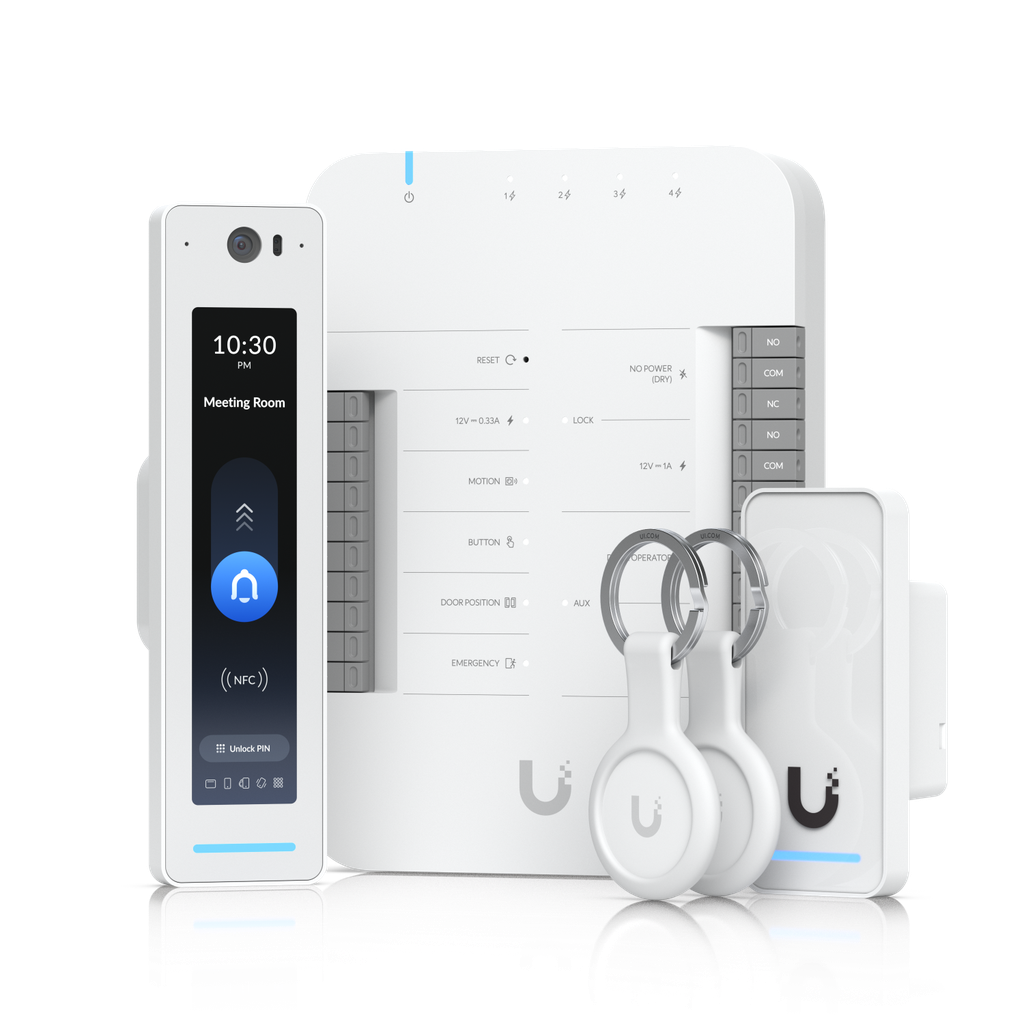

Complete entry and exit control for one door
The G3 Starter Kit Pro is built to manage a single door with a reader for entry and a reader for exit. The box contains one Door Hub, one G3 Reader Pro, one G3 Reader and two Pocket Keyfobs. It is managed through UniFi Access, and 10 free 1-year Touch Passes are included, giving you a way to start issuing credentials straight away.
Door Hub
The Door Hub supports 1 door and a maximum of 6,000 users. It offers (5) 10/100/1000 Base-T networking ports and a PoE++ input, along with (4) PoE outputs at 50V DC, 30W per port (max 45W aggregated). Input terminals cover door exit request, door position and emergency. Dry and powered output relays are provided for lock and auxiliary connections. The polycarbonate unit includes DIN-rail mounting.
G3 Reader Pro and G3 Reader
The G3 Reader Pro has a 120 mm (4.7") diagonal capacitive touch display in portrait orientation, a 2MP camera, a proximity sensor and a 1.5W speaker. The G3 Reader is the compact companion with a 0.7W speaker and proximity sensor. Both are rated IP55, support BLE and NFC at 13.56 MHz, and are powered over PoE. Both include gang-box mounting hardware.
Pocket Keyfobs
Two Pocket Keyfobs are supplied. Each weighs 16 g, uses NFC at 13.56 MHz with MIFARE DESFire EV3 4K, and has an IP54 rating. The enclosure combines polycarbonate, stainless steel and silicone rubber.
