Ubiquiti UA-G2-SK specifications
Overview
| In the Box | (1) Door Hub / (1) G2 Reader / (10) Access Cards |
|---|
Door Hub
| Dimensions | 174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3") |
|---|
| Supported Doors | 1 |
|---|
| Input Terminals | (2) Door exit request / (1) Door position / (1) Emergency |
|---|
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Weight | 363 g (12.8 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mount Material | Polycarbonate |
|---|
| Mounting | DIN-rail (Included) |
|---|
| Networking Interface | (5) 10/100/1000 Base-T |
|---|
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 45W aggregated) |
|---|
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
|---|
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
|---|
| Dry Output Relay | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
|---|
| Powered Output Relay | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A |
|---|
| LEDs | B/W Learn More |
|---|
| Button | (1) Factory reset |
|---|
| UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
|---|
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Other locks
(1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
|---|
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
|---|
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
|---|
G2 Reader
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
|---|
| Weatherproofing | IP55 |
|---|
| Weight | 82 g (2.9 oz) |
|---|
| Enclosure Material | Polycarbonate, glass |
|---|
| Mount Material | Aluminium alloy |
|---|
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
|---|
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|
| Connectivity | BLE 4.1 / NFC |
|---|
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Max. Power Consumption | 5W |
|---|
| Supported Voltage Range | 48V DC |
|---|
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
|---|
| Sensors | Proximity sensor |
|---|
| Speaker | (1) Yes, 0.7W |
|---|
| LEDs | R/G/B/W Learn More |
|---|
| Button | (1) Factory reset |
|---|
| NFC Read Range | < 30 mm (1.18'') |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
|---|
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
|---|
| Ambient Operating Humidity | 5 to 90% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
|---|
Access Card
| Dimensions | 85.6 x 53.98 x 0.84 mm / (3.37 x 2.13 x 0.03") |
|---|
| Weight | 5 g (0.18 oz) |
|---|
| Format | ISO 7810 ID-1 |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol |
|---|
Specifications from Ubiquiti's official product data for the UA-G2-SK, checked October 2026.

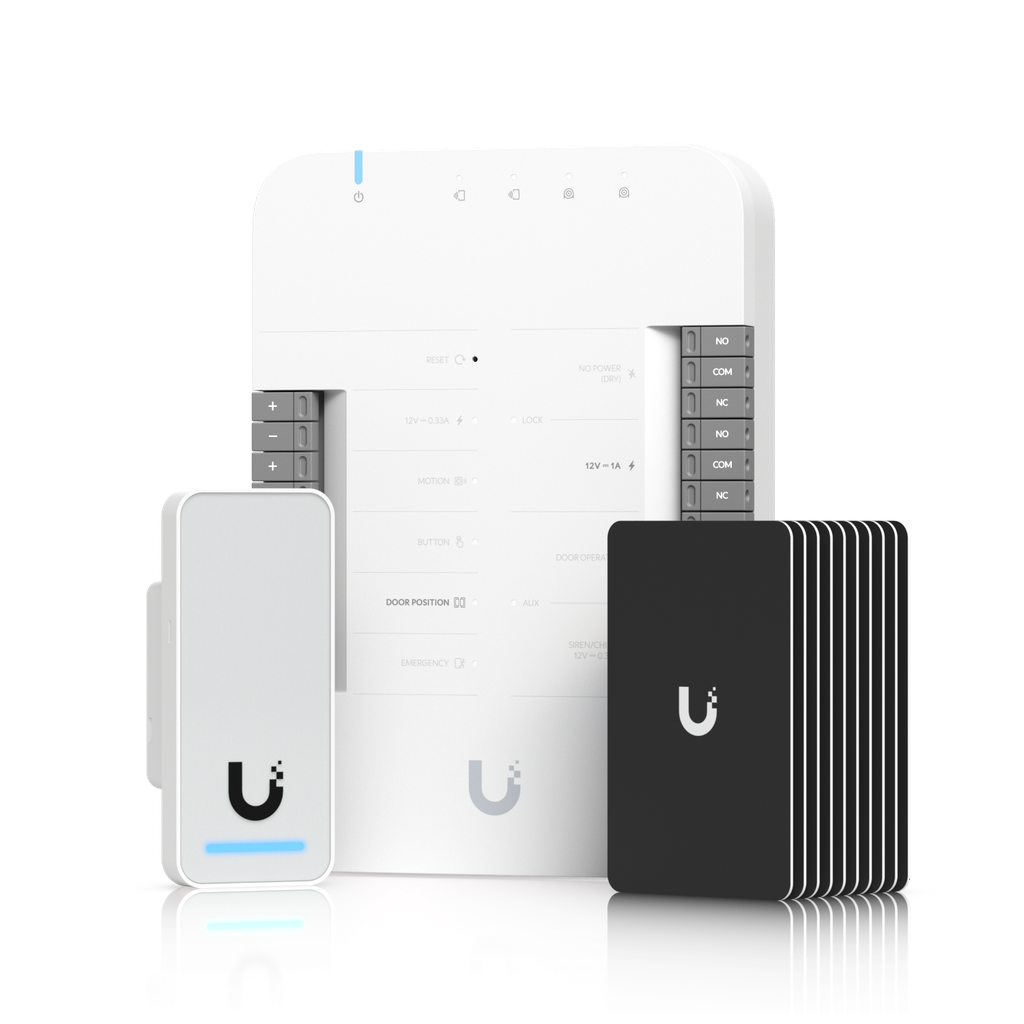

The UniFi Access G2 Starter Kit in depth
All-in-one kit for a single door
The Access G2 Starter Kit is a simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. It supports seamless setup for modern, secure access control. The box contains one Door Hub, one G2 Reader and ten Access Cards, and the system is managed through UniFi Access.
Door Hub
The Door Hub supports one door and measures 174.9 x 126 x 32.9 mm, weighing 363 g. It has a polycarbonate enclosure, includes DIN-rail mounting and provides five 10/100/1000 Base-T ports. It is powered by a PoE++ input at 50V DC, 1A, and offers four PoE outputs at 30W per port (max 45W aggregated). Input terminals cover door exit request, door position and emergency, and it has dry and powered output relays for the lock and auxiliary devices.
G2 Reader and Access Cards
The G2 Reader measures 93 x 40 x 36.5 mm, weighs 82 g and is rated IP55. It has a polycarbonate and glass enclosure, an aluminium alloy mount and a proximity sensor. It connects over BLE 4.1 and NFC, with an NFC read range of less than 30 mm at 13.56 MHz. It mounts in-wall with the included gang box, or on an optional junction box. The ISO 7810 ID-1 Access Cards measure 85.6 x 53.98 x 0.84 mm.
