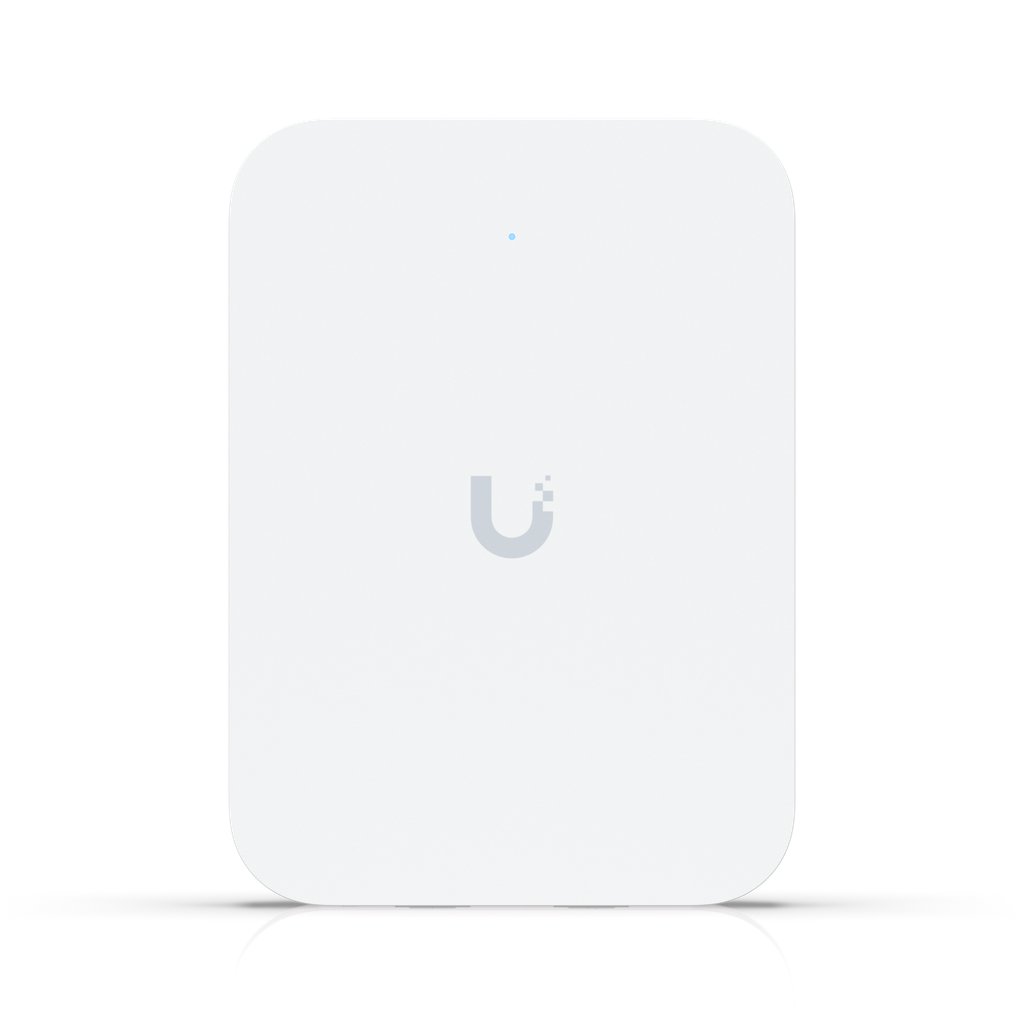

Ubiquiti U7-IW Unifi U7 In-Wall Mounted WiFi 7 AP - POE injector NOT included

https://arcip.com.au/web/image/product.template/3818/image_1920?unique=13c12ef
The Ubiquiti U7-IW is a WiFi 7 dual-band access point with 4 spatial streams, covering 115 m². Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

266.70 266.7 AUD 289.85 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • AP Features

This combination does not exist.

In stock online
WiFi 7 2.5GbE Indoor UniFi Access Point Ubiquiti MU-MIMO Dual-Band PoE+ Wall Mount
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
U7-IW
Barcode
810084698754
Tags
U7-IW
Ubiquiti UniFi Access Point U7 In-Wall — WiFi 7 Dual-Band Access Point and 2.5 GbE Uplink
U7-IW
U7-IW

Features

  • WiFi 7
  • 4 spatial streams
  • 115 m² coverage
  • 200+ connected devices
  • Powered using PoE/PoE+*
  • 2.5 GbE uplink
  • *PoE+ required for single-port PoE output.

Specifications

Overview
Dimensions137 x 98.7 x 30.2 mm
WiFi StandardWiFi 7
Spatial Streams4
Coverage Area115 m²
Max. Client Count200+
Uplink2.5 GbE
MountingWall / (Metal Wall Mount Included)
Power MethodPoE / PoE+ (Required for PoE output)
Performance
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz4.3 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
5 GHz8 dBi
2.4 GHz4 dBi
5 GHz24 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption13W (Excluding PoE output)
Supported Voltage Range42.5–57V DC
Networking Interface(3) 2.5 GbE RJ45 ports
Weight400 g (14.1 oz)
ManagementEthernet
Built-In Switch(1) PoE+ input and / (1) PoE output
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialAluminum alloy
SystemWhite/Blue
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
CertificationsCE, FCC, IC, SRRC, Anatel: 03909-25-08356
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 9.0.114 and later
Mobile AppiOS™ version 10.20.2 and later / Android™ version 10.21.7 and later

Professional Overview

The Ubiquiti U7-IW is a WiFi 7 dual-band access point with 4 spatial streams, designed for 115 m² coverage. Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

On 5 GHz, the U7-IW delivers 4.3 Gbps (BW240). On 2.4 GHz, the U7-IW delivers 688 Mbps (BW40). It supports up to 200 concurrent clients.

The U7-IW features a 2.5 GbE uplink and is powered via PoE / PoE+ (Required for PoE output). Mounting options include Wall / (Metal Wall Mount Included). It integrates seamlessly with the UniFi Network ecosystem for centralised management, zero-touch provisioning, and seamless roaming.

Weighing 400 g (14.1 oz) with dimensions of 137 x 98.7 x 30.2 mm, the U7-IW is built for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Access Points range — browse and compare the full range of WiFi 7 and WiFi 6 access points.

Ubiquiti U7-IW: WiFi 7 access point

The Access Point U7 In-Wall is a UniFi WiFi 7 access point with 4 spatial streams, a rated coverage area of 115 m² (1,250 ft²) and 200+ concurrent clients.

On the wired side the uplink is 2.5 GbE, it is powered by PoE PoE+ (Required for PoE output), and draws at most 13W (Excluding PoE output).

This is an indoor access point. It carries no ingress rating, so for a veranda, a carport, a warehouse dock or anywhere else exposed to weather, use a unit that is rated for it.

Radios and throughput

BandMIMOMax. throughputAntenna gainMax. TX power
5 GHz2 x 2 (DL/UL MU-MIMO)4.3 Gbps (BW240)8 dBi24 dBm
2.4 GHz2 x 2 (DL/UL MU-MIMO)688 Mbps (BW40)4 dBi23 dBm
Spatial streams4
WiFi standardWiFi 7
Channel bandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Max. BSSIDs8 per Radio

Supported data rates

802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

These are modulation-coding-scheme ceilings measured at the radio, not speeds a client will see. Real throughput depends on the client's own radio, the channel width you can actually use, distance and how much of the band your neighbours are already occupying. Our UniFi access point comparison puts the range side by side.

Uplink and power

Uplink2.5 GbE
Networking interface(3) 2.5 GbE RJ45 ports
Power methodPoE PoE+ (Required for PoE output)
Max. power consumption13W (Excluding PoE output)
Supported voltage range42.5–57V DC
ManagementEthernet

Power comes down the Ethernet run as PoE PoE+ (Required for PoE output), drawing up to 13W (Excluding PoE output). On a switch that shares one PoE budget across every port, add up the draw of every AP before you commit — the UniFi switch range lists the total availability for each model.

The 2.5 GbE uplink is there for a reason: a WiFi 7 radio can move more than a gigabit, and on a 1 GbE port the switch becomes the bottleneck before the radio does. It will negotiate down to 1 GbE and work, but you lose the headroom you paid for.

Who the U7-IW suits

  • Per-room coverage in hotels, apartments and student accommodation
  • Wall-box installs that need extra wired ports beside the AP
  • Retrofitting WiFi 7 where a ceiling AP cannot be cabled
  • Aged care and healthcare rooms where the AP must stay out of reach

Physical and mounting

Dimensions137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
Weight400 g (14.1 oz)
MountingWall (Metal Wall Mount Included)
Enclosure materialPolycarbonate, aluminum alloy
Mount materialAluminum alloy
Status LEDWhite/Blue
Operating temperature-30 to 40° C (-22 to 104° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, SRRC, Anatel: 03909-25-08356

The mounting hardware listed above is supplied in the box.

Rated for -30 to 40° C (-22 to 104° F). Worth checking against a roof space in an Australian summer, which routinely runs hotter than an occupied room.

Management and requirements

UniFi Network versionVersion 9.0.114 and later
Mobile appiOS™ version 10.20.2 and later Android™ version 10.21.7 and later
ManagementEthernet

Like every UniFi access point, the U7-IW is adopted and managed by a UniFi controller — a Cloud Gateway or Dream Machine, a Cloud Key, or UniFi hosting. The AP does not run the controller itself, and it is not a standalone router: it provides the WiFi, while routing, firewall and VLANs live on the gateway.

It requires UniFi Network 9.0.114 and later. An older controller will not adopt it until you update.

Frequently Asked Questions

What is the U7-IW?

The Access Point U7 In-Wall is a UniFi WiFi 7 access point with 4 spatial streams and a rated coverage area of 115 m² (1,250 ft²).

How many devices can the U7-IW handle?

Ubiquiti rates it at 200+ concurrent clients. That is a ceiling under favourable conditions, not a design target — for dense environments size on the number of devices actually active at once and add APs rather than pushing one to its limit.

What area does the U7-IW cover?

115 m² (1,250 ft²) is the published figure. Coverage in a real building depends on what the signal has to pass through: plasterboard costs little, double brick, foil-backed insulation and concrete cost a great deal.

How is the U7-IW powered?

PoE PoE+ (Required for PoE output) over the Ethernet run, drawing up to 13W (Excluding PoE output), within a supported voltage range of 42.5–57V DC.

What uplink speed does the U7-IW have?

2.5 GbE. It will negotiate down to 1 GbE, but on a multi-gigabit radio that makes the switch port the bottleneck.

Can the U7-IW be used outdoors?

No. It carries no ingress rating and is an indoor access point. For covered outdoor areas choose a weatherproof model.

How is the U7-IW mounted?

Wall (Metal Wall Mount Included).

Does the U7-IW need a UniFi controller?

Yes. UniFi access points are adopted and managed by a controller — a Cloud Gateway, Dream Machine, Cloud Key or UniFi hosting. The AP supplies the WiFi; routing, firewall and VLANs live on the gateway.

What UniFi Network version does it require?

UniFi Network 9.0.114 and later.

Is the U7-IW available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti U7-IW in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the U7-IW from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi access point range, plus cloud gateways, switches and the Protect camera range. New to UniFi? Start with the complete UniFi buying guide, or compare the APs directly in our access point comparison. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Wall
WiFi Standard WiFi 7 (802.11be)
Frequency Band Dual-Band (5 GHz / 2.4 GHz)
Max Throughput 4.3 Gbps (BW240) + 688 Mbps (BW40)
PoE Requirement PoE / PoE+ (Required for PoE output)
Max Clients 200
Coverage Area 115 m²
AP Features Mesh, Band Steering, MU-MIMO, 2.5 GbE Uplink
