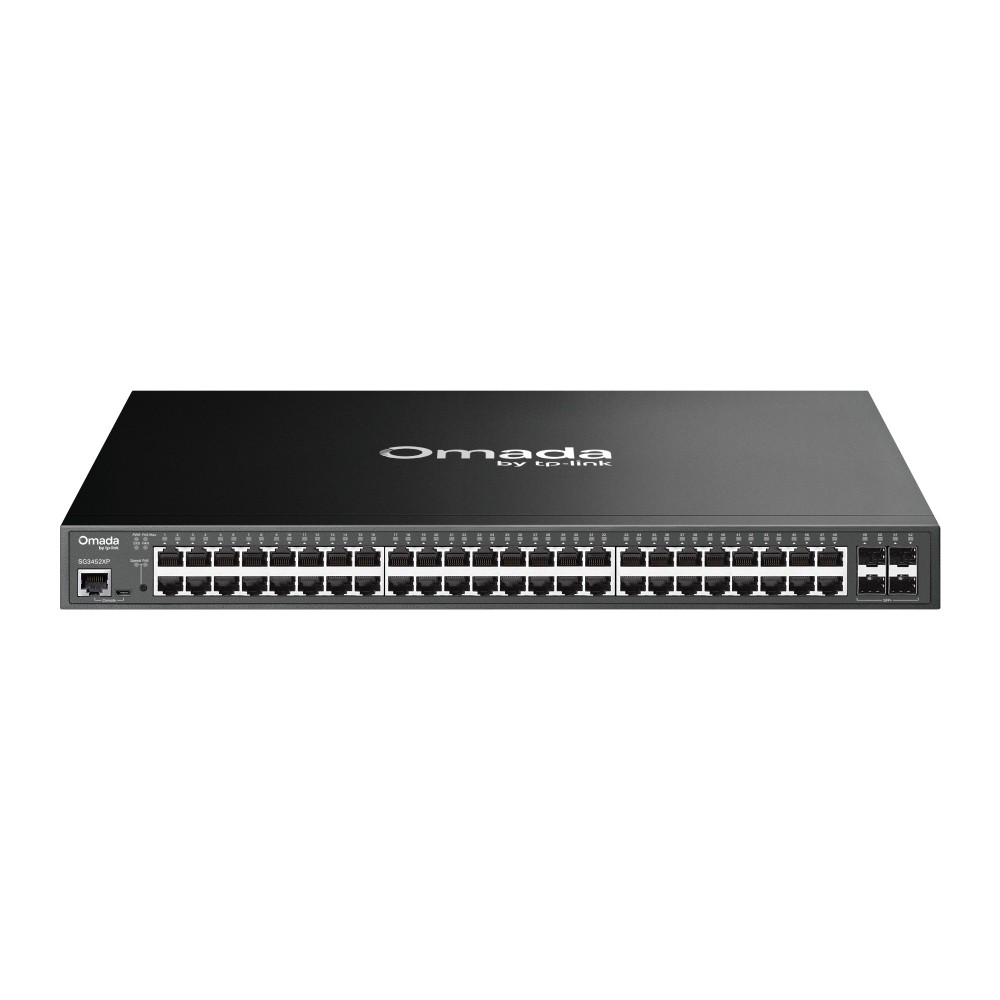

TP-Link SG3452XP Omada 48-Port Gigabit PoE+ L2+ Managed Switch with 4 10G SFP+ Slots

Price:

$ 2,007.32


TP-Link SG3452X Omada 48-Port Gigabit L2+ Managed Switch with 4 10G SFP+ Slots
TP-Link SG3452X Omada 48-Port Gigabit L2+ Managed Switch with 4 10G SFP+ Slots
$ 1,518.41
$ 1,518.41
TP-Link SG5428XF Omada 24-Port SFP Stackable Lite L3 Managed Switch with 4x 10G Slots
TP-Link SG5428XF Omada 24-Port SFP Stackable Lite L3 Managed Switch with 4x 10G Slots
$ 1,745.94
$ 1,745.94

TP-Link SG3452XP Omada 48-Port Gigabit PoE+ L2+ Managed Switch with 4 10G SFP+ Slots

https://arcip.com.au/web/image/product.template/9371/image_1920?unique=874d354

The TP-Link SG3452XP is an Omada Access Plus L2+ managed switch with 48 10/100/1000 Mbps PoE+ RJ45 ports (802.3at/af, up to 30 W per port, 500 W budget, Fast PoE, Perpetual PoE) and four 10G SFP+ slots, plus RJ45 and micro-USB console ports. It provides 176 Gbps switching, 130.9 Mpps forwarding, a 16K MAC table, 128 IP interfaces, 48 static routes, DHCP server, VLAN, ACL, 802.1X and QoS. Omada SDN or standalone management. Three fans, 440 x 330 x 44 mm rackmount.

$ 2,007.32 2007.32 AUD $ 2,007.32 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG3452XP
Barcode
1210002611657

The TP-Link SG3452XP is an Omada Access Plus 48-port gigabit and 4-port 10GE SFP+ switch with 48-port PoE+. Every RJ45 port is 802.3at/af PoE+ with up to 30 W, sharing a 500 W budget, with Fast PoE and Perpetual PoE. It offers 176 Gbps switching, 128 IP interfaces, 48 static routes, VLAN, ACL, 802.1X and QoS, managed through Omada SDN or standalone.

SG3452XP overview

The SG3452XP is TP-Link's Omada Access Plus 48-Port Gigabit and 4-Port 10GE SFP+ Switch with 48-Port PoE+, current AU hardware version V2.30. All forty-eight 10/100/1000 Mbps RJ45 ports are PoE+, compliant with 802.3at/af and delivering up to 30 W each, within a 500 W total PoE budget. Fast PoE and Perpetual PoE are supported. Four 10G SFP+ slots handle uplinks, and an RJ45 console port and a micro-USB console port provide out-of-band access; an RJ45 console cable is in the box.

Switching performance matches the non-PoE SG3452X: 176 Gbps switching capacity, a 130.9 Mpps forwarding rate, a 16K MAC table, a 12 Mbit buffer and 9 KB jumbo frames. L2+ features include 128 IPv4/IPv6 interfaces and 48 static routes, 128 static ARP entries out of 512, DHCP server, DHCP interface, VLAN and L2 relay, link aggregation, spanning tree and loopback detection, together with VLAN, ACL, 802.1X and QoS. Omada SDN management through a Cloud-Based, Hardware or Software Controller lets the SG3452XP be monitored and configured with the access points it powers, with the Omada app and zero-touch provisioning; it can also run standalone via web GUI, CLI, SNMP and RMON.

Power and cooling are scaled for 500 W of PoE. The switch has three fans and a deeper 440 x 330 x 44 mm chassis than the SG3452X, with an internal 100 to 240 V AC supply, a physical security lock and 6 kV surge protection. Maximum power consumption with 500 W of PDs connected is 618.4 W at 220 V/50 Hz (648.2 W at 110 V/60 Hz), and heat dissipation is up to 2102.56 BTU/hr at 220 V. Operating temperature is -5 to 45 °C. The package contains the switch, power cord, RJ45 console cable, quick installation guide, rackmount kit, rubber feet and screws.

Key features

48 PoE+ ports

All 48 gigabit RJ45 ports, 802.3at/af, up to 30 W each.

500 W PoE budget

With Fast PoE and Perpetual PoE.

4 x 10G SFP+

10 Gbps uplinks to aggregation or core.

176 Gbps switching

130.9 Mpps forwarding, 16K MAC table.

L2+ routing

128 IP interfaces and 48 static routes.

VLAN, ACL, 802.1X

Plus DHCP server, relay and QoS.

Omada SDN

Cloud, hardware or software controller and Omada app.

Three fans

440 x 330 x 44 mm rackmount, -5 to 45 °C.

SG3452XP specifications

At a glance

48 x gigabit PoE+
4 x 10G SFP+
500 W PoE budget
Fast / Perpetual PoE
176 Gbps switching
L2+ managed
Omada SDN
-5 to 45 °C operating
SG3452XP full specifications
Hardware Features
Interface48× 10/100/1000 Mbps RJ45 PoE+ Ports; 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity3
Physical Security Lock√
Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 48 Ports (up to 30 W PoE Output per Port); Power Budget: 500 W; Fast PoE; Perpetual PoE
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Surge Protection6 kV
MountingRack Mountable
Max. Power Consumption648.2 W (110 V/60 Hz @ 25 °C) (with 500 W PD connected); 618.4 W (220 V/50 Hz @ 25 °C) (with 500 W PD connected)
Max. Heat Dissipation2203.88 BTU/hr (110 V/60 Hz @ 25 C) (with 500 W PD connected); 2102.56 BTU/hr (220 V/50 Hz @ 25 °C) (with 500 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity176 Gbps
Packet Forwarding Rate130.9 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 1000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM; sFlow
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5–45 ℃ (23–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG3452XP Switch
  • Power Cord
  • RJ45 Console Cable
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
  • Screws

Source: TP-Link's published package contents.

Who the SG3452XP is for

Large AP and camera fleets

  • 48 PoE+ ports
  • 500 W budget
  • Perpetual PoE

10G-uplinked PoE access

  • Four SFP+ uplinks
  • 176 Gbps switching
  • Static routing

SG3452XP compared

The SG3452XP is the PoE+ version of the SG3452X: same 48 gigabit ports, four 10G SFP+ slots and 176 Gbps switching, with a 500 W PoE+ budget, three fans and a deeper chassis.

FeatureSG3452XPSG3452X
PoE48 x PoE+, 500 WNone
Fans3Fanless
Dimensions440 x 330 x 44 mm440 x 220 x 44 mm
Max power618.4 W with 500 W PDs (220 V)32.72 W (110 V)
Console cable includedYes (RJ45)Not listed

Source: TP-Link Australia product pages for each model.

Buy the SG3452XP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG3452XP from the ARC IP Networks team.

Last reviewed October 2026.

All 48 RJ45 ports are 802.3at/af PoE+, up to 30 W each.

500 W in total.

Yes, Fast PoE and Perpetual PoE are listed.

Four 10G SFP+ slots.

It is L2+, with 128 IP interfaces and 48 static routes.

Yes, with the Omada Cloud-Based, Hardware or Software Controller and the Omada app.

Yes, three.

618.4 W at 220 V/50 Hz with 500 W of PDs connected.

The switch, power cord, RJ45 console cable, quick installation guide, rackmount kit, rubber feet and screws.

Need more than one SG3452XP for a high-density PoE access network?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
