TP-Link SG3452X Omada 48-Port Gigabit L2+ Managed Switch with 4 10G SFP+ Slots

Price:

$ 1,518.41


TP-Link SG3452 Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link SG3452 Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
$ 1,074.99
$ 1,074.99
TP-Link SG3452XP Omada 48-Port Gigabit PoE+ L2+ Managed Switch with 4 10G SFP+ Slots
TP-Link SG3452XP Omada 48-Port Gigabit PoE+ L2+ Managed Switch with 4 10G SFP+ Slots
$ 2,007.32
$ 2,007.32

TP-Link SG3452X Omada 48-Port Gigabit L2+ Managed Switch with 4 10G SFP+ Slots

https://arcip.com.au/web/image/product.template/9370/image_1920?unique=874d354

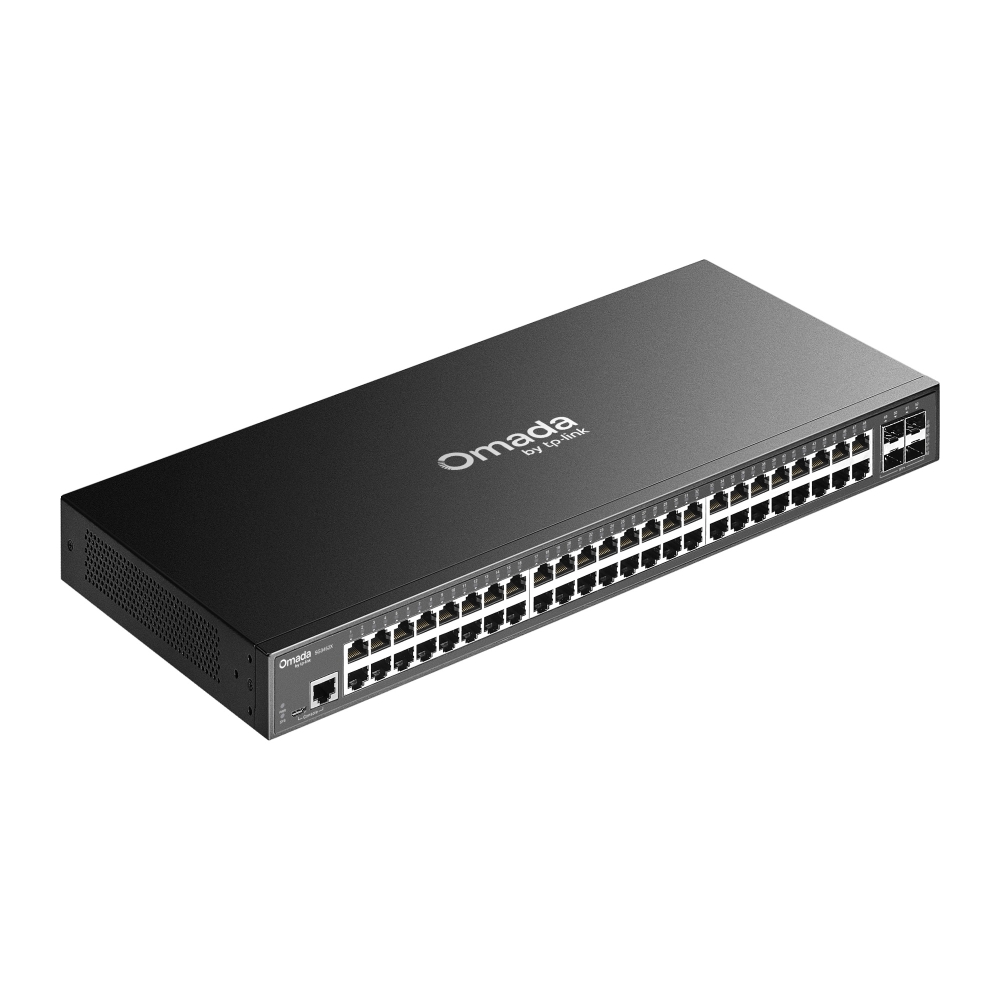

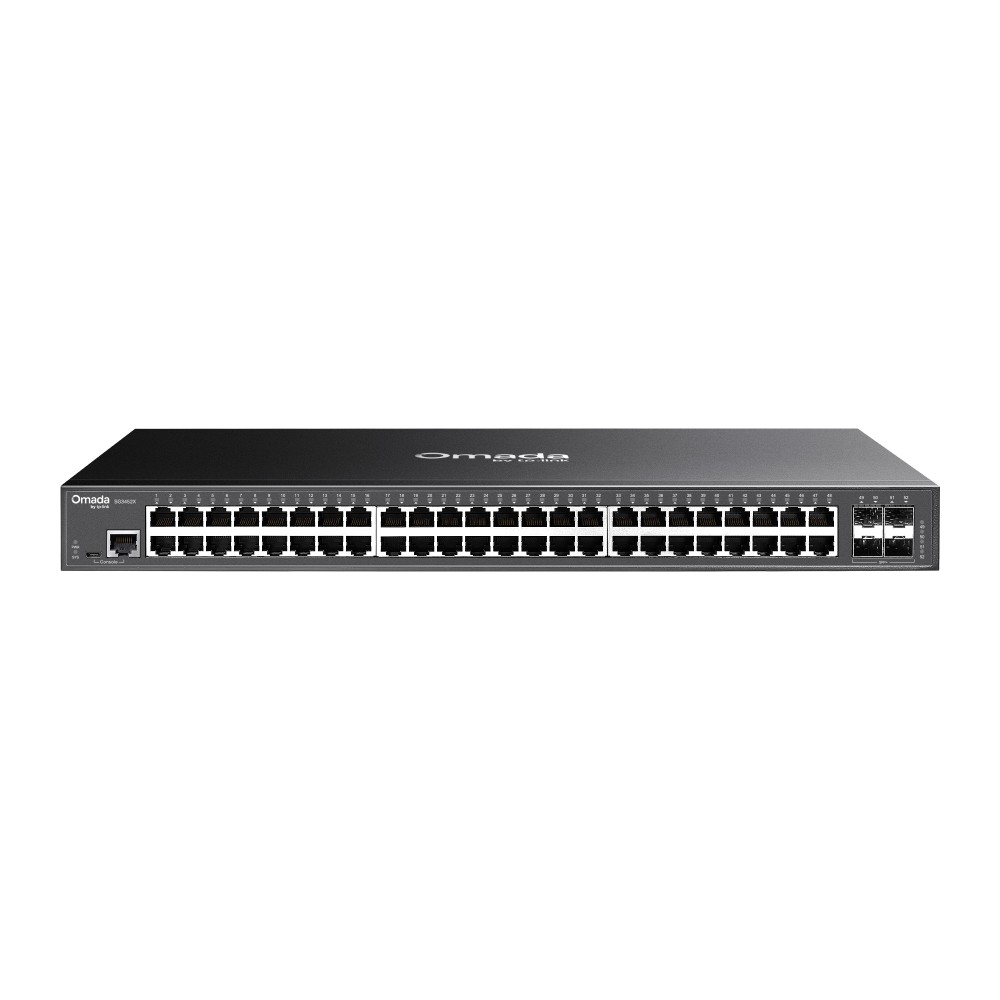

The TP-Link SG3452X is an Omada Access Plus 48-port gigabit L2+ managed switch with 48 10/100/1000 Mbps RJ45 ports, four 10G SFP+ slots, an RJ45 console port and a micro-USB console port. It provides 176 Gbps switching, 130.94 Mpps forwarding, a 16K MAC table and a 12 Mbit buffer, with 128 IP interfaces, 48 static routes, DHCP server, link aggregation, spanning tree, VLAN, ACL, 802.1X and QoS. Omada SDN cloud management or standalone web, CLI, SNMP and RMON. Fanless, 440 x 220 x 44 mm rackmount.

$ 1,518.41 1518.41 AUD $ 1,518.41 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG3452X
Barcode
1210002611633

The TP-Link SG3452X is an Omada Access Plus 48-port gigabit L2+ managed switch with 4 10G SFP+ slots. Forty-eight 10/100/1000 Mbps RJ45 ports and four 10G SFP+ uplinks give 176 Gbps switching capacity and 130.94 Mpps forwarding. It supports 128 IP interfaces, 48 static routes, DHCP server, VLAN, ACL, 802.1X and QoS, managed through Omada SDN or standalone, and it is fanless.

SG3452X overview

The SG3452X is TP-Link's Omada Access Plus 48-Port Gigabit Switch with 4x 10G SFP+ Slots, current AU hardware version V1.30. It combines forty-eight 10/100/1000 Mbps RJ45 ports with four 10G SFP+ slots, plus an RJ45 console port and a micro-USB console port, so a full floor of wired users can be aggregated onto 10G uplinks. The RJ45 ports are non-PoE; the SG3452XP is the 48-port PoE+ version.

Performance figures are 176 Gbps switching capacity, a 130.94 Mpps forwarding rate, a 16K MAC table, a 12 Mbit buffer and 9 KB jumbo frames. L2+ features include 128 IPv4/IPv6 interfaces and 48 static routes, 128 static ARP entries out of 512, proxy and gratuitous ARP, DHCP server, DHCP interface, VLAN and L2 relay, link aggregation, spanning tree and loopback detection, together with VLAN, ACL, 802.1X and QoS. In an Omada SDN deployment, the SG3452X is configured and monitored from the Cloud-Based, Hardware or Software Controller with intelligent network monitoring and unified configuration; standalone, the web GUI, CLI, SNMP and RMON remain available.

The SG3452X is fanless, with an internal 100 to 240 V AC supply, a physical security lock and 6 kV surge protection. Its 440 x 220 x 44 mm chassis is rack mountable, and the rackmount kit, rubber feet, power cord and quick installation guide are included. Maximum power consumption is 32.72 W at 110 V/60 Hz. Operating temperature is -5 to 45 °C. SFP+ transceivers or DAC cables are not included.

Key features

48 gigabit ports

Forty-eight 10/100/1000 Mbps RJ45 ports, non-PoE.

4 x 10G SFP+

10 Gbps uplinks to aggregation or core.

176 Gbps switching

130.94 Mpps forwarding, 16K MAC table.

L2+ routing

128 IP interfaces and 48 static routes.

VLAN, ACL, 802.1X

Plus DHCP server, relay and QoS.

Omada SDN

Cloud, hardware or software controller and Omada app.

Console ports

RJ45 and micro-USB.

Fanless rackmount

440 x 220 x 44 mm, 32.72 W maximum.

SG3452X specifications

At a glance

48 x gigabit RJ45
4 x 10G SFP+
176 Gbps switching
L2+ managed
128 IP interfaces
Omada SDN
Fanless
-5 to 45 °C operating
SG3452X full specifications
Hardware Features
Interface48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX); 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan QuantityFanless
Physical Security Lock√
Power Supply100-240 V AC~50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Surge Protection6 kV
MountingRack Mountable
Max. Power Consumption32.72 W (110V/60Hz)
Max. Heat Dissipation111.65 BTU/h (110 V/60 Hz)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity176 Gbps
Packet Forwarding Rate130.94 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 1000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM; sFlow
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL apply to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5–45 ℃ (23–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG3452X Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the SG3452X is for

High-density 10G-uplinked access

  • 48 gigabit ports
  • Four 10G SFP+
  • 176 Gbps switching

Omada campus floors

  • Cloud management
  • Static routing
  • Fanless 1U

SG3452X compared

The SG3452X and SG3452XP share 48 gigabit ports, four 10G SFP+ uplinks and 176 Gbps switching. The SG3452XP adds PoE+ on all 48 ports with a 500 W budget.

FeatureSG3452XSG3452XP
PoENone48 x PoE+, 500 W
FansFanless3
Dimensions440 x 220 x 44 mm440 x 330 x 44 mm
Max power32.72 W (110 V)618.4 W with 500 W PDs (220 V)
Switching capacity176 Gbps176 Gbps

Source: TP-Link Australia product pages for each model.

Buy the SG3452X from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG3452X from the ARC IP Networks team.

Last reviewed October 2026.

No. For PoE+ on 48 ports, see the SG3452XP.

Four 10G SFP+ slots.

176 Gbps, with a 130.94 Mpps forwarding rate.

It is L2+, with 128 IP interfaces and 48 static routes.

Yes, with the Omada Cloud-Based, Hardware or Software Controller and the Omada app.

Yes.

No. The box contains the switch, power cord, quick installation guide, rackmount kit and rubber feet.

-5 to 45 °C.

A maximum of 32.72 W at 110 V/60 Hz.

Need more than one SG3452X for a 48-port 10G-uplinked network?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
