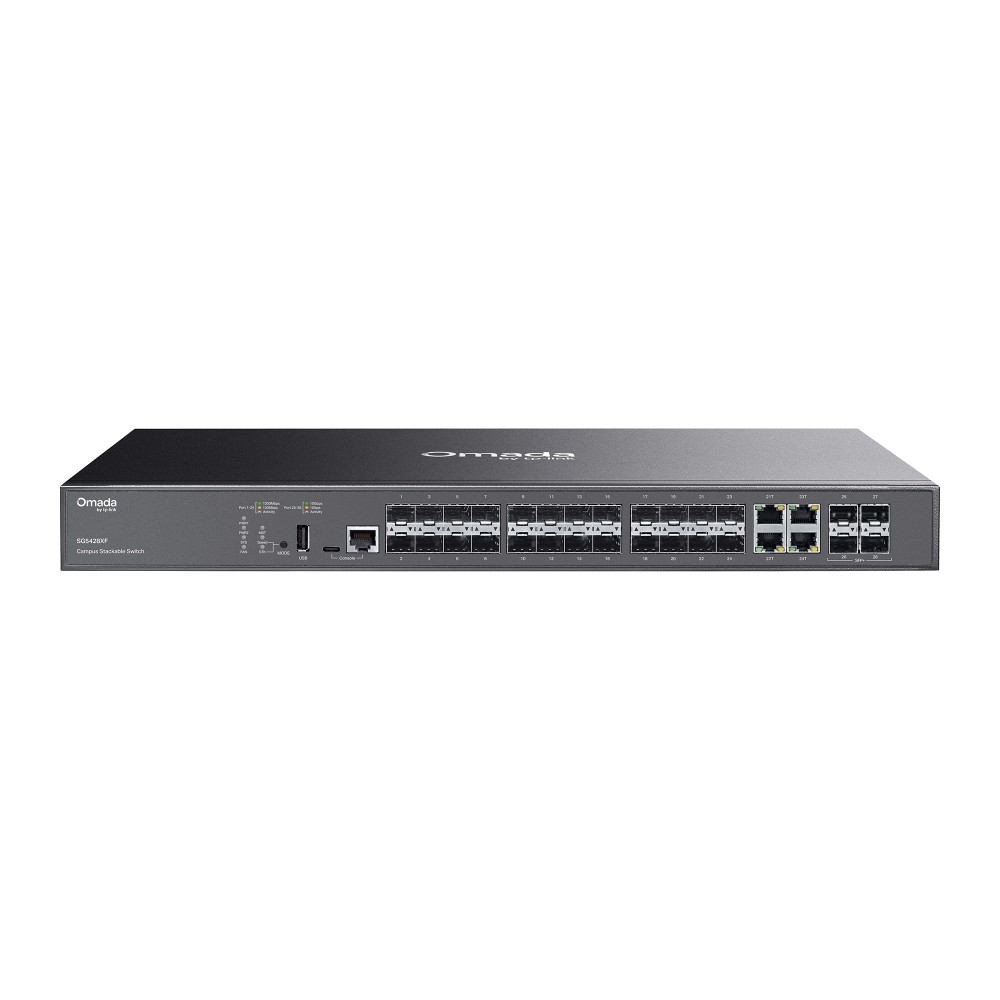

TP-Link SG5428XF Omada 24-Port SFP Stackable Lite L3 Managed Switch with 4x 10G Slots

https://arcip.com.au/web/image/product.template/9373/image_1920?unique=874d354

The TP-Link SG5428XF is an Omada Campus Lite L3 aggregation switch with 20 100/1000 Mbps SFP slots, 4 gigabit RJ45/SFP combo ports, 4 1/10 Gbps SFP+ slots, a USB 2.0 port and RJ45 and USB Type-C console ports. Up to 4 switches stack over the SFP+ ports (up to 80 Gbps stacking bandwidth). L3 features include static routing, RIP, OSPF v2/v3, DHCP server and relay; ERPS, ACL, Dynamic ARP Inspection, 802.1X and MAB add resilience and security. 128 Gbps per unit, one fan, 440 x 220 x 44 mm, Omada SDN or standalone.

$ 1,745.94 1745.94 AUD $ 1,745.94 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG5428XF
Barcode
1210002602389

The TP-Link SG5428XF is an Omada Campus 24-port SFP stackable Lite L3 managed switch with 4x 10G slots, designed for the aggregation layer. It has 20 gigabit SFP slots, 4 gigabit RJ45/SFP combo ports and 4 1/10 Gbps SFP+ slots, physical stacking of up to 4 switches, 128 Gbps switching per unit, and L3 routing with static routes, RIP and OSPF, plus ERPS, ACL, 802.1X and Omada SDN management.

SG5428XF overview

The SG5428XF is TP-Link's Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4x 10G Slots, hardware version V1. TP-Link describes it as a dependable entry-level L3 switch tailored for the aggregation layer, which is why almost every port is fibre: 20 100/1000 Mbps SFP slots, 4 gigabit RJ45/SFP combo ports and 4 1/10 Gbps SFP+ slots. It also has a USB 2.0 port, an RJ45 console port and a USB Type-C console port.

Stacking is built in. Up to 4 switches can be physically stacked, using the 10G SFP+ slots as stacking ports (all uplink ports can be used for stacking), with up to 80 Gbps of stacking bandwidth across 4 stacking ports. TP-Link says this adds built-in redundancy and performance. Each unit delivers 128 Gbps switching capacity, a 95.23 Mpps forwarding rate, a 16K MAC table, a 12 Mbit buffer and 9 KB jumbo frames.

The Lite L3 feature set includes up to 128 IPv4 and 128 IPv6 interfaces, up to 512 IPv4 and 128 IPv6 static routes, RIP v1/v2 and RIPng, OSPF v2/v3, proxy ARP, and a DHCP server with up to 64 IP pools, plus DHCP relay. For availability it supports ERPS (Ethernet Ring Protection Switching) for rapid recovery in ring topologies, as well as link aggregation and spanning tree, and L2 extras such as RSPAN, IGMP and MLD snooping and MVR. Security functions include IPv4 and IPv6 ACLs, Dynamic ARP Inspection, IEEE 802.1X, MAB, port security and Secure Shell.

In an Omada SDN network the SG5428XF is managed from an Omada Cloud-Based Controller (5.15.22 or later) or Hardware/Software Controller (5.15.20 or later), with centralised cloud management and zero-touch provisioning; it can also be managed standalone. It has one fan, an internal 100 to 240 V AC supply and a 440 x 220 x 44 mm rackmount chassis, drawing a maximum of 28.3 W at 220 V/50 Hz. Operating temperature is -5 to 45 °C. The box contains the switch, power cords, a console cable, rackmount kits, rubber feet and a quick installation guide; SFP and SFP+ modules are not included.

Key features

20 gigabit SFP slots

Plus 4 gigabit RJ45/SFP combo ports.

4 x 10G SFP+

1/10 Gbps uplinks, also usable as stacking ports.

Stack up to 4 switches

Up to 80 Gbps stacking bandwidth.

Lite L3 routing

Static routes, RIP, OSPF v2/v3, DHCP server and relay.

ERPS

Rapid protection and recovery in ring topologies.

Security

IPv4/IPv6 ACL, Dynamic ARP Inspection, 802.1X, MAB, SSH.

128 Gbps per unit

95.23 Mpps forwarding, 16K MAC table.

Omada SDN

Cloud management with zero-touch provisioning.

SG5428XF specifications

At a glance

20 x gigabit SFP
4 x combo RJ45/SFP
4 x 10G SFP+
Stacking (4 switches)
Lite L3: OSPF, RIP
ERPS
Omada SDN
-5 to 45 °C operating
SG5428XF full specifications
Hardware Features
Interface20× 100/1000 Mbps SFP Slots; 4× Gigabit RJ45/SFP Combo Ports; 4× 1/10 Gbps SFP+ Slots; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console Port
Fan Quantity1 Fan
Power Supply100-240 V~50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRackmountable
Max. Power Consumption28.3 W (220V/50Hz @ 25 °C); 28.98 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation96.503 BTU/hr (220V/50Hz @ 25 °C); 98.822 BTU/hr (110V/60Hz @ 25 °C)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
StackingStacking Number: 4; Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports); Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Switching Capacity128 Gbps per Unit
Packet Forwarding Rate95.23 Mpps
MAC Address Table16 K
Software Features
Quality of ServiceClass of Service; 8 Queues of Priority; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR); Bandwidth Control; Rate Limit; Storm Control; Voice VLAN; User-Defined OUI; Smoother Performance; Action for Flows; QoS remark (802.1P Remark, DSCP Remark)
L3 FeaturesIP Interfaces:; IPv4: Max 128, IPv6: Max 128; ARP; Static Entries 512; Dynamic Entries 3,600; ND Dynamic Entries 3,600; Static Route; IPv4: Max 512, IPv6: Max 128; Host Route; IPv4: Max 1,024, IPv6: Max 890; Network Route; IPv4: Max 1,796, IPv6: Max 450; RIP: Version v1/v2; RIPng; OSPF: Version V2/V3; Proxy ARP; DHCP Server:; Max 64 IP Pools; Max 8,000 Leases; Max 1,000 Manual Binding Entries; DHCP Relay:; Relayed Interface; Relayed VLAN
L2 and L2+ FeaturesLink Aggregation; Spanning Tree Protocol; Port-based and VLAN-based Loopback Detection; 802.3x Flow Control; ERPS; Mirroring; RSPAN; MAC Address Table; Multicast; IGMP Snooping; MLD Snooping; L2 Multicast Table: Max 2,000; Fast Leave; Multicast VLAN Registration (MVR); Static Multicast Groups; Multicast Filtering
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); DDM; sFlow
VLANMax 4K VLAN Group (802.1q VLAN); 802.1Q Tagged VLAN; MAC VLAN Entries: 60; Multicast VLAN; Management VLAN; VLAN VPN (QinQ): Max 256 entries; GVRP; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; Voice VLAN; Private VLAN
SecurityPort Isolation; CPU-Defend; ARP Inspection (Dynamic ARP Inspection); DoS Defend; IP-MAC-Port Binding -1,024 Entries; DHCP Snooping; ARP Scanning; ARP Detection; IPv4 Source Guard; IPv6-MAC-Port Binding -1,024 Entries; DHCPv6 Snooping; ND Snooping; ND Detection; IPv6 Source Guard; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unknown-unicast Storm Control; kbps/ratio control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; RADIUS authentication and accountability support; AAA (including TACACS+); Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv2; IP/Port/MAC-based access control
Management Features
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az Energy Efficient Ethernet (EEE)
Others
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5 °C to 45 °C (23 °F to 113 °F); Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG5428XF Switch
  • Power Cords
  • Console Cable
  • Rackmount Kits
  • Rubber Feet
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the SG5428XF is for

Fibre aggregation

  • Collect fibre from access switches
  • 10G SFP+ to the core
  • ERPS ring protection

Resilient campus networks

  • Stack up to 4 switches
  • OSPF and RIP routing
  • Link aggregation

SG5428XF compared

The SG5428XF and SG5428XMPP are Omada Campus Lite L3 switches with the same stacking, 4x 10G SFP+ and 128 Gbps per unit. The SG5428XF is all-fibre for aggregation; the SG5428XMPP is a copper PoE++ access switch.

FeatureSG5428XFSG5428XMPP
Access ports20 x SFP + 4 x combo24 x RJ45 (8 PoE++, 16 PoE+)
PoENone500 W
Fans13
Dimensions440 x 220 x 44 mm440 x 330 x 44 mm
Role (per TP-Link)Aggregation layerAccess layer

Source: TP-Link Australia product pages for each model.

Buy the SG5428XF from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG5428XF from the ARC IP Networks team.

Last reviewed October 2026.

20 gigabit SFP slots, 4 gigabit RJ45/SFP combo ports, 4 1/10 Gbps SFP+ slots, a USB 2.0 port and RJ45 and USB Type-C console ports.

It is a Lite L3 switch, with static routing, RIP, OSPF v2/v3, DHCP server and DHCP relay.

Up to 4, using the 10G SFP+ slots, with up to 80 Gbps of stacking bandwidth.

TP-Link positions it as an entry-level L3 switch for the aggregation layer.

Yes, ERPS (Ethernet Ring Protection Switching).

Yes, via Omada Cloud-Based Controller 5.15.22 or later, or Hardware/Software Controller 5.15.20 or later.

No. The box contains the switch, power cords, a console cable, rackmount kits, rubber feet and a quick installation guide.

No.

A maximum of 28.3 W at 220 V/50 Hz.
