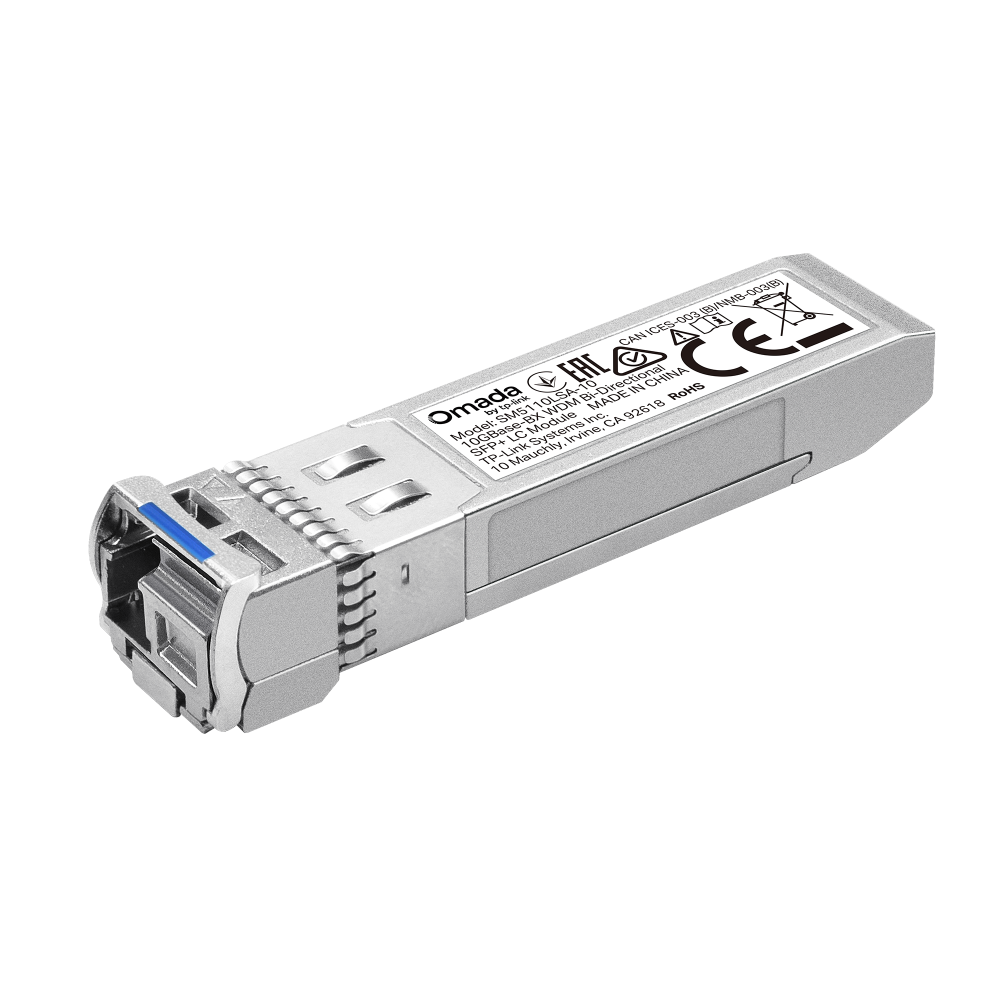

TP-Link SM5110LSA-10 Omada 10GBASE-BX Wdm Bi-Directional SFP+ LC Module

https://arcip.com.au/web/image/product.template/8186/image_1920?unique=73ac110
TP-Link SM5110LSA-10 Omada 10GBASE-BX Wdm Bi-Directional SFP+ LC Module. Australian stock from ARC IP Networks with AU warranty and local technical support.

$ 74.39 74.39 AUD $ 74.39 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM5110LSA-10
Barcode
8885020622928
Tags

The TP-Link SM5110LSA-10 is an Omada 10GBase-BX WDM bi-directional SFP+ LC module for single-mode fibre: up to 10 km at a 10.3125 Gbps data rate, transmitting at 1330 nm and receiving at 1270 nm. It supports DDM, is hot-swappable and SFP+ MSA compatible, and TP-Link pairs it with the SM5110LSB-10 for the other end of the link.

SM5110LSA-10 overview

The SM5110LSA-10 is designed to extend transmission distance up to 10 km at a maximum rate of 10 Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which TP-Link describes as cost-saving, and its datasheet highlights WDM bi-directional technology using a single strand of fibre. The module follows IEEE 802.3ae and 10GBase-BR, along with the SFF-8431, SFF-8432 and SFF-8472 specifications, and its supported data rate is 10.3125 Gbps over 9/125 µm single-mode fibre (SMF) with an LC/UPC interface.

A bi-directional link uses different wavelengths in each direction. The SM5110LSA-10 transmits at 1330 nm and receives at 1270 nm. TP-Link's datasheet note is explicit about the partner module: use the SM5110LSA-10 and SM5110LSB-10 together for fast and reliable connectivity. Plan one of each for the two ends of every link. The optics are a DFB transmitter and a PIN-TIA receiver; TP-Link lists transmitter power of -8.2 to 0.5 dBm, receiver sensitivity better than -14.4 dBm, receiver overload above 0.5 dBm and an extinction ratio above 3.5 dB, all at 10.3125 Gbps.

On the host side, the SM5110LSA-10 is compatible with the 10G Small Form Pluggable Multi-Source Agreement (SFP+), and TP-Link names switches with 10G ports such as the SG3428X and SG3452X as compatible. It supports Digital Diagnostic Monitoring (DDM) and is hot-swappable, which the datasheet describes as hot-pluggable with maximum flexibility. The module runs from a 3.3 V supply with power consumption of 1 W or less, and carries CE, FCC and RoHS regulatory compliance.

TP-Link rates the SM5110LSA-10 for operation from 0 °C to 70 °C and storage from -40 °C to 85 °C, with operating humidity of 10% to 90% RH and storage humidity of 5% to 90% RH, non-condensing. It measures 57 x 14 x 12.0 mm (2.24 x 0.55 x 0.47 in) in the SFP+ form factor. The package contains the SM5110LSA-10 and an installation guide. Key figures to check when specifying it are 10GBase-BX, 9/125 µm single-mode fibre, up to 10 km, TX 1330 nm / RX 1270 nm, and an SM5110LSB-10 at the far end. ARC IP Networks supplies the SM5110LSA-10 from Australian stock with the full manufacturer's warranty.

Key features

10GBase-BX bi-directional

A single-mode SFP+ transceiver supporting bi-directional data transmission, which TP-Link calls cost-saving.

Up to 10 km at 10 Gbps

Extends transmission distance up to 10 km at a 10.3125 Gbps data rate.

TX 1330 nm / RX 1270 nm

Use together with the SM5110LSB-10 at the other end, as TP-Link's datasheet advises.

9/125 µm single-mode fibre

Designed for single-mode fibre (SMF) with a 9/125 µm core.

Digital Diagnostic Monitoring

DDM support, with SFF-8472 among its listed specifications.

Hot-swappable SFP+

Hot-pluggable and compatible with the 10G SFP+ Multi-Source Agreement.

Works with 10G Omada switches

TP-Link names switches with 10G ports such as the SG3428X and SG3452X.

1 W or less

Power consumption of 1 W or less from a 3.3 V supply.

CE, FCC and RoHS

Regulatory compliance with CE, FCC and RoHS; rated for 0 °C to 70 °C operation.

SM5110LSA-10 specifications

At a glance

10GBase-BX
WDM bi-directional
Up to 10 km
10.3125 Gbps
TX 1330 / RX 1270 nm
9/125 µm single-mode
DDM
Hot-swappable
SM5110LSA-10 full specifications
Transceiver
Standards and ProtocolsIEEE 802.3ae; SFF 8431, SFF 8432, SFF-8472
Wave LengthTX: 1330nm; RX: 1270nm
Power Supply3.3V
Fibre Type9μm/125μm Single-Mode
Max. Cable Length10km
Data Rate10.3125 Gbps
ConnectorLC Duplex
Regulatory ComplianceCE, FCC, RoHS
EnvironmentOperating Temperature: 0°C to 70°C (32–158 ℉); Storage Temperature: -40°C to 85°C (-40°F to 185°F); Operating Humidity: 10% to 90% RH non-condensing; Storage Humidity: 5% to 90% RH non-condensing
Hardware Features
DDMYes
Hot SwappableYes
Dimensions ( W x D x H )2.24 0.55 0.47 in (57 14 12.0 mm)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM5110LSA-10
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM5110LSA-10 is for

10G single-mode links

  • Up to 10 km at 10 Gbps
  • Bi-directional transmission
  • Pair with an SM5110LSB-10

10G SFP+ switch ports

  • SG3428X and SG3452X named as compatible
  • SFP+ MSA compatible
  • Hot-swappable with DDM

Buy the SM5110LSA-10 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM5110LSA-10 from the ARC IP Networks team.

Last reviewed October 2026.

An Omada 10GBase-BX WDM bi-directional SFP+ module for single-mode fibre, extending transmission distance up to 10 km at a maximum rate of 10 Gbps.

The SM5110LSB-10. TP-Link's datasheet advises using the SM5110LSA-10 and SM5110LSB-10 together for fast and reliable connectivity.

It transmits at 1330 nm and receives at 1270 nm.

Up to 10 km over 9/125 µm single-mode fibre.

10.3125 Gbps, following IEEE 802.3ae and 10GBase-BR.

TP-Link names switches with 10G ports such as the SG3428X and SG3452X, and the module is compatible with the 10G SFP+ Multi-Source Agreement.

Yes. It supports Digital Diagnostic Monitoring and is hot-swappable.

1 W or less, from a 3.3 V supply.

Operation from 0 °C to 70 °C and storage from -40 °C to 85 °C, non-condensing.

The SM5110LSA-10 module and an installation guide.

Need more than one SM5110LSA-10 for a 10G fibre link project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
