TP-Link S5500-48GP4F Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots

Price:

$ 5,832.94


TP-Link S5500-24GP4F Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link S5500-24GP4F Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots
$ 3,061.60
$ 3,061.60
TP-Link S5500-48GP4XF Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots
TP-Link S5500-48GP4XF Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots
$ 8,312.56
$ 8,312.56

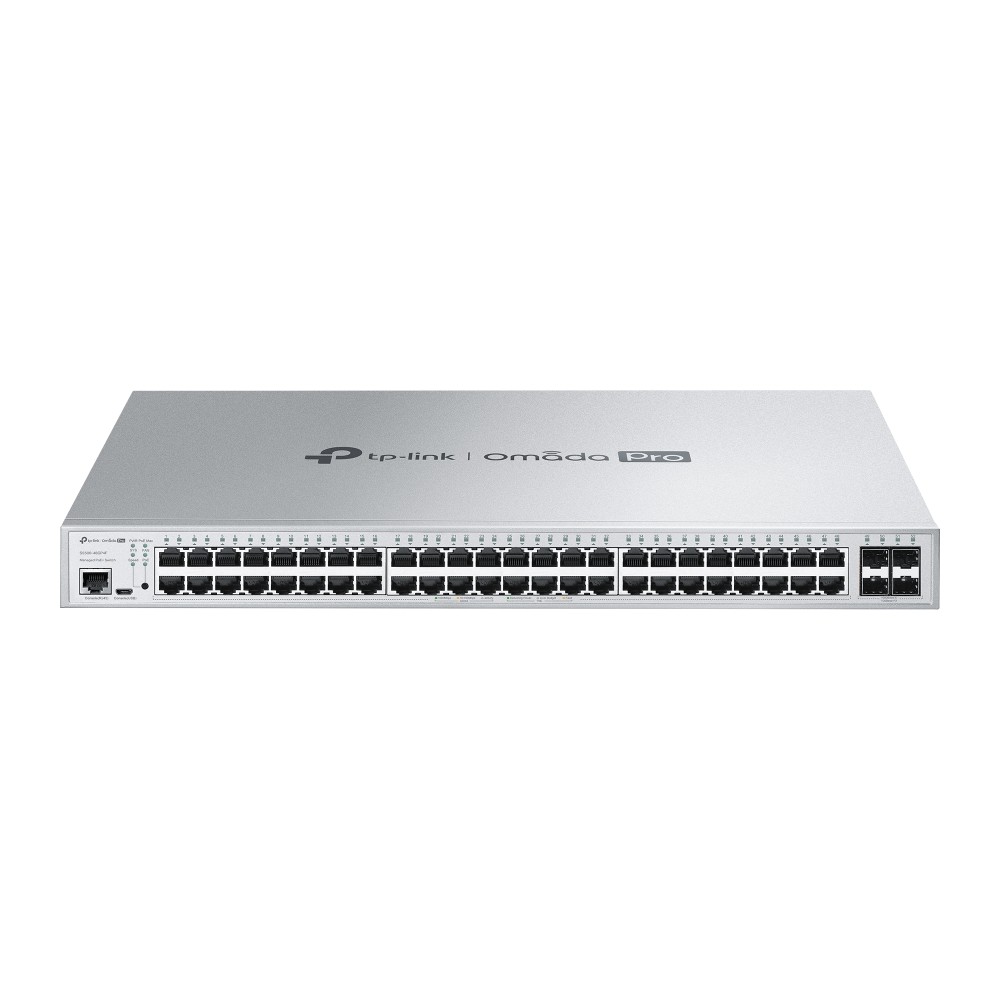

TP-Link S5500-48GP4F Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots

https://arcip.com.au/web/image/product.template/8152/image_1920?unique=65f22da

The TP-Link S5500-48GP4F is an Omada Pro 48-port PoE+ Gigabit L2+ managed switch with 4 Gigabit SFP slots. All 48 10/100/1000 Mbps ports are 802.3at/af PoE+ with a 384 W total budget for access points, cameras and IP phones. It offers 104 Gbps switching, 77.4 Mpps forwarding, 48 static routes, DHCP server, QinQ, ERPS, sFlow, L2 to L4 ACLs and 802.1X with RADIUS/TACACS+, in a 440 mm rackmount chassis with internal AC power. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 5,832.94 5832.94 AUD $ 5,832.94 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
S5500-48GP4F
Barcode
4895252505658
Tags

The TP-Link S5500-48GP4F is an Omada Pro 48-port PoE+ Gigabit L2+ managed switch with four Gigabit SFP slots (hardware V1). All 48 RJ45 ports are 802.3at/af PoE+ sharing a 384 W budget, with 104 Gbps switching capacity, 48 static routes, QinQ, ERPS, 802.1X and ACLs in a 19-inch rackmount chassis, managed standalone or through an Omada Pro controller.

S5500-48GP4F overview

The S5500-48GP4F is TP-Link's Omada Pro 48-port PoE+ Gigabit L2+ managed switch with 4 SFP slots, hardware version V1. TP-Link Australia does not currently list it, so these details come from the Omada global product page. It provides 48 Ethernet ports at 10/100/1000 Mbps, every one of them compliant with 802.3at/af PoE+, plus four Gigabit SFP slots for 1000BASE-X multimode or single-mode fibre. TP-Link says users can supply up to 384 W total power to connected devices and flexibly deploy wireless access points, IP cameras and IP phones without the hassle and cost of installing power cabling. TP-Link positions it, with its static routing, enterprise QoS, advanced security and Layer 2 management options, as a strong choice for small and medium-sized businesses.

Because the 384 W budget is shared across 48 ports, it averages 8 W per port with every port loaded; it comfortably powers a floor of IP phones and cameras, while a deployment of many 30 W access points should be planned against the budget. The sibling S5500-48GP4XF raises the budget to 500 W and swaps the four Gigabit SFP slots for 10G SFP+ slots. Performance on the S5500-48GP4F is 104 Gbps switching capacity and 77.4 Mpps forwarding, with a 16K MAC table, 12 Mbit packet buffer and 9 KB jumbo frames. It is a 440 x 330 x 44 mm rack-mountable switch with three fans and an internal 100-240 V AC 50/60 Hz supply. Maximum power consumption is 464.2 W and maximum heat dissipation 1584.08 BTU/hr at 110 V/60 Hz with 384 W of PDs connected. Certification is CE and FCC.

Its L2+ routing supports 32 IPv4/IPv6 interfaces, 48 static routes, 316 ARP entries with static, proxy and gratuitous ARP, a DHCP server, DHCP relay and DHCP L2 relay. Layer 2 features include static and 802.3ad LACP link aggregation (up to 8 groups of 8 ports), STP/RSTP/MSTP with TC protect, BPDU filter and protect, root protect and loop protect, port and VLAN-based loopback detection, HOL blocking prevention and mirroring. VLANs scale to 4K groups with 802.1Q, MAC, protocol, voice and OUI-based VLANs, GVRP and QinQ (port-based and selective). Multicast supports 511 IGMP groups with IGMP v1/v2/v3 snooping, querier and authentication, MVR, MLD v1/v2 snooping and multicast filtering. TP-Link also lists features developed with service providers in mind: DDM, sFlow, ERPS, L2PT, PPPoE ID insertion and IGMP authentication, plus 802.3ah Ethernet link OAM and DLDP for monitoring and troubleshooting links.

Security includes 512-entry IP-MAC-Port binding and IPv6-MAC-Port binding, DHCP and DHCPv6 snooping, ARP inspection, ND detection and snooping, IPv4 and IPv6 Source Guard (100 entries each), DoS defend, DHCP filter, port security up to 64 MAC addresses per port, storm control, port isolation, L2 to L4 and IPv6 ACLs including time-based ACLs, and 802.1X with VLAN assignment, MAB, guest VLAN and RADIUS or AAA including TACACS+. QoS offers 8 queues with SP, WRR or SP+WRR scheduling and flow-based rate limiting. It is managed by web GUI, CLI through console port or telnet, HTTPS and SSH, SNMP v1/v2c/v3, RMON, DHCP auto install, dual image and configuration, password recovery and remote packet capture. Through an Omada Pro software or cloud-based controller it adds cloud access, the Omada app, Zero-Touch Provisioning (cloud-based controller) and Intelligent Anomaly Detection. In the box are the switch, a power cord, an installation guide, a rackmount kit and rubber feet.

Key features

48 x Gigabit PoE+

Every RJ45 port is 802.3at/af PoE+ for access points, cameras and IP phones.

384 W PoE budget

Total PoE power shared across all 48 ports.

4 x Gigabit SFP

1000BASE-X fibre uplinks over multimode or single-mode fibre.

104 Gbps switching

77.4 Mpps forwarding, 16K MAC table and 12 Mbit buffer.

L2+ static routing

48 static routes, 32 IP interfaces, DHCP server and relay.

ISP-grade features

QinQ, ERPS, sFlow, L2PT, PPPoE ID insertion, 802.3ah OAM and DLDP.

Enterprise security

L2 to L4 ACLs, 802.1X with RADIUS/TACACS+, DHCP snooping and Source Guard.

Omada Pro SDN

Cloud management, Omada app, ZTP and Intelligent Anomaly Detection with an Omada Pro controller.

S5500-48GP4F specifications

At a glance

48 x Gigabit PoE+
384 W PoE budget
4 x Gigabit SFP
104 Gbps switching
48 static routes
QinQ and ERPS
19-inch rackmount
Omada Pro controller
S5500-48GP4F full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface48× 10/100/1000 Mbps RJ45 Ports (all support PoE+); 4× Gigabit SFP Slots
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m); 1000BASE-X: MMF, SMF
Fan Quantity3
Power Supply100~240VAC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 48 Ports; PoE Power Budget: 384 W
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
MountingRack Mountable
Max. Power Consumption464.2 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation1584.08 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity104 Gbps
Packet Forwarding Rate77.4 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR; Bandwidth Control; Port/Flow based Rating Limiting; Smoother Performance; Action for Flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
L3 Features32 IPv4/IPv6 Interfaces; Static Routing; 48 static routes; Static ARP; 316 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay; DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect; Loopback Detection; Port-based; VLAN based; Flow Control; 802.3x Flow Control; HOL Blocking Prevention; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; IGMP Authentication; IGMP Authentication; MVR; MLD Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; DDM; ERPS; sFlow Intelligent Anomaly Detection
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN; VLAN VPN (QinQ); Port-Based QinQ; Selective QinQ; OUI-Based VLAN
Access Control ListMAC ACL; Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type; IP ACL -Source IP; Destination IP; Fragment; IP Protocol; TCP Flag; TCP/UDP Port; DSCP/IP TOS; User Priority; Combined ACL; IPv6 ACL; Policy; Mirroring; Redirect; Rate Limit; QoS Remark; ACL apply to Port/VLAN; Time-based ACL
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding -512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio/pps control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; Support RADIUS authentication and accountability; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); RADIUS Accounting Client MIB (RFC2620); RADIUS Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link Private MIB
Management Features
Omada AppYes, through Omada Pro Controller
Centralised ManagementOmada Pro Cloud-Based Controller; Omada Pro Software Controller
Cloud AccessYes, through Omada Pro Controller
Zero-Touch ProvisioningYes. Requiring the use of Omada Pro Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log; Remote Packet Capture
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–40 ℃ (32–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • S5500-48GP4F
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the S5500-48GP4F is for

High-density PoE floors

  • 48 PoE+ ports in 1U
  • 384 W total budget
  • IP phones and cameras

SMB access layer

  • Static routing and DHCP server
  • 4 Gigabit SFP uplinks
  • Voice VLAN and QoS

Omada Pro deployments

  • Omada Pro software or cloud controller
  • Zero-Touch Provisioning
  • Intelligent Anomaly Detection

S5500-48GP4F compared

TP-Link's 48-port and 24-port Gigabit PoE+ S5500 models share the Omada Pro L2+ feature set; they differ in port count, PoE budget and uplink speed.

SpecificationS5500-48GP4FS5500-48GP4XFS5500-24GP4F
PoE+ RJ45 ports484824
Uplinks4 x Gigabit SFP4 x 10G SFP+4 x Gigabit SFP
PoE budget384 W500 W250 W
Switching capacity104 Gbps176 Gbps56 Gbps
Fans332

Source: TP-Link Australia product pages for each model.

Buy the S5500-48GP4F from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the S5500-48GP4F from the ARC IP Networks team.

Last reviewed October 2026.

48 x 10/100/1000 Mbps RJ45 ports, all 802.3at/af PoE+, and 4 x Gigabit SFP slots.

384 W total, shared across all 48 PoE+ ports.

Yes. Although it is sometimes listed simply as a 48-port managed Gigabit L2+ switch, TP-Link's model is a 48-port PoE+ switch with every RJ45 port supporting 802.3at/af.

The S5500-48GP4XF has 4 x 10G SFP+ slots instead of Gigabit SFP, a 500 W budget instead of 384 W and 176 Gbps switching capacity instead of 104 Gbps.

Yes, L2+ static routing with 48 static routes and 32 IPv4/IPv6 interfaces, plus DHCP server, DHCP relay and DHCP L2 relay.

No. It can be fully managed standalone by web GUI, CLI, SNMP and RMON. Centralised cloud management and the Omada app use an Omada Pro controller, and Zero-Touch Provisioning requires the cloud-based controller.

Yes, three fans. It is a 440 x 330 x 44 mm rackmount switch.

DDM, sFlow, ERPS, L2PT, QinQ, PPPoE ID insertion, IGMP authentication, 802.3ah Ethernet link OAM and DLDP.

Not at the time of writing; the specifications here are from TP-Link's Omada global product page.

The S5500-48GP4F, a power cord, an installation guide, a rackmount kit and rubber feet.

Need more than one S5500-48GP4F for a high-density PoE floor?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
