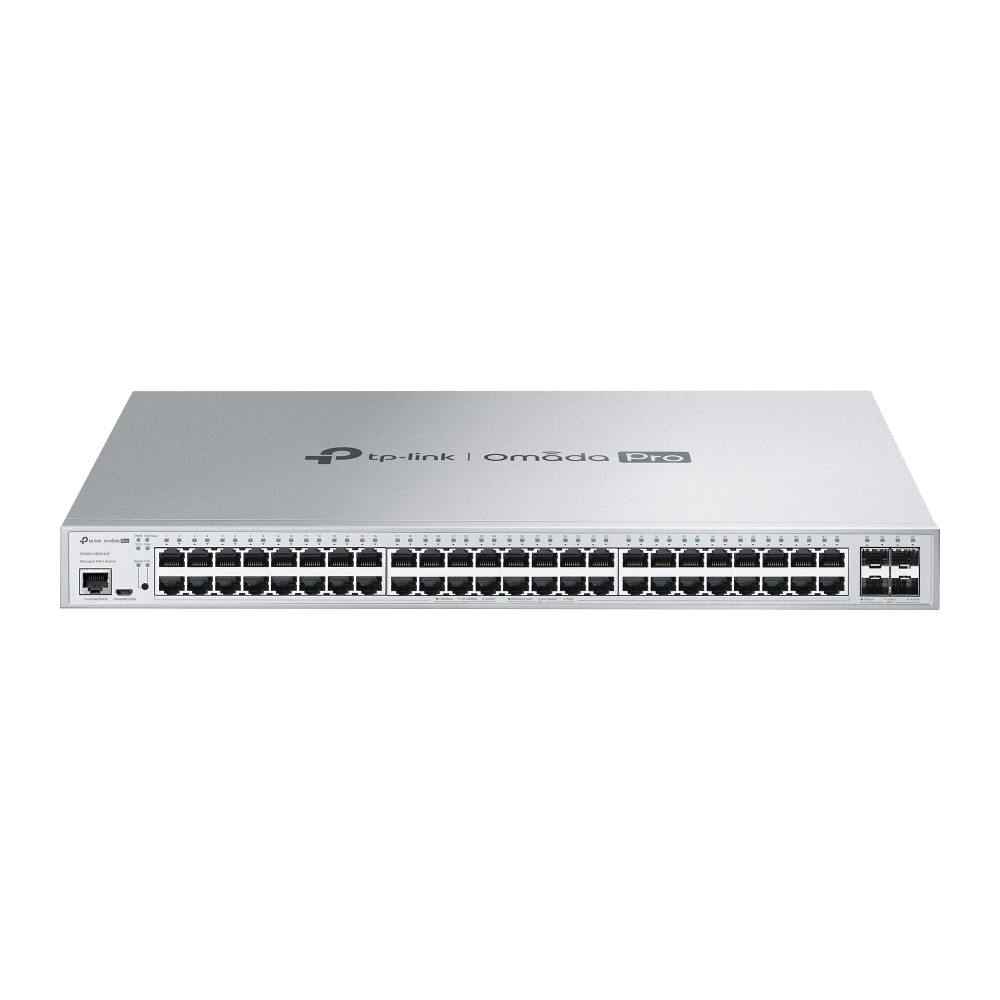

TP-Link S5500-48GP4XF Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots

Price:

$ 8,312.56


TP-Link S5500-48GP4F Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link S5500-48GP4F Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots
$ 5,832.94
$ 5,832.94
TP-Link S5500-4XHPP2XF Omada Pro 4-Port PoE++ 10GE L2+ Managed Switch with 2 SFP+ Slots
TP-Link S5500-4XHPP2XF Omada Pro 4-Port PoE++ 10GE L2+ Managed Switch with 2 SFP+ Slots
$ 5,541.22
$ 5,541.22

TP-Link S5500-48GP4XF Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots

https://arcip.com.au/web/image/product.template/8153/image_1920?unique=fc01083

The TP-Link S5500-48GP4XF is an Omada Pro 48-port PoE+ Gigabit L2+ managed switch with 4 SFP+ slots. All 48 Gigabit RJ45 ports supply 802.3at/af PoE+ at up to 30 W per port from a 500 W total budget, and four 10 Gbps SFP+ slots provide non-blocking uplinks to servers and other switches. Switching capacity is 176 Gbps. It supports static routing (48 routes), DHCP server and relay, LACP, MSTP, ERPS, QinQ, VLAN mapping, sFlow, 802.1X, ACLs and IPv6, with web, console CLI and SNMP management or centralised cloud management through an Omada Pro controller. Rack mountable, rack kit included.

$ 8,312.56 8312.56 AUD $ 8,312.56 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
S5500-48GP4XF
Barcode
4895252505795
Tags

The TP-Link S5500-48GP4XF is an Omada Pro 48-port PoE+ Gigabit L2+ managed switch with 4 x 10G SFP+ slots. All 48 RJ45 ports are 802.3at/af PoE+ with up to 30 W each and a 500 W total budget. It delivers 176 Gbps switching, static routing, ERPS, QinQ and ISP features, and is managed by web, CLI, SNMP or an Omada Pro controller.

S5500-48GP4XF overview

The S5500-48GP4XF is TP-Link's Omada Pro 48-port PoE+ Gigabit L2+ managed switch with 4 SFP+ slots, hardware version V1. TP-Link describes it as a fully enterprise-level managed switch for enterprises, MDUs, hotels and ISPs. It has 48 x 10/100/1000 Mbps RJ45 ports, every one of them 802.3at/af PoE+, plus 4 x 10 Gbps SFP+ slots, an RJ45 console port and a Micro-USB console port.

Its two defining numbers are the PoE budget and the 10G uplinks. The 48 PoE+ ports supply up to 30 W each from a 500 W total budget, so a full floor of wireless access points, IP cameras and IP phones can be powered without separate power outlets. TP-Link notes the PoE budget is based on laboratory testing and is not guaranteed. The four SFP+ slots deliver non-blocking performance with minimal latency to servers and other switches. Switching capacity is 176 Gbps with a 130.94 Mpps forwarding rate, a 16K MAC table, 12 Mbit packet buffer and 9 KB jumbo frames. This is where it differs from the S5500-48GP4F, which shares the 48 PoE+ ports but has a 384 W budget, four Gigabit SFP slots and 104 Gbps switching.

The switch runs from 100-240 V AC, 50/60 Hz, with three fans in a rack-mountable chassis of 440 x 330 x 44 mm. Maximum power consumption is 49.19 W with no PDs connected and 635.70 W with 500 W of PDs connected (110 V/60 Hz); maximum heat dissipation is 167.85 BTU/hr idle and 2169.2 BTU/hr at full PoE load. Operating temperature is 0 to 40 degrees C. In the box are the switch, a power cord, an installation guide, a rackmount kit and rubber feet.

Software features follow the Omada Pro S5500 L2+ platform. L3 features include 16 IPv4/IPv6 interfaces, 48 static routes, 512 ARP entries, proxy and gratuitous ARP, DHCP server, DHCP relay and DHCP L2 relay. L2 covers static and LACP link aggregation (8 groups of up to 8 ports), STP, RSTP and MSTP with BPDU and loop protection, HOL blocking prevention, port and CPU mirroring and up to 1,000 IGMP groups with IGMP and MLD snooping, querier and MVR. VLAN support includes 4K groups, MAC, protocol and private VLAN, GVRP, voice VLAN, QinQ, VLAN mapping, VLAN replace and OUI-based VLAN. ISP features include 802.3ah OAM, L2PT, DLDP, PPPoE ID insertion, DDM, ERPS and sFlow. Management is via web GUI, CLI over console or Telnet, SNMP v1/v2c/v3, RMON and dual image, or centrally through the Omada Pro software or cloud-based controller with the Omada app, cloud access and Intelligent Anomaly Detection; Zero-Touch Provisioning requires the Omada Pro cloud-based controller.

Key features

48x Gigabit PoE+

Every RJ45 port supplies 802.3at/af PoE+ at up to 30 W.

500 W PoE budget

Enough headroom for large deployments of access points, cameras and phones.

4x 10G SFP+ uplinks

Non-blocking 10 Gbps links to servers and other switches.

176 Gbps switching

130.94 Mpps forwarding with a 16K MAC table and 12 Mbit buffer.

L2+ static routing

48 static routes, 16 IP interfaces, DHCP server and relay.

ERPS and MSTP

Ring protection and spanning tree for redundant, loop-free designs.

ISP and MDU features

QinQ, VLAN mapping, L2PT, PPPoE ID insertion, 802.3ah OAM and sFlow.

Omada Pro management

Web, CLI and SNMP, or cloud management with the Omada Pro controller and app.

S5500-48GP4XF specifications

At a glance

48x Gigabit PoE+
500 W PoE budget
4x 10G SFP+
176 Gbps switching
Static routing
ERPS
Rack mountable
Omada Pro controller
S5500-48GP4XF full specifications
Hardware Features
Interface48× 10/100/1000 Mbps RJ45 Ports (all support PoE+); 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity3
Power Supply100~240VAC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 48 Ports, up to 30 W per port; PoE Power Budget: 500 W
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
MountingRack Mountable
Max. Power Consumption49.19 W (110V/60Hz) (no PD connected); 635.70 W (110V/60Hz) (with 500 W PD connected)
Max Heat Dissipation167.85 BTU/hr (110 V/60 Hz) (no PD connected); 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity176 Gbps
Packet Forwarding Rate130.94 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR; Bandwidth Control; Port/Flow based Rating Limiting; Smoother Performance; Action for Flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
L3 Features16 IPv4/IPv6 Interfaces; Static Routing; 48 static routes; Static ARP; 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay; DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect; Loopback Detection; Port-based; VLAN based; Flow Control; 802.3x Flow Control; HOL Blocking Prevention; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 MulticastSupports 1000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; IGMP Authentication; IGMP Authentication; MVR; MLD Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; DDM; ERPS; sFlow Intelligent Anomaly Detection
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; Voice VLAN; VLAN VPN (QinQ); VLAN Mapping; VLAN Replace; OUI-Based VLAN
Access Control ListMAC ACL; Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type; IP ACL; Source IP; Destination IP; Fragment; IP Protocol; TCP Flag; TCP/UDP Port; DSCP/IP TOS; User Priority; Combined ACL; IPv6 ACL; Policy; Mirroring; Redirect; Rate Limit; QoS Remark; ACL apply to Port/VLAN; Time-based ACL
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio/pps control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; Support RADIUS authentication and accountability; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); RADIUS Accounting Client MIB (RFC2620); RADIUS Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link Private MIB
Management Features
Omada AppYes, through Omada Pro Controller
Centralised ManagementOmada Pro Cloud-Based Controller; Omada Pro Software Controller
Cloud AccessYes, through Omada Pro Controller
Zero-Touch ProvisioningYes. Requiring the use of Omada Pro Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log; Remote Packet Capture
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • S5500-48GP4XF
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the S5500-48GP4XF is for

Large Wi-Fi and camera deployments

  • 48 PoE+ ports at up to 30 W
  • 500 W total budget
  • 10G uplinks for aggregated traffic

Hotels and MDUs

  • QinQ and VLAN mapping
  • Private VLAN and port isolation
  • PPPoE ID insertion

Enterprise Omada Pro sites

  • Omada Pro software or cloud controller
  • Intelligent Anomaly Detection
  • Zero-Touch Provisioning via cloud controller

S5500-48GP4XF compared

The S5500-48GP4XF and S5500-48GP4F both have 48 Gigabit PoE+ ports in the same 440 x 330 x 44 mm chassis. The S5500-48GP4XF has 10G SFP+ uplinks and a larger PoE budget.

SpecificationS5500-48GP4XFS5500-48GP4F
RJ45 ports48x Gigabit PoE+48x Gigabit PoE+
Uplinks4x 10G SFP+4x Gigabit SFP
PoE budget500 W384 W
Switching capacity176 Gbps104 Gbps
Forwarding rate130.94 Mpps77.4 Mpps
Fans33

Source: TP-Link Australia product pages for each model.

Buy the S5500-48GP4XF from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the S5500-48GP4XF from the ARC IP Networks team.

Last reviewed October 2026.

All 48 Gigabit RJ45 ports support 802.3at/af PoE+, with up to 30 W per port and a 500 W total budget. TP-Link notes the budget is based on laboratory testing and is not guaranteed.

Four 10 Gbps SFP+ slots. It also has an RJ45 console port and a Micro-USB console port.

Both have 48 Gigabit PoE+ ports. The S5500-48GP4XF has four 10G SFP+ slots, a 500 W budget and 176 Gbps switching; the S5500-48GP4F has four Gigabit SFP slots, a 384 W budget and 104 Gbps switching.

The Omada Pro software or cloud-based controller. Zero-Touch Provisioning requires the Omada Pro cloud-based controller.

Yes, via the web GUI, CLI over the console port or Telnet, and SNMP v1/v2c/v3 with RMON.

It supports L2+ static routing with 48 static routes and 16 IPv4/IPv6 interfaces, plus DHCP server and DHCP relay.

TP-Link lists 49.19 W with no PDs connected and 635.70 W with 500 W of PDs connected, at 110 V/60 Hz.

Yes. A rackmount kit is included, along with rubber feet, a power cord and an installation guide.

Yes, three fans.

Need more than one S5500-48GP4XF for a large PoE access-layer rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
