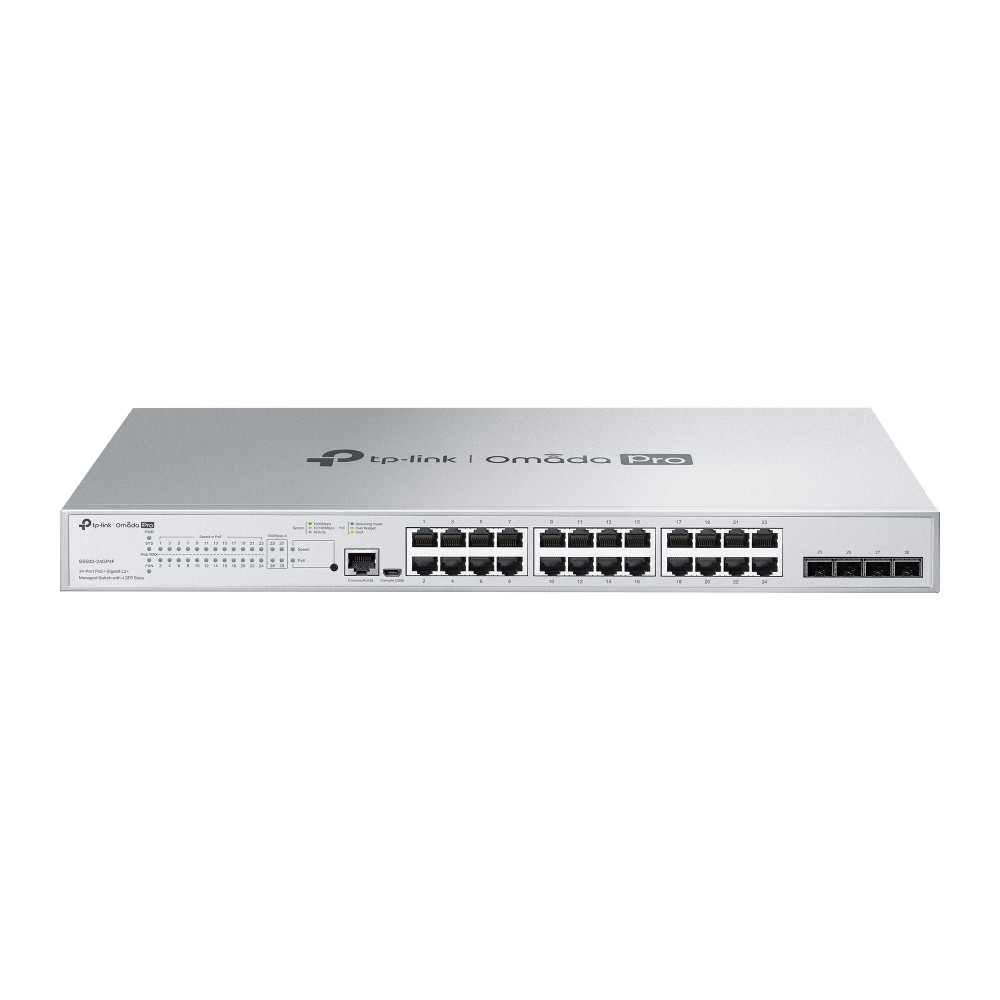

TP-Link S5500-24GP4F Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots

https://arcip.com.au/web/image/product.template/8150/image_1920?unique=dd2805b

The TP-Link S5500-24GP4F is an Omada Pro 24-port PoE+ Gigabit L2+ managed switch: 24 Gigabit RJ45 PoE+ ports (802.3at/af) sharing a 250 W budget, four Gigabit SFP slots, 56 Gbps switching capacity, static routing with 48 routes, ERPS, QinQ, MSTP, LACP, 802.1X, IPv6 and Omada Pro cloud management with Zero-Touch Provisioning. 1U rackmount, internal 100-240 VAC supply, two fans.

$ 3,061.60 3061.6 AUD $ 3,061.60 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
S5500-24GP4F
Barcode
4895252505634
Tags

The TP-Link S5500-24GP4F is an Omada Pro 24-port PoE+ Gigabit L2+ managed switch with 24 10/100/1000 Mbps RJ45 ports, all 802.3at/af PoE+, a 250 W total PoE budget and four Gigabit SFP slots. It offers 56 Gbps switching capacity, static routing, ERPS, QinQ, IPv6, advanced security and QoS, a 1U rackmount chassis with internal 100-240 VAC power, and centralised cloud management through the Omada Pro controller.

S5500-24GP4F overview

The S5500-24GP4F is TP-Link's Omada Pro 24-port PoE+ Gigabit L2+ managed switch with 4 SFP slots, hardware version V1. TP-Link states it provides 24 Ethernet ports (10/100/1000 Mbps) compliant with 802.3at/af PoE, so you can supply up to 250 W of total power to connected devices and deploy wireless access points, surveillance cameras and IP phones quickly without separate power runs. Four Gigabit SFP slots accept 1000BASE-X multimode or single-mode fibre modules for uplinks or links to other switches. TP-Link notes the PoE budget is calculated from laboratory testing and the actual budget will vary with client limitations and environmental factors. Facts on this page are taken from TP-Link's global Omada product page, as an Australian page for this model was not available when we checked.

Performance is 56 Gbps switching capacity, a 41.7 Mpps forwarding rate, an 8K MAC address table, 4.1 Mbit packet buffer and 9 KB jumbo frames. The 1U chassis measures 440 x 220 x 44 mm (17.3 x 8.7 x 1.73 in), is rack mountable with the included rackmount kit and uses two fans. Power is an internal 100-240 VAC, 50/60 Hz supply with a power cord in the box. Maximum consumption is 301.1 W and maximum heat dissipation 1027.4 BTU/h, both measured at 110 V / 60 Hz with 250 W of powered devices connected. Operating temperature is 0 to 50 degrees C.

Layer 3 features cover 32 IPv4/IPv6 interfaces, static routing with 48 static routes, 316 ARP entries, static, proxy and gratuitous ARP, DHCP server, DHCP relay and DHCP L2 relay. L2 features include static and 802.3ad LACP link aggregation (up to 8 groups of 8 ports), STP, RSTP and MSTP with TC protect, BPDU filter and protect, root protect and loop protect, port- and VLAN-based loopback detection, 802.3x flow control and head-of-line blocking prevention. Multicast support is 511 IGMP groups across IPv4 and IPv6, IGMP v1/v2/v3 snooping with fast leave, querier and IGMP authentication, MVR, MLD v1/v2 snooping and multicast filtering with 256 profiles. VLAN options include 4K VLAN groups, 802.1Q, MAC VLAN (12 entries), protocol VLAN, GVRP, voice VLAN, OUI-based VLAN and VLAN VPN (port-based and selective QinQ).

TP-Link built several features with service providers in mind: ERPS ring protection, L2PT (Layer 2 Protocol Tunnelling), QinQ, PPPoE ID insertion and IGMP authentication, while 802.3ah Ethernet Link OAM and Device Link Detect Protocol (DLDP) make link monitoring and fault detection easier. Security includes IP-MAC-Port binding (512 entries), DHCP snooping, ARP inspection, IPv4 and IPv6 source guard (100 entries each), IPv6-MAC-Port binding, DHCPv6 snooping, ND detection and snooping, DoS defend, DHCP filter, port security with up to 64 MAC addresses per port and storm control in kbps, ratio or pps modes. ACLs cover MAC, IP, IPv6 and combined rules applied to ports or VLANs, with time-based policies and mirror, redirect, rate-limit and QoS-remark actions. QoS offers 8 priority queues, 802.1p CoS and DSCP, SP, WRR and SP+WRR scheduling and port or flow-based rate limiting.

Management options are the web GUI, CLI through the console port or Telnet, SNMP v1/v2c/v3, RMON groups 1, 2, 3 and 9, LLDP/LLDP-MED, DHCP auto install, dual image and dual configuration, cable diagnostics, EEE, password recovery and remote packet capture. Under Omada Pro, the switch is managed by the Omada Pro cloud-based or software controller, with cloud access, the Omada app and Intelligent Anomaly Detection; Zero-Touch Provisioning requires the Omada Pro cloud-based controller. Compared with the larger S5500-48GP4F, which has 48 PoE+ ports and a 384 W budget, the S5500-24GP4F suits closets with up to 24 powered devices. In the box are the switch, a power cord, an installation guide, a rackmount kit and rubber feet.

Key features

24 Gigabit PoE+ ports

Every RJ45 port is 802.3at/af PoE+ compliant for APs, cameras and IP phones.

250 W PoE budget

Shared across all 24 PoE+ ports (laboratory-tested figure).

Four Gigabit SFP slots

1000BASE-X fibre uplinks over multimode or single-mode fibre.

Static routing

32 IPv4/IPv6 interfaces, 48 static routes, DHCP server and relay.

ISP-grade features

ERPS, QinQ, L2PT, PPPoE ID insertion, 802.3ah OAM and DLDP.

Advanced security

IP-MAC-Port binding, DHCP snooping, ARP inspection, source guard and DoS defend.

Omada Pro integration

Cloud management, Zero-Touch Provisioning and Intelligent Anomaly Detection.

1U rackmount chassis

Internal 100-240 VAC supply, two fans, rackmount kit included.

S5500-24GP4F specifications

At a glance

24 x Gigabit PoE+
250 W PoE budget
4 x Gigabit SFP
56 Gbps switching
L2+ static routing
ERPS and QinQ
1U rackmount
Omada Pro managed
S5500-24GP4F full specifications
Hardware Features
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); 4× Gigabit SFP Slots
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m); 1000BASE-X: MMF, SMF
Fan Quantity2
Power Supply100~240VAC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 24 Ports; PoE Power Budget: 250 W
Dimensions ( W x D x H )17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
MountingRack Mountable
Max. Power Consumption301.1 W (110V/60Hz with 250 W PD connected)
Max Heat Dissipation1027.4 BTU/h (110V/60Hz with 250 W PD connected)
Performance
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
Switching Capacity56 Gbps
Packet Forwarding Rate41.7Mpps
MAC Address Table8K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR; Bandwidth Control; Port/Flow based Rating Limiting; Smoother Performance; Action for Flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
L3 Features32 IPv4/IPv6 Interfaces; Static Routing; 48 static routes; Static ARP; 316 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay; DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect; Loopback Detection; Port-based; VLAN based; Flow Control; 802.3x Flow Control; HOL Blocking Prevention; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; IGMP Authentication; IGMP Authentication; MVR; MLD Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS Intelligent Anomaly Detection
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN; VLAN VPN (QinQ); Port-Based QinQ; Selective QinQ; OUI-Based VLAN
Access Control ListMAC ACL; Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type; IP ACL -Source IP; Destination IP; Fragment; IP Protocol; TCP Flag; TCP/UDP Port; DSCP/IP TOS; User Priority; Combined ACL; IPv6 ACL; Policy; Mirroring; Redirect; Rate Limit; QoS Remark; ACL apply to Port/VLAN; Time-based ACL
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding -512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio/pps control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; Support RADIUS authentication and accountability; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); RADIUS Accounting Client MIB (RFC2620); RADIUS Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link Private MIB
Management Features
Omada AppYes, through Omada Pro Controller
Centralised ManagementOmada Pro Cloud-Based Controller; Omada Pro Software Controller
Cloud AccessYes, through Omada Pro Controller
Zero-Touch ProvisioningYes. Requiring the use of Omada Pro Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log; Remote Packet Capture
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • S5500-24GP4F
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the S5500-24GP4F is for

PoE-heavy access closets

  • 24 x 802.3at/af PoE+ ports
  • 250 W total PoE budget
  • Wireless APs, cameras and IP phones

Ring and service provider networks

  • ERPS ring protection
  • QinQ and L2PT
  • 802.3ah OAM and DLDP

Omada Pro deployments

  • Omada Pro cloud-based or software controller
  • Zero-Touch Provisioning
  • Intelligent Anomaly Detection

S5500-24GP4F compared

The S5500-24GP4F and S5500-48GP4F are Omada Pro Gigabit PoE+ L2+ managed switches with four Gigabit SFP slots each. The 48-port model doubles the PoE+ port count and raises the PoE budget.

SpecificationS5500-24GP4FS5500-48GP4F
Gigabit PoE+ ports2448
PoE budget250 W384 W
SFP slots4 x Gigabit SFP4 x Gigabit SFP
PoE standard802.3at/af802.3at/af

Source: TP-Link Australia product pages for each model.

Buy the S5500-24GP4F from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the S5500-24GP4F from the ARC IP Networks team.

Last reviewed October 2026.

All 24 Gigabit RJ45 ports are 802.3at/af PoE+ ports, sharing a 250 W total PoE budget.

Four Gigabit SFP slots for 1000BASE-X fibre modules (multimode or single-mode). It has no 10G SFP+ slots; the S5500-48GP4XF is the model with SFP+.

56 Gbps, with a 41.7 Mpps packet forwarding rate.

It supports static routing with 32 IPv4/IPv6 interfaces and 48 static routes, plus DHCP server and relay.

The Omada Pro cloud-based or software controller. Zero-Touch Provisioning requires the Omada Pro cloud-based controller. It can also be managed standalone via web GUI, CLI and SNMP.

Yes. It is a 1U, 440 mm wide switch and the rackmount kit is included.

By an internal 100-240 VAC, 50/60 Hz power supply. A power cord is included.

Yes, two fans. Operating temperature is 0 to 50 degrees C.

Yes. ERPS (Ethernet Ring Protection Switching) is supported, along with STP, RSTP and MSTP.

The S5500-24GP4F, a power cord, an installation guide, a rackmount kit and rubber feet.

Need more than one S5500-24GP4F for a PoE+ camera or access point rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
