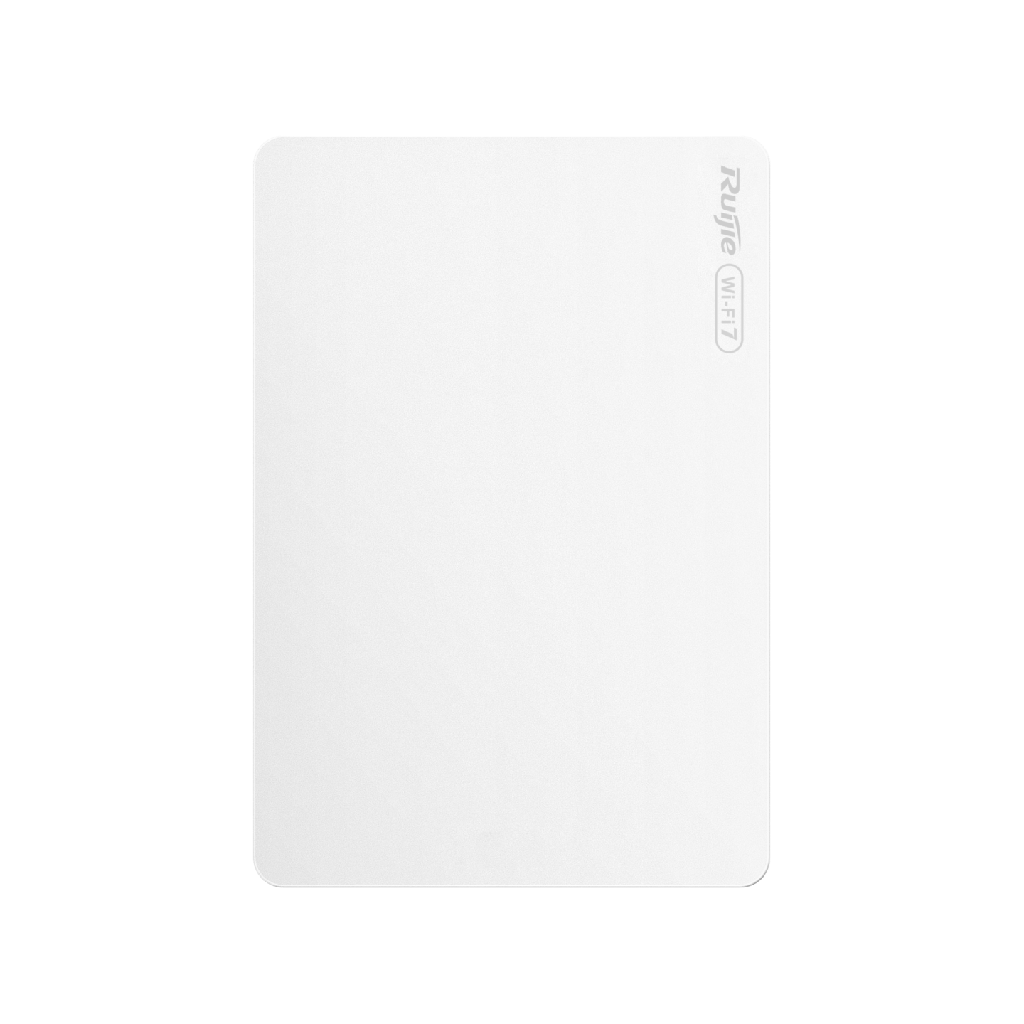

Ruijie RG-RAP72-Wall, Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point with 2.5G Uplink and PoE Out

Price:

277.09


Ruijie RG-ES228GS-P-V2, 26-Port Gigabit Smart Cloud-Managed PoE Switch with 2 x SFP, 370W
Ruijie RG-ES228GS-P-V2, 26-Port Gigabit Smart Cloud-Managed PoE Switch with 2 x SFP, 370W
567.49
567.49
TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE
64.49
64.49

Ruijie RG-RAP72-Wall, Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point with 2.5G Uplink and PoE Out

https://arcip.com.au/web/image/product.template/10371/image_1920?unique=97531d6
Ruijie Reyee RG-RAP72-Wall BE3600 Wi-Fi 7 wall-plate access point. 3570 Mbps, 2.5GbE uplink, 4 x Gigabit LAN, 10W PoE out, 511 clients on 5 GHz, IP41, anti-theft lock. Australian stock from ARC IP Networks.

277.09 277.09 AUD 277.09 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Ingress Protection

This combination does not exist.

In stock online
WiFi 7 Indoor Access Point PoE Ruijie Cloud Managed Wall Mount WiFi Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-RAP72-WALL
Tags
RG-RAP72-Wall Wi-Fi 7 BE3600 Dual-Band Wall-Mount Access Point, 2.5G Uplink
Ruijie Reyee

Features

  • Wi-Fi 7 revolution, providing data rates of up to 3600 Mbps
  • 2.5 Gbps uplink port for ultra-high-speed indoor access
  • PoE output for IP phones and other IoT devices
  • Compact design with a thickness of 24 mm
  • Anti-theft lock for device protection
Ruijie RG-RAP72-WALL product view 1
Ruijie RG-RAP72-WALL product view 2
Ruijie RG-RAP72-WALL product view 3

Specifications

Wi-Fi Radio
Standard802.11be (Wi-Fi 7), BE3600
Radio DesignDual-radio, 4 spatial streams; 2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO
Maximum Data Rate3,570 Mbps aggregate
5 GHz Data Rate2,882 Mbps
2.4 GHz Data Rate688 Mbps
Antennas1 built-in 5 GHz omnidirectional plus 2 built-in dual-band omnidirectional
Ports and Power
Uplink Port1 x 10/100/1000/2500BASE-T (2.5GbE)
LAN Ports4 x 10/100/1000BASE-T
PoE InPoE / PoE+ (IEEE 802.3af/at)
PoE Out10 W from an 802.3at source
Local Power SupplyNot supported — PoE only
Maximum Power Consumption15 W excluding PoE output
Capacity
Maximum Associated Clients64 on 2.4 GHz, 511 on 5 GHz, 511 with both enabled
Devices Manageable in Self-Organising Mode300
Physical
Dimensions86 x 24 x 124 mm excluding mounting bracket
Weight≤ 0.27 kg
MountingJunction box
IP RatingIP41
SecurityAnti-theft lock point
Operating Temperature0°C to +40°C

Professional Overview

The Ruijie RG-RAP72-Wall is a Wi-Fi 7 BE3600 wall-plate access point with a 2.5 Gigabit uplink. The dual-radio 2x2 design delivers 2,882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz for 3,570 Mbps aggregate, and unlike most wall-plate APs it does not throttle itself at the uplink — the 2.5GbE port can actually carry what the radios produce.

That uplink is the reason to choose Wi-Fi 7 in this form factor. A Gigabit uplink caps a BE3600 radio at well under half its capability, so an AP with a 1G port is limited by its cable rather than its radio. Pairing this AP with a 2.5G multi-gig switch removes the bottleneck end to end. Four Gigabit LAN ports on the faceplate serve the TV, phone and set-top box in the room, and one of them supplies 10 W of PoE output from an 802.3at source.

Client capacity is 511 associations on 5 GHz — roughly double the RAP62-Wall — which gives headroom in busier rooms and small shared spaces. The body is 24 mm thick excluding the bracket so it sits close to flush in a junction box, carries an IP41 rating against dust and dripping water, and includes an anti-theft lock point, which matters in publicly accessible rooms and corridors.

Power is PoE or PoE+ only, 15 W maximum excluding PoE output, so a single Cat6 run completes the install. In self-organising mode the AP can manage a network of up to 300 devices. Note that this is a 2.4/5 GHz dual-band Wi-Fi 7 access point — it does not use the 6 GHz band, so no Australian 6 GHz channel restrictions apply to it. Ruijie Cloud management is included for the life of the product — zero-touch provisioning, remote monitoring, firmware management and configuration from the Ruijie Reyee app or a browser, at no subscription cost. Australian stock from ARC IP Networks.

Part of the Ruijie Reyee range at ARC IP Networks — an authorised Australian Ruijie reseller. Genuine Australian stock with the full manufacturer’s warranty, and free lifetime Ruijie Cloud management.
Ruijie Reyee Australia · Ruijie access points · Ruijie Cloud

RG-RAP72-WALL — frequently asked questions

How many devices can the RG-RAP72-WALL power over PoE?

The RG-RAP72-WALL has a total PoE budget of 10 W (when power source is IEEE 802.3at-compliant) shared across 1 powered ports. That runs roughly 1 fixed-lens IP cameras or Wi-Fi access points at 10–15 W each. High-draw devices — PTZ cameras with heaters, multi-sensor cameras, Wi-Fi 6E and Wi-Fi 7 access points — can take 30 W or more each, so count actual draw rather than port count.

How fast is the RG-RAP72-WALL?

The RG-RAP72-WALL is rated at 3570 Mbps aggregate — 2882 Mbps on 5 GHz, 688 Mbps on 2.4 GHz. These are manufacturer PHY maximums; real-world throughput depends on client capability, channel width and interference.

What is the IP rating of the RG-RAP72-WALL?

The RG-RAP72-WALL is rated IP41, which is an indoor rating — it is protected against dust and dripping water but not against rain or hosing. It is specified for 0°C to +40°C (32°F to +104°F). For outdoor placement choose an IP65 or IP68 model, or house this one in a weatherproof enclosure.

Does the RG-RAP72-WALL need a licence or a controller?

No. Ruijie Cloud management is included free for the life of the hardware — there is no subscription, no per-device licence and no controller appliance to buy. See our Ruijie Cloud guide.

Where can I buy the RG-RAP72-WALL in Australia?

From ARC IP Networks. We are an authorised Australian Ruijie reseller and hold the access point range as genuine Australian stock with the full manufacturer’s warranty — not grey import. Browse the Ruijie access point range.

Brand Ruijie
Form Factor Wall Plate
Port Speed 1 x 2.5GbE uplink + 4 x GbE
Ports 5 Ports
Network Connectivity Wi-Fi 7
PoE Specification PoE-in 802.3af/at, 10W PoE out
WiFi Standard 802.11be (WiFi 7)
Frequency Band Dual-Band (2.4 + 5 GHz)
Ingress Protection IP41
