Ruijie RG-RAP2260(H) at a glance

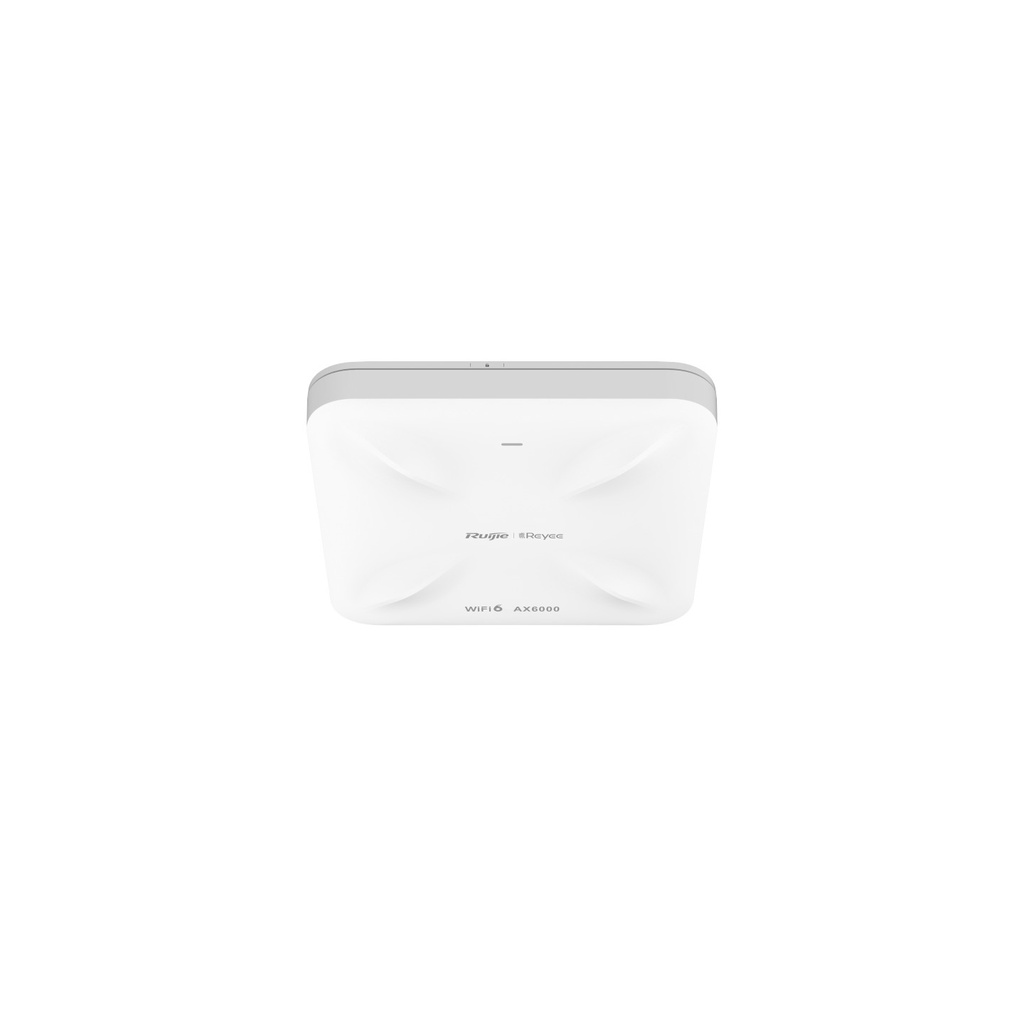

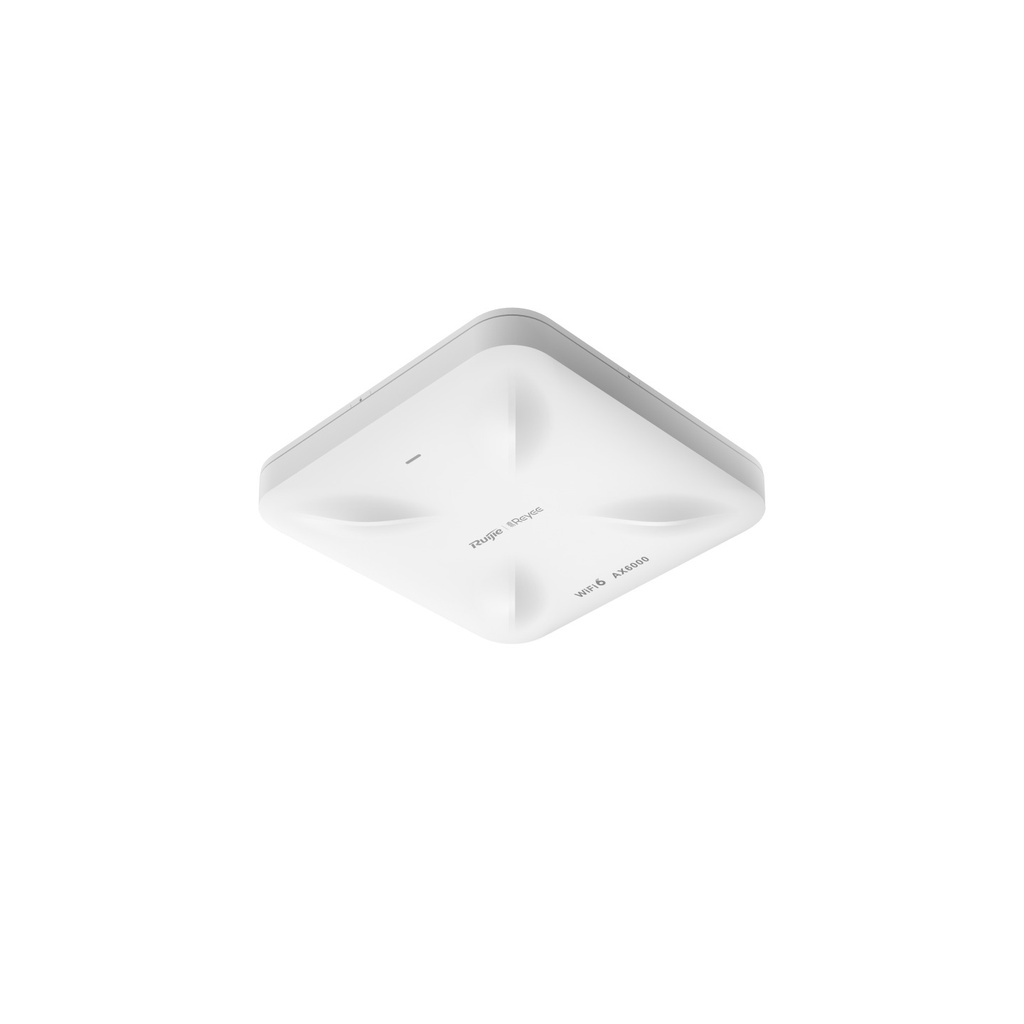

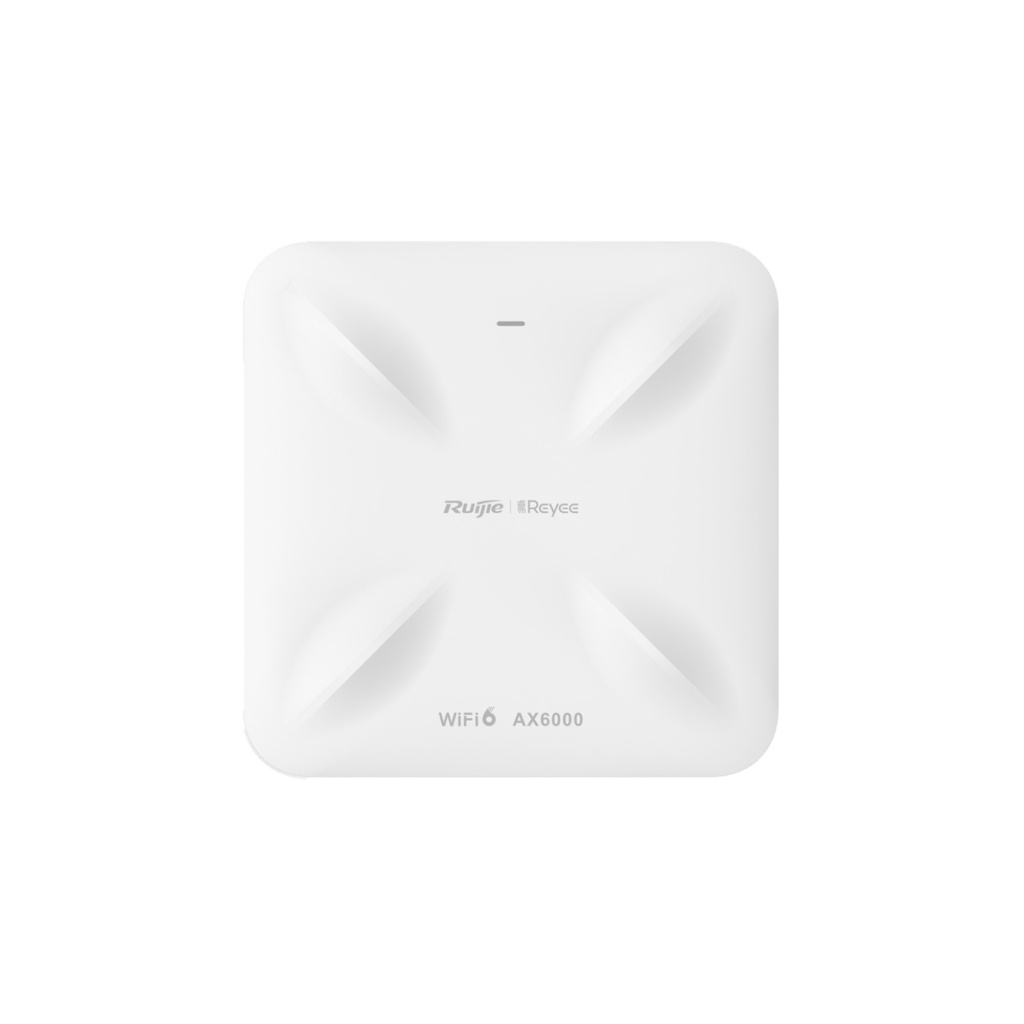

The Ruijie RG-RAP2260(H) is a Reyee Wi-Fi 6 AX6000 high-density ceiling access point with 4x4 MU-MIMO on both bands and a maximum wireless data rate of 5950 Mbps. It has two 2.5GbE ports, supports up to 512 associated clients and Reyee Mesh, and runs from 802.3bt PoE++ or a 48 V DC adapter.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-RAP2260(H) from Australian stock, with a GST tax invoice on every order.

Wi-FiWi-Fi 6 AX6000, 5950 Mbps
Ports2 x 2.5GbE
ClientsUp to 512 associated
PowerPoE++ or 48 V DC, 40 W max

Best for

  • High-density spaces such as lecture halls, conference venues and busy hospitality areas
  • Networks with 2.5G multi-gigabit switching that want faster AP uplinks
  • Multi-AP sites using Reyee Mesh, seamless roaming and cloud management

Key features

Wi-Fi 6 (802.11ax) dual-radio design with 8 spatial streams: 4x4 MU-MIMO on 2.4 GHz and 4x4 MU-MIMO on 5 GHz.

Maximum wireless data rate of 5950 Mbps (4803 Mbps on 5 GHz, 1147 Mbps on 2.4 GHz) with 160 MHz channel support.

Two 10/100/1000/2500BASE-T ports; Ruijie highlights a 5 Gbps uplink capability.

Up to 512 associated clients and 8 SSIDs.

Reyee Mesh, wireless repeater mode and standalone captive portal authentication.

802.11k/v, 802.11r, AI roaming, Layer 3 roaming and AP load balancing.

WPA3-SAE, OWE, 802.1X with dynamic VLAN assignment.

Powered by 802.3bt PoE++ or a 48 V, 1 A DC adapter; on 802.3at PoE+ the radios are limited to 2T2R.

Ceiling or wall mounting, 230 x 230 x 49.5 mm, with a security lock key included.

Managed through Ruijie Cloud, the Ruijie Reyee app or eWeb, with SNMP support.

Ruijie RG-RAP2260(H) specifications

Ruijie RG-RAP2260(H) technical specifications
SpecificationValue
Wi-Fi radio
Standards2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ax
Radio designDual-radio, 8 spatial streams (2.4 GHz 4x4 MU-MIMO, 5 GHz 4x4 MU-MIMO)
Maximum wireless data rate5950 Mbps
5 GHz data rate4803 Mbps
2.4 GHz data rate1147 Mbps
Channel width5 GHz: Auto/20/40/80/160 MHz; 2.4 GHz: Auto/20/40 MHz
Maximum transmit power5 GHz: 32 dBm combined; 2.4 GHz: 32 dBm combined (varies by country regulations)
Antennas4 built-in omnidirectional per band; 4.00 dBi (5 GHz), 3.00 dBi (2.4 GHz)
Coverage range190 m² in an ideal unobstructed environment (Ruijie figure)
Ports and power
Ethernet ports2 x 10/100/1000/2500BASE-T
Power supplyIEEE 802.3bt PoE++, 802.3at PoE+ or DC power adapter (DC preferred when both present)
802.3at noteOn 802.3at PoE+, radio transmission and reception are limited to 2T2R on both bands
DC input48 V, 1 A (5.5 mm outer, 2.1 mm inner connector)
Maximum power consumption40 W
WLAN and clients
Maximum associated clients512 (64 on 2.4 GHz, 512 on 5 GHz)
Recommended clients (802.11ax, 160 MHz)130 with both bands enabled
Maximum SSIDs8
Roaming802.11k/v, 802.11r, AI roaming, co-channel roaming, Layer 2 and Layer 3 roaming, AP load balancing
SecurityWPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X, dynamic VLAN assignment
Reyee MeshYes
Portal authenticationYes (standalone captive portal)
Management and software
ManagementRuijie Reyee app, eWeb, Ruijie Cloud, SNMP
ModesAP mode, routing mode, wireless repeater mode
VLANIEEE 802.1Q
IPv6Yes
Maximum managed devices300
Flash / RAM256 MB / 512 MB DDR3
Physical and environmental
Dimensions (W x D x H)230 x 230 x 49.5 mm (excluding bracket)
ColourWhite
MountingCeiling or wall
Operating temperature0°C to 40°C
Storage temperature-40°C to 70°C
Operating humidity5% to 95% RH, non-condensing
Surge protectionEthernet port: ±2 kV common mode
MTBF400,000 hours
CertificationCE, FCC, CB, ISED, cTUVus
Package contents
In the box1 x AP, 1 x mounting bracket, 4 x ST4.2 x 20 mm screws, 4 x plastic expansion anchors, user manual, warranty card, security lock key

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-RAP2260(H) in depth

AX6000 for high-density Wi-Fi

The RG-RAP2260(H) uses 4x4 MU-MIMO on both its 2.4 GHz and 5 GHz radios for 8 spatial streams and a 5950 Mbps maximum data rate, including 160 MHz channels on 5 GHz. Ruijie rates it for up to 512 associated clients, suiting busy venues.

Multi-gigabit uplinks

Two 2.5GbE ports let the AP move more traffic to the network than a Gigabit uplink, and Ruijie highlights a 5 Gbps uplink capability. For full radio performance power it from 802.3bt PoE++ or the 48 V DC input; on 802.3at PoE+ the radios drop to 2T2R.

Mesh, roaming and management

Reyee Mesh adds APs without new cabling, and 802.11k/v/r with AI roaming keep clients connected as they move. WPA3, OWE, 802.1X and a standalone captive portal cover security, with management through the Reyee app, eWeb or Ruijie Cloud.

Frequently asked questions

Straight answers about the Ruijie RG-RAP2260(H) from the ARC IP Networks team. Last reviewed October 2026.

Ruijie's datasheet lists a maximum wireless data rate of 5950 Mbps: 4803 Mbps on 5 GHz and 1147 Mbps on 2.4 GHz.

Two 10/100/1000/2500BASE-T (2.5GbE) ports. Ruijie highlights a 5 Gbps uplink capability.

802.3bt PoE++ or the 48 V DC input for full performance (40 W maximum). It also runs on 802.3at PoE+, but the radios are limited to 2T2R.

Up to 512 associated clients. Ruijie recommends 130 with both bands enabled when using 802.11ax and 160 MHz.

Ruijie's Reyee warranty summary lists 3 years for the RG-RAP2260(H).

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-RAP2260(H) from Australian stock with a GST tax invoice.
