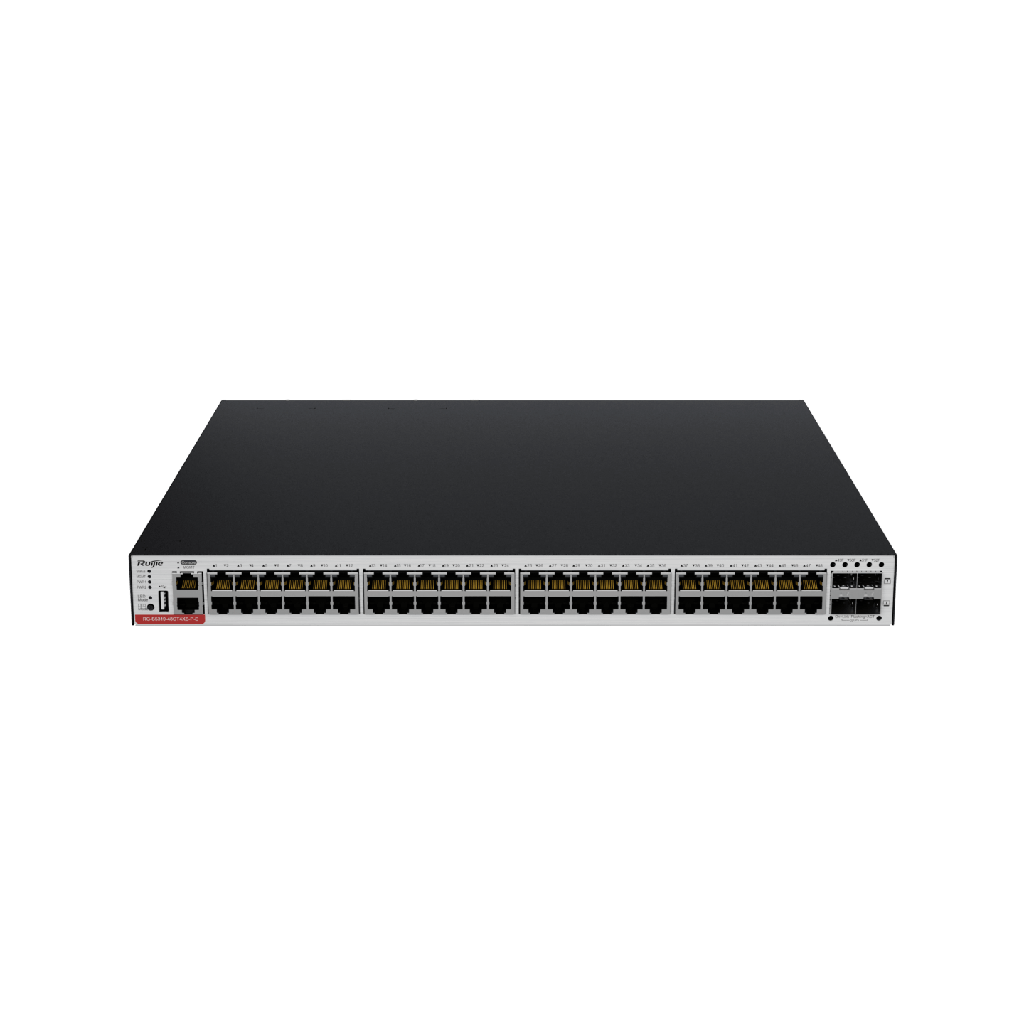

Ruijie RG-CS83-48GT4XS-PD, 48-Port Gigabit Layer 3 Managed PoE+ Switch with 4 x 10G SFP+ and Dual Redundant PSU Bays

Price:

2,710.40


Ruijie RG-AP820-L(V3), Wi-Fi 6 AX3000 Dual-Radio Indoor Access Point with 160 MHz Support
Ruijie RG-AP820-L(V3), Wi-Fi 6 AX3000 Dual-Radio Indoor Access Point with 160 MHz Support
329.12
329.12
Ruijie RG-EG1510XS, 10-Port Multi-Gig Cloud-Managed Business Router, 1500 Clients, 2 x 10G SFP+
Ruijie RG-EG1510XS, 10-Port Multi-Gig Cloud-Managed Business Router, 1500 Clients, 2 x 10G SFP+
1,015.19
1,015.19

Ruijie RG-CS83-48GT4XS-PD, 48-Port Gigabit Layer 3 Managed PoE+ Switch with 4 x 10G SFP+ and Dual Redundant PSU Bays

https://arcip.com.au/web/image/product.template/10354/image_1920?unique=6d50887
Ruijie RG-CS83-48GT4XS-PD 48-port Gigabit Layer 3 managed PoE+ campus switch. 4 x 1G/10G SFP+, dual hot-swap PSU bays, VSU stacking, 128 Gbps, 10kV port surge protection. Australian stock from ARC IP Networks.

2,710.40 2710.4 AUD 2,710.40 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification

This combination does not exist.

Rackmount PoE Ruijie Cloud Managed
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-CS83-48GT4XS-PD
Tags
RG-CS83-48GT4XS-PD 48-Port Gigabit Layer 3 Managed PoE+ Access Switch, 4 x 10G SFP+, Dual PSU Bays
Ruijie

Features

  • 48 x 10/100/1000BASE-T ports and 4 x 1GE/10GE SFP+ uplink ports
  • IEEE 802.3af and IEEE 802.3at compliant, PoE+ supported
  • VSU, Realizing Flexible Networking and High Performance

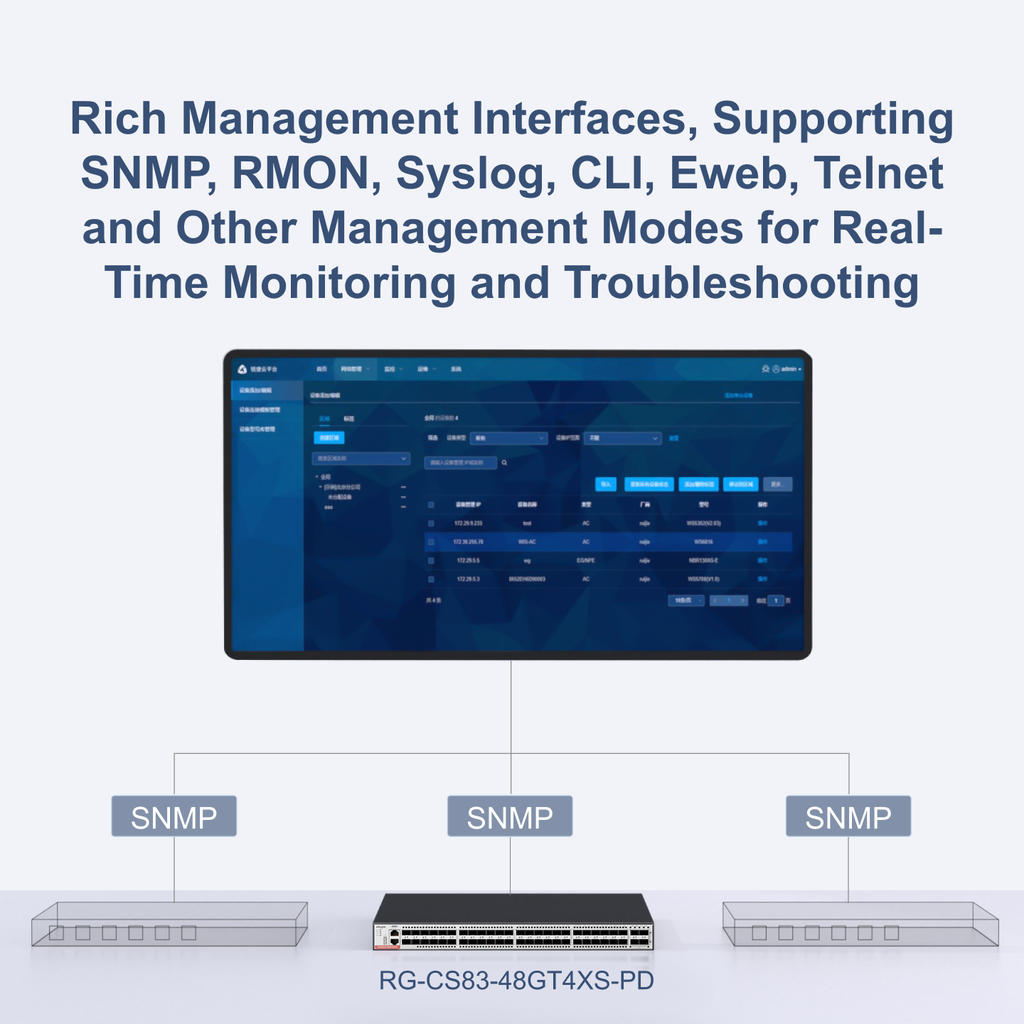

  • Multiple management modes, allowing simplified and easy network maintenance

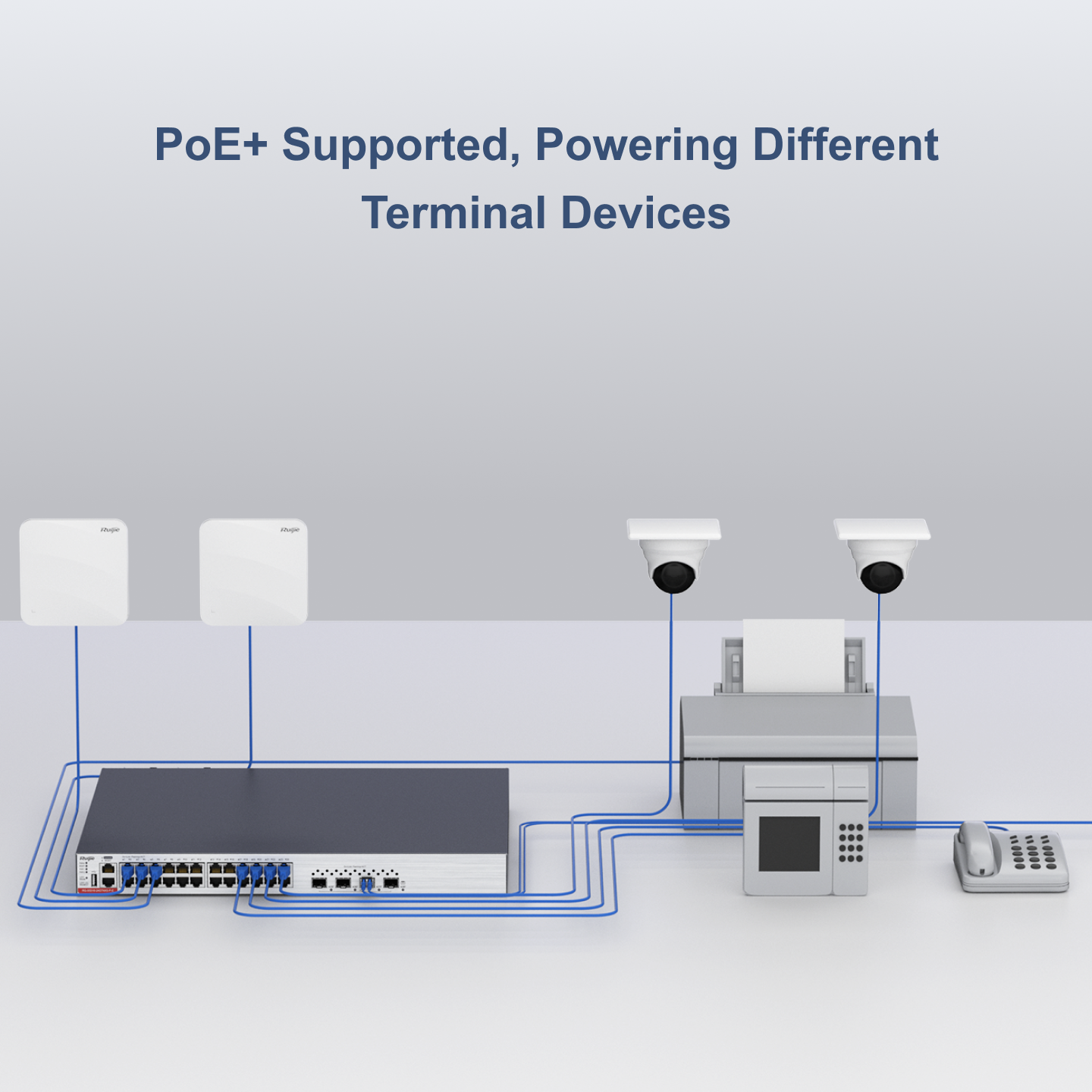

Ruijie RG-CS83-48GT4XS-PD product view 1

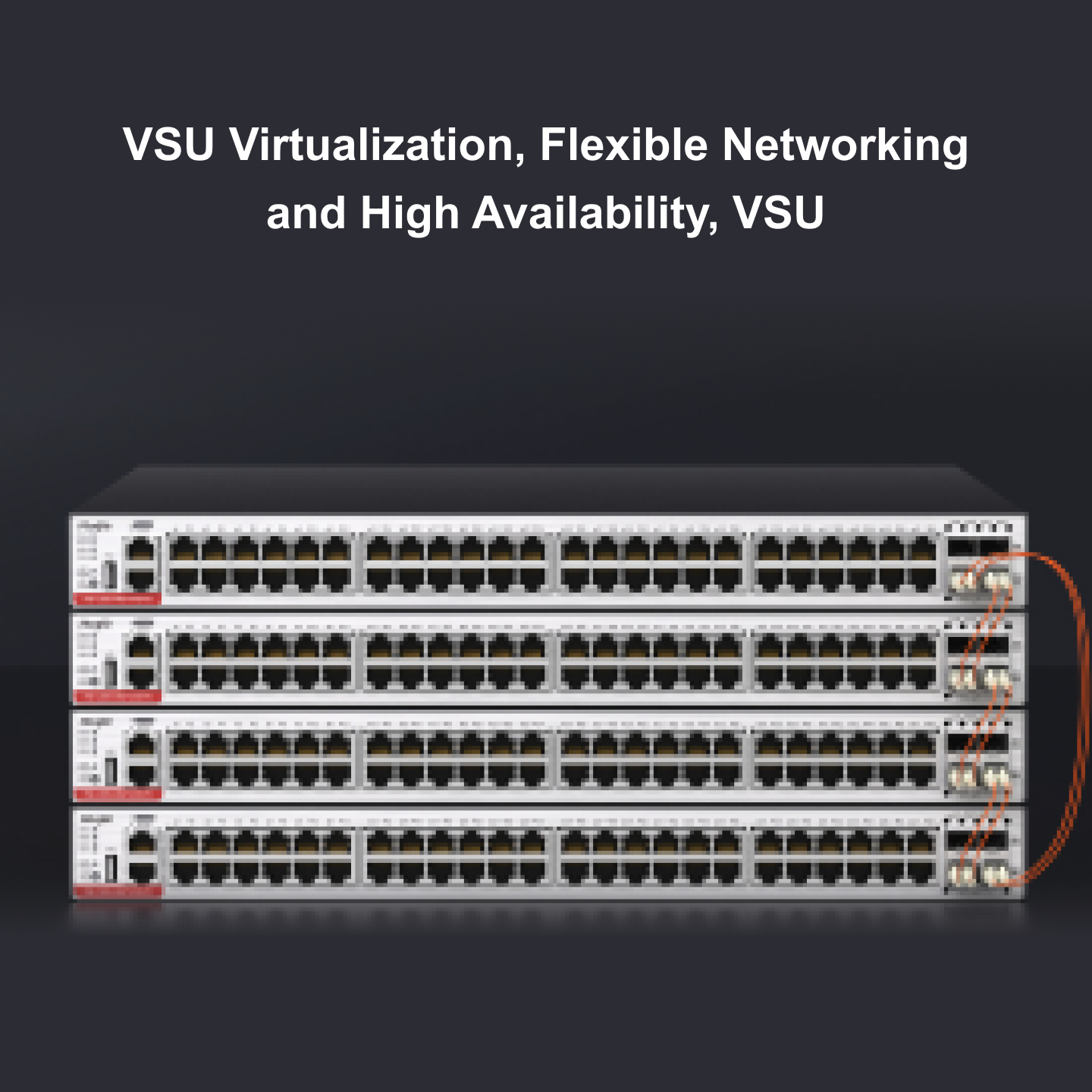

Ruijie RG-CS83-48GT4XS-PD product view 2

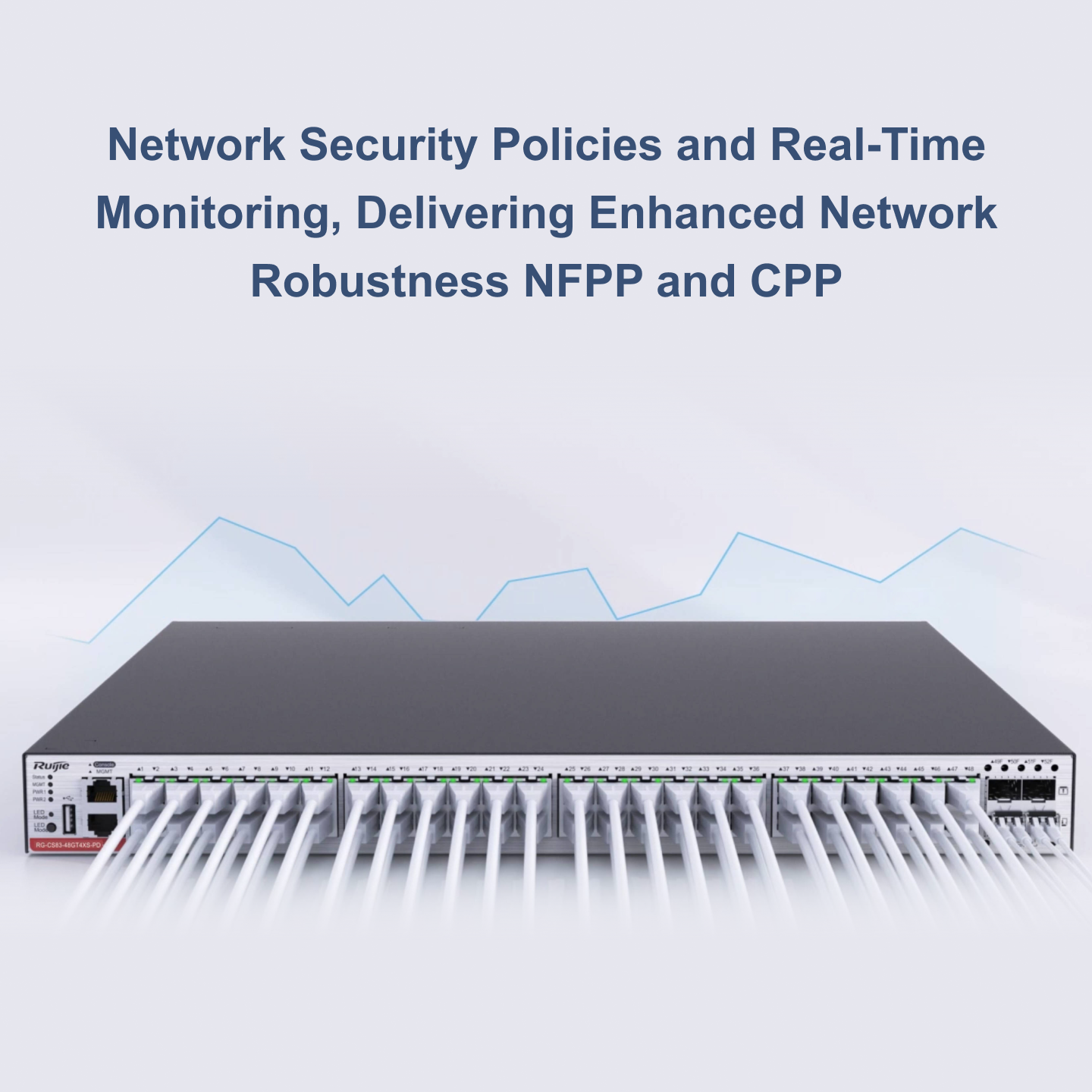

Ruijie RG-CS83-48GT4XS-PD product view 3

Specifications

Network
Gigabit Ports48 x 10/100/1000BASE-T RJ45, all PoE/PoE+ capable
Uplinks4 x 1GE/10GE SFP+
Management Ports1 x RJ45 console, 1 x RJ45 MGMT
Network LayerLayer 3
VSU StackingYes
Performance
Switching Capacity128 Gbps
Packet Forwarding Rate96 Mpps
CPUDual-core, 1.2 GHz per core
Memory1 GB
Flash2 GB
MAC Address Table32,000
VLANs4,094
Jumbo Frame9216 bytes
PoE and Power
PoE StandardIEEE 802.3af / 802.3at
Max PoE per Port30 W
Power Modules2 x pluggable bays (RG-PA600I-P-F 600 W or RG-PA1000I-P-F up to 1000 W)
PoE Budget370 W with 1 x RG-PA600I-P-F; higher with RG-PA1000I-P-F or dual modules
Redundancy1+1 power redundancy with dual modules
Hot SwapSupported
Power Consumption65 W non-PoE / 810 W at full PoE load
Reliability
MTBF356,000 hours with dual power modules; 208,000 hours single module
Operating Temperature0°C to +45°C
Surge ProtectionService port 10 kV; MGMT port 4 kV; power port 6 kV common and differential mode
Dimensions
Unit Dimensions442 x 420 x 43.6 mm (1U)
Unit Weight4.3 kg

Professional Overview

The Ruijie RG-CS83-48GT4XS-PD is a 48-port Gigabit Layer 3 managed access switch from Ruijie's enterprise campus range, with four 1G/10G SFP+ uplinks and two pluggable power-module bays. It sits a clear tier above the Reyee NBS line: dual-core 1.2 GHz CPU, 1 GB of memory, 2 GB of flash, a 32,000-entry MAC table, 4,094 VLANs, and VSU stacking so multiple chassis present as a single logical switch.

The defining feature is modular, redundant power. Two hot-swappable bays accept the 600 W RG-PA600I-P-F or the 1000 W RG-PA1000I-P-F, giving 1+1 redundancy and a PoE budget you size to the job rather than accept from the factory. A single 600 W module delivers 370 W of PoE; fitting the 1000 W module or both bays raises that substantially, up to 810 W of total draw at full PoE load. All 48 ports are 802.3af/at capable at up to 30 W each.

Performance is 128 Gbps of switching capacity at 96 Mpps, with four SFP+ ports that auto-negotiate 1G or 10G so the same switch works against an existing Gigabit fibre core today and a 10G core after an upgrade. Layer 3 routing, ACLs and full VLAN capability are handled on the switch, and management is available through Ruijie Cloud, web GUI, CLI over a dedicated RJ45 console port, a separate out-of-band MGMT port, and SNMP.

Hardening reflects the campus positioning: 10 kV surge protection on the service ports, 4 kV on the MGMT port and 6 kV common and differential mode on the power inputs, with temperature and power-supply monitoring and alarms. MTBF is 356,000 hours with dual power modules. The chassis is 1U, 442 x 420 x 43.6 mm, 4.3 kg, and rated 0°C to +45°C. Note that power modules are ordered separately. Australian stock from ARC IP Networks.

Part of the Ruijie Reyee range at ARC IP Networks — an authorised Australian Ruijie reseller. Genuine Australian stock with the full manufacturer’s warranty, and free lifetime Ruijie Cloud management.
Ruijie Reyee Australia · Ruijie managed switches · Ruijie Cloud

Brand Ruijie
Switching Capacity 128 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed 48 x GbE + 4 x 1G/10G SFP+
Ports 52 Ports
Network Connectivity Wired
Uplink 4 x 1GE/10GE SFP+
PoE Specification PoE+ 802.3af/at, up to 30W per port
