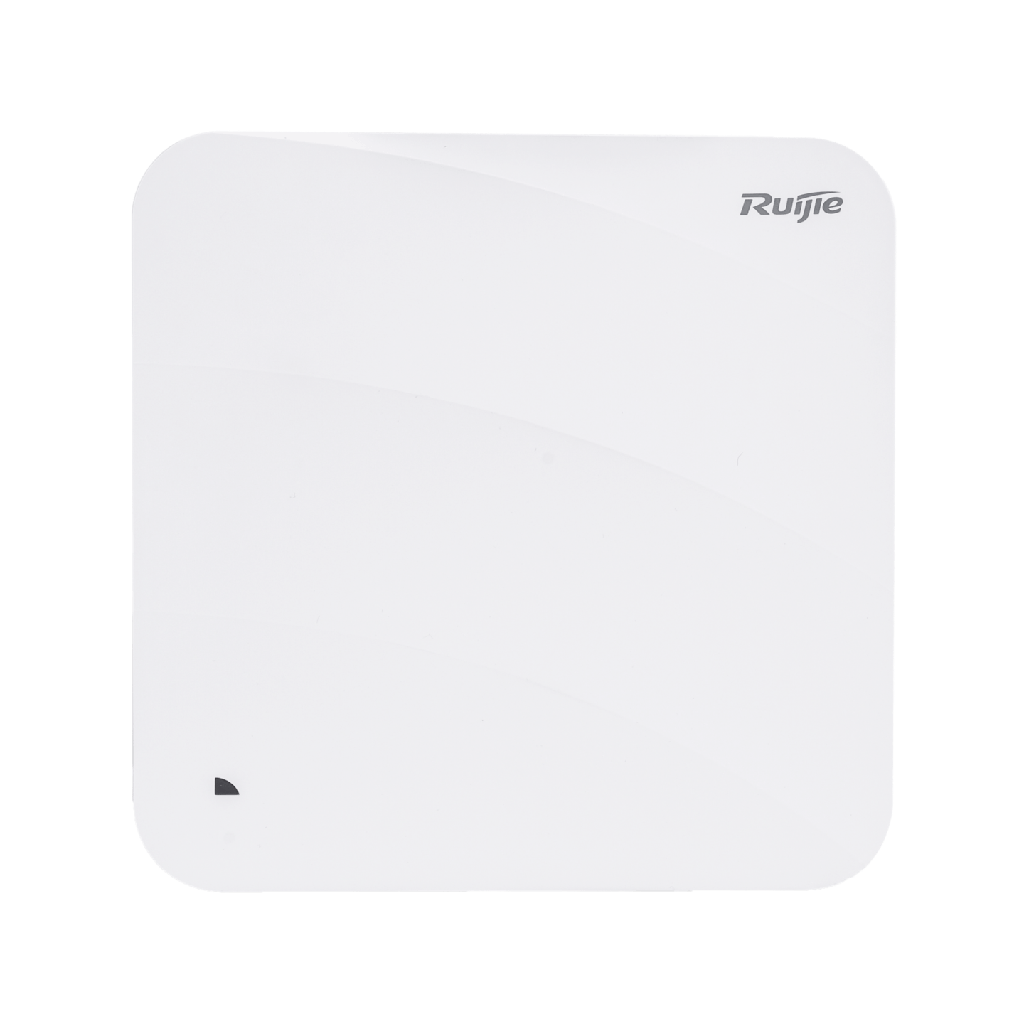

Ruijie RG-AP820-L(V3), Wi-Fi 6 AX3000 Dual-Radio Indoor Access Point with 160 MHz Support

Price:

329.12


Ruijie RG-AP180, Wi-Fi 6 Dual-Radio 1.775 Gbps Indoor Wall-Plate Access Point with 4 x GbE
Ruijie RG-AP180, Wi-Fi 6 Dual-Radio 1.775 Gbps Indoor Wall-Plate Access Point with 4 x GbE
254.10
254.10
Ruijie RG-CS83-48GT4XS-PD, 48-Port Gigabit Layer 3 Managed PoE+ Switch with 4 x 10G SFP+ and Dual Redundant PSU Bays
Ruijie RG-CS83-48GT4XS-PD, 48-Port Gigabit Layer 3 Managed PoE+ Switch with 4 x 10G SFP+ and Dual Redundant PSU Bays
2,710.40
2,710.40

Ruijie RG-AP820-L(V3), Wi-Fi 6 AX3000 Dual-Radio Indoor Access Point with 160 MHz Support

https://arcip.com.au/web/image/product.template/10353/image_1920?unique=b828fa0
Ruijie RG-AP820-L(V3) AX3000 Wi-Fi 6 dual-radio indoor access point. 2.976 Gbps with 160 MHz channels, 26 dBm radios, 256 clients, 12.95W 802.3af PoE, IP41, Ruijie Cloud. Australian stock from ARC IP Networks.

329.12 329.12 AUD 329.12 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • Network Connectivity
  • PoE Specification
  • WiFi Standard
  • Frequency Band

This combination does not exist.

WiFi 6 Indoor Access Point Ruijie Cloud Managed Ceiling Mount WiFi
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-AP820-L-V3
Tags
RG-AP820-L(V3) Wi-Fi 6 AX3000 Dual-Radio Indoor Access Point
Ruijie

Features

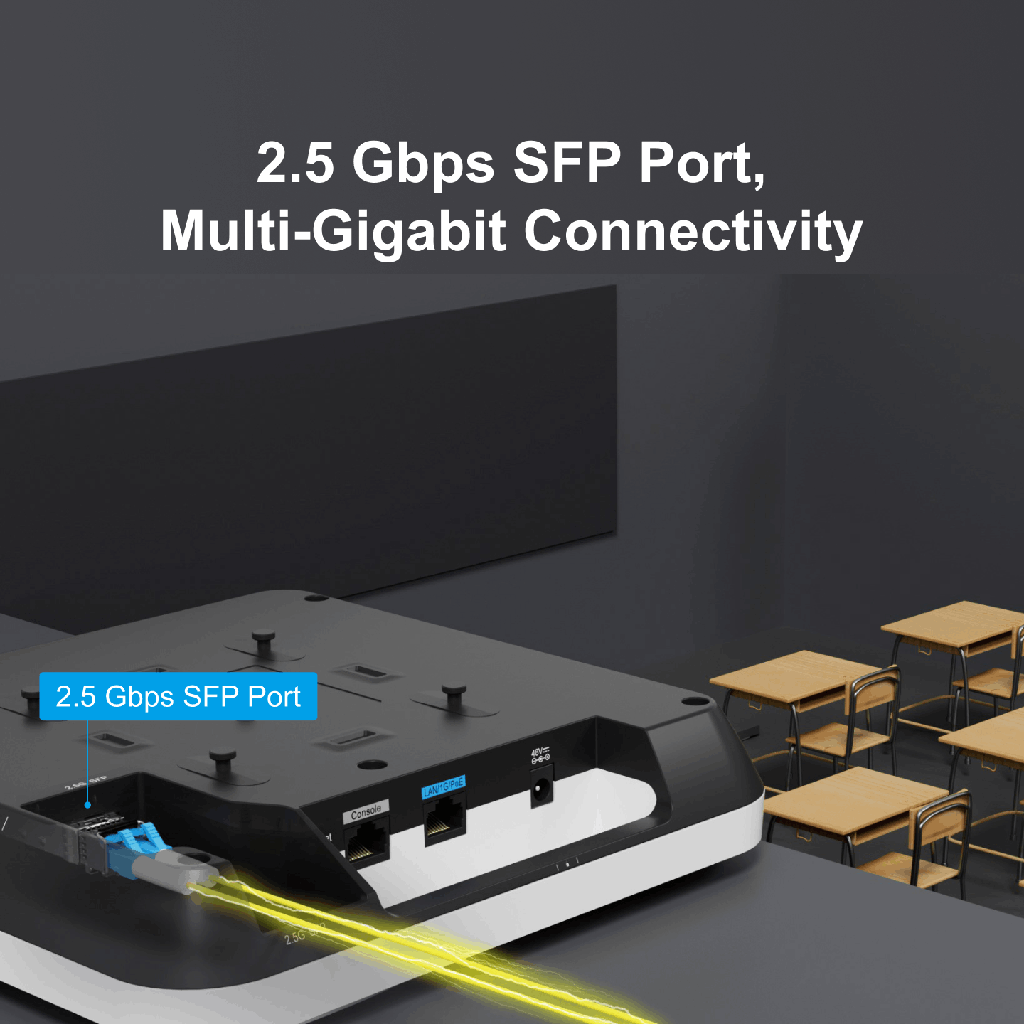

  • 2.5 Gbps SFP Port, Multi-Gigabit Networking
  • Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps
  • Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
  • Unified cloud management, intelligent tuning, easy O&M

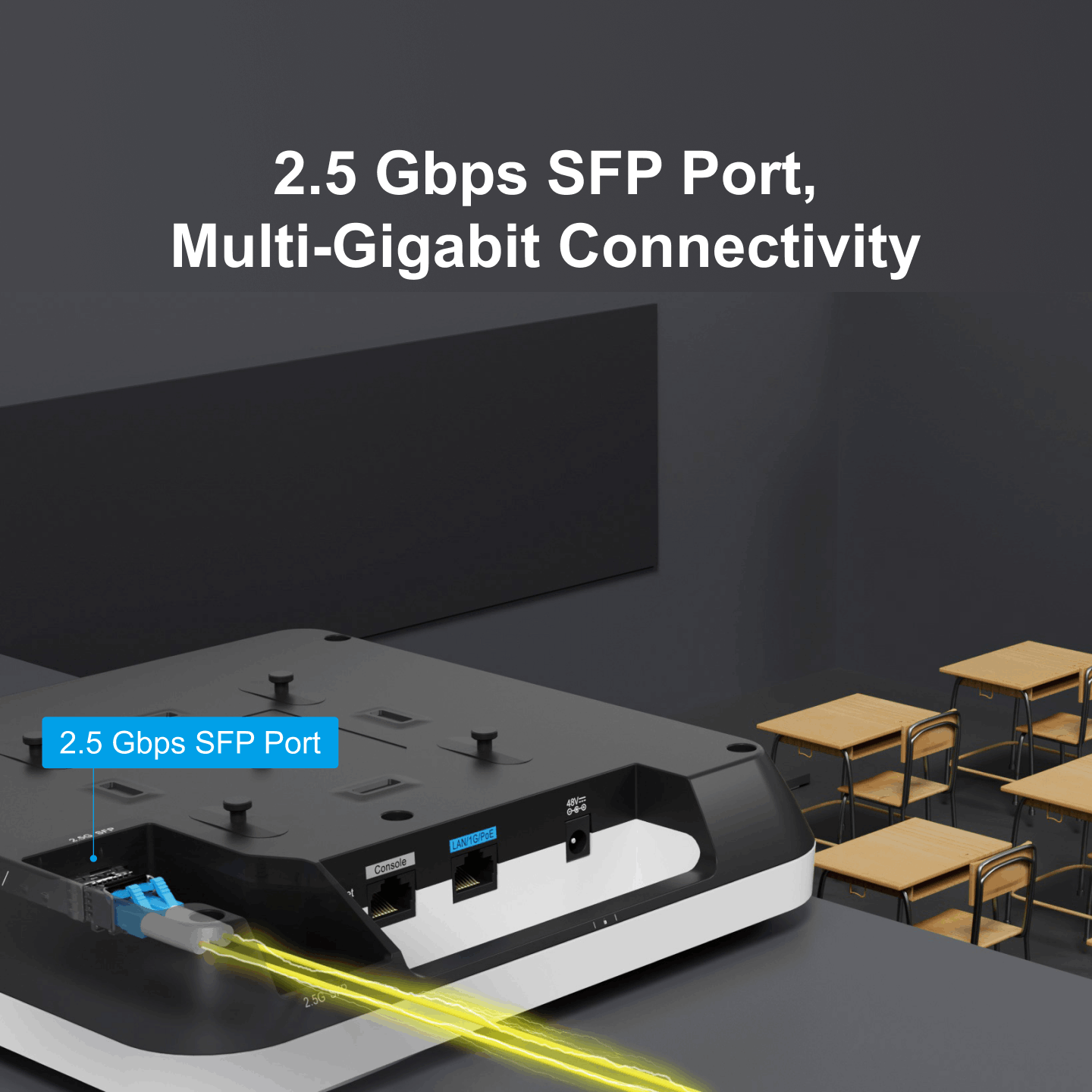

Ruijie RG-AP820-L-V3 product view 1

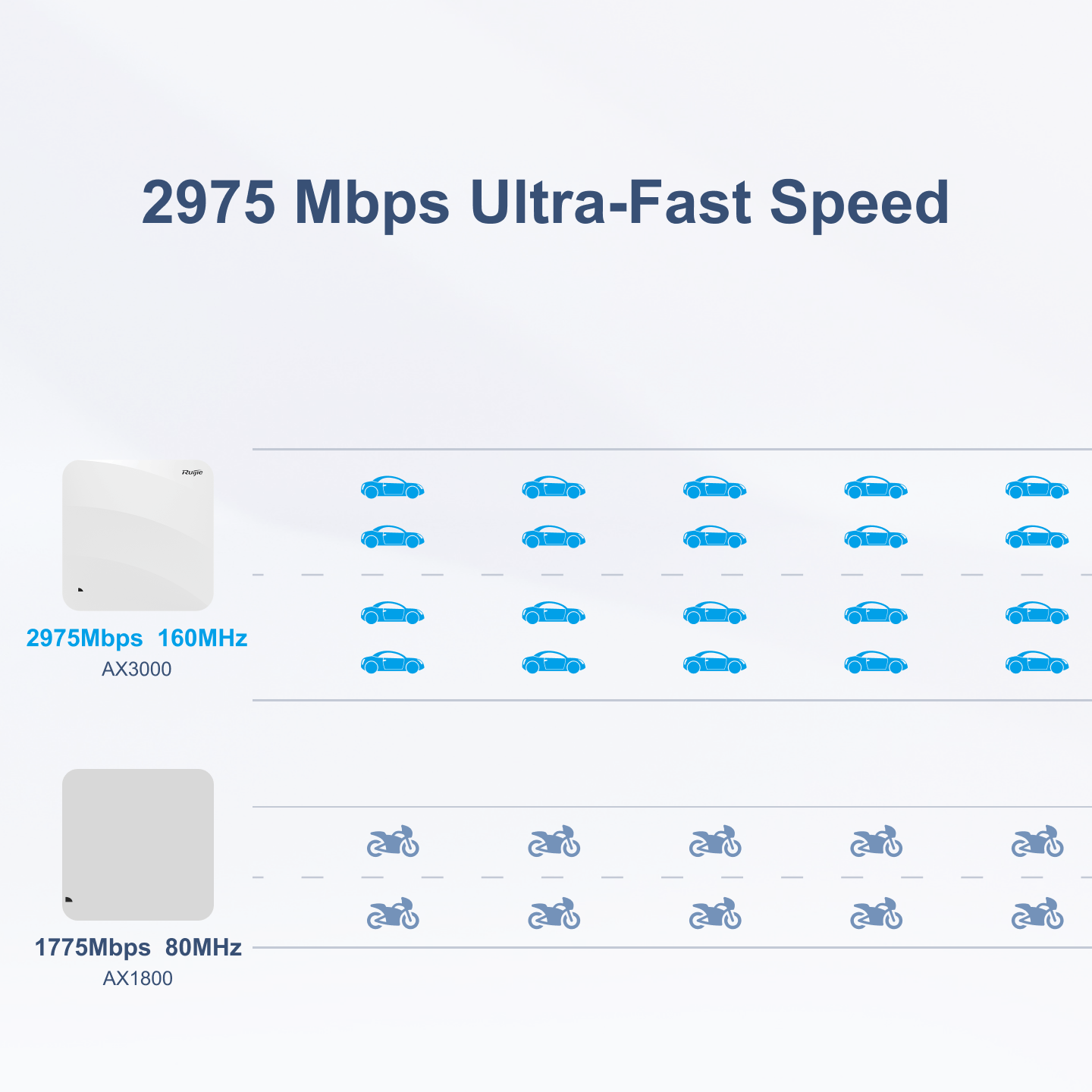

Ruijie RG-AP820-L-V3 product view 2

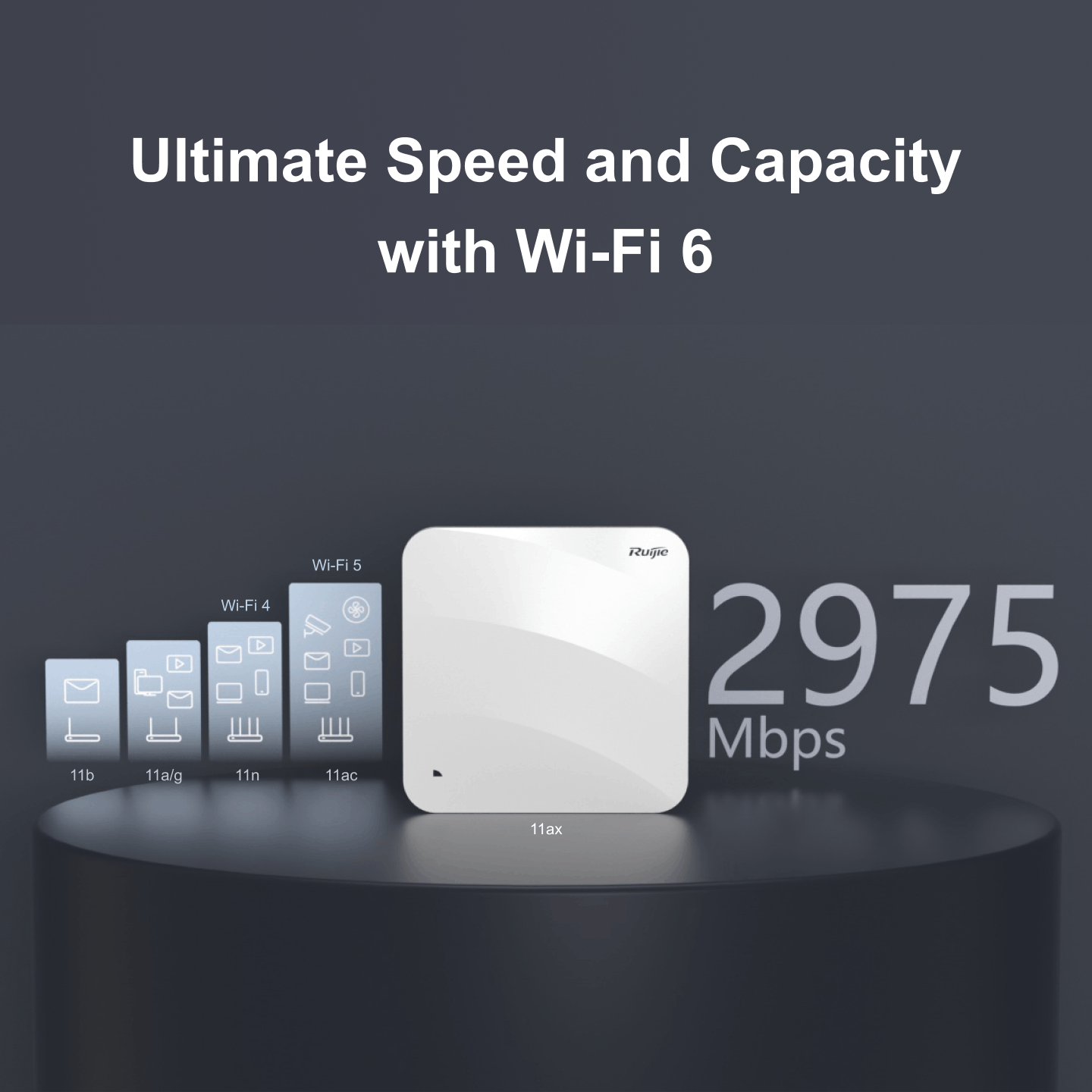

Ruijie RG-AP820-L-V3 product view 3

Specifications

Wi-Fi Radio
Standard802.11ax (Wi-Fi 6), AX3000
Radio DesignDual-radio, up to 4 spatial streams; 2.4 GHz 2x2 MIMO, 5 GHz 2x2 MIMO
Maximum Data Rate2.976 Gbps aggregate with 160 MHz channels
Channel WidthUp to 160 MHz on 5 GHz
AntennasBuilt-in omnidirectional: two 2.4 GHz and two 5 GHz
Antenna Gain5 dBi on 2.4 GHz, 5 dBi on 5 GHz
Maximum Transmit Power26 dBm per radio (23 dBm per chain), subject to local regulatory limits
BluetoothOnboard omnidirectional antenna, 2.4 dBi, up to 17 dBm
Ports and Power
Service Port1 x 10/100/1000BASE-T, IEEE 802.3af PoE-PD, auto MDI/MDIX
Management Port1 x RJ45 serial console
DC Input48 V DC / 0.6 A
Power Consumption12.95 W maximum
Capacity
Maximum Associated Clients256
SSID ManagementPer-SSID authentication mode, encryption and VLAN; SSID hiding; bridge VLAN
Client FilteringAllowlist, static blocklist, dynamic blocklist
Physical
Dimensions220 x 220 x 49 mm
Weight0.6 kg main unit plus 0.2 kg mounting bracket
MountingWall or ceiling, bracket included
IP RatingIP41
Operating Temperature−10°C to +50°C
MTBF200,000 hours at 25°C
Management
PlatformsRuijie Cloud and web-based management (Eweb)
ProtocolsSNMP v1/v2c/v3, NTP server and client, Console, Telnet, SSH, TFTP

Professional Overview

The Ruijie RG-AP820-L(V3) is the AX3000 refresh of the AP820-L, built on a newer Wi-Fi 6 chipset that supports 160 MHz channel width and lifts the aggregate rate to 2.976 Gbps. Where the V2 optimises for client count, the V3 optimises for per-client throughput: a single 160 MHz channel on 5 GHz gives a modern laptop or phone roughly double the peak rate of an 80 MHz channel.

Transmit power is also higher — up to 26 dBm per radio, 23 dBm per chain, subject to Australian regulatory limits — which combined with 5 dBi built-in antennas on both bands gives noticeably better coverage per AP than the V2 in open-plan and warehouse spaces. Client capacity is 256 associations, appropriate for the typical office, classroom or retail floor rather than for stadium density.

Using 160 MHz channels in practice needs planning. In Australia the 5 GHz band supports only a small number of non-overlapping 160 MHz channels, and several of them fall in DFS ranges where the AP must yield to radar. The V3 is the right choice where a handful of APs each need maximum throughput; where many APs must coexist on one floor, running it at 80 MHz and relying on its higher transmit power and newer chipset still leaves it ahead of the V2.

Management matches the rest of the enterprise range: per-SSID authentication, encryption and VLAN mapping, bridge VLAN support, SSID hiding, allowlists and static and dynamic blocklists, driven from Ruijie Cloud, the Eweb interface, SNMP v1/v2c/v3, console, Telnet, SSH or TFTP. Power is 12.95 W from 802.3af PoE or 48 V DC. The housing is 220 x 220 x 49 mm, 0.6 kg plus a 0.2 kg bracket, IP41 rated and specified from −10°C to +50°C with a 200,000-hour MTBF. This is a 2.4/5 GHz dual-band access point and does not use the 6 GHz band. Australian stock from ARC IP Networks.

Brand Ruijie
Form Factor Ceiling Mount
Ports 1 Port
Network Connectivity Wi-Fi 6
PoE Specification PoE-in 802.3af
WiFi Standard 802.11ax (WiFi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
