RG-AP180 Wi-Fi 6 Dual-Radio 1.775 Gbps Indoor Wall-Plate Access Point
Ruijie

Features

  • Multi-service Linkage, All-in-One for Office Scenarios
  • 1.775 Gbps Ultra-Fast Speed with Wi-Fi 6
  • Full-Scenario Enterprise-class Authentication for Enhanced Security
  • Ruijie Cloud Management, Intelligent Optimization, and Easy O&M

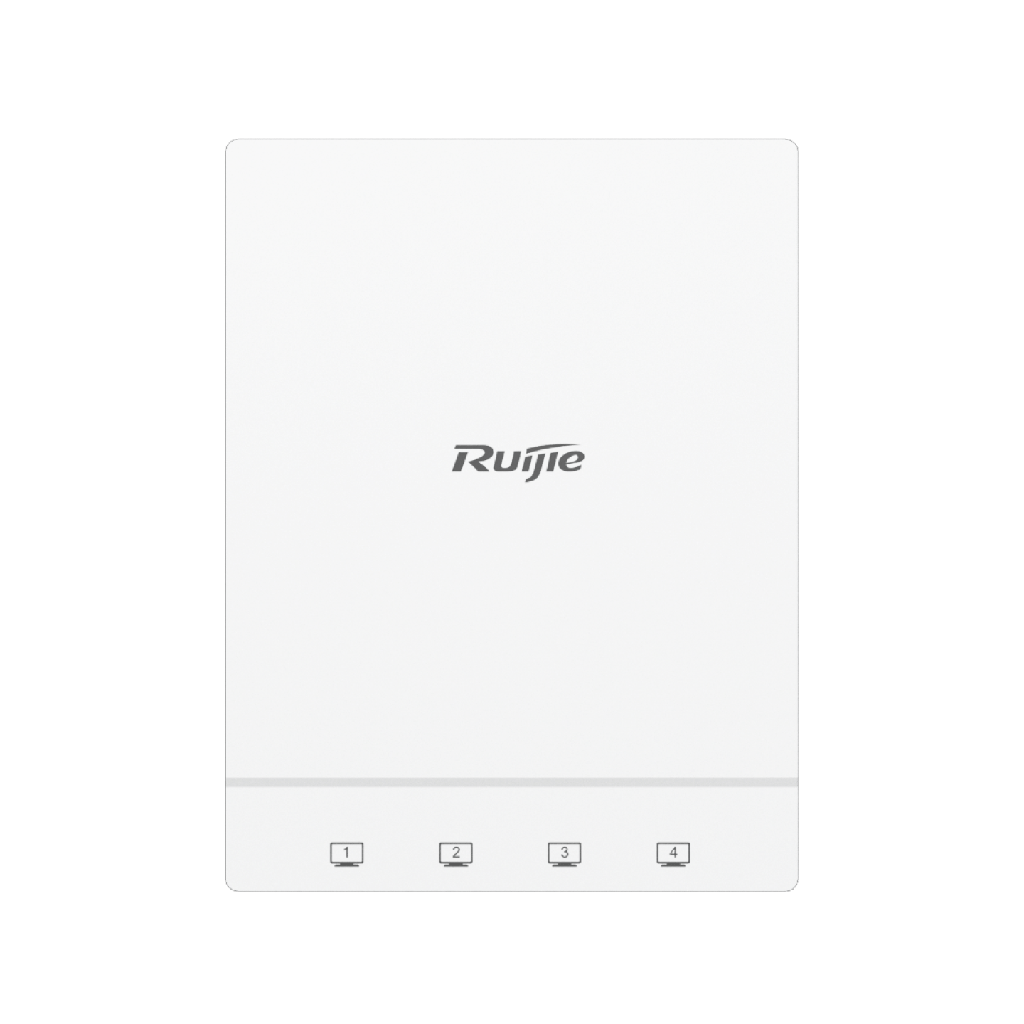

Ruijie RG-AP180 product view 1
Ruijie RG-AP180 product view 2
Ruijie RG-AP180 product view 3

Specifications

Wi-Fi Radio
Standard802.11ax (Wi-Fi 6)
Radio DesignDual-radio, up to 4 spatial streams; 2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO
Maximum Data Rate1,775 Mbps aggregate
AntennasBuilt-in intelligent antennas: two 2.4 GHz and two 5 GHz
Antenna Gain2.5 dBi on 2.4 GHz, 5.5 dBi on 5 GHz
Maximum Transmit Power20 dBm per radio (17 dBm per chain), subject to local regulatory limits
BluetoothOnboard omnidirectional antenna, 2.4 dBi, 10 dBm
Ports and Power
Uplink1 x 10/100/1000BASE-T, IEEE 802.3af/at PoE-PD
LAN Ports4 x 10/100/1000BASE-T
Management Port1 x Micro USB console, under the decorative cover
DC Input12 V DC / 1 A
Power Consumption10 W maximum; 3.3 W idle
Capacity
Maximum Associated Clients256
SSID ManagementPer-SSID authentication mode, encryption and VLAN; SSID hiding
Client FilteringAllowlist, static blocklist, dynamic blocklist
Physical
In-Wall Dimensions86 x 116 x 19 mm
Above-Wall Dimensions86 x 116 x 24 mm
Weight0.19 kg
MountingWall or 86 mm / EU standard junction box
Operating Temperature−10°C to +50°C
MTBF200,000 hours at 25°C
Management
PlatformsRuijie Cloud and web-based management (Eweb)
ProtocolsSNMP v1/v2c/v3, NTP server and client, Console, Telnet, SSH, TFTP

Professional Overview

The Ruijie RG-AP180 is a Wi-Fi 6 wall-plate access point from Ruijie's enterprise range, delivering 1,775 Mbps aggregate across dual 2x2 MU-MIMO radios with four Gigabit LAN ports on the faceplate. It fits an 86 mm or EU standard junction box and is only 19 mm deep in the in-wall configuration, or 24 mm mounted above the wall.

The design target is the multi-service guest room or study bedroom: wireless coverage inside the room rather than through its walls, plus wired ports for a television, an IP handset and a data outlet, from one structured cable run. Power is 802.3af/at PoE with a 10 W maximum draw and only 3.3 W at idle, so a modest PoE budget covers a large number of rooms — a 120 W switch can run more than a dozen of these comfortably.

Because this is the enterprise AP180 rather than a Reyee model, the authentication and management feature set is broader. Each SSID carries its own authentication method, encryption and VLAN mapping, SSID hiding is supported, and client access can be controlled with allowlists and both static and dynamic blocklists. Management is available through Ruijie Cloud, the Eweb browser interface, SNMP v1/v2c/v3, console, Telnet, SSH and TFTP, and there is a Micro USB console port under the decorative cover for local access.

An onboard Bluetooth radio with a 2.4 dBi antenna supports beacon and IoT use cases alongside the Wi-Fi service. The AP operates from −10°C to +50°C with a 200,000-hour MTBF at 25°C, weighs 0.19 kg, and accepts 12 V DC as an alternative to PoE. This is a 2.4/5 GHz dual-band access point and does not use the 6 GHz band. Australian stock from ARC IP Networks.

Part of the Ruijie Reyee range at ARC IP Networks — an authorised Australian Ruijie reseller. Genuine Australian stock with the full manufacturer’s warranty, and free lifetime Ruijie Cloud management.
Ruijie Reyee Australia · Ruijie access points · Ruijie Cloud

RG-AP180 — frequently asked questions

What is the operating temperature of the RG-AP180?

The RG-AP180 is specified for Operating temperature: –10°C to +50°C (14°F to 122°F). For hot roof spaces, unventilated cabinets or inland summer conditions, confirm the cabinet stays inside that range.

Does the RG-AP180 need a licence or a controller?

No. Ruijie Cloud management is included free for the life of the hardware — there is no subscription, no per-device licence and no controller appliance to buy. See our Ruijie Cloud guide.

Is the RG-AP180 genuine Australian stock?

Yes. ARC IP Networks is an authorised Australian Ruijie reseller, so the RG-AP180 is genuine Australian stock carrying the full manufacturer’s warranty — not parallel or grey import.

Where can I buy the RG-AP180 in Australia?

From ARC IP Networks. We are an authorised Australian Ruijie reseller and hold the access point range as genuine Australian stock with the full manufacturer’s warranty — not grey import. Browse the Ruijie access point range.

Brand Ruijie
Form Factor Wall Plate
Ports 5 Ports
Network Connectivity Wi-Fi 6
PoE Specification PoE-in 802.3af/at
WiFi Standard 802.11ax (WiFi 6)
Frequency Band Dual-Band (2.4 + 5 GHz)
