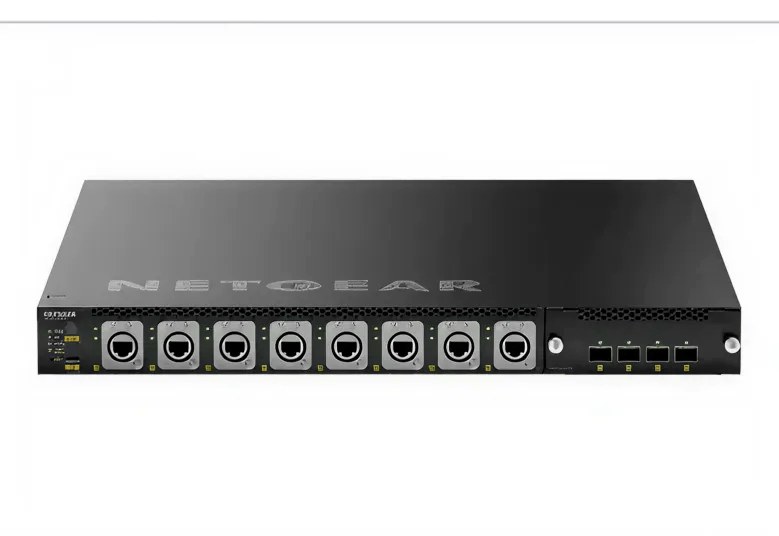

Netgear MSM4320 M4350-16M4V 20-Port 2.5G PoE++ Neutrik Managed Switch, 8 etherCON, 4 x 25G SFP28, up to 1,130W

https://arcip.com.au/web/image/product.template/8488/image_1920?unique=874d354

Netgear MSM4320 (M4350-16M4V) 1U Layer 3 managed Neutrik switch. 16 x 2.5G Ultra90 PoE++ ports (up to 90W per port) including 8 front Neutrik etherCON, plus interface slot with APM414V 4 x 25G SFP28 card included; optional APM414C, APM414SD and APM414LD cards. Two internal 800W PSUs with Neutrik powerCON inputs: 530W redundant PoE, up to 1,130W total. SMPTE ST 2110 PTP Boundary and Grandmaster Clock, NETGEAR IGMP Plus, AV user interface, RGB port LEDs, Engage Controller. 280 Gbps fabric. 440 x 432 x 43.2 mm. NETGEAR ProSAFE Limited Lifetime Hardware Warranty, with 3 years of Sprint support included. Genuine Netgear from ARC IP Networks, authorised Netgear reseller with Australian stock.

$ 10,889.18 10889.18 AUD $ 10,889.18 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MSM4320-100AJS

Netgear MSM4320 at a glance

The Netgear MSM4320 (M4350-16M4V) is a 1U Layer 3 managed "Neutrik" switch with 16 x 2.5G Ultra90 PoE++ ports, 8 of them on front-panel Neutrik etherCON connectors, plus an interface-card slot that ships with the APM414V (4 x 25G SFP28). Two internal 800W power supplies with powerCON inputs provide 530W of redundant PoE, or up to 1,130W total. It supports SMPTE ST 2110 with PTP Boundary and Grandmaster Clock.

ARC IP Networks is an authorised Netgear reseller in Australia. We supply the genuine Netgear MSM4320 from Australian stock, with a GST tax invoice on every order.

Ports16 x 2.5G PoE++ (8 etherCON), 4 x 25G
PoE++ budget530W redundant, up to 1,130W
Power2 x 800W internal, powerCON
Interface cardAPM414V, 4 x SFP28 included

Best for

  • Live events and touring racks needing locking Neutrik etherCON, opticalCON and powerCON connectors
  • SMPTE ST 2110, Dante and AES67 production networks with PTP Boundary or Grandmaster Clock
  • Front-of-house and stage boxes powering 2.5G PoE++ endpoints with redundant power

Key features

16 x 100M/1G/2.5GBASE-T Ultra90 PoE++ ports (up to 90W per port): 8 Neutrik etherCON ports on the front and 8 standard RJ45 ports.

Modular interface slot shipping with the APM414V card (4 x 10G/25G SFP28); optional APM414C (4 x 10GBASE-T), APM414SD (2 opticalCON QUAD, multimode) and APM414LD (2 opticalCON QUAD, single mode).

Two internal 800W power supplies with 2 Neutrik powerCON connectors and C14 male adapters for standard IEC 320 C13 cords.

530W redundant base PoE budget (1+1), or up to 1,130W total with both supplies sharing.

280 Gbps line-rate switching fabric with 208.32 Mpps throughput (64-byte frames).

SMPTE ST 2110 support with PTP Boundary Clock and Grandmaster Clock modes for SMPTE 2059-2, AES67 and AES-R16-2016 profiles.

Individual RGB LED under each port showing the colour of the AV profile set in the AV user interface and Engage.

Virtual Chassis stacking of up to 8 switches at the edge or 2 at the core, with non-stop forwarding (NSF) and hitless management failover; any 10G, 25G or 100G port and any media type can be a stack port (up to 16 per switch).

Layer 3 feature set with static, policy-based, RIP, OSPF, VRRP and PIM-SM/DM/SSM routing plus DHCP server, with the entire feature set available without a licence.

Pre-configured for AV over IP: NETGEAR IGMP Plus, Auto-Trunk and Auto-LAG, and a dedicated AV user interface with colour-based profiles for Dante, Q-SYS, AES67, AVB, NDI, NVX and lighting (Art-Net, sACN).

Netgear MSM4320 specifications

Netgear MSM4320 technical specifications
SpecificationValue
Ports
100M/1G/2.5GBASE-T PoE++ ports16 (8 Neutrik etherCON front, 8 standard RJ45)
Interface card slot1 (4 ports), APM414V pre-installed
APM414V (included)4 x SFP28, Ethernet mode 10G/25G; stacking mode 25G
APM414C (optional)4 x 10GBASE-T RJ45, 1G/10G only
APM414SD / APM414LD (optional)2 x opticalCON QUAD for 4 x MMF / SMF 10G or 25G transceivers
Total usable ports20
Power over Ethernet
PoE standardIEEE 802.3bt Ultra90 (60W, 75W, 90W), compatible with 802.3af and 802.3at
PoE++ ports16
Redundant base PoE budget530W (1+1)
Maximum PoE budget1,130W with both internal PSUs connected
PoE management802.3bt LLDP and auto-classification, PoE timer/schedule
Performance
Switching fabric280 Gbps line-rate
Throughput (64-byte)208.32 Mpps
Latency (64-byte)2.5G <5.30µs; 10G fibre <0.80µs; 25G <0.70µs
Jumbo framesUp to 12KB
System and Layer 3
CPUQuad-Core Cortex-A57 ARMv8 1.8GHz, 64-bit
RAM4GB DDR4
Flash512MB NAND, dual firmware image
Packet buffer32Mb
MAC / ARP / NDP16K MAC, 4K ARP, 512 NDP
VLANs4,093 (802.1Q)
Link aggregation64 LAGs, up to 8 ports per group
RoutingStatic, policy-based, RIP, OSPF, VRRP, PIM-SM/DM/SSM
Static routes256 IPv4 / 64 IPv6
OSPF route scaling1,024 IPv4 / 256 IPv6
DHCP server2K leases
Management and stacking
InterfacesAV user interface, IT web GUI, CLI (console, Telnet, SSH)
MonitoringSNMP, RMON, sFlow, RSPAN, LLDP
Central managementNETGEAR Engage Controller
MulticastNETGEAR IGMP Plus, IGMP/MLD snooping and proxy
AVBIncluded, up to 500 AVB streams per switch (not in a stack)
PTPIEEE 1588 PTPv2 Transparent Clock; Boundary Clock and Grandmaster Clock (SMPTE 2059-2, AES67, AES-R16-2016)
Management portsUSB-C console (front); 1 x 1G RJ45 out-of-band service port and 2 x USB-A storage (rear)
StackingUp to 8 units at the edge, 2 at the core; NSF with hitless failover; any 10G, 25G or 100G port and any media type can be a stack port (up to 16 per switch)
Power and cooling
Internal PSUs2 x 800W, Neutrik powerCON connectors, C14 male adapters included
Modular PSU slotsNone (dual internal PSUs)
Power consumptionStandby 50.6W; full traffic without PoE 109.6W; full PoE on one PSU 689.6W; max PoE 1359.8W
Acoustics (Quiet mode, 25°C)35.6dBA; Cool mode 70.7dBA
AirflowFront-to-back
Physical and environmental
Form factor1U rackmount, full width
Dimensions (W x D x H)440 x 432 x 43.2 mm
Operating temperature0 to 45°C
Operating humidity90% maximum, non-condensing
Storage temperature-20 to 70°C
Altitude3,000 m maximum
MTBF @ 25°C355,650 hours
Australian complianceRCM: AS/NZS CISPR 32:2013 Class A
Package contents
In the boxSwitch, power cord(s), USB Type-C to USB-A 2.0 console cable, rubber caps for the SFP+/SFP28/QSFP28 sockets, rubber footpads, installation guide, standard rack-mount brackets, longer brackets for recessed mounting

Figures from NETGEAR's official product page and datasheet.

The Netgear MSM4320 in depth

Built for touring and live AV

The MSM4320 brings Neutrik connectivity to the M4350 series. Eight of its sixteen 2.5G PoE++ ports are locking etherCON connectors on the front panel, power comes in through two powerCON connectors, and optional interface cards add opticalCON QUAD fibre for rugged stage and outside-broadcast use.

Redundant power by design

Two 800W internal power supplies provide 530W of PoE that stays up if one feed is lost, or 1,130W when both supplies share the load. C14 male adapters let you use standard IEC C13 cords where powerCON leads are not available.

Flexible uplinks and broadcast timing

The APM414V card with four 25G SFP28 ports ships pre-installed; swap it for 10GBASE-T copper or multimode/single-mode opticalCON cards as needed. As a SMPTE-capable M4350 model it offers PTP Boundary Clock and Grandmaster Clock for ST 2110 and AES67 workflows.

Frequently asked questions

Straight answers about the Netgear MSM4320 from the ARC IP Networks team. Last reviewed October 2026.

The MSM4320 has 16 x 2.5G PoE++ ports in total: 8 are Neutrik etherCON on the front panel and the other 8 are standard RJ45 ports. All 16 support Ultra90 PoE++.

Its two internal 800W power supplies give a 530W redundant PoE budget (1+1). With both supplies connected the total PoE budget reaches 1,130W.

It ships with the APM414V (4 x 25G SFP28). Optional cards are the APM414C (4 x 10GBASE-T, 1G/10G), APM414SD (2 opticalCON QUAD for 4 multimode transceivers) and APM414LD (2 opticalCON QUAD for 4 single-mode transceivers).

Netgear notes that a back-to-back 25G link between two MSM4320 units over passive DAC cables may take about 15 to 70 seconds to establish; active optical (AOC) cables remove that delay.

Yes. It is one of the M4350 models with hardware PTP Boundary Clock and Grandmaster Clock modes, supporting SMPTE 2059-2, AES67 and AES-R16-2016 profiles.

ARC IP Networks is an authorised Netgear reseller and supplies the MSM4320 from Australian stock with a GST tax invoice.

Explore the full Netgear range: Netgear Australia hub · Shop all Netgear

Buy the Netgear MSM4320 in Australia

ARC IP Networks is an authorised Netgear reseller, supplying Netgear switches, Wi-Fi, optics and Insight licences to businesses, schools, integrators and AV installers across Australia.

  • Genuine Netgear: sourced through Netgear's authorised Australian distribution, never grey import.
  • Australian stock, shipped Australia-wide, with Australian power where a power supply is included.
  • Manufacturer's warranty and local pre-sales help choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Netgear network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Netgear model for your site.

Brand NETGEAR
