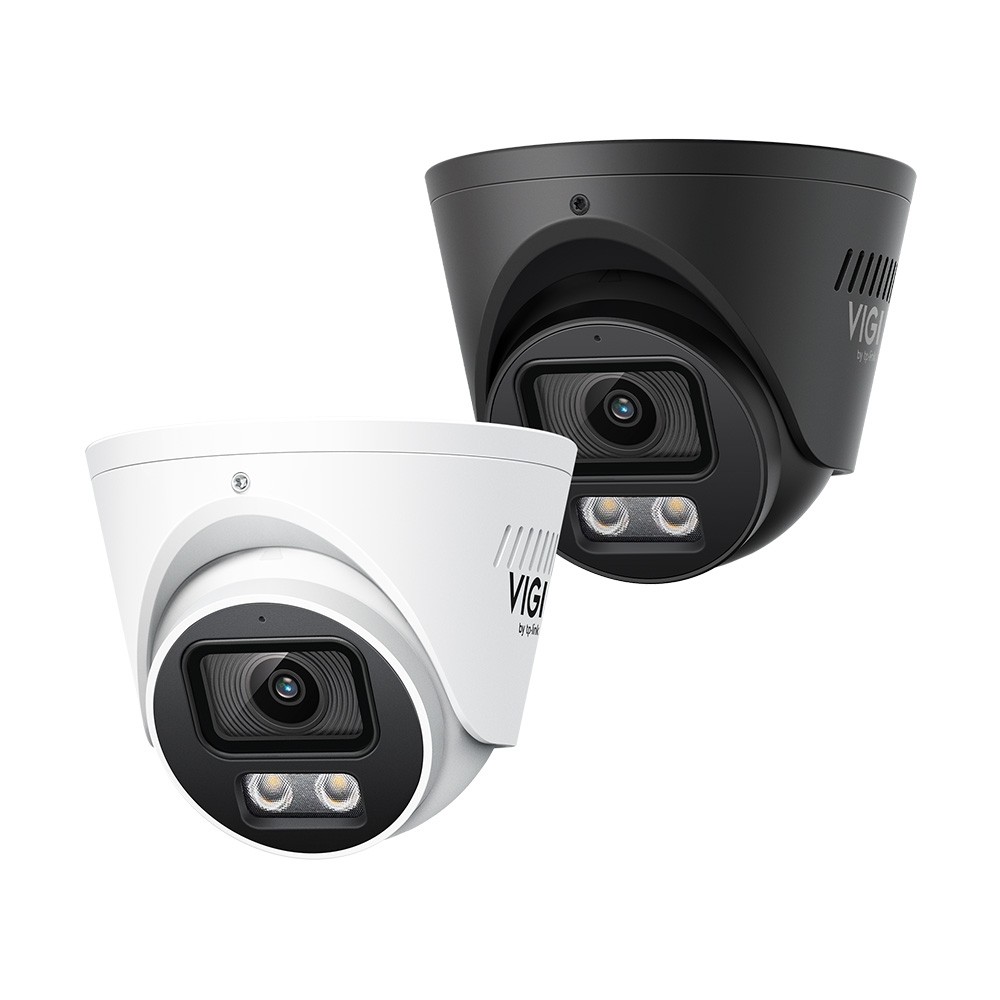

TP-Link VIGI InSight S445S(2.8mm) 4MP ColourPro 2.0 Turret Network Camera

https://arcip.com.au/web/image/product.template/11409/image_1920?unique=5017a71

The TP-Link VIGI InSight S445S(2.8mm) is a 4MP (2688 x 1520) ColourPro 2.0 turret network camera. A 2.8 mm F1.0 lens gives a 112.5° horizontal, 61.4° vertical and 137° diagonal view, with DORI distances of 59 m detect and 6 m identify. The 1/1.79" sensor and AI-driven ISP reach a minimum illumination of 0.0005 lux. Two integrated IR-white LEDs are rated to 30 m in TP-Link's laboratory testing. It also offers one alarm in and one alarm out, a built-in speaker and microphone, microSD storage, 802.3at PoE and an IP67 metal housing. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 370.34 370.34 AUD $ 370.34 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S445S-2.8MM
Barcode
8885020625622

The TP-Link VIGI InSight S445S(2.8mm) is a 4MP turret camera with TP-Link's ColourPro 2.0 low-light technology and a wide 2.8 mm F1.0 lens covering 112.5° horizontally. Its 1/1.79" sensor and AI-driven ISP target colour images in low light without fill lighting, down to 0.0005 lux, and its intelligent IR-white lights switch to white when people or vehicles are detected in darkness. It adds alarm in and out, two-way audio, people and vehicle attribute analytics and 802.3at PoE.

InSight S445S(2.8mm) overview

The VIGI InSight S445S brings TP-Link's ColourPro 2.0 night imaging to a turret housing, and this is its 2.8 mm F1.0 lens version. TP-Link specifies a 112.5° horizontal, 61.4° vertical and 137° diagonal field of view, making it a wide-angle option, with DORI distances of 59 m detect, 25 m observe, 12 m recognise and 6 m identify. Maximum resolution is 2688 x 1520 (4MP) at up to 25 fps on 50 Hz or 30 fps on 60 Hz, reduced to 20 fps when the image is rotated 90° or 270°.

ColourPro 2.0 is TP-Link's approach to seeing colour in the dark without switching on a spotlight. TP-Link lists three ingredients: a 1/1.79" progressive scan CMOS with 2.1x the photosensitive area of 1/3" sensors, the F1.0 aperture that collects 4x the light of F2.0, and an AI-driven ISP module with multi-AI noise reduction. TP-Link credits the combination with lower image noise, colour accuracy, reduced motion blur and extended visibility range, and says imaging in low light without fill lighting cuts energy use and insect-triggered false alarms. Minimum illumination is 0.0005 lux, or 0 lux with IR or white light.

When there is no light at all, two integrated 850 nm infrared-white LEDs take over. TP-Link rates both the IR and white light at 30 m and notes these are laboratory calculations that are not guaranteed and will vary with client limitations and environmental factors. With no person or vehicle detected, the camera stays in black-and-white IR; on detecting one, it turns on the white light for a colour image, then reverts to IR. Supporting this are 120 dB True WDR, BLC, 3D DNR, HLC, Smart IR, an SNR of 52 dB or more, four privacy masks and one ROI. TP-Link lists dimly lit bars, warehouses, parking lots, farms and orchards, and wildlife habitats as low-light environments where colour and detail matter, and adds that its sample images are for reference only and actual footage varies with environmental conditions.

People and vehicle attributes analytics lets you filter recordings by attributes such as hair length, topwear colour and vehicle type, and TP-Link states it must be used with VIGI specified software. Human and vehicle classification distinguishes people and vehicles from other objects such as moving animals, falling leaves and changing lights, and smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection. There is one alarm in and one alarm out, plus a built-in speaker and microphone (5 m radius). Alarm linkage covers memory card recording, FTP upload, alarm output, push notifications, an alarm server, Active Defence sound and light alarms and email. Power is 802.3at PoE (Class 4, maximum 17.9 W) or 12 V DC (maximum 15.6 W), with 3.6 W networked standby under TP-Link's ErP information. The metal turret is IP67 weatherproof, measures Φ111 x 81.4 mm and weighs 0.55 kg. A microSD slot takes cards up to 512 GB; TP-Link notes the microSD card and pole mounting kits are not included.

Key features

2.8 mm F1.0 lens

112.5° horizontal, 61.4° vertical, 137° diagonal.

DORI at 2.8 mm

Detect 59 m, observe 25 m, recognise 12 m, identify 6 m.

ColourPro 2.0

Colour imaging in low light without fill-in lighting.

1/1.79" CMOS and AI-ISP

Larger sensor plus multi-AI noise reduction.

0.0005 lux

Minimum illumination; 0 lux with IR or white light.

Intelligent IR-white lights

Switch to white light when people or vehicles are detected.

Attribute analytics

Search by hair length, topwear colour or vehicle type.

Alarm in and out

One alarm input and one alarm output.

Two-way audio

Built-in speaker and microphone.

802.3at PoE, IP67

Class 4 PoE up to 17.9 W; IP67 metal turret, 0.55 kg.

InSight S445S(2.8mm) specifications

At a glance

4MP 2688x1520
ColourPro 2.0
2.8 mm F1.0
112.5° horizontal FOV
0.0005 lux
IR-white LED 30 m
802.3at PoE
IP67
InSight S445S(2.8mm) full specifications
Camera
Image Sensor1/1.79” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.0005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8 mm
ApertureF1.0
FOVHorizontal FOV: 112.5°; Vertical FOV: 61.4°; Diagonal FOV: 137°
Lens MountM12
DORI Distance2.8 mm:; D: 194 ft (59 m); O: 82 ft (25 m); R: 39 ft (12 m); I: 20 ft (6 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Integrated Infrared-White LEDQuantity: 2; IR Range: 98 ft (30 m); White LED Range: 98 ft (30 m); Wavelength: 850nm
Video
Max. Resolution2688x1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Rotation; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes (Built-in Microphone)
Audio OutputYes (Built-in Speaker)
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Upload to FTP Server; Alarm Output Device; Push Notifications; Send to Alarm Server; Active Defense-Sound Alarm; Active Defense-Light Alarm; Email Alarm
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
General
MaterialMetal
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Net Weight0.55 Kg
Power SupplyDC; 12V DC ± 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120150-2C1 (for EU Regions) PoE; PoE: 802.3at, Class 4, Max. 17.9 W ErP Information; Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 3.6W
ProtectionIP67 Weatherproof
Product Dimensions (L x W x H)Φ4.4 × 3.2 in (Φ111 × 81.4 mm)
CertificationsCE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S445S(2.8mm) is for

Wide low-light coverage

  • 112.5° horizontal view
  • Colour without fill lighting
  • 0.0005 lux minimum illumination

Low-light settings TP-Link names

  • Dimly lit bars
  • Warehouses and parking lots
  • Farms, orchards and wildlife habitats

Alarm-integrated sites

  • One alarm in, one alarm out
  • Active Defence sound and light alarms
  • Push, email and alarm server linkage

InSight S445S(2.8mm) compared

The S445S turret and S345S bullet share TP-Link's ColourPro 2.0 hardware. Figures are from each model's TP-Link Australia product page.

SpecS445S (2.8mm turret)S345S (4mm bullet)
Lens2.8 mm F1.04 mm F1.0
Horizontal FOV112.5°95°
Detect59 m76 m
Observe25 m29 m
Recognise12 m14 m
Identify6 m7 m
Minimum illumination0.0005 lux0.0005 lux
DimensionsΦ111 x 81.4 mmΦ66 x 191 mm

Source: TP-Link Australia product pages for each model.

Buy the InSight S445S(2.8mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S445S(2.8mm) from the ARC IP Networks team.

Last reviewed October 2026.

112.5° horizontal, 61.4° vertical and 137° diagonal, through a 2.8 mm F1.0 fixed lens.

Detect 59 m, observe 25 m, recognise 12 m and identify 6 m.

TP-Link's ColourPro 2.0 aims to produce colour images in low light without fill-in lighting, using a 1/1.79" sensor, an F1.0 aperture and an AI-driven ISP. TP-Link contrasts ColourPro 2.0 night vision with the spotlight off against standard full-colour night vision with the spotlight on.

The camera uses IR and shows a black-and-white image until it detects a person or vehicle, then turns on its white light for a colour image and returns to IR afterwards.

TP-Link rates both at 30 m, based on laboratory testing; it notes actual data is not guaranteed and varies with client limitations and environmental factors.

Yes. It has one alarm input and one alarm output.

Yes, both are built in for two-way audio, and the microphone records within a 5 m radius.

It is specified for 802.3at PoE (Class 4, maximum 17.9 W). It can also be powered by 12 V DC (maximum 15.6 W).

TP-Link rates the metal turret IP67 weatherproof, with an operating range of -30 to 60 °C.

The microSD card and pole mounting kits. The package includes the camera, quick start guide, waterproof cable attachments and mounting accessories.

Need more than one InSight S445S(2.8mm) for a VIGI ColourPro turret rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
