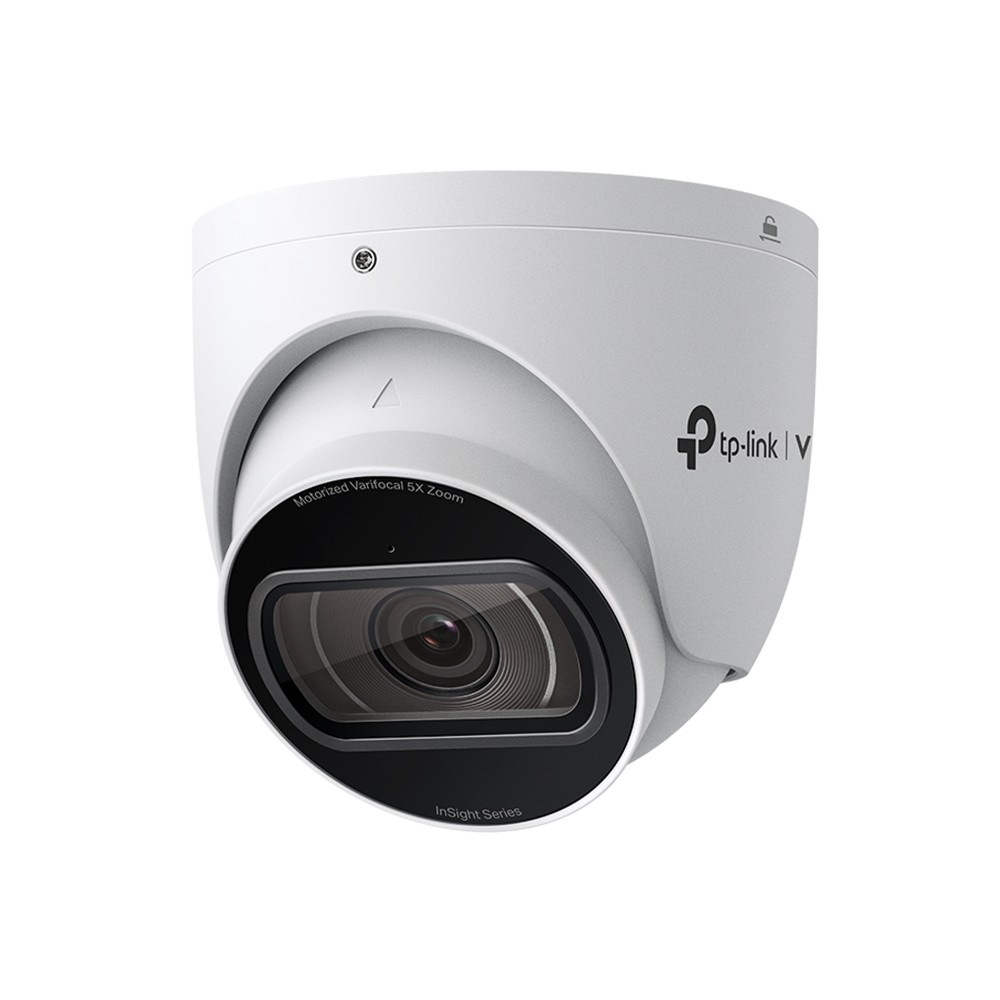

TP-Link VIGI InSight S445ZI 4MP IR Motorised Varifocal Turret Network Camera

https://arcip.com.au/web/image/product.template/11410/image_1920?unique=07a0f43

The TP-Link VIGI InSight S445ZI is a 4MP (2688 x 1520) IR turret network camera with a motorised 2.7-13.5 mm F1.6 varifocal lens and 5X optical zoom, covering 102.0° to 29.6° horizontally. Four 850 nm IR LEDs reach 60 m, and TP-Link quotes detection from 66 to 207 m. It adds human and vehicle classification, 11 smart event types, one alarm and one audio in/out, microSD storage up to 512 GB, 802.3af/at PoE and an IP67, IK10 metal housing weighing 0.71 kg. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 277.57 277.57 AUD $ 277.57 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S445ZI
Barcode
8885020623550

The TP-Link VIGI InSight S445ZI is a 4MP IR turret network camera with a motorised 2.7-13.5 mm F1.6 varifocal lens and 5X optical zoom. It reaches 60 m with four IR LEDs, quotes detection from 66 to 207 m across the zoom, and adds human and vehicle classification, alarm and audio in/out, microSD storage, PoE and an IP67, IK10 metal turret housing.

InSight S445ZI overview

The VIGI InSight S445ZI puts a motorised zoom lens into TP-Link's turret housing. It is a 4MP IR network camera with a 2.7 to 13.5 mm F1.6 varifocal lens and 5X optical zoom, and TP-Link positions the motorised varifocal as a way to concentrate on areas of interest, cut down invalid detection zones and improve target clarity. Set wide, the lens covers 102.0° horizontally, 53.8° vertically and 122.8° diagonally; zoomed fully in, those figures become 29.6°, 16.8° and 34.1°.

TP-Link publishes DORI distances for the full zoom range: detect at 66 to 207 m, observe at 28 to 86 m, recognise at 13 to 41 m and identify at 7 to 21 m. The 1/2.9" progressive scan CMOS sensor records at up to 2688 x 1520, and the main stream can also run at 2560 x 1440, 2304 x 1296, 2048 x 1280 or 1920 x 1080. Frame rate is up to 25 fps on 50 Hz and 30 fps on 60 Hz, dropping to a 20 fps maximum when the image is rotated 90° or 270°. Compression options are H.265+, H.265, H.264+ and H.264 on the main stream at 256 Kbps to 6 Mbps; TP-Link says H.265+ saves 57.5% and 15% more storage than H.264 and H.265, figures calculated in its laboratory with a 3MP VIGI camera and subject to recorded activity, resolution and other variables.

Four 850 nm IR LEDs provide night vision to 60 m, switchable between auto, scheduled, always on and always off. Minimum illumination is 0.005 lux, or 0 lux with IR, with an IR-cut filter. TP-Link describes True WDR (120 dB) as blending different exposures so both bright and dark areas stay properly exposed; Smart IR adjusts infrared output to prevent overexposure and glare; 3D DNR analyses data across frames to reduce noise while keeping detail. The camera also offers BLC, HLC, up to four privacy masks and one ROI region.

Human and vehicle classification sharpens motion alerts, and the smart events are intrusion, line-crossing, region entering, region exiting, object abandoned, object removal, loitering, people detection, vehicle detection, abnormal sound and scene change. The turret has one alarm in, one alarm out, one audio in and one audio out, with a built-in microphone (5 m radius); TP-Link lists the built-in speaker as N/A. Alarm linkage includes memory card recording, message push, audible warning, email alarm, FTP upload and an alarm out device. It connects through one 10/100 Mbps PoE port (802.3af/at, class 0, maximum 12 W) or 12 V DC (maximum 10.8 W), records to microSD cards up to 512 GB (card not included), and is managed with the VIGI App, VIGI Security Manager, Web UI, VIGI VMS or VIGI Cloud VMS. The metal turret is rated IP67 weatherproof and IK10 vandal proof, measures Φ112.3 x 92.5 mm and weighs 0.71 kg.

Key features

Motorised varifocal

2.7-13.5 mm F1.6 lens with 5X optical zoom.

Wide to tele coverage

102.0° to 29.6° horizontal field of view.

DORI to 207 m

Detect 66-207 m and identify 7-21 m across the zoom range.

IR to 60 m

Four 850 nm IR LEDs, 0 lux with IR.

True WDR 120 dB

Balances bright and dark areas in high-contrast lighting.

Human and vehicle classification

Distinguishes people and vehicles for more accurate notifications.

Alarm and audio terminals

One alarm in/out and one audio in/out for external devices.

Eleven smart events

Including intrusion, line-crossing, loitering and abnormal sound detection.

IP67 and IK10 turret

Metal housing, -30 to 60 °C, 0.71 kg.

PoE powered

802.3af/at PoE up to 12 W, or 12 V DC up to 10.8 W.

InSight S445ZI specifications

At a glance

4MP 2688x1520
2.7-13.5 mm lens
5X optical zoom
Detect 66-207 m
IR 60 m
Alarm + audio I/O
802.3af/at PoE
IP67 / IK10
InSight S445ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 66-207 m (217-579 ft); Observe: 28-86 m (92-282 ft); Recognize: 13-41 m (43-135 ft); Identify: 7-21 m (23-69 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 77°, Rotation: 0° to 360°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 60m (197ft); Wavelength: 850nm
Illuminator Distance197 ft (60 m)
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 512 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; Email Alarm; Upload Capture to FTP; Alarm Out Device
Linkage MethodN/A
Output NotificationMessage Push; Email Alarm; Upload Capture to FTP
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.71 Kg
Gross Weight0.96 Kg
Power Supply12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)Φ4.4 × 3.6 in (Φ112.3 × 92.5 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S445ZI is for

Zoomed turret coverage

  • 5X motorised optical zoom
  • Field of view from 102° down to 29.6°
  • Identify distance up to 21 m

Low-light monitoring

  • IR night vision to 60 m
  • Smart IR against overexposure
  • 120 dB True WDR

Alarm-linked surveillance

  • Alarm input and output
  • Audible warning and email alarm
  • Human and vehicle classification

InSight S445ZI compared

The S445ZI is the turret member of TP-Link's 4MP motorised varifocal InSight trio. Figures are from each model's TP-Link Australia product page.

SpecS445ZI (turret)S345ZI (bullet)S245ZI (dome)
Lens2.7-13.5 mm, 5X2.7-13.5 mm, 5X2.7-13.5 mm, 5X
Detect66-207 m66-207 m62-200 m
Identify7-21 m7-21 m7-21 m
Manual tilt0° to 77°0° to 90°0° to 75°
Net weight0.71 kgNot stated0.775 kg
DimensionsΦ112.3 x 92.5 mm256 x 100 x 101 mmΦ129.9 x 102.5 mm
ProtectionIP67, IK10IP67, IK10IP67, IK10

Source: TP-Link Australia product pages for each model.

Buy the InSight S445ZI from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S445ZI from the ARC IP Networks team.

Last reviewed October 2026.

Its motorised varifocal lens runs from 2.7 to 13.5 mm at F1.6, which TP-Link specifies as 5X optical zoom.

At 2.7 mm the horizontal view is 102.0°; at 13.5 mm it is 29.6°. Vertical goes from 53.8° to 16.8° and diagonal from 122.8° to 34.1°.

Detect 66-207 m, observe 28-86 m, recognise 13-41 m and identify 7-21 m, depending on zoom position.

Up to 2688 x 1520 (4MP) at up to 25 fps on 50 Hz or 30 fps on 60 Hz. Frame rate is limited to 20 fps when the image is rotated 90° or 270°.

Four 850 nm IR LEDs reach 60 m, and minimum illumination is 0 lux with IR.

TP-Link lists the built-in speaker as N/A. It has a built-in microphone (5 m radius) and one audio in and one audio out terminal.

Yes. There is one alarm input and one alarm output, and an alarm out device is one of the linkage actions.

Yes. TP-Link rates the metal housing IP67 weatherproof and IK10 vandal proof, for -30 to 60 °C.

802.3af/at PoE (class 0, maximum 12 W) or 12 V DC (maximum 10.8 W).

No. It supports microSD cards up to 512 GB, and TP-Link notes the SD card is not included in the package.
