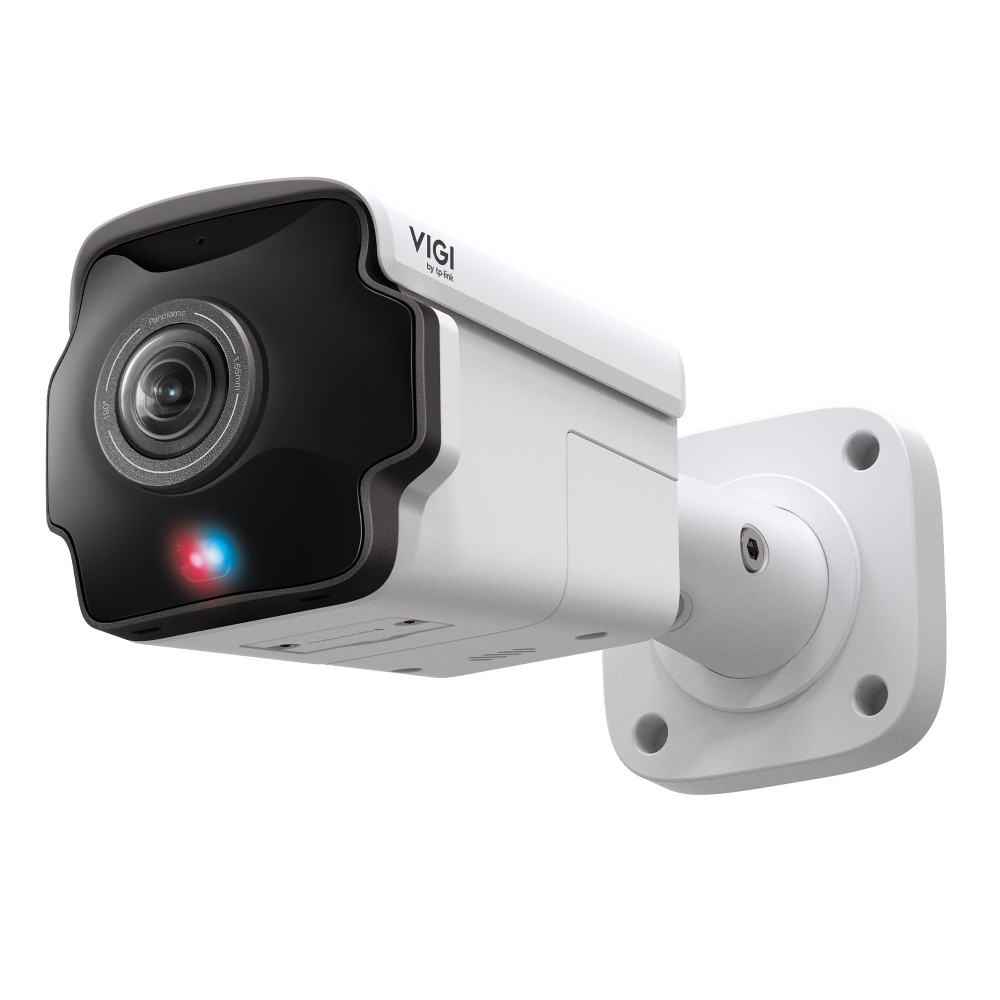

TP-Link VIGI InSight S385PI 8MP Outdoor IR Panoramic Bullet Network Camera

https://arcip.com.au/web/image/product.template/11408/image_1920?unique=fe2c840

The TP-Link VIGI InSight S385PI is an 8MP (3840 x 2160) outdoor IR panoramic bullet network camera. A 1.65 mm F2.0 lens gives a 180° horizontal and 86° vertical view, with DORI distances of 44 m detect and 4.4 m identify. Four 850 nm IR LEDs are rated to 20 m in TP-Link's laboratory testing, and red-blue warning lights plus a built-in speaker provide Active Defence. It has one audio in/out, one alarm in/out, people and vehicle analytics, a microSD slot, 802.3at PoE and an IP67, IK10 metal body. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 398.20 398.2 AUD $ 398.20 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S385PI
Barcode
8885020627862

The TP-Link VIGI InSight S385PI is an 8MP (4K) outdoor IR panoramic bullet camera whose 1.65 mm lens covers a 180° horizontal view in a single image. It adds red-blue warning lights and a speaker for Active Defence, four IR LEDs rated to 20 m in TP-Link's laboratory tests, audio and alarm in/out terminals, people and vehicle analytics, 802.3at PoE and an IP67, IK10 metal housing.

InSight S385PI overview

TP-Link's line for the VIGI InSight S385PI is 'One Shot, Huge Vision'. It is an 8MP outdoor bullet with a panoramic (PI) lens instead of a standard fixed or varifocal one: a 1.65 mm F2.0 lens that covers 180° horizontally, 86° vertically and 180° diagonally. TP-Link's argument is that general cameras need multiple units to cover blind spots in large spaces such as hotel lobbies, playgrounds, intersections and warehouses, and that a single 180° 4K panoramic camera reduces installation, deployment and maintenance costs while covering more area. The trade-off for that width is shorter DORI distances: TP-Link lists 44 m detect, 18.33 m observe, 8.8 m recognise and 4.4 m identify.

The 1/2.7" progressive scan CMOS sensor delivers up to 3840 x 2160, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, and 20 fps when the image is rotated 90° or 270°. Main-stream encoding is H.265+, H.265, H.264+ or H.264 at 256 Kbps to 8 Mbps. TP-Link says H.265+ saves 57.5% and 15% more storage space than H.264 and H.265; it calculated this in laboratory testing with a 3MP VIGI camera and notes performance varies with the amount of activity recorded, resolution and other variables. The S385PI is an IR camera, not a full-colour one: four 850 nm IR LEDs light the scene to 20 m, a range TP-Link bases on laboratory testing that is not guaranteed and will vary with client limitations and environmental factors. Minimum illumination is 0.005 lux, or 0 lux with IR. Image tools include 120 dB True WDR, BLC, 3D DNR, HLC and Smart IR, four privacy masks and up to four ROI regions.

Active Defence is central to this model. TP-Link describes it as a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time to deter intruders, and it supports user-created custom voice audio. Instead of white light, the S385PI uses red-blue warning lights, which TP-Link says are more effective than white lights and create a strong deterrent when paired with audio alarms. Alarm linkage covers memory card recording, FTP upload, an alarm output device, push notifications, an alarm server, Active Defence sound and light alarms, and email. When an AI function or an external alarm device triggers an event, alerts are sent to your phone; TP-Link notes that AI-triggered notifications support playback of the specific event clip, while notifications from external alarm devices support live view only.

For integration there are audio in/out and alarm in/out ports, which TP-Link says enable connection to external alarm or access control devices, alongside a built-in microphone (5 m radius) and built-in speaker. Human and vehicle classification distinguishes people and vehicles from moving animals, falling leaves and changing lights, and people and vehicle analytics lets you search by attributes such as hair length, upper body colour and vehicle type; that analytics feature must be used with VIGI specified software. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection. Power is 802.3at PoE (Class 4, maximum 21 W) or 12 V DC (maximum 18 W). The metal bullet is rated IP67 weatherproof and IK10 vandal proof, measures 266 x 100 x 101 mm, weighs 1.01 kg and operates from -30 to 60 °C. It is managed with the VIGI App, VIGI Security Manager, Web UI, VIGI VMS or VIGI Cloud VMS. microSD cards up to 512 GB are supported; TP-Link notes the microSD card and pole mounting kits are not included.

Key features

180° panoramic view

1.65 mm F2.0 lens: 180° horizontal, 86° vertical.

8MP 4K resolution

3840 x 2160 at up to 30 fps on 60 Hz.

Panoramic DORI

Detect 44 m, observe 18.33 m, recognise 8.8 m, identify 4.4 m.

Red-blue warning lights

Flashing red-blue lights with sound for Active Defence.

Custom voice audio

Active Defence supports user-created voice messages.

IR night vision

Four 850 nm IR LEDs rated to 20 m in laboratory testing.

Audio and alarm I/O

Audio in/out and alarm in/out for external devices.

People and vehicle analytics

Attribute search, used with VIGI specified software.

IP67 and IK10

Weatherproof, vandal-proof metal bullet, 1.01 kg.

802.3at PoE

Class 4, maximum 21 W; or 12 V DC up to 18 W.

InSight S385PI specifications

At a glance

8MP 3840x2160
1.65 mm panoramic
180° horizontal FOV
Red-blue warning lights
IR up to 20 m
Audio + alarm I/O
802.3at PoE
IP67 / IK10
InSight S385PI full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length1.65 mm
ApertureF2.0
FOVHorizontal FOV: 180°; Vertical FOV: 86°; Diagonal FOV: 180°
Lens MountM12
DORI Distance1.65mm:; D: 144.36 ft (44 m); O: 60.15 ft (18.33 m); R: 28.87 ft (8.8 m); I: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 4; Range: 65.62 ft (20 m) 1; Wavelength: 850nm
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution3840 x 2160
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI4 Regions
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputBuilt-in Microphone Audio In Interface
Audio OutputBuilt-in Speaker Audio Out Interface
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Upload to FTP Server; Alarm Output Device; Push Notifications; Send to Alarm Server; Active Defence-Sound Alarm; Active Defence-Light Alarm; Email Alarm
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. 2
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB 5
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30℃ to 60 °C
Storage Temperature-40 to 60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight1.01Kg
Power Supply12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug; PoE: 802.3at, Class 4, Max. 21W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)10.5 × 3.9 × 4 in (266 × 100 × 101 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S385PI is for

Large open areas

  • 180° view from one camera
  • Hotel lobbies and playgrounds, per TP-Link
  • Intersections and warehouses, per TP-Link

Active deterrence

  • Red-blue flashing warning lights
  • Loud sound alarms
  • User-created custom voice audio

Alarm and access control integration

  • Alarm in and alarm out ports
  • Audio in and audio out ports
  • Alarm server and email linkage

InSight S385PI compared

TP-Link makes the 8MP IR panoramic camera as an outdoor bullet (S385PI) and a turret (S485PI). Figures are from each model's TP-Link Australia product page.

SpecS385PI (bullet)S485PI (turret)
Lens / FOV1.65 mm, 180° H1.65 mm, 180° H
Detect / identify44 m / 4.4 m44 m / 4.4 m
IR range20 m20 m
Manual tilt0° to 90°0° to 75°
Net weight1.01 kg0.76 kg
Dimensions266 x 100 x 101 mm112.3 x 112.3 x 110.2 mm
ProtectionIP67, IK10IP67, IK10

Source: TP-Link Australia product pages for each model.

Buy the InSight S385PI from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S385PI from the ARC IP Networks team.

Last reviewed October 2026.

Its 1.65 mm F2.0 panoramic lens covers 180° horizontally, 86° vertically and 180° diagonally.

It is TP-Link's IR panoramic model: TP-Link titles it the 8MP Outdoor IR Panoramic Bullet Network Camera, with IR night vision rather than white-light colour night vision.

Detect 44 m, observe 18.33 m, recognise 8.8 m and identify 4.4 m.

Up to 3840 x 2160 (8MP), at up to 25 fps on 50 Hz or 30 fps on 60 Hz, and 20 fps when rotated 90° or 270°.

TP-Link rates the four 850 nm IR LEDs to 20 m, calculated from laboratory testing; it notes actual data is not guaranteed and varies with client limitations and environmental factors.

Deep learning or an external alarm device can trigger flashing red-blue lights and loud sounds in real time, and you can use your own custom voice audio.

Yes. It has audio in/out and alarm in/out ports, which TP-Link says enable integration with external alarm or access control devices.

TP-Link says AI-triggered notifications support playback of the specific event clip, while notifications triggered by external alarm devices only support live view.

802.3at PoE (Class 4, maximum 21 W) or 12 V DC (maximum 18 W).

Yes. The metal housing is rated IK10 vandal proof and IP67 weatherproof. The microSD card and pole mounting kits are not included.

Need more than one InSight S385PI for a VIGI panoramic camera rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
